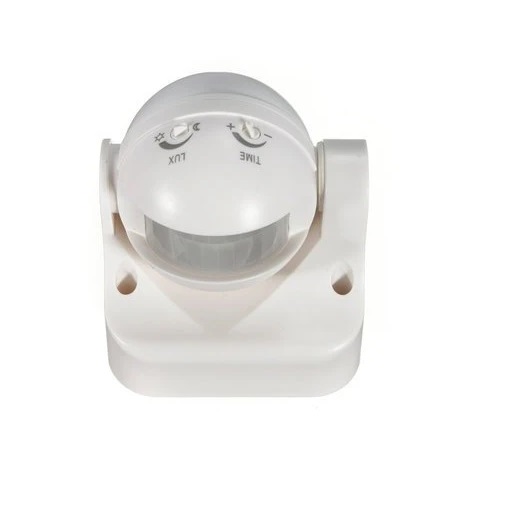

True Sense Wall Mount PIR Motion Sensor, TS-14

Name: True Sense Wall Mount PIR Motion Sensor, TS-14
Brand: True Sense Technologies
Price: 290.0 INR
Availability: InStock

Price 290.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

True Sense Wall Mount PIR Motion Sensor, TS-14 Specification

Sensitivity
Adjustable

Mounting Type
Wall Mount

Features
Adjustable time delay, adjustable lux, compact design, energy saving

Signal Type
Digital Output

Operating Temperature
-20C to +50C

Power Consumption
<0.5W (static) / <2W (active)

Cable Length
Not included

Sensor Type
Passive Infrared (PIR)

Application
Residential, Commercial, Security systems, Lighting control

Measurement Range
120 angle, up to 12 meters

Interface
Hardwired terminal blocks

Wireless
No

IP Rating
IP44

Response Time
<1 second

Product Type
Wall Mount PIR Motion Sensor

Material
ABS Plastic

Input
AC 220-240V, 50Hz

Output
Relay Output (NO/NC)

Function
Automatic motion detection for lighting and security applications

Usage
Indoor and Outdoor

Accuracy
High sensitivity; accurate motion detection

Voltage
220-240 V AC

Weight
120 grams

Detection Angle
120 degrees wide

Maximum Load
1200W (incandescent), 300W (LED)

Operating Humidity
<93% RH

Compliance
CE Certified

Time Delay
Adjustable (10 sec to 7 min)

Color
White

Case Dimensions
86 x 50 x 35 mm

Working Frequency
50/60 Hz

Installation Height
1.8-2.5 meters

Ambient Light Adjustment
3-2000 LUX

True Sense Wall Mount PIR Motion Sensor, TS-14 Trade Information

Minimum Order Quantity
5 Pieces

Delivery Time
2 Days

About True Sense Wall Mount PIR Motion Sensor, TS-14

True Sense TS-14 Infrared Motion Sensor is an energy-saving PIR motion detector designed for reliable outdoor security and automatic lighting control. With a wide 180-degree detection angle, it efficiently detects movement and switches lights or devices automatically.

This waterproof motion sensor is suitable for outdoor use and helps reduce energy consumption by operating only when motion is detected.

Applications: Outdoor lighting, security systems, building entrances, parking areas, pathways, and perimeter protection.

Features of TS-14 PIR Motion Sensor:

PIR infrared motion detection for automatic control
Wide 180-degree detection coverage
Waterproof design for outdoor use
Energy-saving and reliable operation
Suitable for security and outdoor lighting applications
Clean white finish for easy installation

Highly Adjustable and Accurate Detection

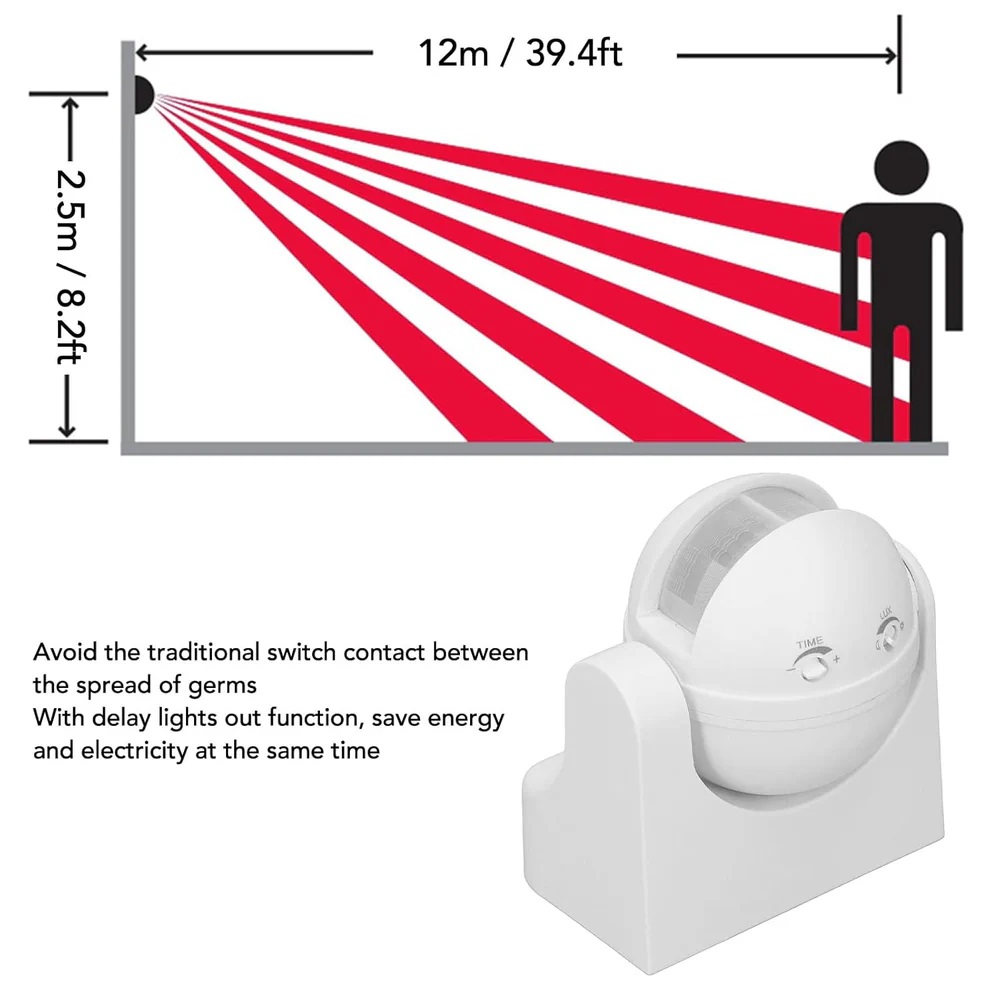

Experience seamless motion-triggered automation with the TS-14's customizable sensitivity, time delay, and light level settings. The sensor's 120-degree field and up to 12-meter detection range are ideal for optimizing lighting and enhancing security. Its high sensitivity and swift response time ensure precise detection, helping to conserve energy and improve convenience in both home and business settings.

Sturdy Design for Versatile Environments

Built with premium ABS plastic and boasting an IP44 weatherproof rating, the TS-14 is reliable for varied installations-indoors or out. The unit withstands humidity under 93% and operates within a wide temperature range (-20C to +50C). Its compact form and easy wall mounting make it suitable for corridors, entryways, garages, and more.

Simple Installation and Energy Savings

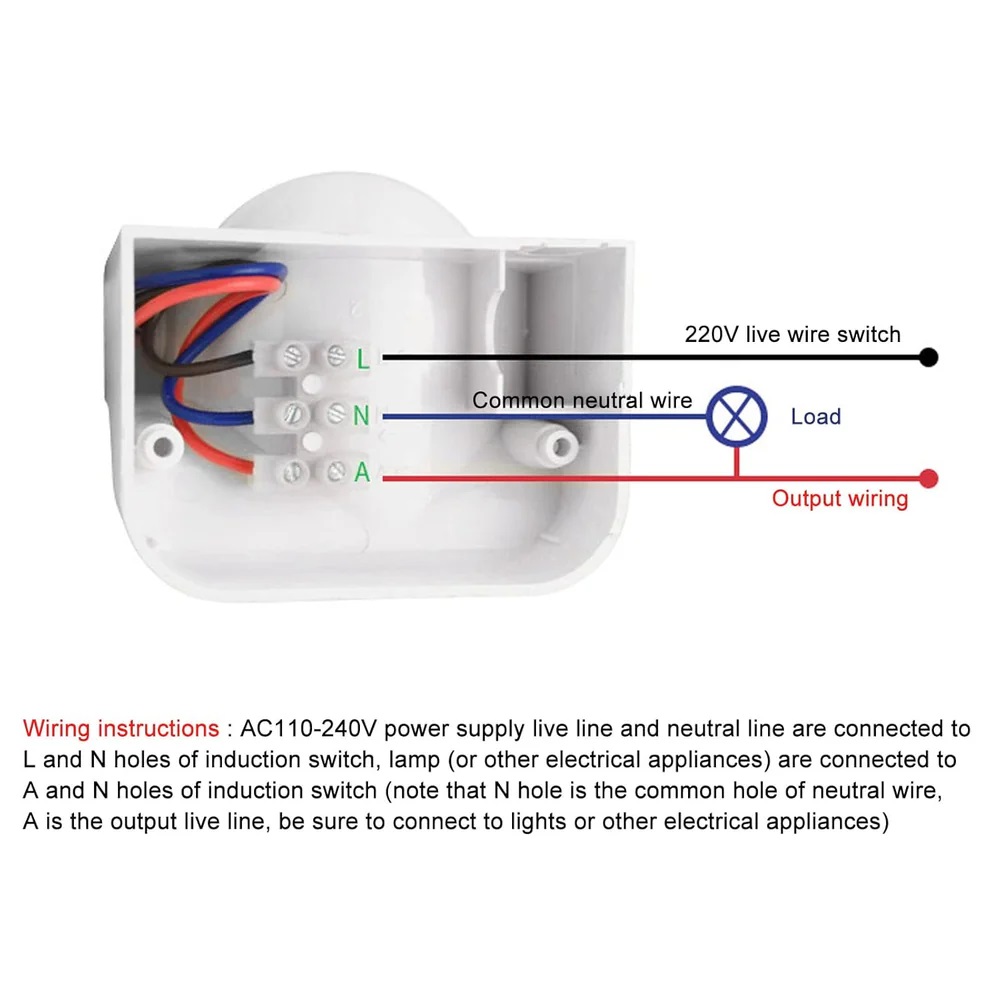

Designed for effortless wiring with hardwired terminal blocks, the TS-14 supports installation heights from 1.8 to 2.5 meters. Its automatic relay output enables direct integration with lighting or security systems. With an ultra-low standby power consumption of under 0.5W, the sensor helps minimize electricity usage while maximizing security and comfort.

FAQ's of True Sense Wall Mount PIR Motion Sensor, TS-14:

Q: How do I install the True Sense Wall Mount PIR Motion Sensor TS-14?

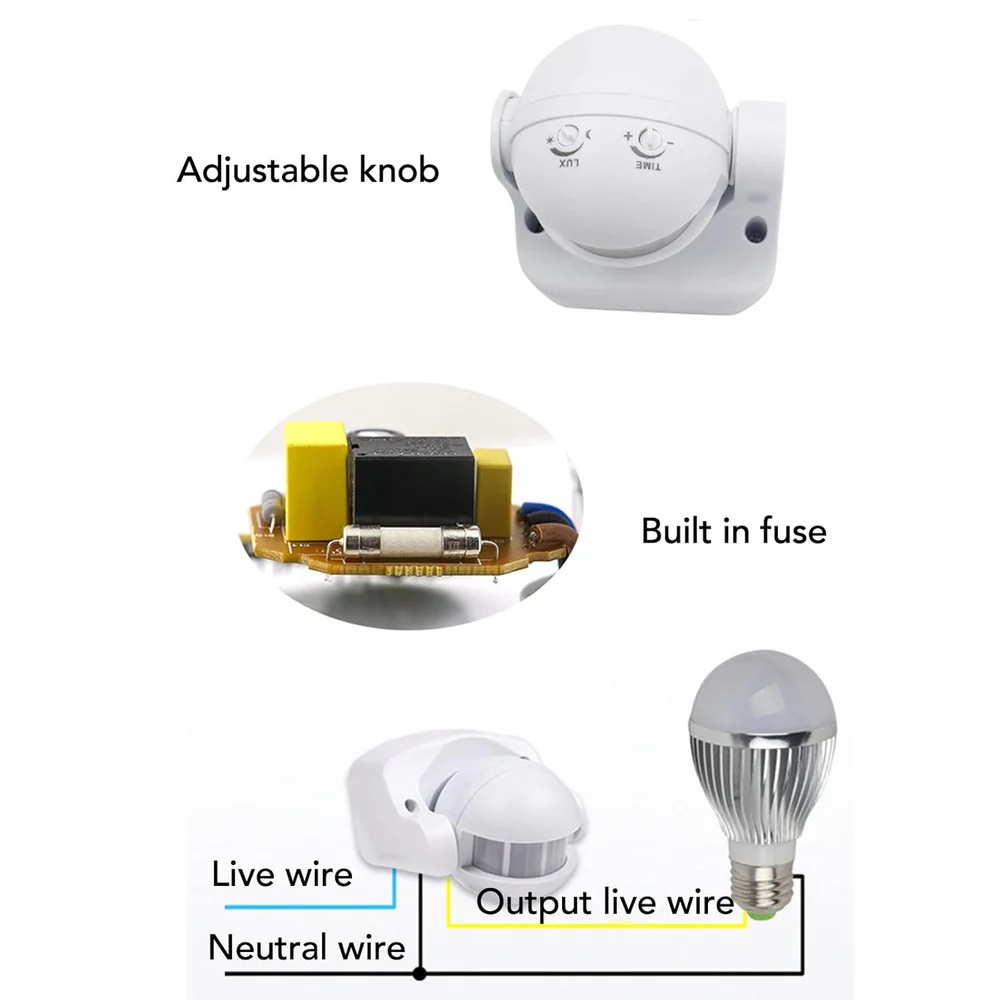

A: Installation is straightforward-mount the sensor on a wall at a height between 1.8 and 2.5 meters using the provided mounting points. Connect the wiring to the hardwired terminal blocks, then adjust the desired time delay and ambient light sensitivity using the built-in dials. Ensure the sensor is positioned for optimal coverage of your target area.

Q: What lighting loads can the TS-14 sensor control?

A: The TS-14 can switch lighting loads up to 1200W for incandescent lamps and up to 300W for LED fixtures. This makes it suitable for a variety of residential and commercial lighting setups.

Q: When is it best to use the ambient light adjustment feature?

A: Use the ambient light adjustment (from 3 to 2000 LUX) when you want the sensor to activate only under certain lighting conditions. For example, set a lower LUX level for nighttime-only activation, or a higher setting to permit operation in brighter environments.

Q: Where can the TS-14 motion sensor be installed?

A: Thanks to its IP44 rating and robust ABS housing, the sensor is ideal for both indoor and sheltered outdoor applications, including hallways, staircases, entranceways, porches, and covered garages.

Q: What is the process for adjusting the time delay on the TS-14?

A: After installation, use the adjustment dial located on the unit to set the time delay to your preference-anywhere from 10 seconds up to 7 minutes. This controls how long the relay stays engaged after detecting motion.

Q: How does using the TS-14 sensor benefit my lighting and security systems?

A: The TS-14 automates lighting and enhances security by ensuring lights turn on only when motion is detected, reducing unnecessary energy consumption and increasing convenience and safety in both private and public spaces.
