Microwave Motion Sensor Detector Switch, TS-11

Send Inquiry

Request To Call Back

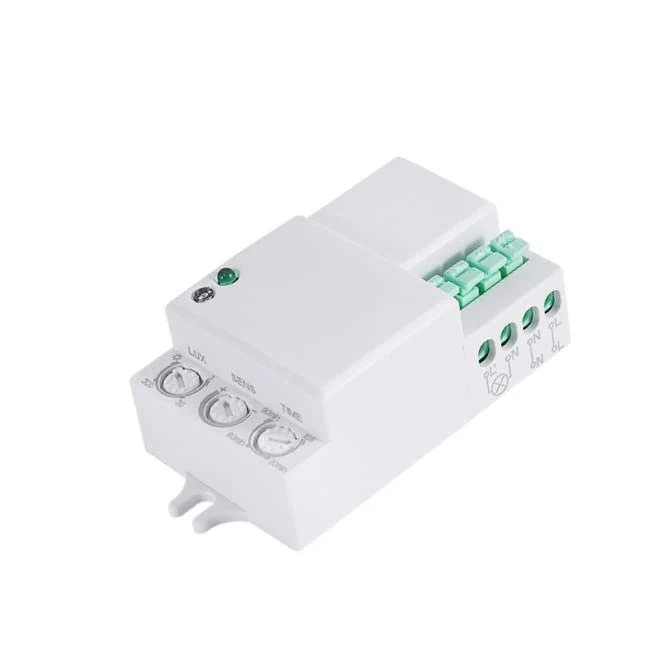

Microwave Motion Sensor Detector Switch, TS-11

Name: Microwave Motion Sensor Detector Switch, TS-11
Brand: True Sense Technologies
Price: 400.0 INR
Availability: InStock

Price 400.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

Microwave Motion Sensor Detector Switch, TS-11 Specification

Features
Daylight sensing, adjustable time delay, compact design

Sensor Type
Microwave (Doppler Radar)

Measurement Range
Detection area up to 10m radius

Interface
Terminal block

Wireless
No

Power Consumption
<0.9W (static)

Mounting Type
Ceiling/Wall Surface Mounting

Operating Temperature
-20C to +40C

IP Rating
IP20

Sensitivity
Adjustable (10% to 100%)

Signal Type
Digital Switch

Response Time
<1 second

Application
Corridors, stairwells, basements, garages, offices, and similar places

Cable Length
Terminal block connection, no fixed cable

Product Type
Microwave Motion Sensor Detector Switch

Material
ABS (Acrylonitrile Butadiene Styrene) Housing

Input
AC 220-240V, 50/60Hz

Output
Relay (Load Switching, Max. 1200W incandescent, 300W fluorescent)

Function
Automatic motion detection and light switching

Usage
Indoor lighting control and automation

Accuracy
High sensitivity, reliably detects motion

Voltage
220-240V AC

Weight
Approx. 110g

Relative Humidity
<93% RH (non-condensing)

Time Delay Setting Range
10 seconds ~ 12 minutes (adjustable)

Detection Angle
360 (omnidirectional)

Load Capacity
Max. 1200W (incandescent), 300W (fluorescent/LED)

Light Control
2-2000 Lux (adjustable)

Operating Frequency
5.8 GHz 75 MHz

Dimension
87 x 87 x 38 mm

Transmission Power
<0.2mW

Microwave Motion Sensor Detector Switch, TS-11 Trade Information

Minimum Order Quantity
5 Pieces

Delivery Time
2 Days

About Microwave Motion Sensor Detector Switch, TS-11

True Sense 360 Microwave Motion Sensor is a high-performance motion detector designed for reliable and continuous movement detection. Using microwave sensing technology, it offers wider and more accurate coverage compared to standard sensors.

With a 360-degree detection angle and up to 8 meters coverage range, this motion sensor is suitable for automatic lighting control and security applications. Its compact plastic housing and clean white finish make it ideal for indoor installations.

Applications: Homes, offices, corridors, staircases, parking areas, washrooms, and commercial spaces.

Features of 360 Microwave Motion Sensor:

Microwave motion detection for high sensitivity
360-degree wide detection coverage
Up to 8 meters detection range
Suitable for indoor lighting and security use
Compact plastic body with clean white finish
Reliable and energy-efficient operation

Versatile Indoor Lighting Automation

The TS-11 motion sensor offers a seamless solution for indoor lighting control in areas such as corridors, stairwells, basements, garages, and offices. Its adjustable sensitivity and daylight sensing feature ensure light activation only when necessary, contributing to energy savings. The device is engineered to provide consistent and precise motion detection under a wide temperature range and high humidity conditions.

Customizable Detection and Time Settings

With a detection radius of up to 10 meters and an omnidirectional 360 angle, the TS-11 adapts to various room sizes and layouts. The adjustable time delay (10 seconds to 12 minutes) and light control sensitivity (2-2000 Lux) give users complete command over operational parameters, enhancing safety and convenience in busy environments.

Efficient and Reliable Operation

Consuming less than 0.9W of power in static mode and featuring quick response times under 1 second, the TS-11 ensures minimal energy usage while maintaining dependable performance. The ABS construction contributes to its sturdy build, making it a robust choice for continuous operation in everyday commercial or residential settings.

FAQ's of Microwave Motion Sensor Detector Switch, TS-11:

Q: How do I install the TS-11 Microwave Motion Sensor Detector Switch for indoor lighting control?

A: The TS-11 sensor is designed for ceiling or wall surface mounting. It connects via a terminal block, allowing easy wiring without a fixed cable. Ensure the sensor is positioned in a location where its 360-degree detection angle and up to 10-meter range will cover the desired detection area.

Q: What benefits does the adjustable time delay setting provide?

A: The adjustable time delay, ranging from 10 seconds to 12 minutes, lets you customize how long the connected lighting remains on after detecting motion. This flexibility optimizes energy savings and enhances convenience, especially in intermittently occupied spaces.

Q: Where is the TS-11 Motion Sensor best used?

A: Ideal for indoor environments such as corridors, stairwells, garages, basements, and offices, the TS-11 enhances lighting automation, providing hands-free control and greater safety in frequently accessed or transitional spaces.

Q: What is the process for adjusting the sensitivity and light control settings?

A: You can fine-tune the sensitivity (from 10% to 100%) and the light control threshold (2-2000 Lux) using built-in adjustment dials. This ensures the sensor only activates lighting under specific ambient lighting conditions and movement preferences.

Q: When should I use the TS-11 motion sensor with its daylight sensing feature?

A: The daylight sensing function is useful when you want lights to activate only during low-light conditions. By adjusting the Lux setting, the sensor ignores motion detection when sufficient daylight is present, promoting further energy efficiency.

Q: What types of lighting loads does the TS-11 support?

A: The TS-11 can handle a maximum load of 1200W for incandescent bulbs and up to 300W for fluorescent or LED lights, making it compatible with most standard indoor lighting fixtures.

Q: How does the TS-11 contribute to energy conservation and safety?

A: By automatically switching lights on only when motion is detected and ambient light is insufficient, the TS-11 reduces unnecessary energy consumption and ensures well-lit, safer environments without the need for manual switching.
