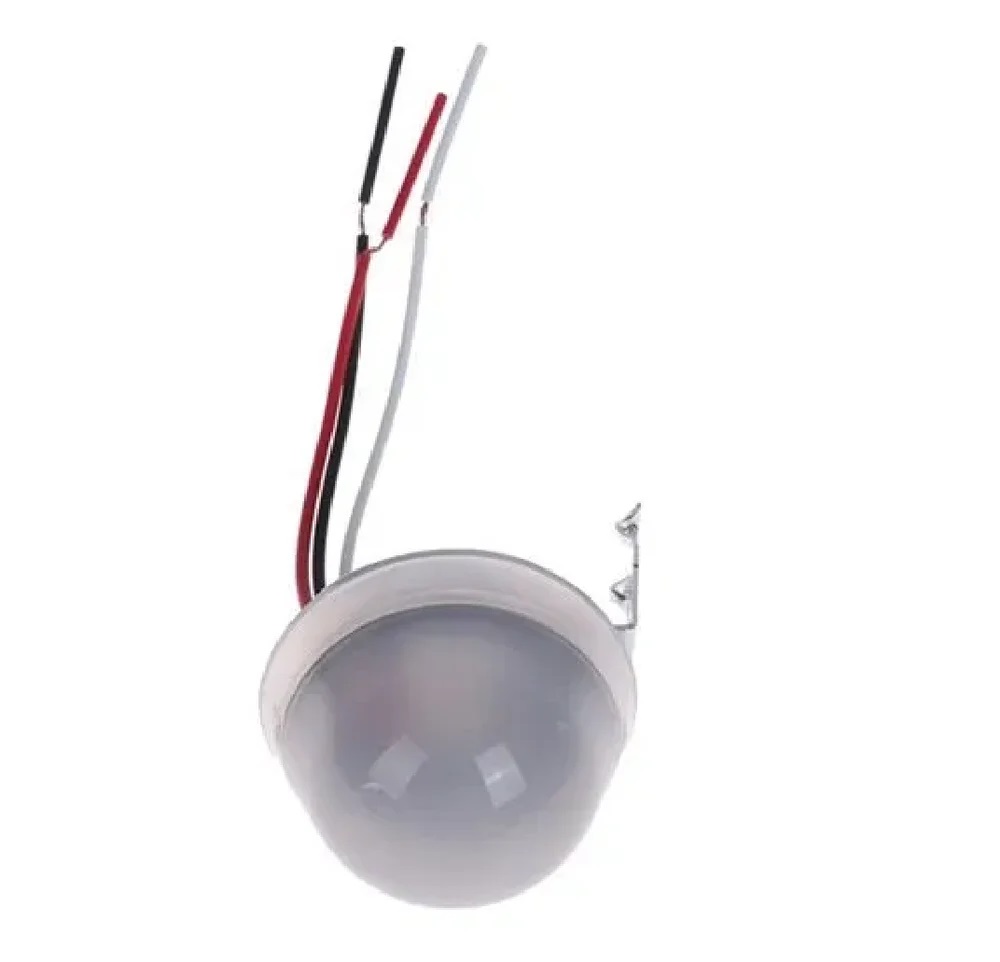

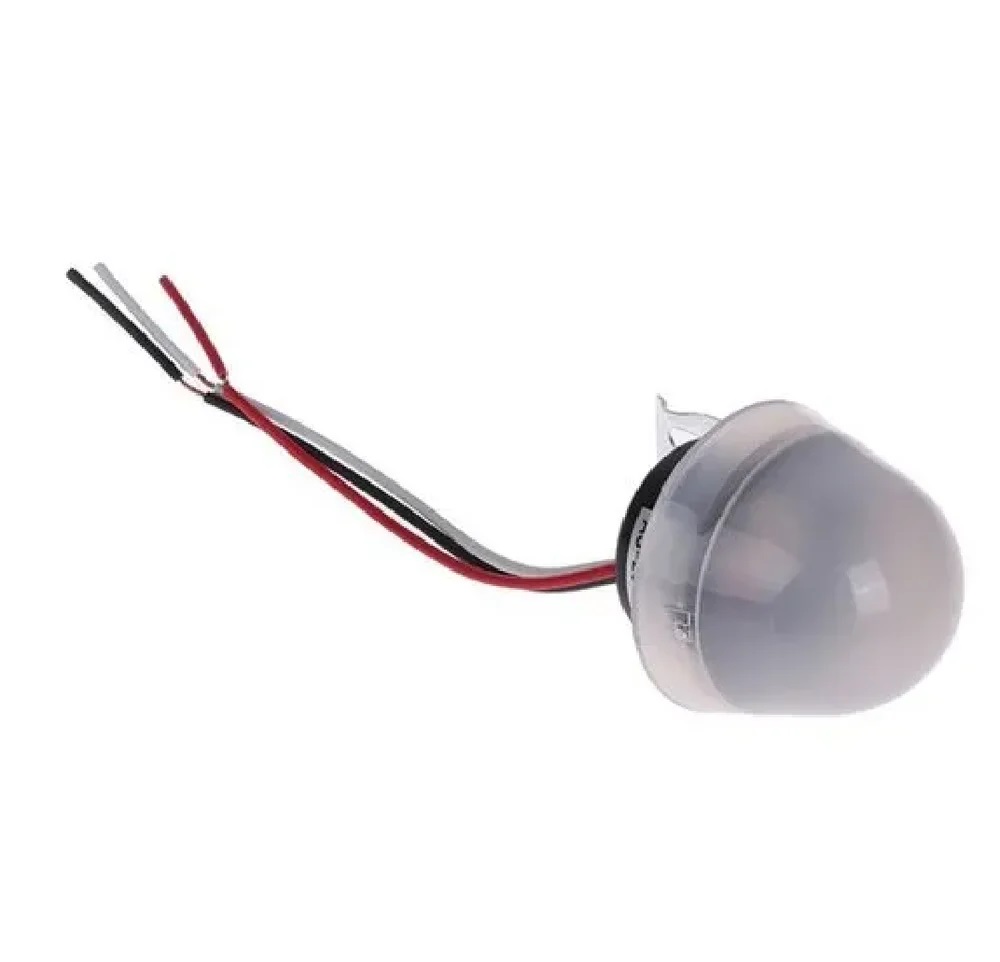

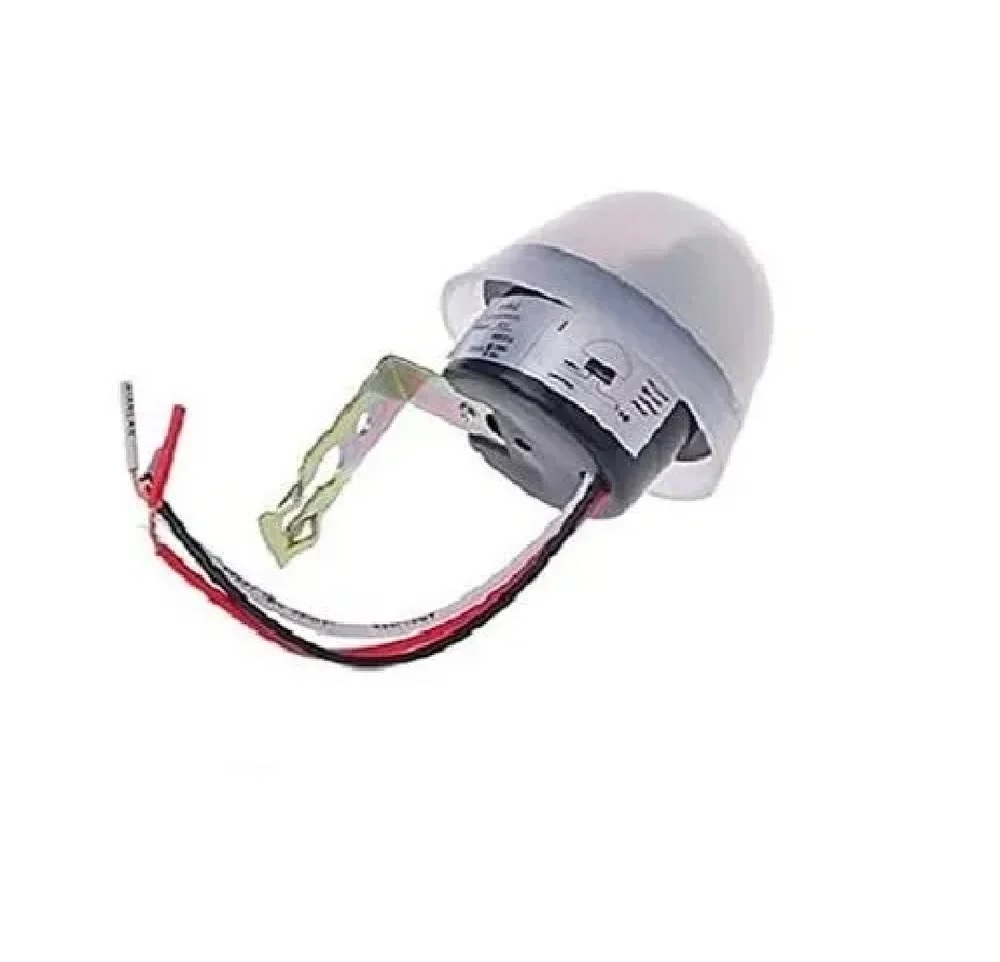

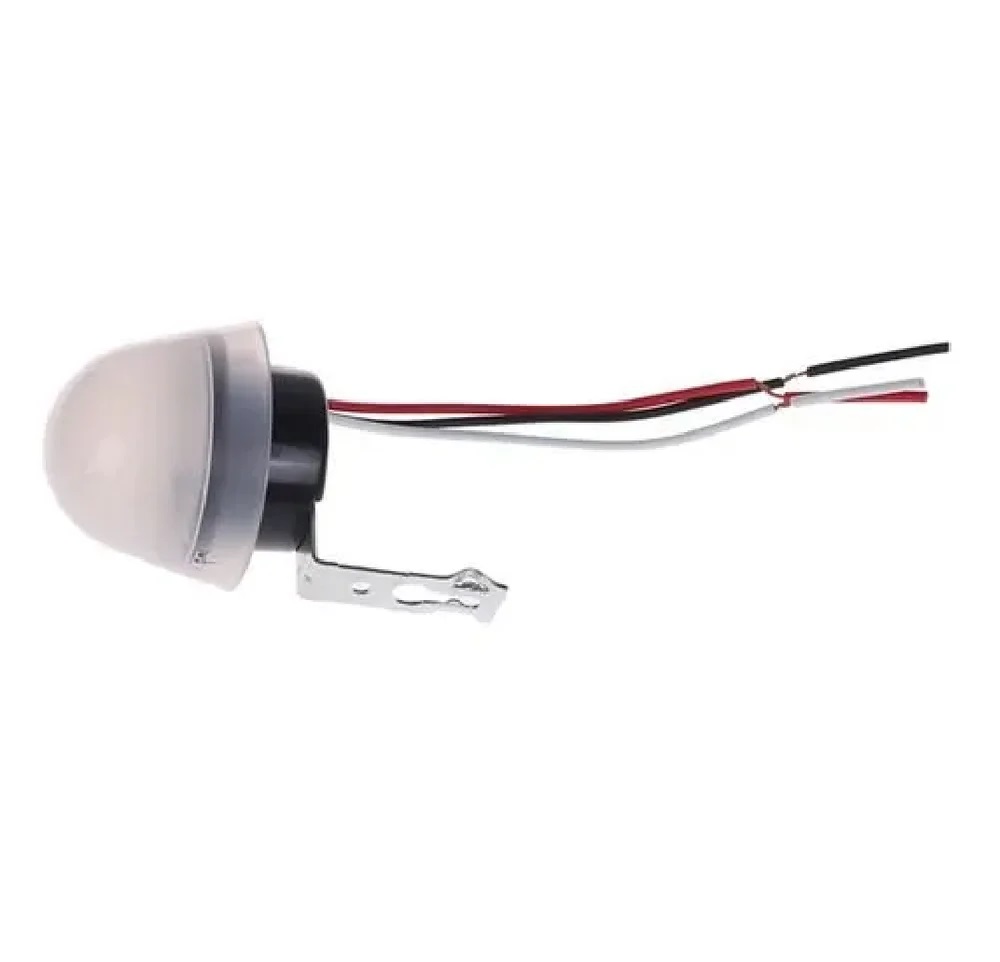

True Sense Street Light Photocell Control Switch LDR Sensor 20 Ampere, AS-20

Send Inquiry

Request To Call Back

True Sense Street Light Photocell Control Switch LDR Sensor 20 Ampere, AS-20

Name: True Sense Street Light Photocell Control Switch LDR Sensor 20 Ampere, AS-20
Brand: True Sense Technologies
Price: 129.0 INR
Availability: InStock

Price 129.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

True Sense Street Light Photocell Control Switch LDR Sensor 20 Ampere, AS-20 Specification

Sensor Type
LDR (Light Dependent Resistor)

IP Rating
IP65 - Weatherproof

Cable Length
Approx 30cm

Application
Street lights, garden/pathway lighting, outdoor luminaries

Measurement Range
Automatic operation depending on sunset/sunrise (approx. 10-50 Lux)

Operating Temperature
-20C to +55C

Features
Automatic dusk to dawn, high load capacity, UV resistant casing, compact & durable design

Wireless
No

Mounting Type
Pole/Wall Mount (Screw/Clamp provided)

Signal Type
Relay Switch

Power Consumption
<2 Watts

Interface
Three Wire (Live, Neutral, Load)

Sensitivity
User can set light sensitivity (adjustable potentiometer provided)

Response Time
<1 Second

Product Type
Photocell Control Switch

Material
Plastic Body (with Electronic Components)

Input
AC 230V, 50/60Hz

Output
20 Ampere relay output

Function
Automatic ON/OFF control for street lighting based on ambient light levels

Usage
Street lights, outdoor lighting automation

Accuracy
High accuracy LDR based operation

Voltage
220-240V AC

Weight
Approx 180g

Enclosure Material
UV Stabilized Polycarbonate

Color
White and Blue

Hysteresis
Supports anti-flicker relay delay to avoid rapid switching

Control Method
LDR based light sensor with electronic relay switching

Dimensions
Approx 110mm x 65mm x 60mm

Installation
Easy surface/pole mount design with captive screws

Rated Frequency
50/60 Hz

Max Load Current
20A (suitable for high capacity lighting)

Connection Type
Hardwired

True Sense Street Light Photocell Control Switch LDR Sensor 20 Ampere, AS-20 Trade Information

Minimum Order Quantity
5 Pieces

Delivery Time
2 Days

About True Sense Street Light Photocell Control Switch LDR Sensor 20 Ampere, AS-20

100% quality and Brand new.
To turn on or off the light in day and night without manual operation
Do not install the control unit in a place extremely darker in daytime or a place directly by lighting of turning - ON lamp
Widely used: street light, highway, factories, garden, ports, airports, farm, parks, schools, and other places. Also can fit into solar lamps and lanterns, or cars, motorcycles, electric cars and other power supply voltage is 12V lamps and lanterns or equipment
Rainproof performance, more suitable for outdoor.

Automatic Light Control for Outdoor Lighting

Experience energy-efficient and hassle-free outdoor lighting control with the True Sense Photocell Switch. It provides automatic ON/OFF switching of street lights based on ambient light using precise LDR technology, ensuring your outdoor areas are always well-lit when needed and conserving energy when not required.

Easy and Versatile Installation

The AS-20 photocell control switch is designed for simple installation on poles or walls using the included captive screws and mounting hardware. Its compact and weatherproof IP65-rated enclosure ensures reliable performance in various outdoor settings, from urban roadsides to garden pathways.

Built for High Capacity and Durability

With a maximum load capacity of 20A and a UV-stabilized polycarbonate body, this device can handle demanding outdoor lighting systems. It operates efficiently across a wide temperature range and with minimal power consumption, making it cost-effective and long-lasting.

FAQ's of True Sense Street Light Photocell Control Switch LDR Sensor 20 Ampere, AS-20:

Q: How is the True Sense Street Light Photocell Control Switch installed?

A: The device can be mounted on a surface or street light pole using the provided screws or clamp. Electrical connections are made via its three-wire interface (Live, Neutral, Load). Always ensure the power supply is OFF during installation for safety.

Q: What type of lighting loads is this sensor suited for?

A: This photocell control switch is designed for high-capacity lighting, supporting up to 20 amperes of load, making it ideal for street lights, garden pathways, and large outdoor luminaires.

Q: Can I adjust the sensitivity for switching the lights ON or OFF?

A: Yes, the AS-20 model features a user-adjustable potentiometer, which allows you to set the desired light threshold (approx. 10-50 Lux) for switching according to your application's requirements.

Q: When does the device turn the street lights ON or OFF?

A: The LDR sensor automatically turns lights ON at dusk and OFF at dawn by detecting ambient light levels. The switching typically responds within 1 second of detecting the threshold light level.

Q: Where can this photocell switch be used?

A: Suitable for street lighting, garden or pathway illumination, and other outdoor luminaries. Its IP65 rated, weatherproof and UV-resistant enclosure ensures reliable operation in various outdoor environments.

Q: What is the benefit of the anti-flicker relay delay feature?

A: The built-in relay hysteresis and delay prevent rapid switching due to temporary drops in light, such as passing vehicles' headlights, ensuring the lights switch reliably only when there is a genuine change in ambient light.

Q: Does the product require any wireless connection for operation?

A: No, this device operates purely on hardwired connections and does not involve any wireless control. It functions automatically based on ambient light levels, offering a dependable and straightforward lighting automation solution.
