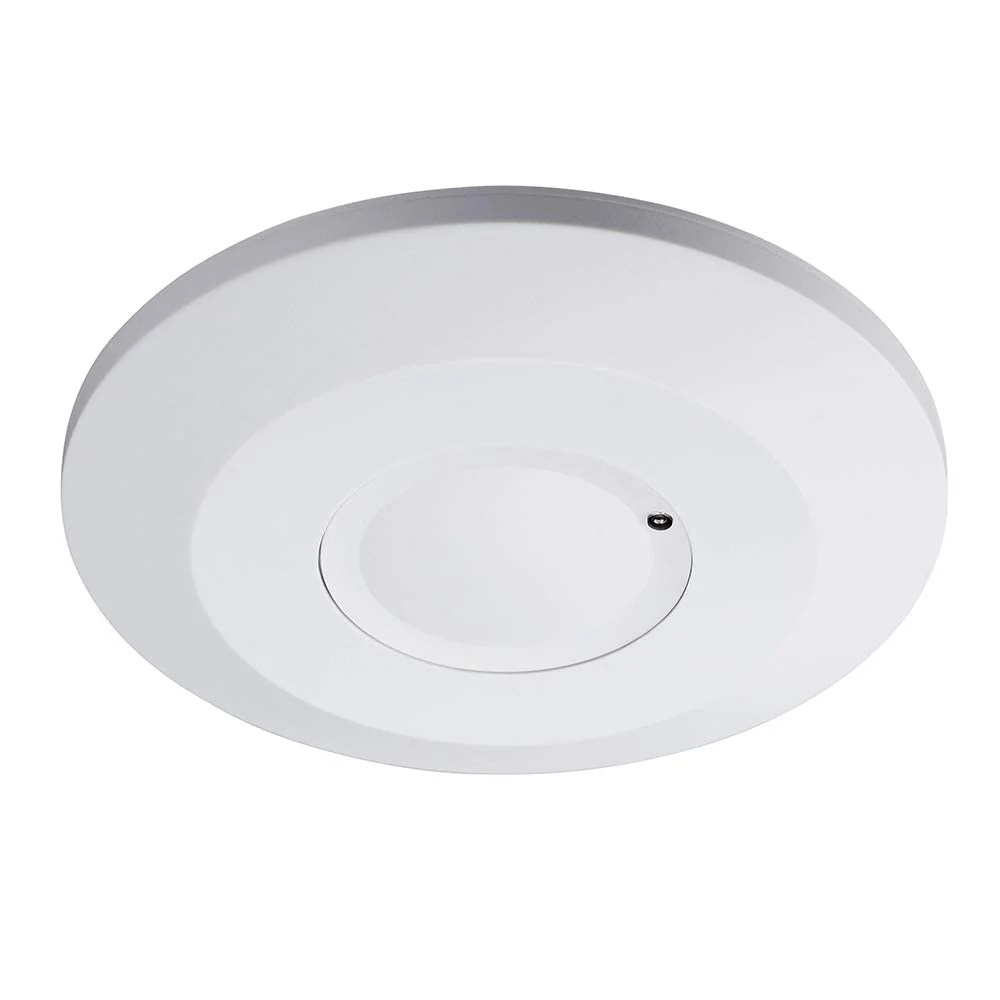

True Sense Microwave Sensor Switch Radar Sensor, TS-19

Send Inquiry

Request To Call Back

True Sense Microwave Sensor Switch Radar Sensor, TS-19

Name: True Sense Microwave Sensor Switch Radar Sensor, TS-19
Brand: True Sense Technologies
Price: 460.0 INR
Availability: InStock

Price 460.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

True Sense Microwave Sensor Switch Radar Sensor, TS-19 Specification

Mounting Type
Ceiling or Wall Mounted

Application
Indoor Lighting Control, Corridor, Staircase, Parking Area

Response Time
0.5 to 1 second

Sensor Type
Microwave Doppler Radar

Power Consumption
<0.9W

Operating Temperature
-20C to +40C

Signal Type
Digital ON/OFF

Measurement Range
Detection Distance 1-8 meters (Adjustable)

Sensitivity
Adjustable Sensitivity Level

Features
360 detection angle, Adjustable time delay, Automatic switching, Compact size

Interface
Terminal Block Connection

Wireless
No

Cable Length
Not included (Terminal Block)

IP Rating
IP20

Product Type
Microwave Sensor Switch (Radar Sensor)

Material
ABS Housing

Input
AC 220-240V, 50/60Hz

Output
Relay Output (Load Control)

Function
Automatic Motion Detection and Switching

Usage
Lighting Automation, Security Systems

Accuracy
High Detection Sensitivity

Resolution
Precise Human Motion Detection

Voltage
220-240V AC

Weight
Approx. 60 grams

Time Delay Adjustment
10 seconds to 12 minutes

Dimension
75 mm x 75 mm x 28 mm

Installation Height
2.2-4m recommended

Maximum Load
300W (LED), 1200W (Incandescent)

Housing Color
White

Detection Angle
360 Degrees

Light Control
<3-2000lux (Adjustable)

Frequency
5.8GHz 75MHz

True Sense Microwave Sensor Switch Radar Sensor, TS-19 Trade Information

Minimum Order Quantity
5 Pieces

Delivery Time
2 Days

About True Sense Microwave Sensor Switch Radar Sensor, TS-19

True Sense TS-19 Microwave/Radar Sensor Switch is an advanced occupancy motion detector designed for automatic control of lighting and electrical loads. Using microwave radar technology, it detects body movement with high sensitivity, even through thin materials.

This thin roundtype sensor supports up to 2000W load capacity, making it suitable for both residential and commercial installations where reliable motion detection is required.

Applications: Homes, offices, corridors, staircases, parking areas, warehouses, and commercial buildings.

Features of TS-19 Microwave Sensor Switch:

Microwave / radar motion detection for high sensitivity
Detects body movement accurately and reliably
Thin round design for ceiling installation
Supports up to 2000W load capacity
Ideal for automatic lighting and energy saving
Suitable for residential and commercial use

Seamless Automatic Lighting Control

The TS-19 Microwave Sensor Switch ensures that lights are activated precisely when needed, detecting motion with a 360-degree field of view. Its quick response time and adjustable sensitivity make it ideal for spaces such as corridors and staircases, promoting both convenience and safety while eliminating wasted energy from lights left on unnecessarily.

Versatile and Adjustable Settings

With easily customizable detection ranges and time delays, the TS-19 adapts to your specific needs. The light control threshold accommodates different ambient lighting conditions, ensuring the sensor responds appropriately. Its adjustable mounting height and straightforward terminal block interface make installation hassle-free for varied indoor environments.

FAQ's of True Sense Microwave Sensor Switch Radar Sensor, TS-19:

Q: How does the TS-19 Microwave Sensor Switch detect motion?

A: The TS-19 uses microwave Doppler radar technology, which emits high-frequency radio waves (5.8GHz) to sense movement within a 360-degree area. When motion is detected, the sensor automatically switches connected lighting on or off, ensuring precise and rapid response.

Q: What types of lighting loads can the TS-19 sensor control?

A: This sensor switch supports a maximum of 300W for LED lighting and up to 1200W for incandescent bulbs, making it suitable for various residential and commercial lighting applications.

Q: When should I adjust the time delay and detection sensitivity?

A: Adjust the time delay (from 10 seconds to 12 minutes) to control how long lights remain on after motion is detected. Sensitivity adjustments help tailor the detection distance (1-8 meters) to the size and requirements of the room, preventing false triggers.

Q: Where is the best location to install the TS-19 sensor?

A: For optimal performance, install the sensor on a ceiling or wall at a height between 2.2 and 4 meters in indoor spaces such as corridors, staircases, parking areas, or any location requiring automated, hands-free lighting.

Q: What is the installation process for the TS-19 Microwave Sensor Switch?

A: Installation involves mounting the compact sensor using screws and connecting the device via the terminal block interface to your lighting circuit. Ensure the power supply is turned off during installation and follow the included wiring instructions.

Q: How does using this sensor benefit me?

A: The TS-19 enhances safety, convenience, and energy efficiency by automatically managing lighting. Its precise motion detection ensures lights are on only when needed, reducing energy costs and supporting security by illuminating areas when movement is sensed.
