True Sense Ceiling Mount PIR Motion Sensor Detector, TS-06

Send Inquiry

Request To Call Back

True Sense Ceiling Mount PIR Motion Sensor Detector, TS-06

Name: True Sense Ceiling Mount PIR Motion Sensor Detector, TS-06
Brand: True Sense Technologies
Price: 289.0 INR
Availability: InStock

Price 289.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

True Sense Ceiling Mount PIR Motion Sensor Detector, TS-06 Specification

Wireless
No

Response Time
< 1 second

Measurement Range
360 detection, up to 6m radius

Power Consumption
< 0.5W (at stand-by)

Sensitivity
Adjustable (via dial on unit)

Sensor Type
Passive Infrared (PIR)

Mounting Type
Ceiling surface mount

Operating Temperature
-20C to +40C

Application
Office, Home, Corridors, Lobbies, etc.

Features
Energy saving, automatic switching, adjustable timer and light sensitivity

IP Rating
IP20

Signal Type
Digital switching

Interface
Terminal block

Product Type
Ceiling Mount PIR Motion Sensor Detector

Material
ABS (Acrylonitrile Butadiene Styrene)

Input
Infrared (PIR Sensor)

Output
Relay (switching output)

Function
Human movement detection, automatic lighting control

Usage
Indoor motion detection for automation and security

Accuracy
High sensitivity, triggers with slight motion

Voltage
220V-240V AC, 50Hz/60Hz

Weight
Approx. 80g

Detection Angle
360 degrees

Load Capacity
Up to 1200W (Incandescent light); 300W (LED light)

Detection Method
PIR (Passive Infrared)

Color
White

Dimensions
Approx. 105mm diameter x 50mm height

Relative Humidity
<93% RH (non-condensing)

Light Sensitivity Adjustment
3-2000 Lux

Time Delay Adjustment
10 seconds to 7 minutes

True Sense Ceiling Mount PIR Motion Sensor Detector, TS-06 Trade Information

Minimum Order Quantity
5 Pieces

Delivery Time
2 Days

About True Sense Ceiling Mount PIR Motion Sensor Detector, TS-06

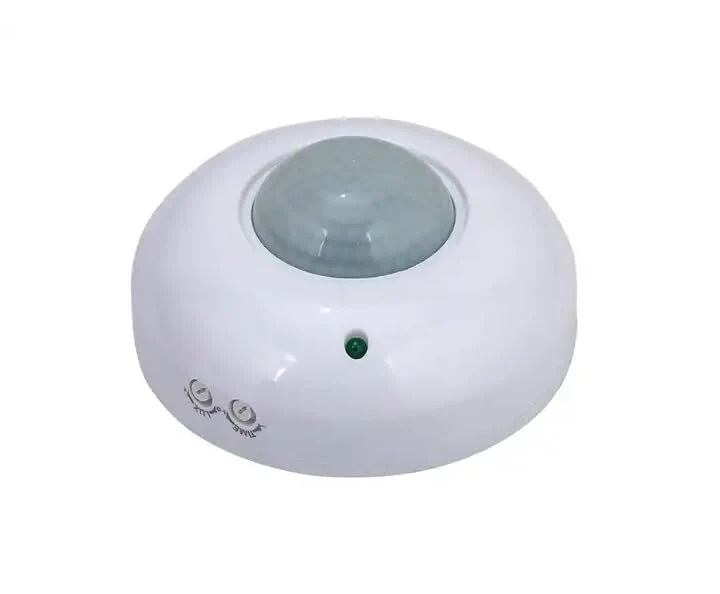

True Sense Ceiling-Mount PIR Motion Sensor Switch is an energy-saving automatic sensor designed for smart lighting control. It combines PIR motion detection with an inbuilt LUX sensor to ensure lights operate only when movement is detected and ambient light levels are low.

This ceiling-mounted sensor supports LUX and time adjustment, allowing customized operation based on lighting conditions and usage needs. It is ideal for indoor spaces where automatic lighting improves convenience and energy efficiency.

Applications: Homes, offices, corridors, staircases, washrooms, parking areas, and commercial buildings.

Features of Ceiling-Mount PIR Motion Sensor Switch:

PIR motion detection for automatic light control
Inbuilt LUX sensor for day/night operation
Adjustable LUX sensitivity and time delay
Energy-saving automatic operation
Ceiling-mounted design for wide coverage
Operates on 220V AC power supply

Advanced Motion Detection for Indoor Automation

True Sense TS-06 utilizes Passive Infrared (PIR) technology to detect human movement with high accuracy. It is specially designed to automate lighting in indoor environments, responding effectively to subtle motion with an impressive response time of less than one second. Its 360-degree coverage ensures reliable operation in all corners of a room, making it an ideal choice for comprehensive security and convenience.

Flexible Adjustment for Custom Comfort

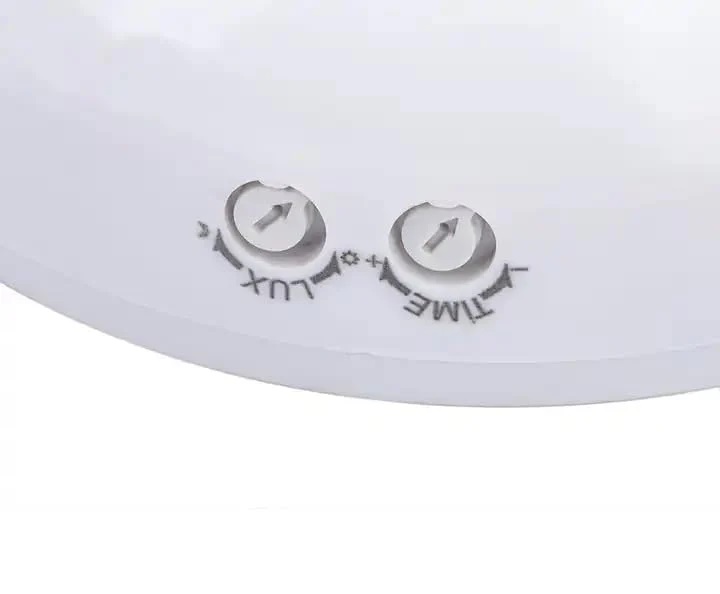

This ceiling-mounted sensor provides user-friendly dials to adjust both time delay (from 10 seconds to 7 minutes) and ambient light sensitivity (3-2000 Lux). This flexibility allows you to match the sensor's operation to your exact requirements, ensuring lights only activate when genuinely needed and helping to maximize energy savings.

Simple Installation and Maintenance

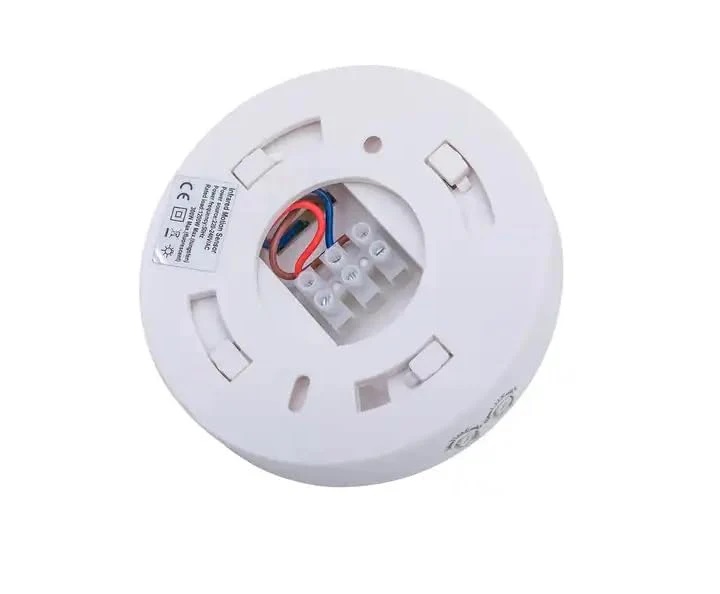

Mounting the TS-06 is straightforward with its surface mount design and terminal block interface. Made from durable ABS material and weighing just 80g, it seamlessly blends into ceilings without adding bulk. Maintenance is minimal, thanks to its efficient power usage and robust build, ensuring long-term, reliable performance indoors.

FAQ's of True Sense Ceiling Mount PIR Motion Sensor Detector, TS-06:

Q: How do I adjust the timer and light sensitivity on the True Sense TS-06 motion sensor?

A: You can easily adjust the timer and light sensitivity on the TS-06 using the dials located on the unit. The time delay can be set from 10 seconds to 7 minutes, and the light sensitivity ranges from 3 to 2000 Lux, allowing you to tailor activation to your specific lighting and occupancy needs.

Q: What areas is the TS-06 suitable for installation?

A: The TS-06 is designed for indoor use and works well in offices, homes, corridors, lobbies, and similar spaces. Its 360-degree detection angle and 6-meter range ensure comprehensive coverage for most standard room sizes.

Q: What type of lighting loads can the TS-06 control?

A: This sensor supports incandescent lamps up to 1200W and LED lights up to 300W. It uses a digital relay switching output to control your lighting system automatically based on human presence detection.

Q: When does the motion sensor activate connected lights?

A: The TS-06 activates connected lights automatically when it detects motion within its coverage area and the ambient light level is below the set sensitivity threshold. You can adjust both the sensitivity and the time lights stay on after movement is detected.

Q: How is the TS-06 installed and powered?

A: Mounting is simple via the ceiling surface using the integrated terminal block interface. The sensor operates on a standard 220V-240V AC power supply at 50Hz/60Hz, making it compatible with most indoor electrical systems in India.

Q: What are the main benefits of using this ceiling mount PIR sensor?

A: The primary benefits include energy savings through automatic lighting control, enhanced security by detecting human movement, and convenience thanks to easy installation and customizable operation. It also features high sensitivity and a wide detection range, making it highly effective in various indoor environments.
