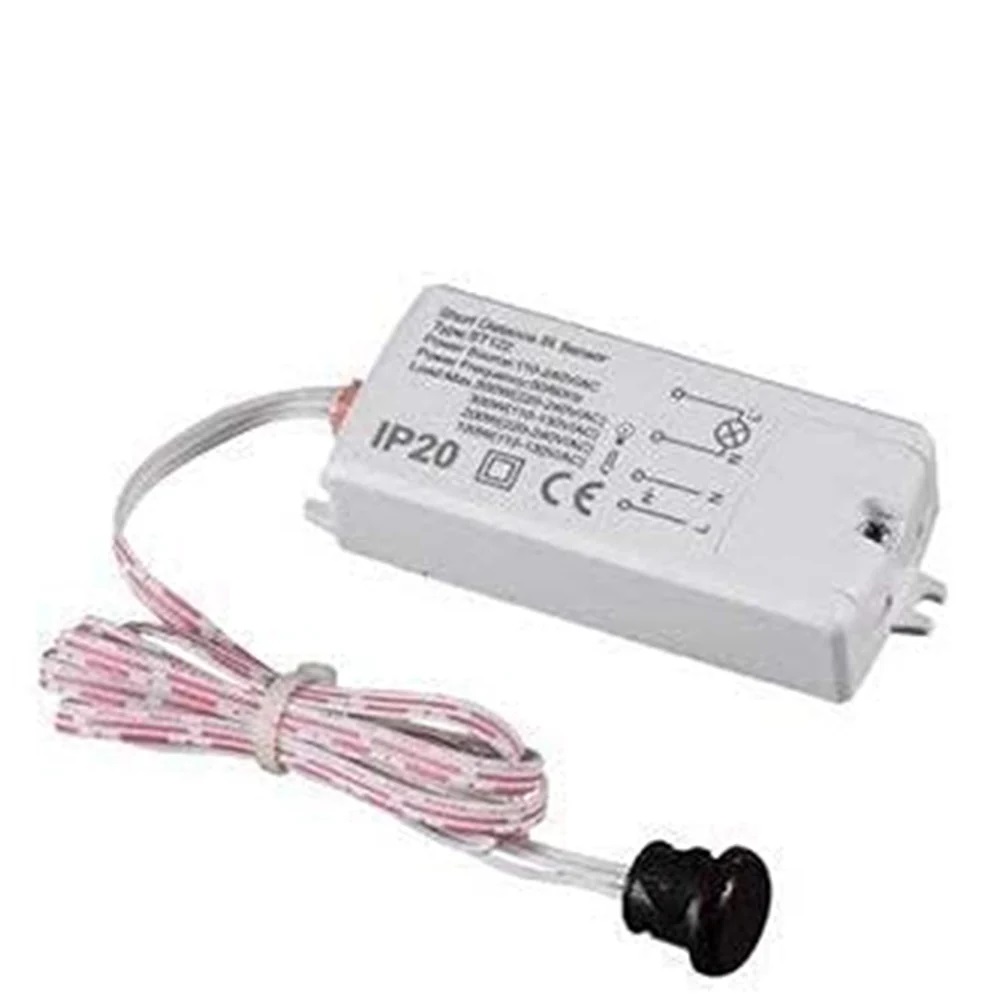

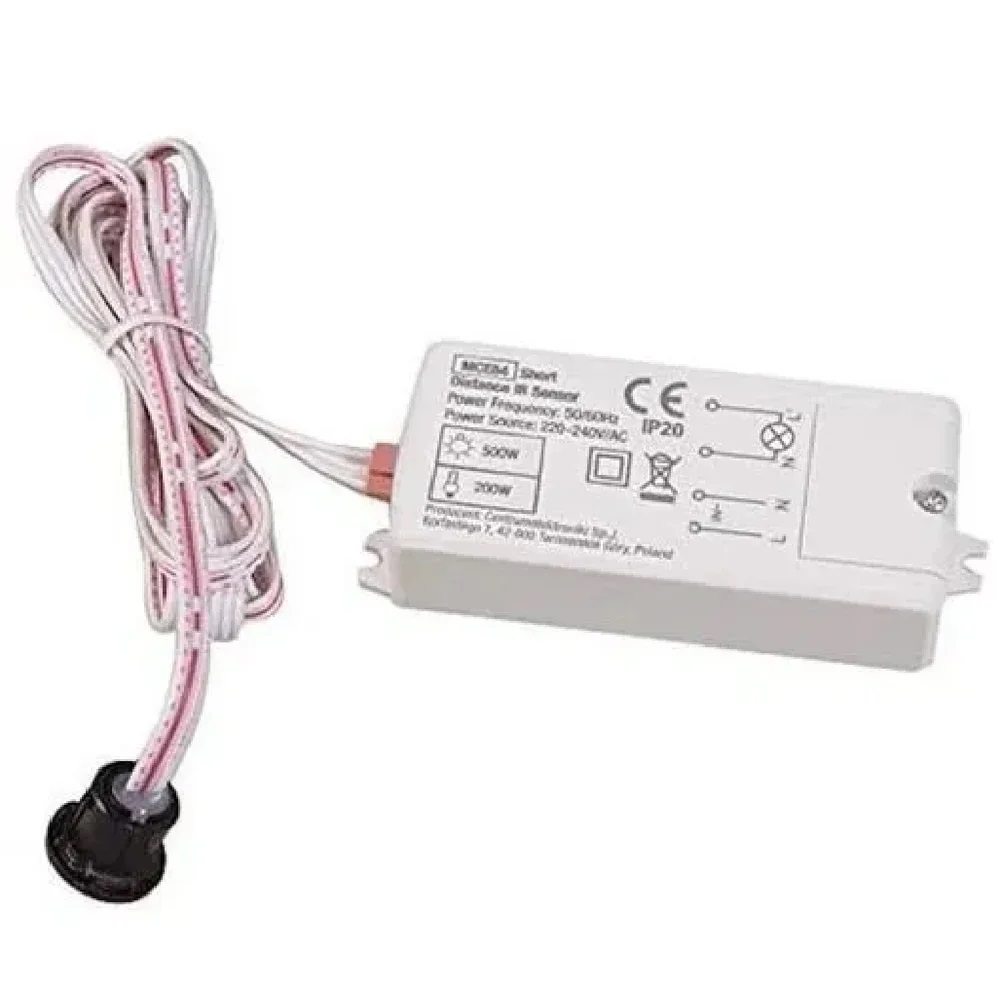

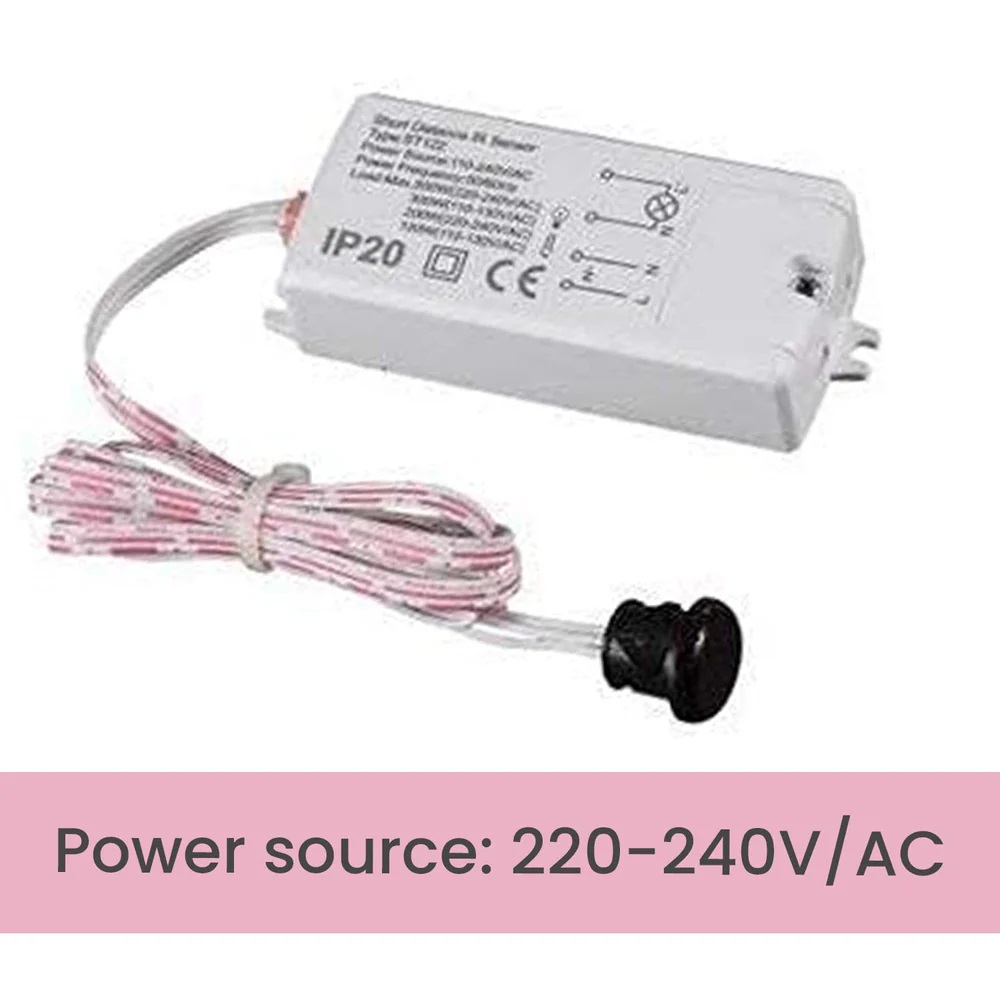

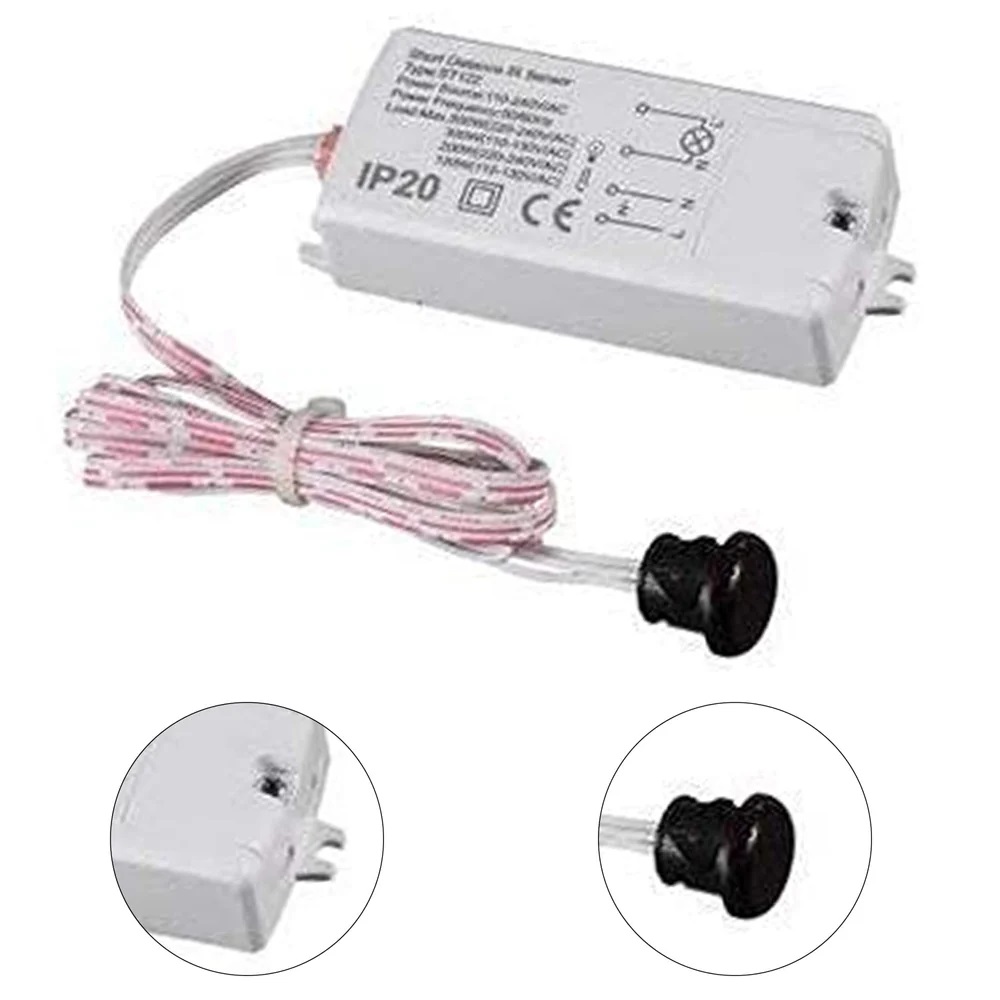

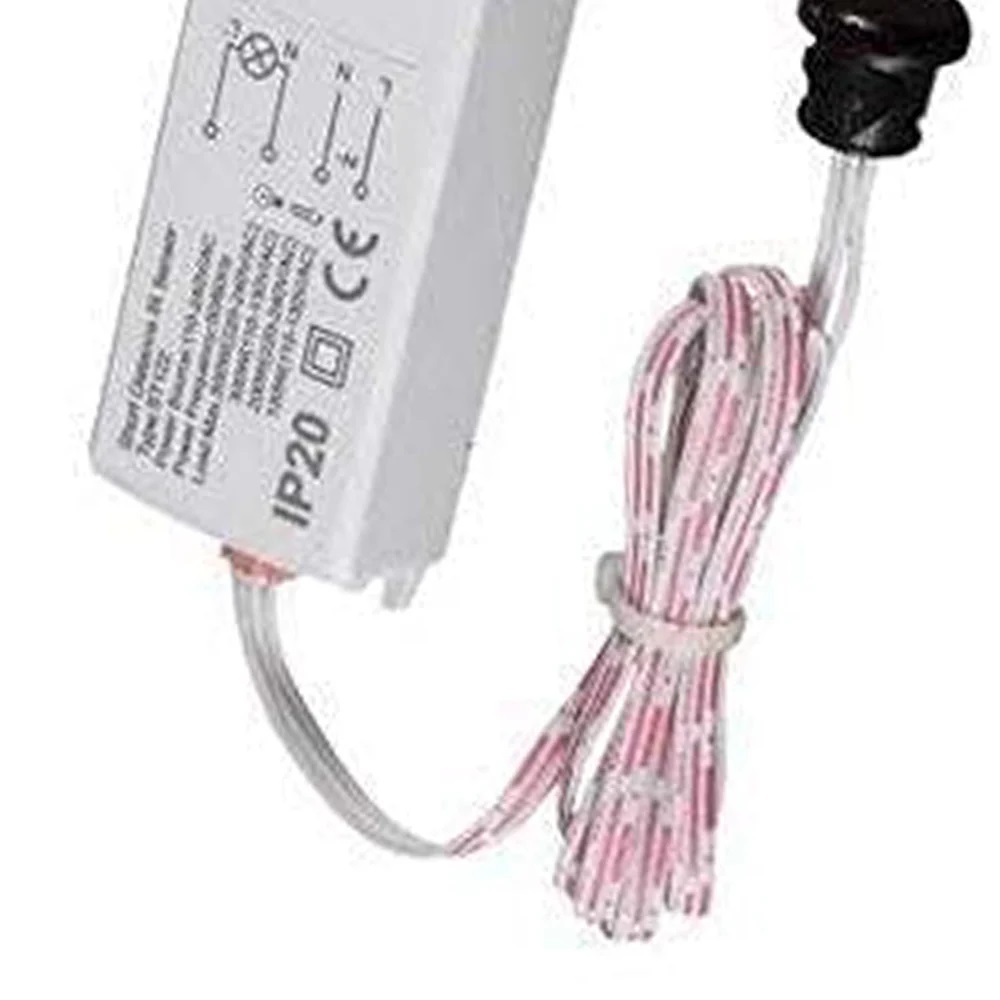

True Sense IR Sensor, TS-04

Name: True Sense IR Sensor, TS-04
Brand: True Sense Technologies
Price: 450.0 INR
Availability: InStock

Price 450.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

True Sense IR Sensor, TS-04 Specification

Features
Compact Design, Low Power, Fast Response, Adjustable Detection Range

Interface
3-wire: VCC, GND, Output

Sensitivity
Adjustable

Signal Type
TTL

Mounting Type
Panel or Screw Mount

Operating Temperature
-10C to +50C

IP Rating
IP40

Cable Length
1 meter

Response Time
<2 ms

Wireless
No

Power Consumption
<25mA

Measurement Range
2 cm to 30 cm (Adjustable)

Application
Obstacle and Object Detection

Sensor Type
Reflective IR

Product Type
IR Sensor

Material
ABS Plastic Housing

Input
12V DC

Output
Digital

Function
Object Detection and Obstacle Sensing

Usage
Industrial Automation, Robotics, Security Systems

Accuracy
5%

Resolution
High

Voltage
12V DC

Weight
50g

Detection Angle
15 Degrees

Life Expectancy
>100,000 Operations

Enclosure Color
Black

Humidity Range
10% to 90% RH (Non-Condensing)

Storage Temperature
-20C to +60C

Protection Type
Reverse Polarity Protected

Indicator
Red LED Output Indicator

True Sense IR Sensor, TS-04 Trade Information

Minimum Order Quantity
5 Pieces

Delivery Time
2 Days

About True Sense IR Sensor, TS-04

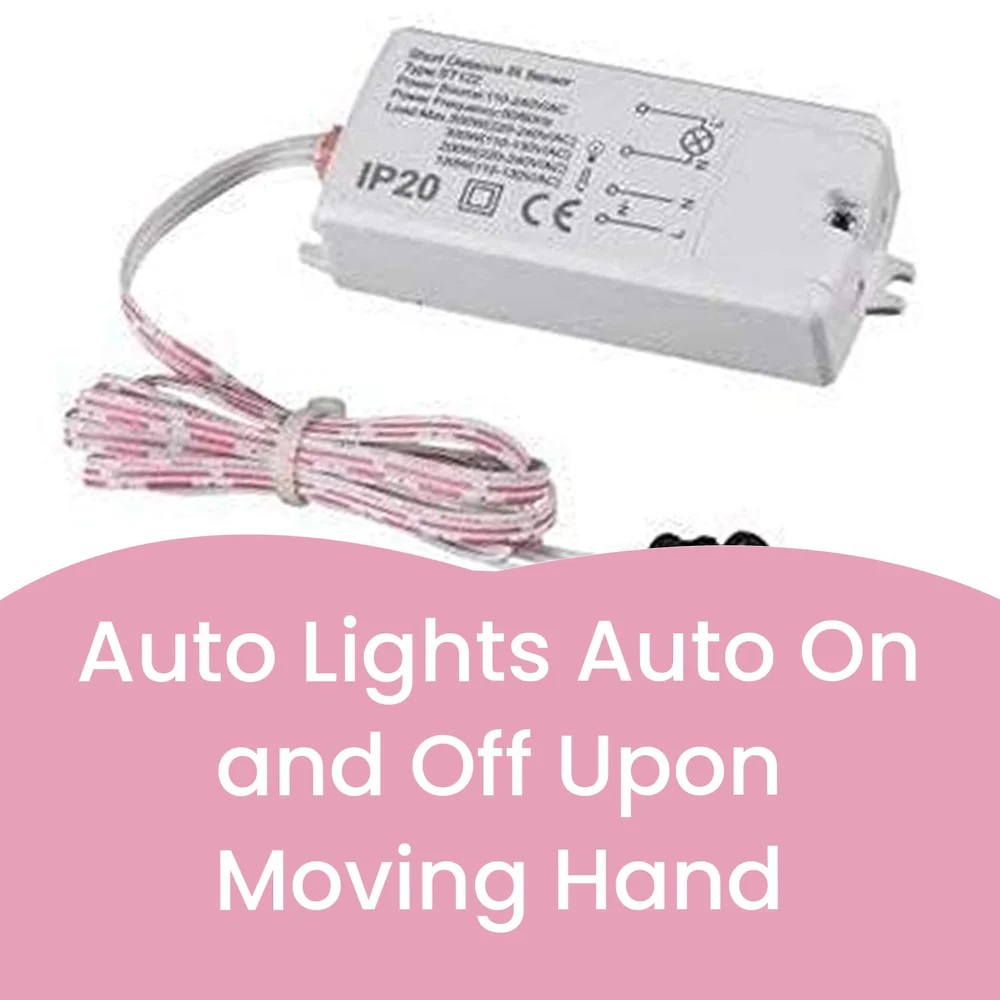

True Sense Smart IR Hand Sensor is a touchless solution designed for automatic light control. It detects hand movement using infrared sensing and switches lights ON or OFF automatically, offering convenience and hygiene.

This smart sensor is ideal for mirror lights and other applications where hands-free operation is preferred, helping create a modern and user-friendly lighting experience.

Applications: Mirror lights, bathrooms, kitchens, wardrobes, cabinets, and smart lighting systems.

Features of Smart IR Hand Sensor:

Infrared hand-motion detection for touchless operation
Automatically turns lights ON and OFF
Hygienic and convenient hands-free control
Ideal for mirror and task lighting applications
Easy to install and use
Suitable for modern smart lighting setups

High Accuracy Object Sensing

TS-04 delivers reliable, high-resolution object detection with a 5% accuracy rate, making it ideal for demanding applications like robotics, security, and industrial automation. Its adjustable sensing range (2-30 cm) and TTL digital output support integration into a wide variety of projects where precision and dependability are essential.

Rapid, Reliable Response

Engineered for speed and robustness, the TS-04 sensor boasts a response time of less than 2 milliseconds. The compact ABS enclosure is both lightweight and reverse polarity protected. Its 1-meter cable and adaptable mounting (panel or screw) provide flexible installation in diverse operational environments.

FAQ's of True Sense IR Sensor, TS-04:

Q: How do I adjust the detection range of the TS-04 IR sensor?

A: The detection range of the TS-04 can be adjusted from 2 cm to 30 cm using the onboard sensitivity control. This allows you to precisely configure the sensor for your specific object or obstacle sensing needs.

Q: What are the benefits of using the True Sense TS-04 in industrial automation applications?

A: The TS-04 offers high accuracy, fast response (<2 ms), and reliable digital output, ensuring efficient and error-free obstacle detection on production lines. The compact, robust ABS enclosure and reverse polarity protection contribute to a long operational life in industrial settings.

Q: Where can the TS-04 IR sensor be installed and what mounting options are available?

A: The TS-04 can be installed in various environments requiring object detection, such as factories, robotics labs, and security systems. It comes with options for both panel and screw mounting, making installation simple and versatile.

Q: What is the process for integrating the TS-04 with a control system or microcontroller?

A: Integration is straightforward using the 3-wire interface: connect VCC (12V DC), GND, and the digital output (TTL) to your control system or microcontroller input. The sensor's rapid response and indicator LED simplify real-time monitoring and feedback.

Q: What humidity and temperature conditions can the TS-04 operate under?

A: This sensor operates reliably in humidity levels from 10% to 90% RH (non-condensing) and temperatures from -10C to +50C. For storage, the acceptable temperature ranges from -20C to +60C.

Q: When should the TS-04 be selected over other object detection sensors?

A: Choose the TS-04 when high accuracy, fast response, and adjustable detection range are required in compact or demanding environments. Its robust build and protection features make it suitable for frequent and continuous use.

Q: What indicator is available on the TS-04 for output confirmation?

A: The sensor is equipped with a red LED output indicator that activates upon object detection, offering immediate visual feedback for setup and troubleshooting.
