HTC 2PSI Manometer, PM-6102

Name: HTC 2PSI Manometer, PM-6102
Brand: True Sense Technologies
Price: 2861.0 INR
Availability: InStock

Price 2861.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

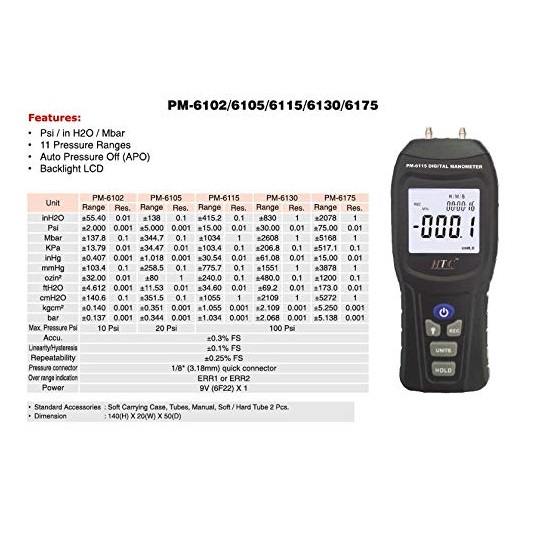

HTC 2PSI Manometer, PM-6102 Specification

Resolution
0.001 PSI

Diameter
--

Application Media
Air and Non-Corrosive Gases

Wind Speed
--

Current Range
--

Flow Rate
--

Frequency
--

Capacity
--

Temperature Range
0C to 50C

Connectivity Type
--

Measurement Range
0 to 2 PSI

Sensor Type
MEMS Pressure Sensor

Protection
--

Pressure Range
0 to 2 PSI

Humidity %
80% RH Max

Material
ABS Plastic

Power Supply
9V Battery

Power Consumption
Low

Accuracy
0.3% of F.S.

Display Type
4 Digit LCD Display

Range
2 PSI

Dimensions
175 x 70 x 33 mm

Weight
200 g (Including Battery)

Operating Altitude
Up to 2000 m

Equipment Type
Digital Manometer

Zero Adjustment
Digital

Unit Selection
PSI, mbar, kPa, inH2O, mmH2O, oz/in2, kg/cm2, bar

Low Battery Indicator
Yes

Auto Power Off
Yes (after 20 minutes of inactivity)

Over Pressure Indication
Yes

Sample Rate
2 Times/Second

Backlight Display
Yes

HTC 2PSI Manometer, PM-6102 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About HTC 2PSI Manometer, PM-6102

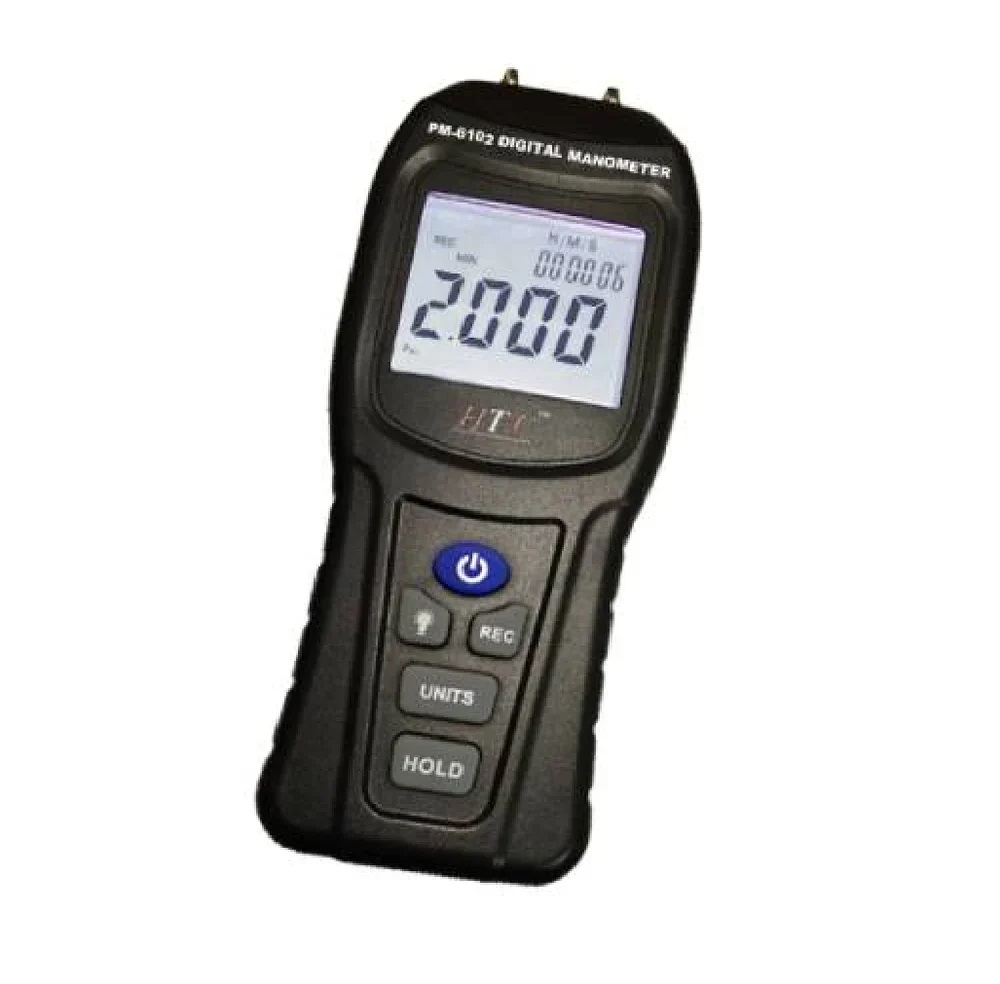

HTC PM-6102 Digital Manometer is a high-precision instrument designed for accurate pressure measurement across multiple units. Its compact and ergonomic design, combined with a backlit LCD display, ensures easy operation and clear readings, making it ideal for professional and industrial monitoring applications.

Features:

Ultra-precise pressure measurement (up to 2 PSI)
Multi-unit compatibility
Backlit LCD display
Compact, ergonomic design
Fast, accurate response
Ideal for HVAC, lab, and industrial use
Lightweight and portable
Durable construction
Monitors pressure-sensitive systems
User-friendly interface

Versatile and User-Friendly Design

The HTC PM-6102 digital manometer stands out for its robust ABS plastic build, large backlit display, and digital zero adjustment, ensuring effortless operation even in low-light environments. With a compact size and low power consumption, it's convenient for daily fieldwork and extended use.

Precision Engineering for Reliable Results

Utilizing a MEMS pressure sensor with a remarkable 0.3% full-scale accuracy, this manometer delivers consistent, repeatable results. Sample readings are taken twice per second, making it ideal for both quick checks and detailed diagnostic work in sensitive air and non-corrosive gas applications.

Comprehensive Features for Industrial Needs

Designed for high functionality, the PM-6102 includes an over-pressure indicator, low battery warning, auto power-off feature, and supports measurement units such as PSI, mmH2O, bar, and more. It is capable of performing in demanding conditions up to 2000 meters altitude and 80% RH humidity.

FAQ's of HTC 2PSI Manometer, PM-6102:

Q: How do I operate the zero adjustment feature on the HTC 2PSI Manometer PM-6102?

A: To perform zero adjustment, simply switch on the manometer and press the 'Zero' button while the device remains at atmospheric pressure. This function digitally calibrates the baseline for optimal accuracy before each measurement.

Q: What units of pressure can I measure with this digital manometer?

A: The HTC PM-6102 allows you to select from multiple pressure units, including PSI, mbar, kPa, inH2O, mmH2O, oz/in2, kg/cm2, and bar, providing flexibility for diverse testing and application requirements.

Q: When does the auto power-off feature activate, and can it be disabled?

A: The built-in auto power-off function activates after 20 minutes of inactivity to conserve battery life. This feature cannot be disabled and ensures efficient energy management during use.

Q: Where is the HTC 2PSI Manometer typically used?

A: This manometer is suitable for various settings such as laboratories, HVAC installations, industrial process controls, and maintenance tasks involving air and non-corrosive gases. Its design supports both field and stationary applications.

Q: What is the process for replacing the battery, and what type does it require?

A: The PM-6102 operates on a standard 9V battery. To replace it, turn off the device, open the battery compartment at the back, swap in a new 9V battery, and securely close the compartment.

Q: How does the over pressure indication protect the device?

A: When pressure readings exceed the 2 PSI maximum, the over pressure indication alerts the user, helping to prevent accidental damage to the MEMS sensor and maintain device longevity.

Q: What are the key benefits of using the HTC 2PSI Manometer PM-6102?

A: Users benefit from fast sampling, high accuracy, multiple pressure units, a bright backlit display, and reliable MEMS sensor technology-making precise pressure monitoring accessible and efficient in diverse professional applications.
