True Sense Digital Manometer 2 PSI Air Pressure Meter, HT-1890

Name: True Sense Digital Manometer 2 PSI Air Pressure Meter, HT-1890
Brand: True Sense Technologies
Price: 2950.0 INR
Availability: InStock

Price 2950.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

True Sense Digital Manometer 2 PSI Air Pressure Meter, HT-1890 Specification

Equipment Type
Digital Manometer

Protection
Over Range Indication, Low Battery Indication

Connectivity Type
Handheld, Portable (No Connectivity)

Pressure Range
2 PSI

Application Media
Air and Non-corrosive Gases

Temperature Range
0C to 50C

Measurement Range
2 psi (13.79 kPa, 137.9 mbar, 551.6 inH2O, etc.)

Resolution
0.001 psi

Humidity %
<80% RH

Sensor Type
Pressure Sensor

Diameter
Port Diameter: 4 mm

Material
ABS Plastic Body

Power Supply
9V Battery (included)

Power Consumption
Low Power Consumption

Accuracy
0.3% FS

Display Type
Large LCD Digital Display

Range
2 PSI

Weight
Approx. 210g (including battery)

Included Accessories
Silicon Tubes, Carrying Bag, Operation Manual, Battery

Units of Measurement
psi, mbar, kPa, mmHg, inHg, ozin2, ftH2O, cmH2O, kgcm2, bar

Sampling Rate
2 times/sec

Dimensions
183 76 30 mm

Zero Adjustment
Yes (Auto Zero Function)

Operating Altitude
Up to 2000 meters

Max/Min/Diff Hold
Yes

Backlight
Yes

Data Hold
Yes

True Sense Digital Manometer 2 PSI Air Pressure Meter, HT-1890 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About True Sense Digital Manometer 2 PSI Air Pressure Meter, HT-1890

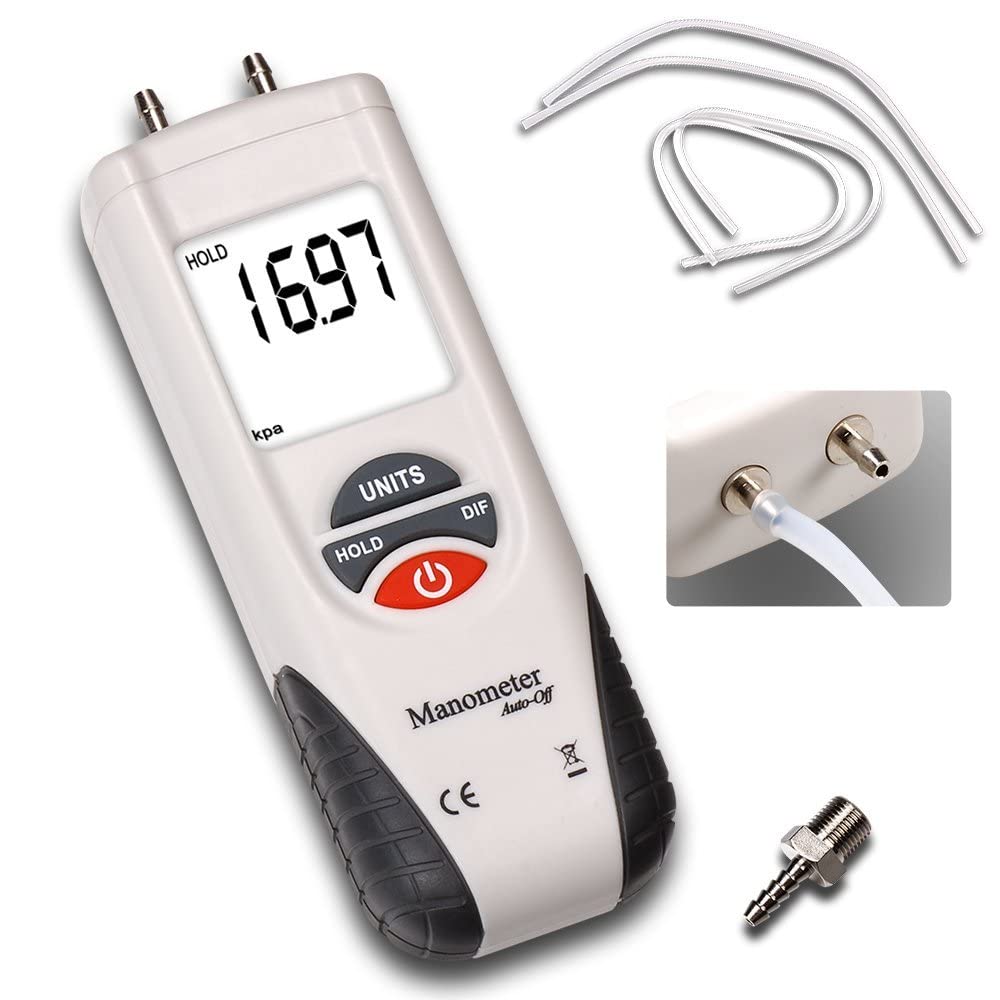

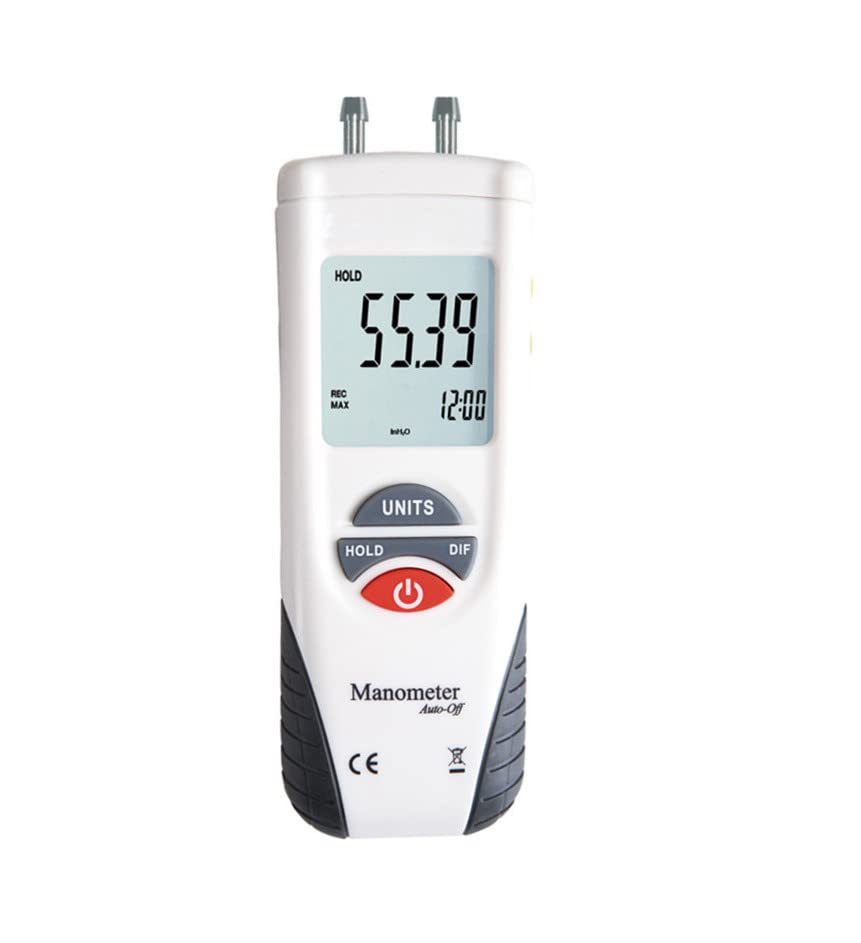

True Sense HT-1890 Digital Manometer is a professional differential air pressure gauge designed for accurate measurement in industrial settings. It comes with a U-tube kit and electrometer, offering versatility and precision in various pressure monitoring applications.

Features:

Professional differential air pressure measurement
11 selectable units for versatile readings
Data hold function for stable measurements
Zero adjustment capability for calibration
Backlit LCD display for clear visibility
U-tube kit included for comprehensive usage
Electrometer integration for enhanced precision
Compact and portable design for field or lab use
Fast and reliable response for efficient monitoring
Ideal for industrial, HVAC, and laboratory applications

Versatile Measurement and User-Friendly Design

Supporting a broad range of pressure units, the HT-1890 digital manometer is adaptable for diverse air and non-corrosive gas measurement tasks. Its large LCD, backlight, and ergonomic ABS plastic construction enhance usability, even in challenging environments. The handheld, battery-powered form factor ensures portability for field engineers and HVAC professionals.

Precision, Reliability, and Safety Features

With a high accuracy of 0.3% full scale and a 0.001 psi resolution, the meter delivers reliable measurements every time. Critical safety features, including over range and low battery indication, protect both the device and the user during operation. The auto-zero and data hold functionalities increase efficiency and data accuracy in busy workspaces.

FAQ's of True Sense Digital Manometer 2 PSI Air Pressure Meter, HT-1890:

Q: How do I use the True Sense Digital Manometer HT-1890 for air pressure measurements?

A: To measure air pressure, connect the provided silicon tubes to the 4 mm port on the device, then power on the manometer using the included 9V battery. Select your desired unit of measurement on the large LCD display, and ensure the auto zero function activates for accurate baseline readings. Apply the open tube to your test source and observe the live readings.

Q: What are the benefits of the auto zero and data hold features on this manometer?

A: The auto zero function ensures your readings start from a true zero baseline, increasing accuracy with every measurement. The data hold feature allows you to freeze a displayed value, making it easier to record and analyze results in dynamic or hard-to-reach conditions.

Q: When should I use the max/min/diff hold functions?

A: Max/min/diff hold functions are ideal when you need to track fluctuations or identify peak and low pressure points during a test. Use these features while monitoring systems that experience variable pressure or when you need to document pressure range and differences for maintenance, troubleshooting, or reporting.

Q: Where can the True Sense Digital Manometer HT-1890 be used?

A: This manometer is suitable for a variety of environments, including HVAC system maintenance, laboratory testing, industrial inspections, and educational settings. It operates reliably at altitudes up to 2000 meters and within temperatures ranging from 0C to 50C, making it versatile across different workplaces in India and beyond.

Q: What is the process for switching units of measurement on the device?

A: Switching units is simple-power on the manometer, and use the dedicated unit selection button to cycle through psi, mbar, kPa, mmHg, inHg, ozin2, ftH2O, cmH2O, kgcm2, and bar. The selected unit will be shown on the digital display for clear reference during measurement.

Q: How can I benefit from the included accessories with the HT-1890 manometer?

A: The silicon tubes make it easy to connect the device to your pressure source, and the carrying bag offers convenient transportation and protection. An operation manual, battery, and other accessories ensure you have everything needed for immediate setup and safe use.
