HTC 30 PSI Manometer, PM-6130

Name: HTC 30 PSI Manometer, PM-6130
Brand: True Sense Technologies
Price: 4123.0 INR
Availability: InStock

Price 4123.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HTC 30 PSI Manometer, PM-6130 Specification

Temperature Range
0C to 50C

Equipment Type
Digital Manometer

Pressure Range
0 to 30 PSI

Measurement Range
0 to 30 PSI

Resolution
0.01 PSI

Diameter
Handheld

Humidity %
<80% RH

Application Media
Air and Non-Corrosive Gases

Sensor Type
Differential Pressure Sensor

Connectivity Type
No (Standalone)

Material
ABS Plastic Housing

Power Supply
9V Battery

Power Consumption
Low

Accuracy
0.3% FSO

Display Type
Large Dual LCD

Range
30 PSI

Units Supported
PSI, mbar, kPa, mmHg, inH2O, ozin2, ftH2O, cmH2O, kgcm2

Manometer Function
Differential & Gauge Pressure Measurement

Zero Setting
Yes

Auto Power Off
Yes

Data Hold Function
Yes

Over Pressure Limit
60 PSI

Backlight
Yes

Included Accessories
Rubber Hoses, User Manual, Battery

Display Digits
5 Digits

Operating Altitude
Up to 2000m

HTC 30 PSI Manometer, PM-6130 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About HTC 30 PSI Manometer, PM-6130

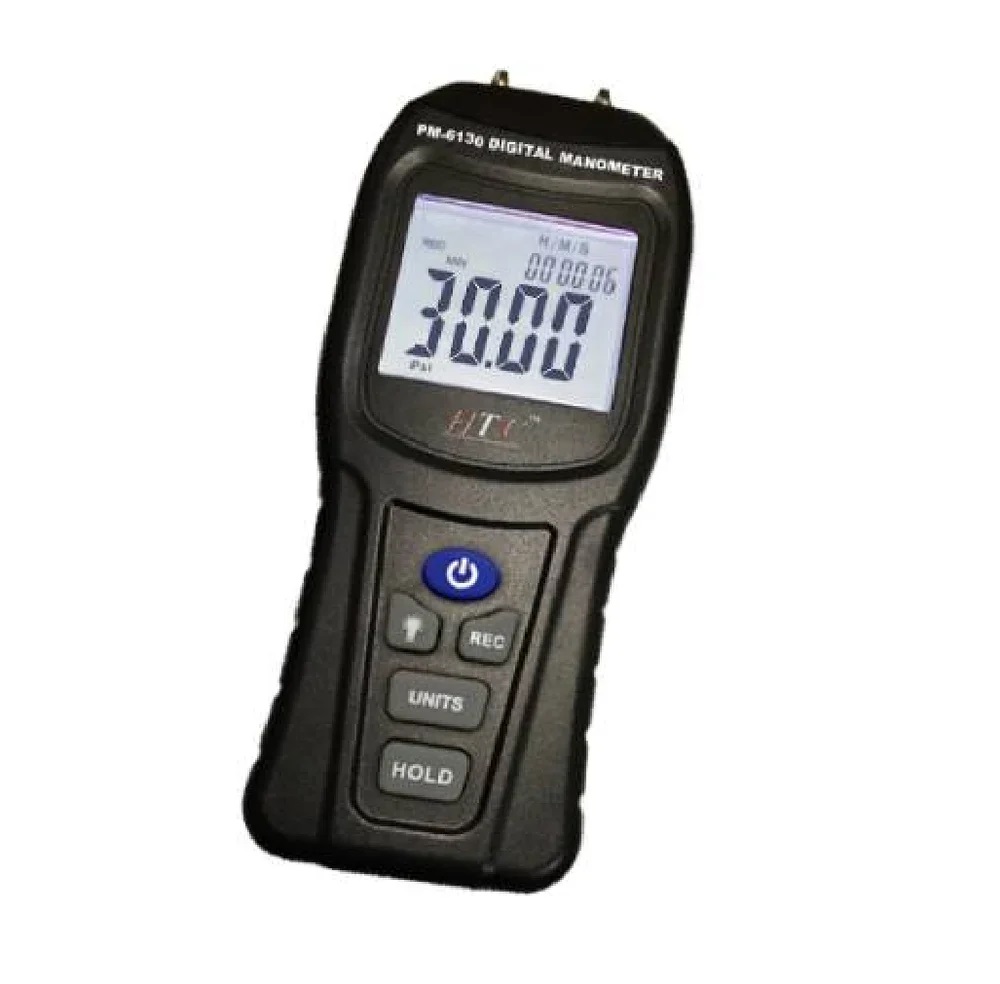

HTC PM-6130 Digital Manometer is a high-precision instrument designed for accurate pressure measurement up to 30 PSI. Its portable design and backlit LCD display make it ideal for professional, industrial, and field applications.

Features:

High-precision pressure measurement up to 30 PSI
Multiple pressure units for versatile readings
Backlit LCD display for clear viewing
Compact and portable design
Lightweight and easy to handle
Fast and accurate response
Durable construction for industrial environments
User-friendly interface for easy operation
Suitable for HVAC, laboratory, and field applications
Efficient and reliable pressure monitoring

Versatile Pressure Measurement

The HTC PM-6130 manometer offers versatile performance by supporting both differential and gauge pressure measurements. It caters to a wide range of pressure-related applications, especially with air and non-corrosive gases, making it suitable for HVAC, laboratory, and industrial settings.

User-Friendly Features

Designed for ease of use, the PM-6130 includes a bright backlight, automatic power-off, data hold, and zero setting functionality. The large dual LCD display and multiple unit support enhance reading clarity and user adaptability in various environments, even under low-light conditions.

Reliable and Portable Design

This manometer features a compact handheld form factor crafted from robust ABS plastic housing. It operates reliably within 0C to 50C and up to 2000m altitude, powered by a low-consumption 9V battery, making it portable for fieldwork and suitable for use across India.

FAQ's of HTC 30 PSI Manometer, PM-6130:

Q: How do I use the HTC PM-6130 manometer for differential pressure measurement?

A: To perform differential pressure measurements, connect the included rubber hoses to the device's input ports and the two measurement points. Ensure you use it with air or non-corrosive gases. The dual LCD will display the measured differential value using your selected units.

Q: What is the process for zero setting on the PM-6130 manometer?

A: To zero the manometer, make sure both input ports are open to the atmosphere, then press the ZERO button. This will calibrate the display to eliminate any initial offset, ensuring higher accuracy in subsequent measurements.

Q: When should I use the data hold function on this device?

A: The data hold function is beneficial when you need to freeze the current pressure reading for note-taking or analysis. Simply press the 'Hold' button while taking a measurement to lock the display value until you are ready to continue.

Q: Where can the HTC PM-6130 be used in terms of operating altitude and environment?

A: The PM-6130 can be reliably used indoors or outdoors at altitudes up to 2000 meters and within a temperature range of 0C to 50C, with humidity levels below 80% RH. This makes it ideal for most field and laboratory conditions across India.

Q: What benefits does the backlight feature provide?

A: The backlight illuminates the LCD screen, making it easier to read measurements in low-light or dim environments. This feature is especially helpful in poorly lit industrial sites or during early morning or evening operations.

Q: How do I switch between pressure units on the PM-6130?

A: To change pressure units, press the UNITS button on the manometer. You can cycle through PSI, mbar, kPa, mmHg, inH2O, ozin2, ftH2O, cmH2O, and kgcm2 until your desired unit is displayed on the screen.

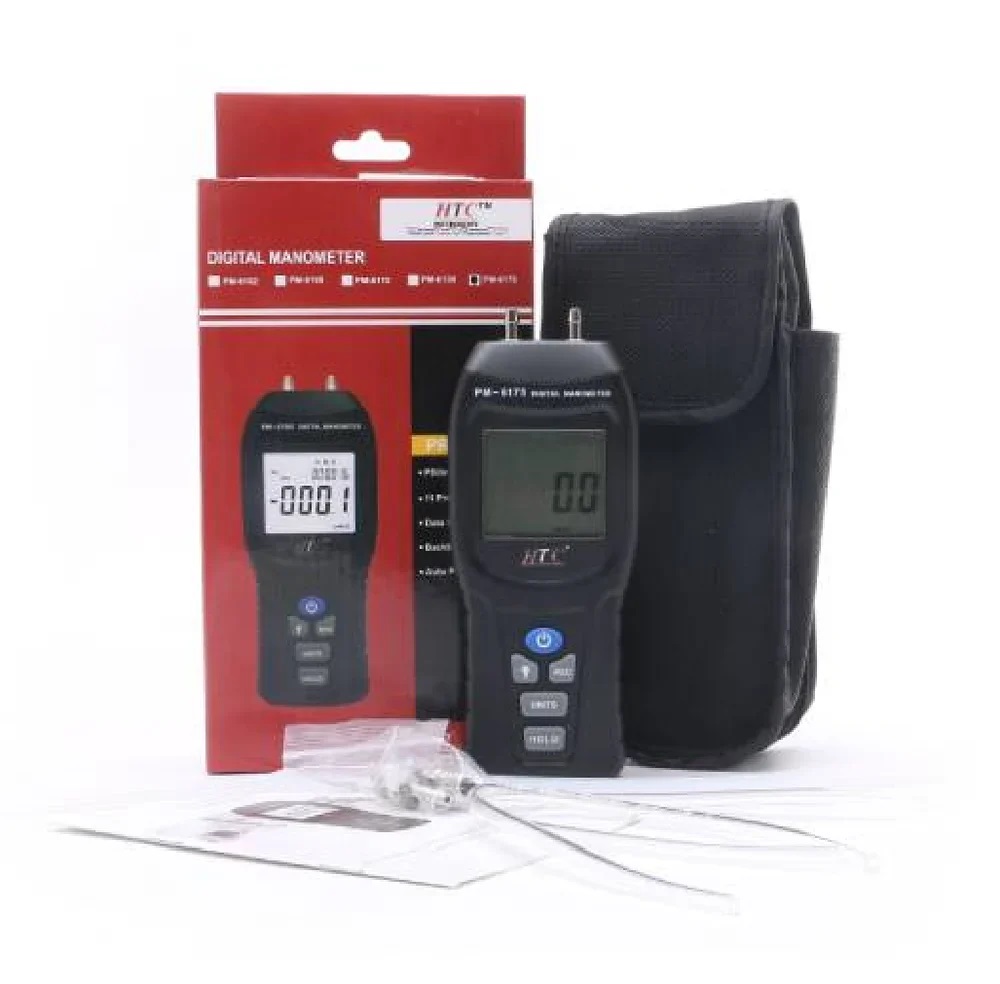

Q: What are the included accessories with the HTC PM-6130, and what is their purpose?

A: The device comes with rubber hoses for connecting to measurement points, a 9V battery for power, and a user manual for guidelines on operation and troubleshooting. These accessories ensure you have everything needed for immediate use of the manometer.
