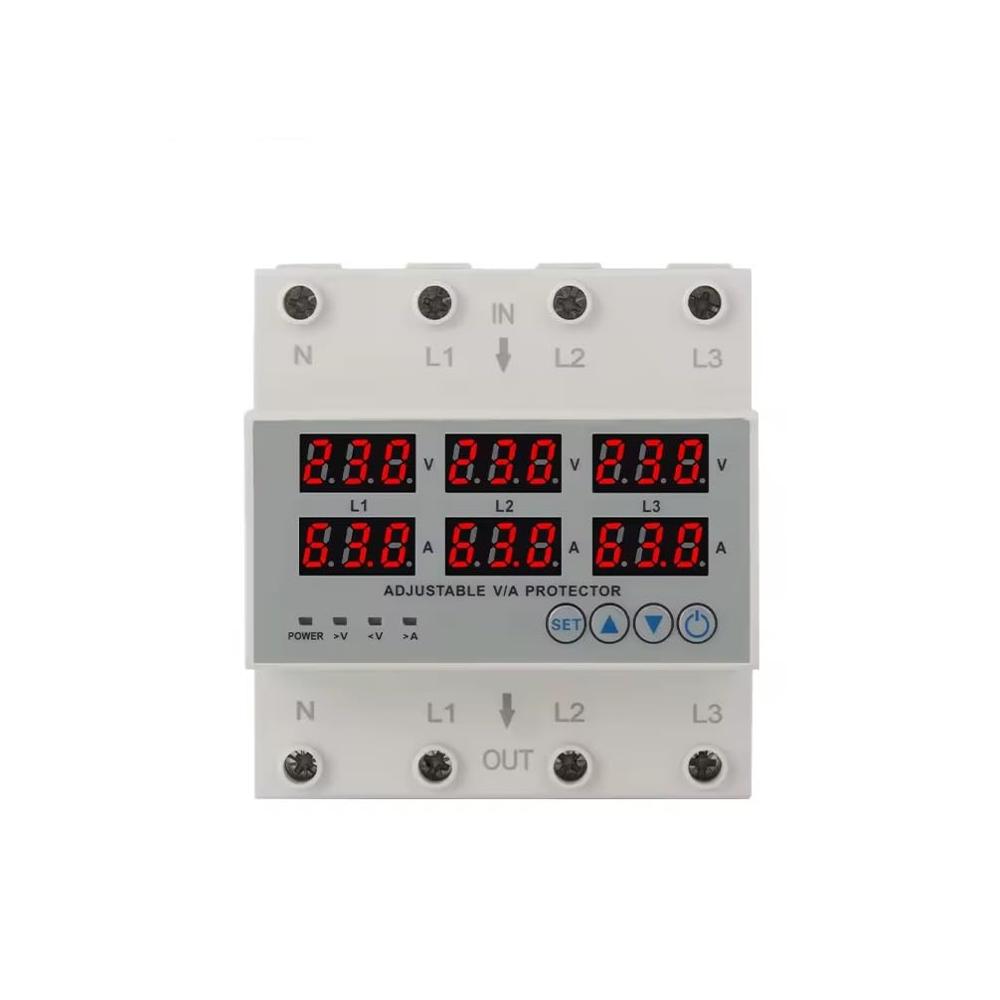

True Sense Three Phase Adjustable Over and Under Voltage Protector, VPD3-63VA

Send Inquiry

Request To Call Back

True Sense Three Phase Adjustable Over and Under Voltage Protector, VPD3-63VA

Name: True Sense Three Phase Adjustable Over and Under Voltage Protector, VPD3-63VA
Brand: True Sense Technologies
Price: 2999.0 INR
Availability: InStock

Price 2999.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

True Sense Three Phase Adjustable Over and Under Voltage Protector, VPD3-63VA Specification

Usage & Applications
Industrial and commercial three phase voltage monitoring and protection

Accuracy
1.5% FS

Resistant Feature
Fire retardant, surge resistant

Product Type
Three Phase Adjustable Over and Under Voltage Protector

Material
High-grade engineering plastic

Measuring Voltage Range
AC 320V-460V (Three Phase)

Operating Temperature
-20C to +55C

Frequency (MHz)
50/60 Hz

Insulation Box
Yes, flame-retardant plastic

Protection System
Microprocessor-controlled over and under voltage protection for three phase circuits

Size
Standard DIN rail mountable

Color
White/Grey

Dimension (L*W*H)
72mm 85mm 66mm

Weight
About 250g

Mounting Type
DIN rail mounting

Enclosure Protection Class
IP20

Display
Digital LED indication for voltage status

Response Time
<1 second

Relay Type
Electromechanical

Phase Imbalance Protection
Yes

Rated Current
63A

Phase Sequence Protection
Yes

Delay time setting
Adjustable (1s to 500s)

Phase Loss Protection
Yes

Output Contact
1NO/1NC

True Sense Three Phase Adjustable Over and Under Voltage Protector, VPD3-63VA Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About True Sense Three Phase Adjustable Over and Under Voltage Protector, VPD3-63VA

True Sense 3-Phase Automatic Over/Under Voltage Protector (63A, 220VAC) is designed to safeguard three-phase electrical systems from voltage fluctuations and over-current conditions. It provides automatic reconnection, phase-loss, and phase-imbalance protection for reliable and safe operation.

Applications: Industrial and commercial three-phase electrical systems, machinery protection, and power supply safety.

Features of 3-Phase Voltage Protector:

Automatic over-voltage and under-voltage protection
Over-current protection for safe operation
Auto-reconnect function after power restoration
Phase-loss and phase-imbalance protection
Compact design suitable for easy installation

Comprehensive Voltage Monitoring and Protection

The VPD3-63VA offers advanced protection by continuously monitoring all three phases for over and under voltage, as well as phase loss, sequence errors, and imbalance. The built-in microprocessor ensures accurate responses and maintains optimal system stability within your electrical network.

Intuitive Operation With Digital LED Indication

Equipped with a clear digital LED display, this device provides real-time indications of voltage status, making it effortless for users to monitor and address voltage anomalies. Its intuitive interface supports quick diagnosis for smoother operations and minimal downtime.

Adaptable and Reliable Industrial Solution

With a wide measuring voltage range (320-460V), robust fire-retardant design, and flexible delay setting, this protector adapts to diverse operational needs. Reliable relay output and DIN rail mounting make installation straightforward, ensuring both safety and efficiency for industrial and commercial applications.

FAQ's of True Sense Three Phase Adjustable Over and Under Voltage Protector, VPD3-63VA:

Q: How does the True Sense VPD3-63VA protect my equipment from voltage fluctuations?

A: This voltage protector uses a microprocessor to detect over and under voltage, phase loss, sequence, and imbalance in three-phase circuits. When a voltage anomaly is detected, it rapidly disconnects the load (response time <1 second), preventing damage to connected equipment.

Q: What is the process for adjusting the delay time on the VPD3-63VA?

A: Delay time can be set between 1 and 500 seconds to suit your requirements. Simply use the adjustment controls on the unit to increase or decrease the delay before auto-reconnection, allowing sensitive equipment extra buffer time before re-energizing after a voltage event.

Q: Where can I install the VPD3-63VA voltage protector?

A: This device is designed for standard DIN rail mounting and can be installed in electrical panels within industrial or commercial environments. Its compact size and IP20 protection make it suitable for protected indoor settings.

Q: When should I use a three-phase voltage protection device like this?

A: It is recommended to use a VPD3-63VA when operating sensitive or critical equipment on three-phase power supplies where voltage disturbances can cause downtime, equipment faults, or safety hazards, particularly in industrial and commercial facilities.

Q: What benefits does the digital LED display provide?

A: The digital LED indicator offers clear, real-time readings of voltage status. This enables you to quickly identify abnormal conditions, troubleshoot issues efficiently, and monitor the overall health of your power supply.

Q: Is the VPD3-63VA resistant to fire and electrical surges?

A: Yes, the enclosure is made from high-grade, flame-retardant plastic, and the device is surge-resistant, providing extended protection against electrical hazards and enhancing operational safety.
