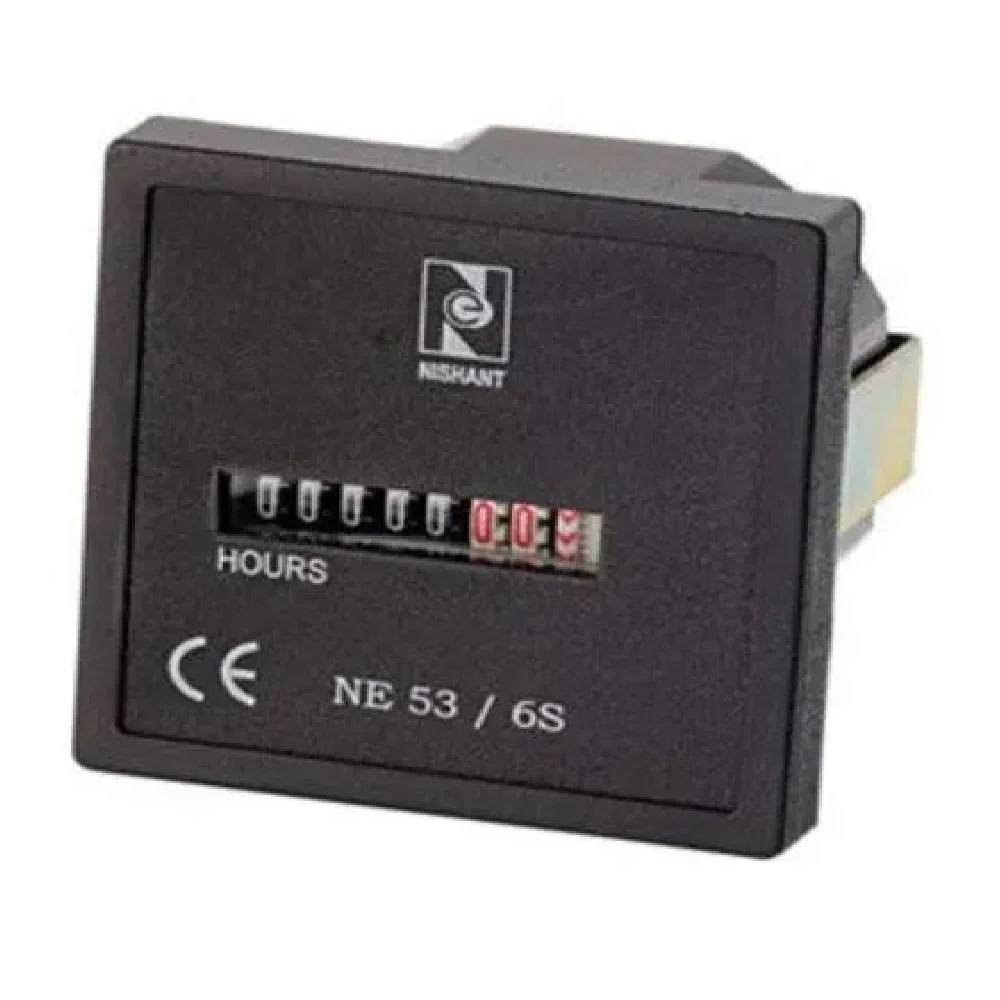

Nishant Hour Meter, NE-53/6S

Name: Nishant Hour Meter, NE-53/6S
Brand: True Sense Technologies
Price: 390.0 INR
Availability: InStock

Price 390.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Nishant Hour Meter, NE-53/6S Specification

Pressure
Normal atmospheric

Resistant Feature
Shock resistant with vibration resistance

Accuracy
0.02%

Usage & Applications
Used for monitoring running time of machines, generators, equipment

Product Type
Hour Meter

Material
Black Polycarbonate Body

Measuring Voltage Range
230V AC / 110V AC

Operating Temperature
0C to 60C

Frequency (MHz)
50/60 Hz

Insulation Box
Yes

Protection System
Sealed dust proof case

Size
48 x 48 mm

Color
Black

Dimension (L*W*H)
48 mm x 48 mm x 52 mm approx

Weight
Approx 120 g

Enclosure Protection
IP-40

Power Consumption
Less than 2 VA

Terminals
Screw terminals

Mounting Type
Panel Mounting

Count Range
0-99999.99 Hours

Display Type
Analog (Drum type) mechanical display

Reset
Non-resettable

Nishant Hour Meter, NE-53/6S Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About Nishant Hour Meter, NE-53/6S

True Sense Nishant NE-53/6S Digital Hour Meter is designed for precise and reliable time tracking of industrial equipment and machinery. It features high-precision recording and a robust design for continuous operation.

Ideal for monitoring machinery runtime, maintenance schedules, and operational hours in industrial environments.

Applications: Industrial machinery monitoring, equipment runtime tracking, maintenance scheduling.

Features of NE-53/6S Digital Hour Meter:

High-precision time recording for accurate monitoring
230V AC operation with continuous duty cycle
Flush panel mounting for easy installation
Large display capacity up to 99,999.99 hours
Durable design suitable for industrial use

Reliable Performance for Industrial Monitoring

Designed for the rigorous demands of industrial environments, the NE-53/6S delivers dependable hour tracking with 0.02% accuracy. Its mechanical analog display ensures continuous, tamper-proof logging, crucial for maintenance schedules and warranty compliance. The shock and vibration-resistant build offers stability, even in dynamic settings.

User-Friendly Installation and Operation

With a compact 48 x 48 mm footprint and convenient screw terminals, this hour meter fits easily into control panels. Its sealed case and insulation box add an extra layer of protection, ensuring long-lasting operation with minimal maintenance. Visual readout of accumulated hours simplifies equipment monitoring for operators.

Versatile Applications Across Industries

The Nishant Hour Meter caters to diverse applications, from generators and industrial machinery to commercial and electrical equipment. Its wide voltage compatibility, dust-proof construction, and sturdy design make it ideal for manufacturer, importer, and supplier needs across India.

FAQ's of Nishant Hour Meter, NE-53/6S:

Q: How do I mount the Nishant NE-53/6S Hour Meter to a panel?

A: The NE-53/6S is designed for panel mounting. Simply cut a panel hole of 48 x 48 mm and use the provided screw terminals to securely connect the meter. The enclosure fits snugly into the cutout, ensuring a stable installation.

Q: What is the primary benefit of using this hour meter in industrial settings?

A: By providing accurate, tamper-proof tracking of equipment running hours, the NE-53/6S supports timely maintenance and helps maximize equipment lifespan, reduce downtime, and maintain warranty compliance.

Q: When should I choose a non-resettable hour meter like this model?

A: Select a non-resettable meter when you require permanent, uninterrupted recording of usage hours for tracking maintenance cycles or ensuring accurate records for regulatory, warranty, or operational purposes.

Q: Where can the NE-53/6S hour meter be used?

A: This meter is suitable for monitoring the operational time of machinery, generators, and industrial equipment in factories, workshops, commercial buildings, or any application where accurate runtime tracking is needed.

Q: What is the process for wiring the hour meter?

A: Wiring involves connecting the supply voltage (either 230V AC or 110V AC) to the screw terminals as indicated in the installation manual. Ensure the power is disconnected before installation for safety.

Q: How does the mechanical drum display work on this hour meter?

A: The analog drum-type display mechanically rotates with each hour of operation, showing a cumulative count up to 99999.99 hours. This provides a clear, reliable reading easily visible on the front panel.

Q: What makes this hour meter resistant to shock and vibration?

A: The meter uses a sealed dust-proof case made from black polycarbonate and incorporates robust internal components, making it highly resistant to shocks and vibrations typical in industrial environments.
