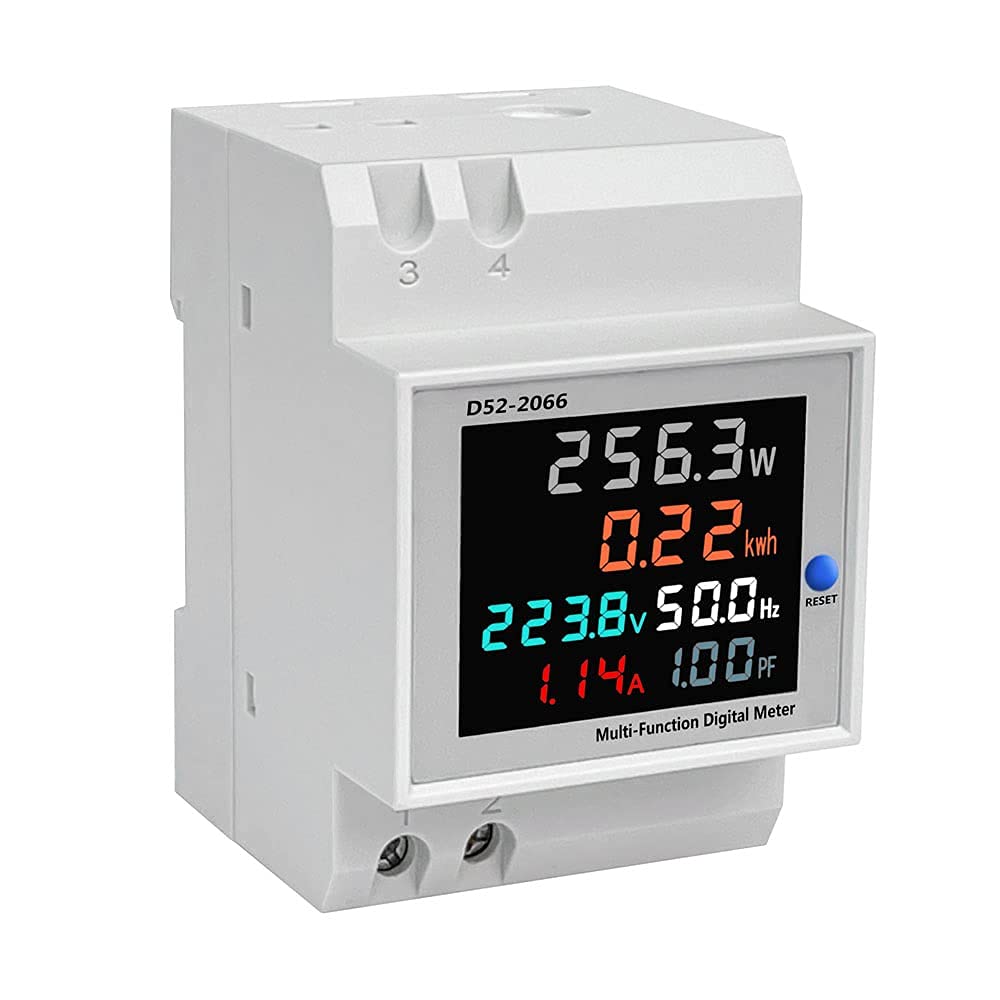

True Sense Energy Meter LCD Display D52-2066

Name: True Sense Energy Meter LCD Display D52-2066
Brand: True Sense Technologies
Price: 1500.0 INR
Availability: InStock

Price 1500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

True Sense Energy Meter LCD Display D52-2066 Specification

Batteries Type
Not Required (Direct Powered)

Resistant Feature
Fire Retardant, Moisture Resistant

Accuracy
Class 1.0

Pressure
Normal Atmospheric

Usage & Applications
Measurement of electrical energy consumption in residential or industrial circuits

Product Type
Energy Meter LCD Display

Material
ABS Plastic

Measuring Voltage Range
AC 80-260V

Operating Temperature
-10C to 60C

Frequency (MHz)
50/60Hz

Insulation Box
Yes

Protection System
Overload/Short Circuit Protection

Size
Standard

Color
White

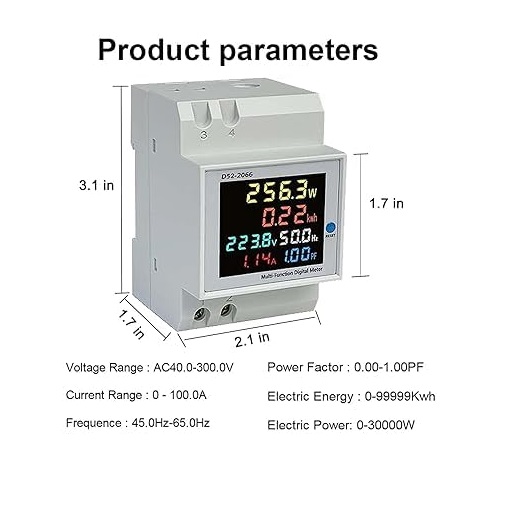

Dimension (L*W*H)
66mm x 52mm x 45mm

Weight
130g

Mounting Type
Panel Mount

Relative Humidity
95% RH (non-condensing)

Wiring Mode
Single Phase Two Wire

Sampling Rate
2 times/second

Current Measurement Range
0-100A (depends on model or CT)

Power Consumption
<0.5W

Display Backlight
Yes

Display Type
LCD Digital

Voltage Withstand
2kV for 1 minute between input and housing

Data Retention
EEPROM Memory for Power Outage Data Storage

Display Digit
6+1 Digit

True Sense Energy Meter LCD Display D52-2066 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About True Sense Energy Meter LCD Display D52-2066

True Sense 6-in-1 AC Energy Meter and Voltmeter is a versatile device designed for comprehensive electrical monitoring. It accurately measures voltage, current, active power, frequency, power factor, and overall power consumption.

Equipped with a colorful LCD display, this energy meter provides clear and easy-to-read data, making it suitable for monitoring electrical systems in homes, offices, and industrial applications.

Applications: Electrical system monitoring, energy consumption tracking, industrial and residential power management.

Features of 6-in-1 Energy Meter:

Measures voltage, current, active power, frequency, power factor, and power consumption
Colorful LCD display for clear readings
Accurate monitoring of electrical parameters
Ideal for homes, offices, and industrial applications
Supports monitoring up to 22 kW power consumption

Efficient Power Monitoring with Advanced Display

Equipped with a 6+1 digit LCD backlit display, the D52-2066 ensures clear visibility of readings, even in low-light environments. Its rapid sampling rate of two times per second guarantees real-time measurement accuracy. The device is user-friendly, integrating seamlessly into standard panel mounts and requires no external batteries for operation, as it is directly powered from the measured circuit.

Enhanced Reliability and Resilience

This meter is engineered for durability with an ABS fire-retardant casing and advanced overload/short circuit protection systems. It operates within a broad temperature (-10C to 60C) and humidity range (up to 95% RH, non-condensing), making it ideal for Indian conditions. In addition, data is safely stored in EEPROM memory, ensuring that energy computation data is preserved during sudden power interruptions.

Versatile Applications in Residential and Industrial Settings

Designed for both home and industrial use, the D52-2066 is capable of tracking energy use across a wide voltage range (AC 80-260V) and current (up to 100A). Its compact, standard dimensions (66mm x 52mm x 45mm) allow easy integration into electrical panels. This energy meter supports both monitoring and efficient management of electrical systems to help users control energy costs effectively.

FAQ's of True Sense Energy Meter LCD Display D52-2066:

Q: How do I install the True Sense Energy Meter D52-2066?

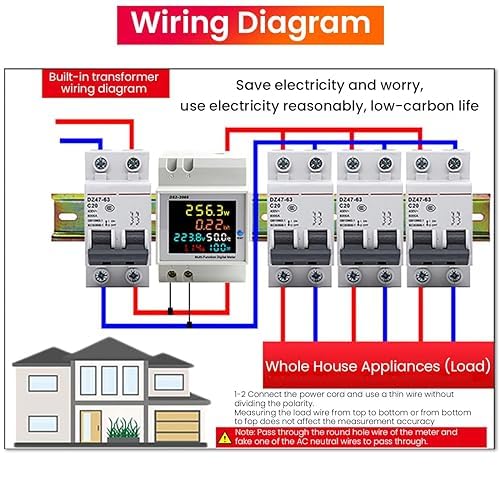

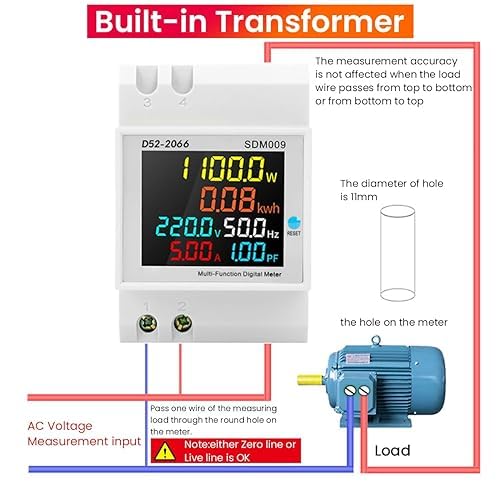

A: The D52-2066 is designed for easy panel mount installation on single-phase, two-wire circuits. Ensure that the circuit is de-energized before wiring and follow the wiring diagram provided in the manual. Connect the input and output wires as indicated, mount the device securely, and power up to start measurement.

Q: What type of display does the D52-2066 use and how is it powered?

A: It features a 6+1 digit LCD digital display with backlight for enhanced readability. The meter is directly powered by the measured electrical circuit, eliminating the need for external batteries.

Q: Can the meter retain data during a power outage?

A: Yes, the D52-2066 is equipped with EEPROM memory, which securely retains energy consumption data even during power interruptions, ensuring continuity and accuracy in measurement records.

Q: What is the current and voltage measurement range of this device?

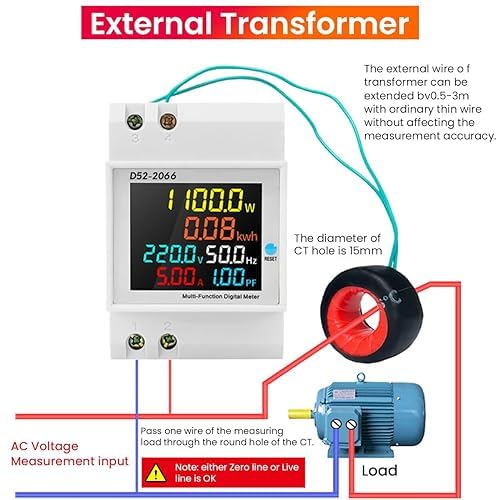

A: Depending on the model or current transformer (CT) used, the meter can measure from 0 up to 100A. The voltage measurement range is AC 80 to 260 volts, making it suitable for various residential and industrial environments.

Q: Where can I use this meter and what are its typical applications?

A: The True Sense D52-2066 is ideal for both residential and industrial settings in India, suitable for monitoring electrical load, managing energy usage, and ensuring electrical system efficiency in single-phase circuits.

Q: What protections and resistant features does the D52-2066 offer?

A: It includes built-in overload and short-circuit protection systems, as well as a fire-retardant, moisture-resistant ABS enclosure, ensuring safety and reliability even under demanding installation conditions.
