True Sense Fall Ceiling Recessed Motion Sensor, TS-09

Send Inquiry

Request To Call Back

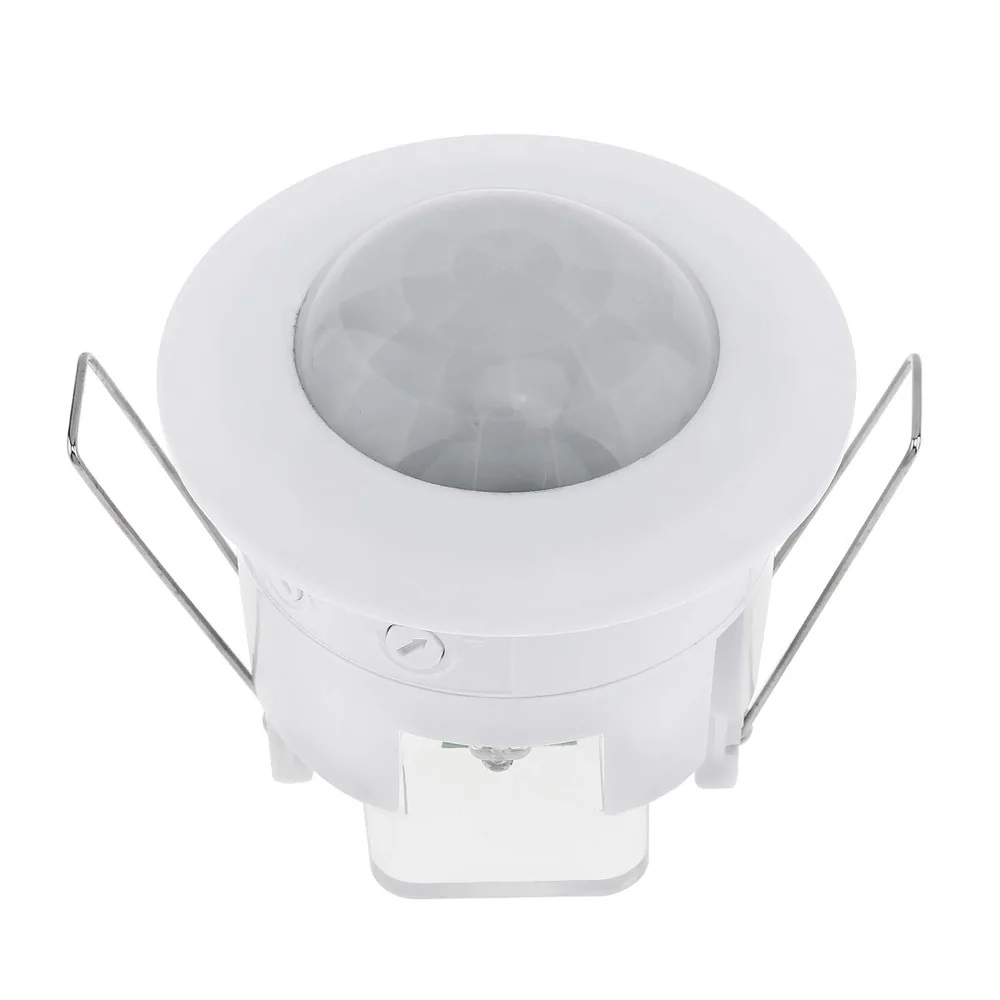

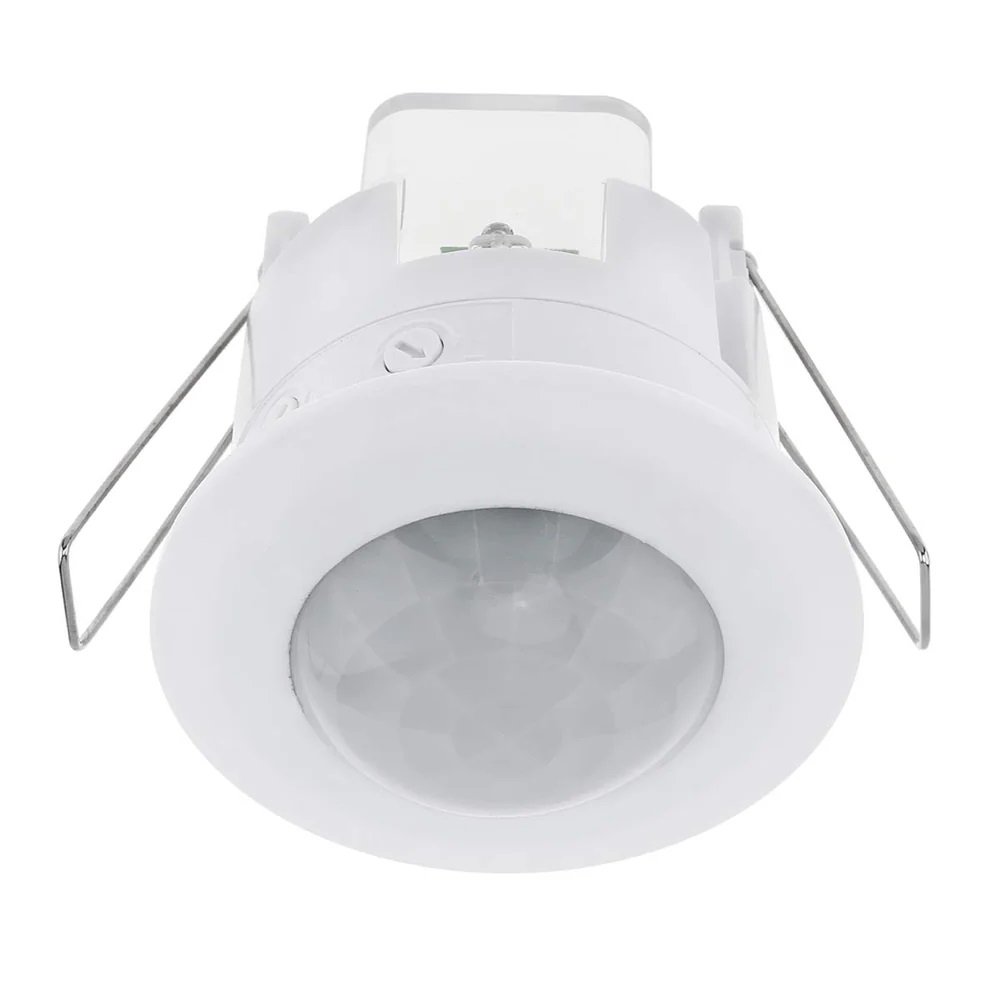

True Sense Fall Ceiling Recessed Motion Sensor, TS-09

Name: True Sense Fall Ceiling Recessed Motion Sensor, TS-09
Brand: True Sense Technologies
Price: 340.0 INR
Availability: InStock

Price 340.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

True Sense Fall Ceiling Recessed Motion Sensor, TS-09 Specification

IP Rating
IP20

Interface
Wired Connection

Power Consumption
<0.5W (static)

Signal Type
Digital

Measurement Range
360/6 Meters Diameter

Sensitivity
Adjustable

Features
360 Degree Detection, Adjustable Timer, Light Sensitivity Control, Compact Design

Application
Lighting Automation, Security, Energy Saving Solutions

Mounting Type
Recessed in Fall Ceiling

Response Time
Instantaneous (<1 sec)

Sensor Type
PIR (Passive Infrared)

Wireless
No

Operating Temperature
-20C to +40C

Product Type
Fall Ceiling Recessed Motion Sensor

Material
ABS Plastic

Input
AC 220-240V, 50/60Hz

Output
Relay Output

Function
Automatic Motion Detection

Usage
Indoor (Ceiling Mount)

Accuracy
High Detection Accuracy

Voltage
220-240V AC

Weight
180 g

Detection Distance
Up to 6 meters (diameter)

Installation Height
2.2-4 meters recommended

Lux Adjustment
3-2000 Lux (adjustable)

Maximum Load
800W (incandescent), 200W (LED)

Model No.
TS-09

Dimensions
~115 mm (diameter) x 54 mm (depth)

Timer Setting
10 sec to 7 min (adjustable)

Detection Angle
360 Degrees

Color
White

True Sense Fall Ceiling Recessed Motion Sensor, TS-09 Trade Information

Minimum Order Quantity
5 Pieces

Delivery Time
2 Days

About True Sense Fall Ceiling Recessed Motion Sensor, TS-09

True Sense 110240V Infrared Motion Sensor Switch is a reliable ceiling-mounted PIR sensor designed for automatic lighting control. It detects human movement using infrared technology and switches lights on or off automatically, helping save energy and improve convenience.

This recessed ceiling motion sensor features a 360-degree detection range, making it ideal for wide-area coverage. With adjustable sensitivity and time delay, it is suitable for various indoor applications such as homes, offices, corridors, and commercial spaces.

Applications: Homes, offices, corridors, staircases, washrooms, parking areas, shops, and commercial buildings.

Features of Infrared Motion Sensor Switch:

Infrared PIR motion detection for automatic lighting control

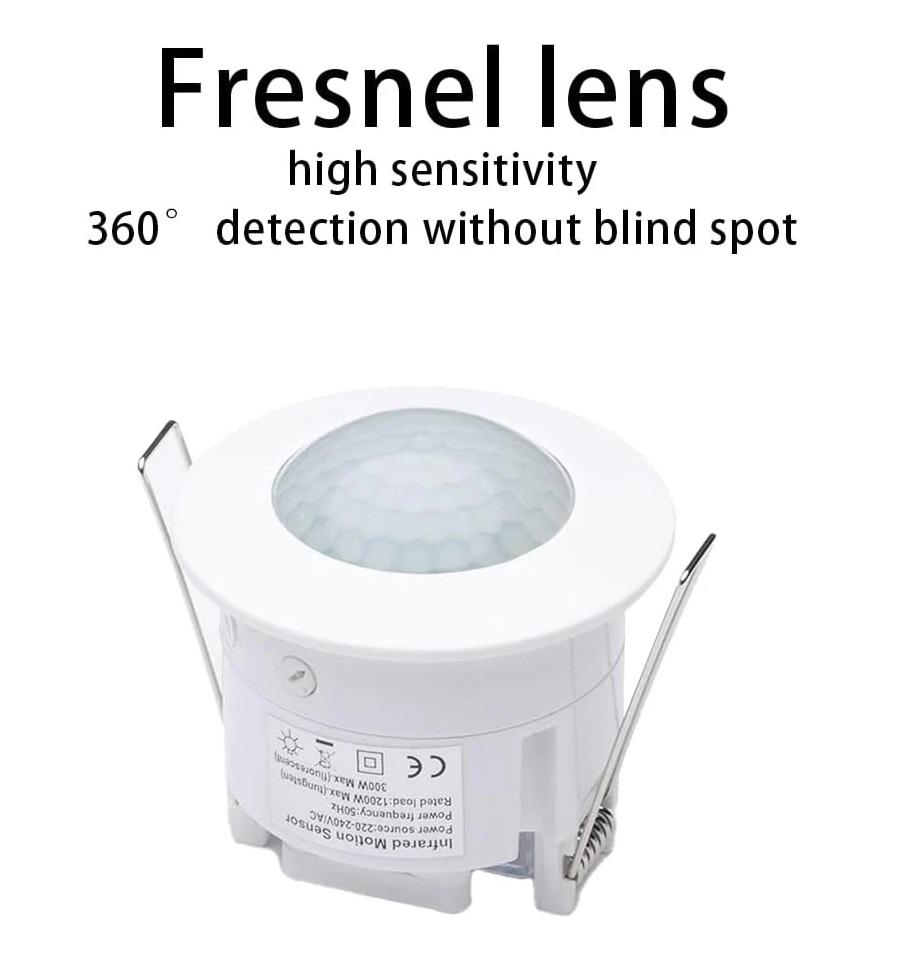

Wide 360-degree detection coverage
Recessed ceiling-mounted design for clean installation
Adjustable sensitivity and time delay settings
Supports 110240V wide voltage range
Helps save energy by turning lights on only when needed

Seamless Motion Detection

The TS-09 motion sensor utilizes advanced PIR technology and provides a 360-degree detection angle, offering comprehensive coverage for any indoor space. Its high detection accuracy and instant response time enhance the efficiency and safety of lighting and security solutions. The sensor is suitable for homes, offices, and commercial establishments.

Customizable Settings for Flexibility

Offering user-friendly adjustments, the sensor allows you to set the timer between 10 seconds and 7 minutes and to fine-tune light sensitivity from 3 to 2000 Lux. This versatility ensures optimal performance based on occupancy and ambient light, supporting significant energy savings by powering lights only when necessary.

FAQ's of True Sense Fall Ceiling Recessed Motion Sensor, TS-09:

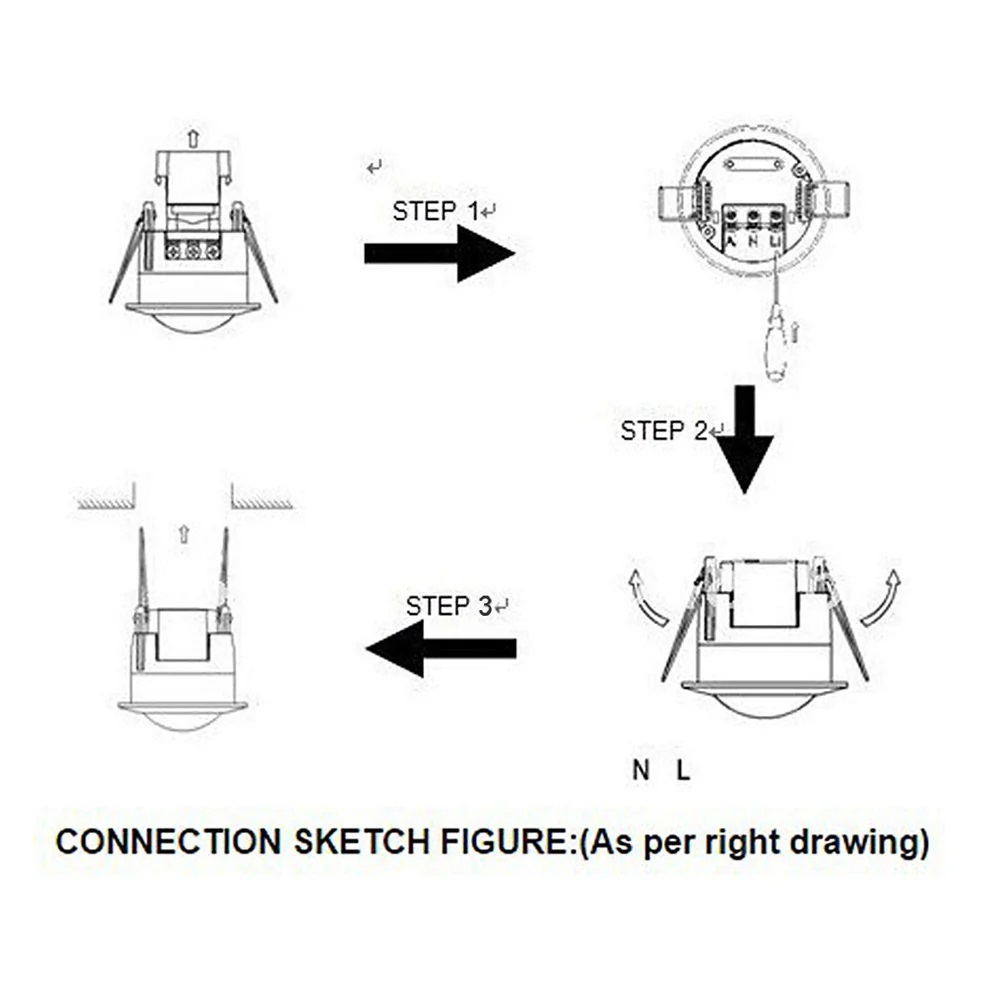

Q: How do I install the TS-09 Fall Ceiling Recessed Motion Sensor?

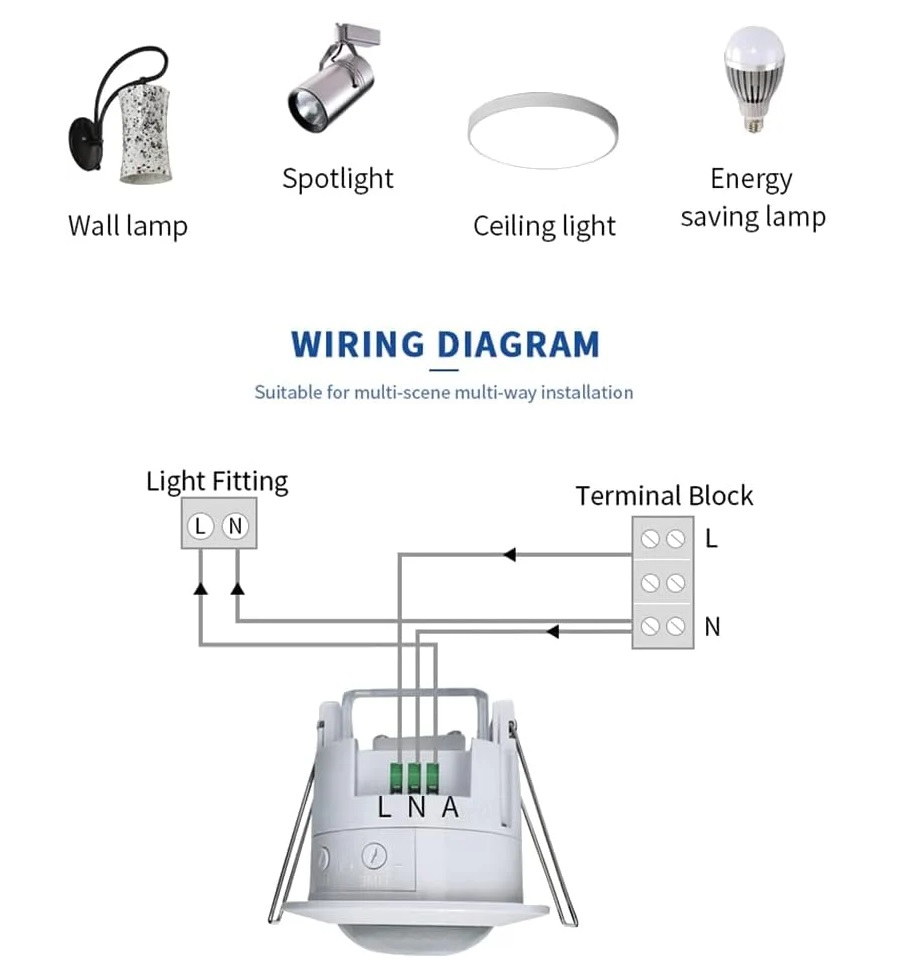

A: Installation involves recessing the sensor into a false ceiling at a recommended height of 2.2-4 meters. It requires a wired connection to your AC 220-240V power supply. For optimal coverage, ensure it is placed in a central location within the room and follows electrical safety standards.

Q: What is the detection range and angle of this motion sensor?

A: The TS-09 provides a 360-degree coverage and can detect motion within a diameter of up to 6 meters. This makes it suitable for medium to large rooms, ensuring complete area detection without blind spots.

Q: When should I use the TS-09 sensor for maximum benefit?

A: For best results, use the sensor in indoor settings where automated lighting or security is desired, such as offices, hallways, or living areas. It is ideal for locations requiring energy-saving solutions and where manual control may be inconvenient.

Q: Where can I adjust the timer and lux settings?

A: Both timer (10 seconds to 7 minutes) and lux (3-2000 Lux) adjustments are available on the sensor itself. These settings can be tailored after installation to suit specific room brightness and occupancy patterns.

Q: What processes does the sensor use to detect motion?

A: The sensor relies on passive infrared (PIR) technology, which senses changes in infrared radiation from moving people or objects within its range. Upon detecting motion, it instantly sends a signal to the connected lighting system via relay output.

Q: How does using the TS-09 sensor benefit my energy usage?

A: By automatically switching lights on when motion is detected and off after the preset period of inactivity, the sensor minimizes unnecessary power consumption, leading to significant energy and cost savings over time.
