True Sense 6 Amp Day Night Photocell Sensor, TS-10

Send Inquiry

Request To Call Back

True Sense 6 Amp Day Night Photocell Sensor, TS-10

Name: True Sense 6 Amp Day Night Photocell Sensor, TS-10
Brand: True Sense Technologies
Price: 100.0 INR
Availability: InStock

Price 100.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

True Sense 6 Amp Day Night Photocell Sensor, TS-10 Specification

IP Rating
IP65 (Weatherproof)

Power Consumption
< 1 Watt

Mounting Type
Wall Mounted

Operating Temperature
-10C to +50C

Measurement Range
10 to 100 LUX (Adjustable)

Interface
Wired

Signal Type
On/Off (Digital)

Application
Lighting Automation, Energy Saving

Features
Waterproof, UV Resistant, Long Life, Adjustable Sensitivity

Cable Length
Approx 20 cm

Sensor Type
Light Dependent Resistor (LDR)

Wireless
No

Sensitivity
Adjustable Light Sensitivity

Response Time
< 10 seconds

Product Type
Day Night Photocell Sensor

Material
Polycarbonate Body

Input
230V AC, 50Hz

Output
Relay (Normally Open) - 6A Max

Function
Automatic switching ON/OFF of lights based on ambient light detection

Usage
Outdoor and Street Lighting Automation

Accuracy
High precision, suitable for outdoor lighting control

Voltage
220-240V AC

Weight
Approx 120 g

Installation
Simple 2-wire connection

Color
White

Maximum Load Capacity
6 Ampere Resistor Load

Switching Lifetime
> 100,000 cycles

Model Number
TS-10

Frequency
50/60 Hz

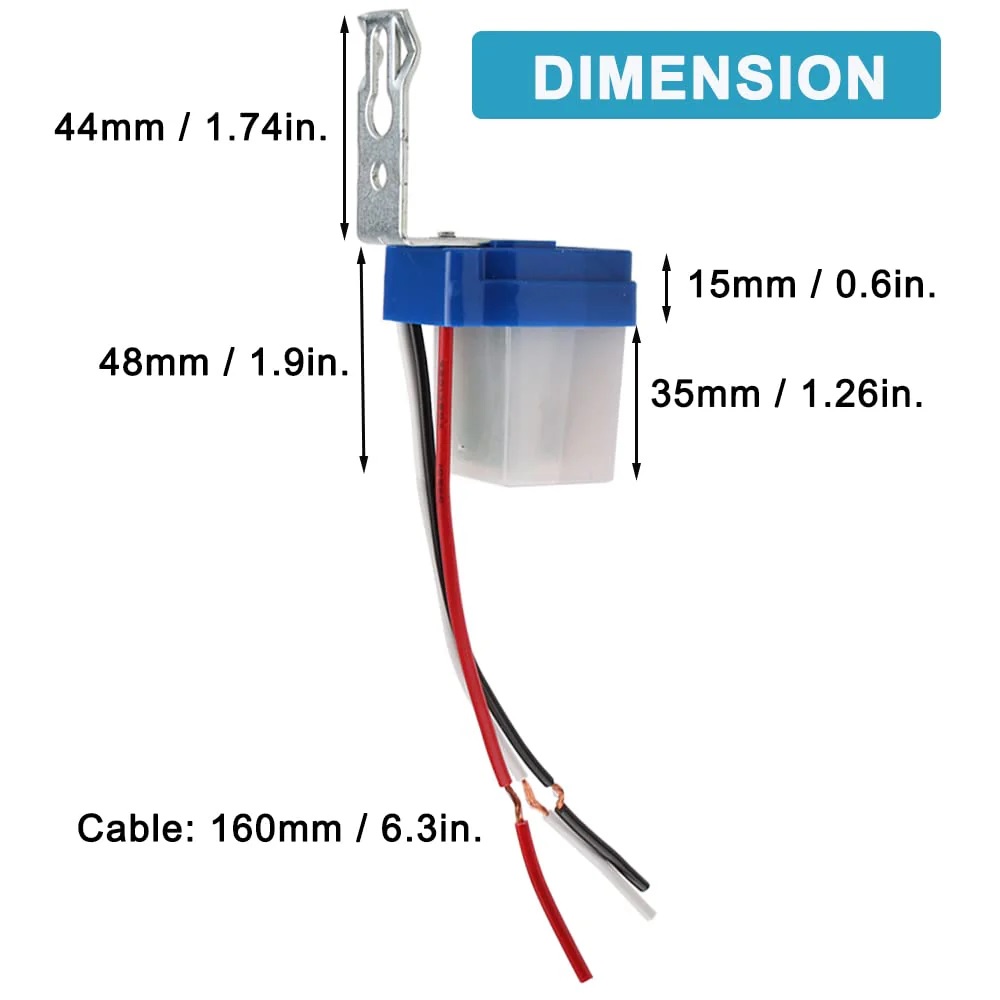

Size (LxWxH)
80 mm x 45 mm x 40 mm

Compliance
CE Certified

Turn On/Off Delay
Prevents false triggering due to lightning

Ambient Light Threshold
Preset & Adjustable

True Sense 6 Amp Day Night Photocell Sensor, TS-10 Trade Information

Minimum Order Quantity
5 Pieces

Delivery Time
2 Days

About True Sense 6 Amp Day Night Photocell Sensor, TS-10

True Sense 6A Photocell Day/Night Sensor is an automatic light control device designed to turn lights ON at night and OFF during the day. It uses an LDR (Light Dependent Resistor) sensor to detect ambient light levels accurately.

This 220V photocell switch is ideal for outdoor lighting applications, providing energy savings and hassle-free operation for gardens, streets, and other exterior areas.

Applications: Street lights, garden lights, pathways, parking areas, and outdoor lighting systems.

Features of 6A Photocell Day/Night Sensor:

Automatic day/night light control
Uses LDR sensor for accurate light detection
Supports 220V AC supply
Rated for up to 6A load
Energy-saving and maintenance-free operation
Suitable for outdoor lighting installations

Automatic Lighting Control for Efficiency

The TS-10 photocell sensor toggles lights on and off based on surrounding light conditions, ensuring outdoor and street lights operate only when necessary. This automation supports energy savings and reduces manual intervention for convenient day-night transitions. Adjustable sensitivity accommodates various lighting preferences and locations.

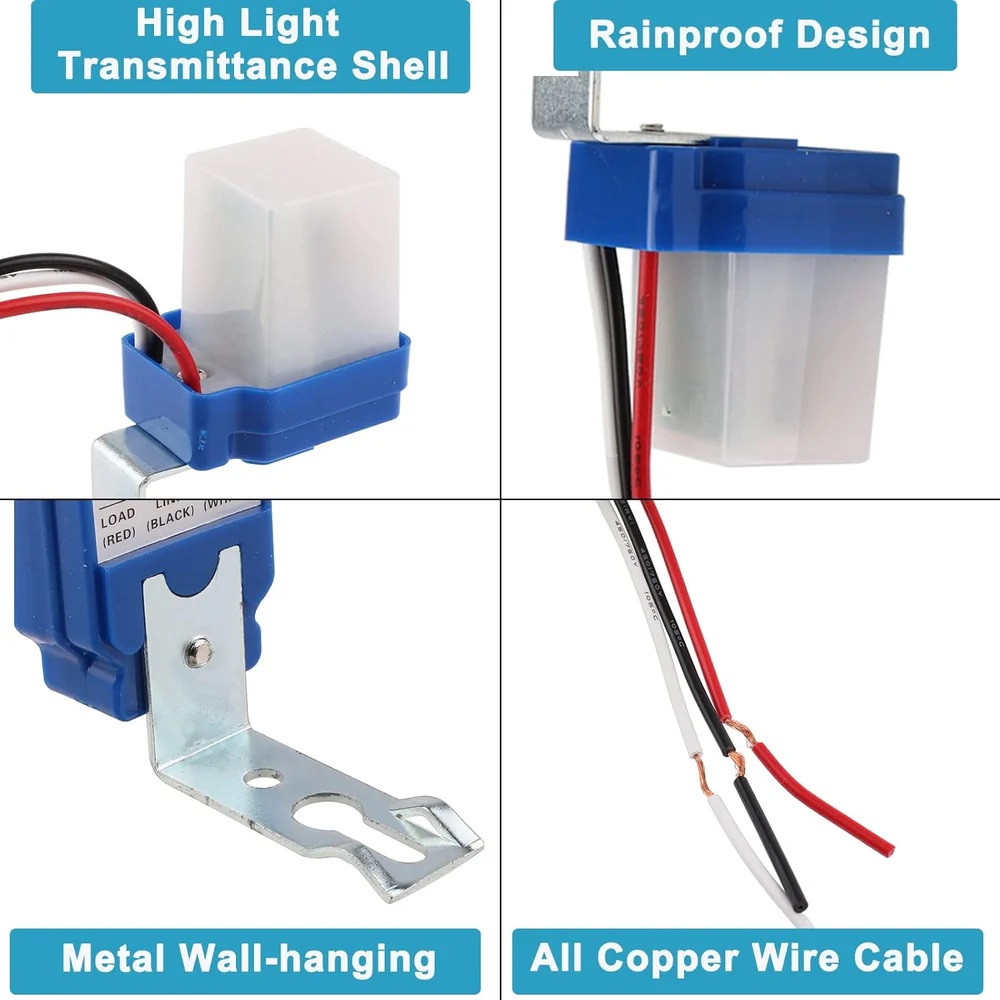

Built to Withstand Outdoor Elements

Designed with IP65 waterproofing and a UV-resistant polycarbonate body, the TS-10 is ideal for all weather conditions. Its sturdy housing shields internal components, resulting in a device that remains reliable and functional across fluctuating temperatures and harsh outdoor environments.

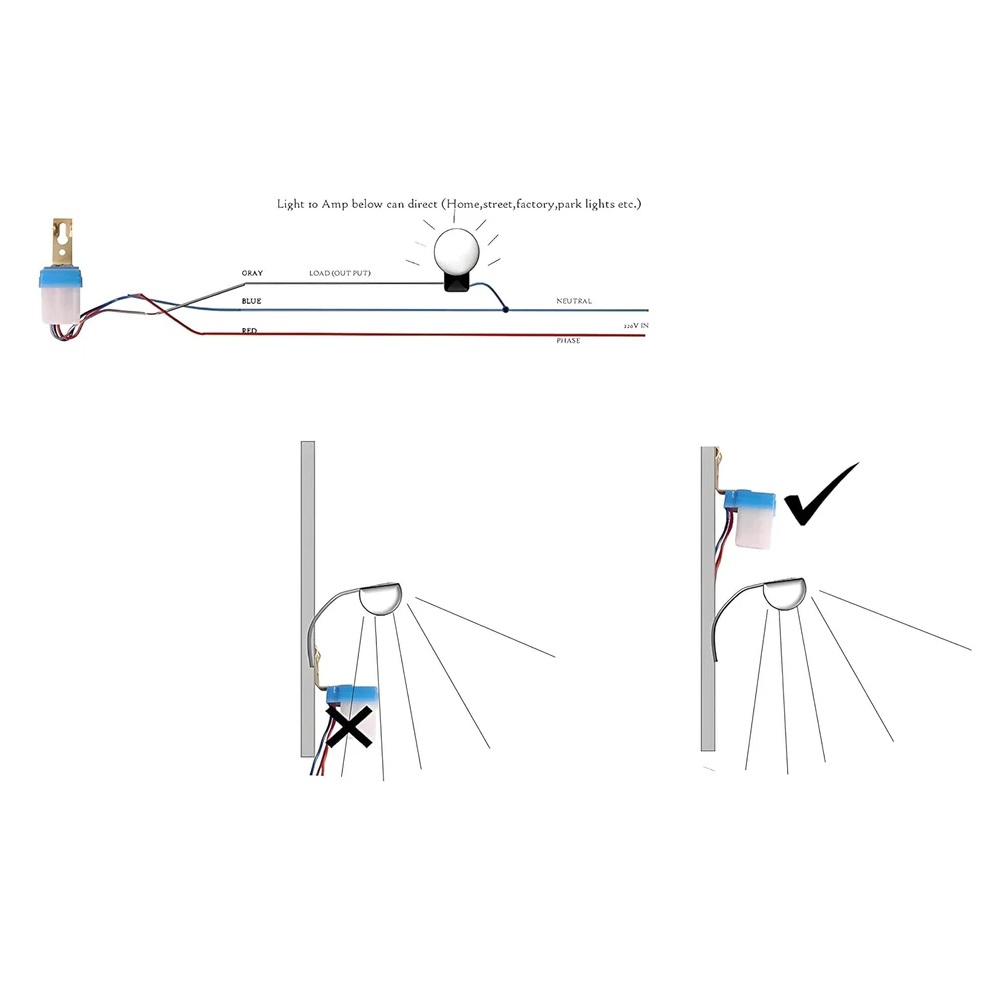

Hassle-Free Installation and Versatile Application

With a simple 2-wire connection, the TS-10 is easy to mount on walls or poles. It is perfectly suited for different outdoor automation needs-ranging from street lighting, pathways, to garden and campus illumination-making it a versatile choice for energy-conscious users.

FAQ's of True Sense 6 Amp Day Night Photocell Sensor, TS-10:

Q: How do I install the True Sense TS-10 photocell sensor?

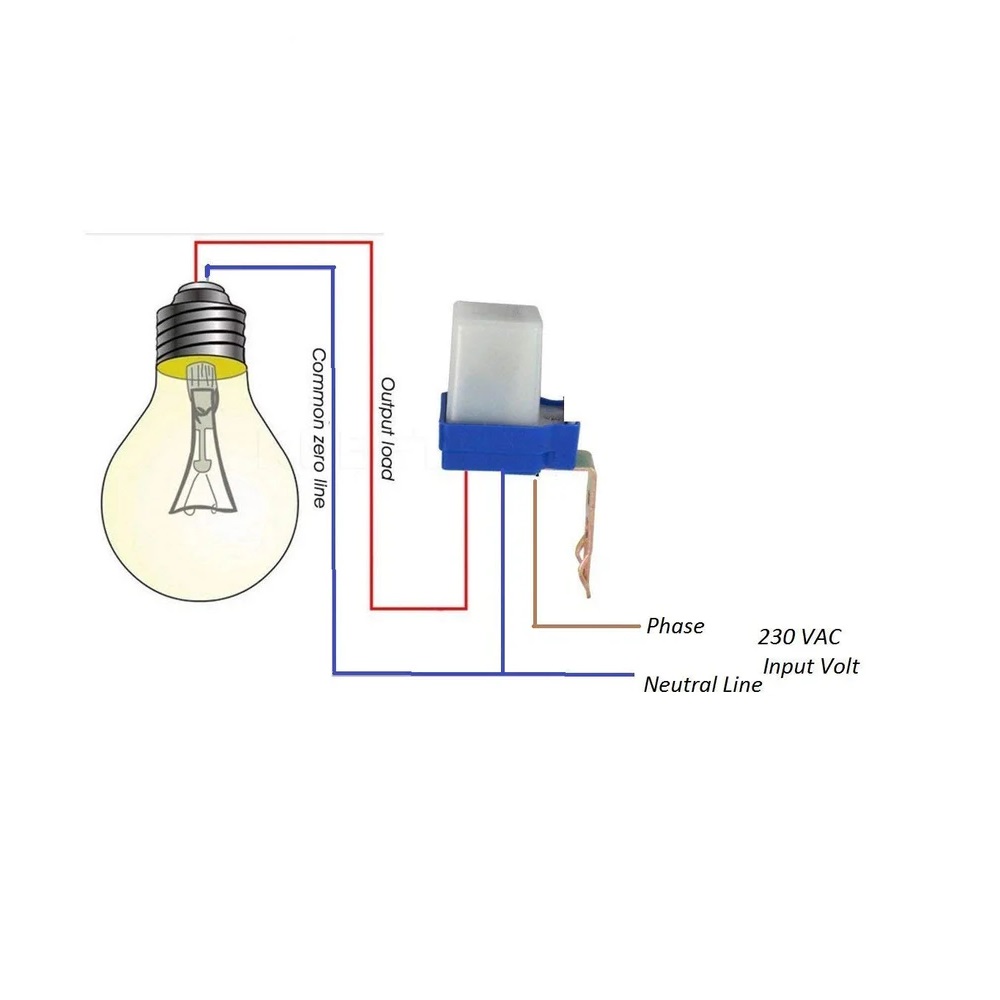

A: Installation is straightforward with a simple 2-wire connection. Mount the sensor on a wall or pole using the provided cable (approx 20 cm length), and connect it directly to a 230V AC power line. Always ensure the power is switched off during installation for safety.

Q: What is the maximum load capacity the TS-10 sensor can handle?

A: The TS-10 is capable of handling a maximum resistor load of 6 Amperes, making it suitable for most commercial and residential outdoor lighting setups.

Q: When will the TS-10 sensor turn lights on or off?

A: The TS-10 detects ambient light and will automatically switch lights on at dusk and off at dawn. The light sensitivity is adjustable (from 10 to 100 LUX), allowing you to customize the response according to your lighting needs.

Q: Where is the TS-10 sensor typically used?

A: This sensor is designed for outdoor environments such as street lighting, garden or campus illumination, and other areas where automatic lighting control is desired. Its weatherproof build makes it ideal for installations exposed to the elements.

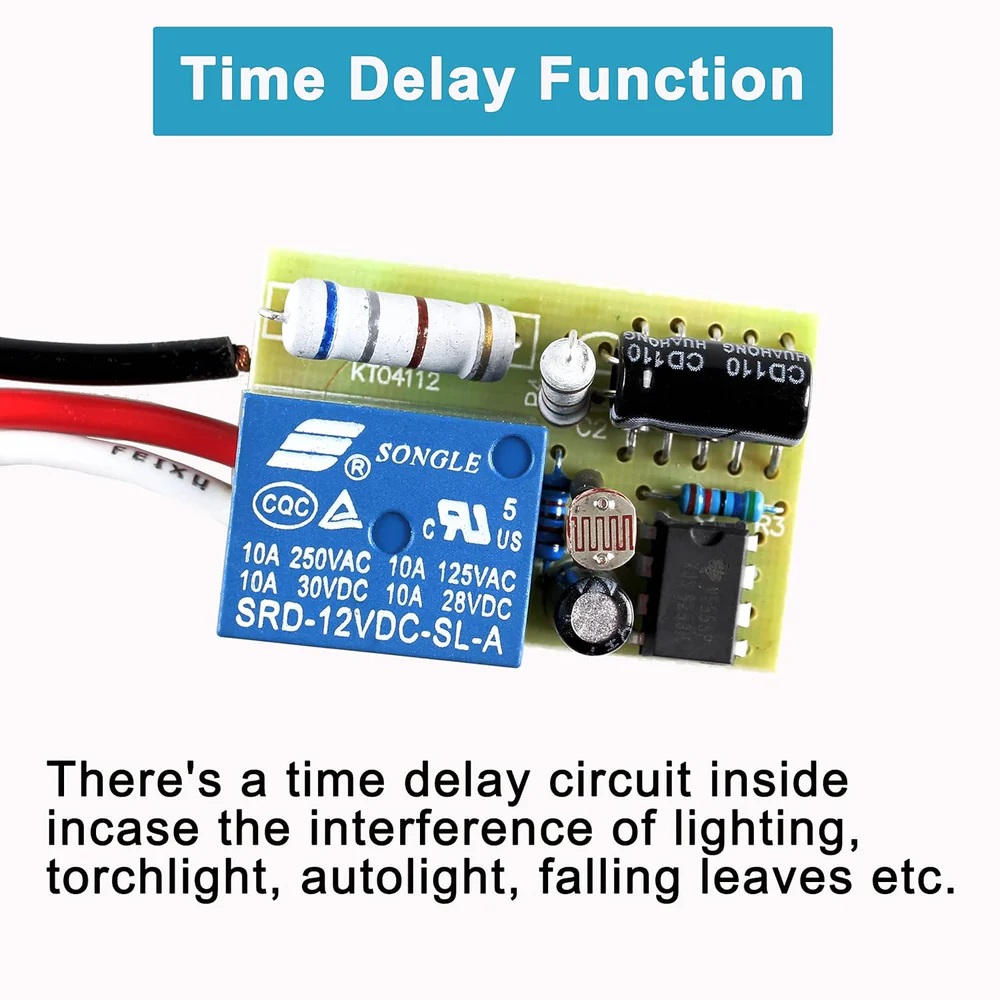

Q: What process prevents false triggering in the TS-10 sensor?

A: The TS-10 features a turn on/off delay function which helps avoid false triggering from temporary light sources, such as lightning, ensuring lights operate only in genuine low-light or daylight conditions.

Q: How does using the TS-10 benefit my lighting system?

A: By automating your lighting system based on actual ambient light, the TS-10 reduces energy consumption, lowers electricity bills, and extends lamp life due to reduced operating hours. It also eliminates the need for manual control, offering convenience and energy efficiency.

Q: Is the TS-10 suitable for harsh weather and outdoor conditions?

A: Absolutely. With an IP65 weatherproof rating and UV-resistant polycarbonate construction, the TS-10 is built to withstand rain, dust, heat, and direct sunlight, ensuring reliable performance in a variety of outdoor settings.
