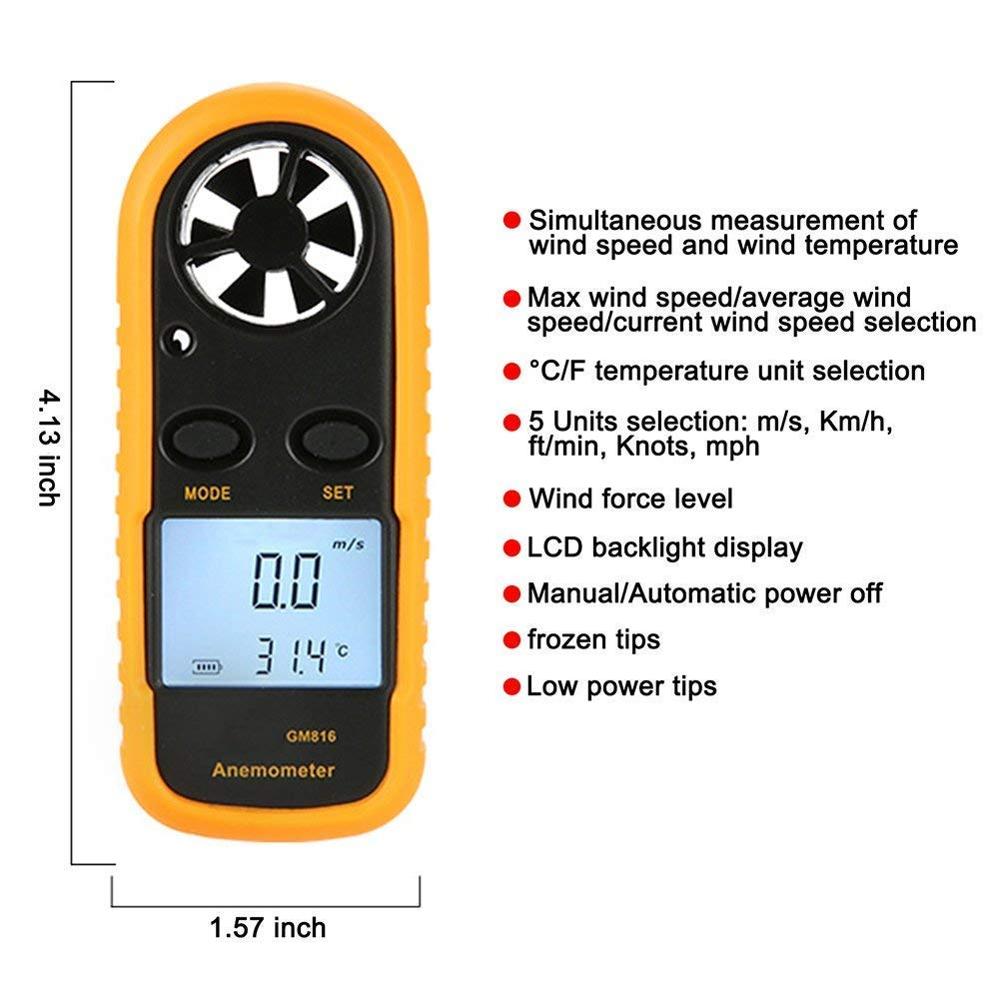

True Sense Digital Anemometer, GM-816

Name: True Sense Digital Anemometer, GM-816
Brand: True Sense Technologies
Price: 720.0 INR
Availability: InStock

Price 720.0 INR/ Piece

Get a Price/Quote

MOQ : 2 Pieces

True Sense Digital Anemometer, GM-816 Specification

Type
Digital Anemometer

Theory
Hot-wire and wind pressure (for air velocity measurement)

Capacity
0.3~30.0 m/s (wind speed), -10~45C (temperature measurement)

Exterior Material
High-impact ABS plastic casing

Interior Material
Electronic circuitry, sensors

External Size
Device dimensions: 105mm x 40mm x 15mm (Approx.)

Controller System
Microcontroller based digital readout

Temperature Range
-10C to 45C

Sensor Type
High-precision rotating vane sensor

Low Battery Indication
Yes

Sampling Rate
0.5 seconds

Display Type
Large LCD display

Accuracy
5% of reading

Measurement Mode
Instant and average wind speed

Auto Power Off
Yes, after 14 minutes without operation

Operating Temperature
-10C to 45C

Operating Humidity
90% RH

Wind Speed Units
m/s, km/h, ft/min, knots, mph

Data Hold Function
Yes

Battery Type
1 x 3V CR2032 Lithium battery

Resolution
0.1 m/s

Weight
Approx. 52 g (including battery)

True Sense Digital Anemometer, GM-816 Trade Information

Minimum Order Quantity
2 Pieces

Delivery Time
2 Days

About True Sense Digital Anemometer, GM-816

An anemometer is a device used for measuring the speed of wind, and is also a common weather station instrument. The term is derived from the Greek word anemos, which means wind, and is used to describe any wind speed measurement instrument used in meteorology.

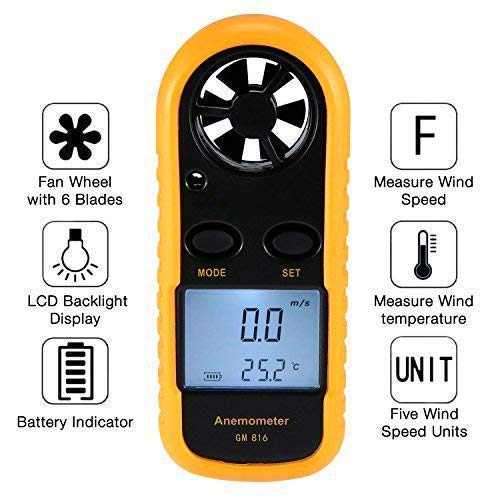

Features :

Air Velocity & Temperature Measurement
Max/Average/Current air velocity measurement
Temperature unit selection
Five units of air velocity: M/s, Km/h, ft/min, Knots, mph
Beaufort scale.
Backlight display
Manual/Auto power shut off
Wind chill indication
Low battery indication.
Current consumption : Approx. 3mA

High-Precision Wind Measurements

The GM-816 anemometer uses a rotating vane sensor and microcontroller-based digital readout to deliver quick and accurate wind speed readings. With an accuracy of 5% and a resolution of 0.1 m/s, it is ideal for both professional and hobbyist use in fields like meteorology, HVAC, and sailing.

User-Friendly Operation and Display

Equipped with a large LCD screen, the device ensures clear visibility of readings even in low-light environments. Essential functions such as data hold, auto power off, and low battery indication make operation simple and efficient for the user.

Versatile and Durable Design

Housed in a high-impact ABS casing, the GM-816 is built for durability while remaining lightweight at just 52g. Its compact dimensions make it easy to carry for outdoor and on-site uses in India and elsewhere, ensuring accurate readings wherever you go.

FAQ's of True Sense Digital Anemometer, GM-816:

Q: How do I use the True Sense Digital Anemometer GM-816 to measure wind speed?

A: To measure wind speed, turn on the GM-816 and hold it facing the airflow. The high-precision rotating vane sensor will display the current wind speed on the large LCD screen. You can choose the desired measurement units and use the data hold function to lock readings for easy reference.

Q: What wind speed units does the GM-816 anemometer display?

A: The device provides wind speed measurements in five units: meters per second (m/s), kilometers per hour (km/h), feet per minute (ft/min), knots, and miles per hour (mph), offering flexibility for different applications.

Q: When does the auto power off feature activate on this anemometer?

A: The auto power off feature is activated after 14 minutes of inactivity, which helps to conserve battery life by shutting down the device automatically if not in use.

Q: Where can I use the GM-816 anemometer?

A: This anemometer is suited for both indoor and outdoor environments, including weather observation, HVAC inspection, sailing, kite flying, and windsurfing. Its durable casing and operating range of -10C to 45C make it ideal for use in diverse Indian climates.

Q: What is the process to check for a low battery in this device?

A: The GM-816 includes a low battery indication on the display. If the battery is running low, an icon will appear, reminding you to replace the CR2032 lithium battery to ensure continued accurate operation.

Q: What are the benefits of the data hold function?

A: The data hold function allows you to freeze the current measurement on the screen, making it easier to record readings without having to remember or note them instantly, especially in dynamic conditions.
