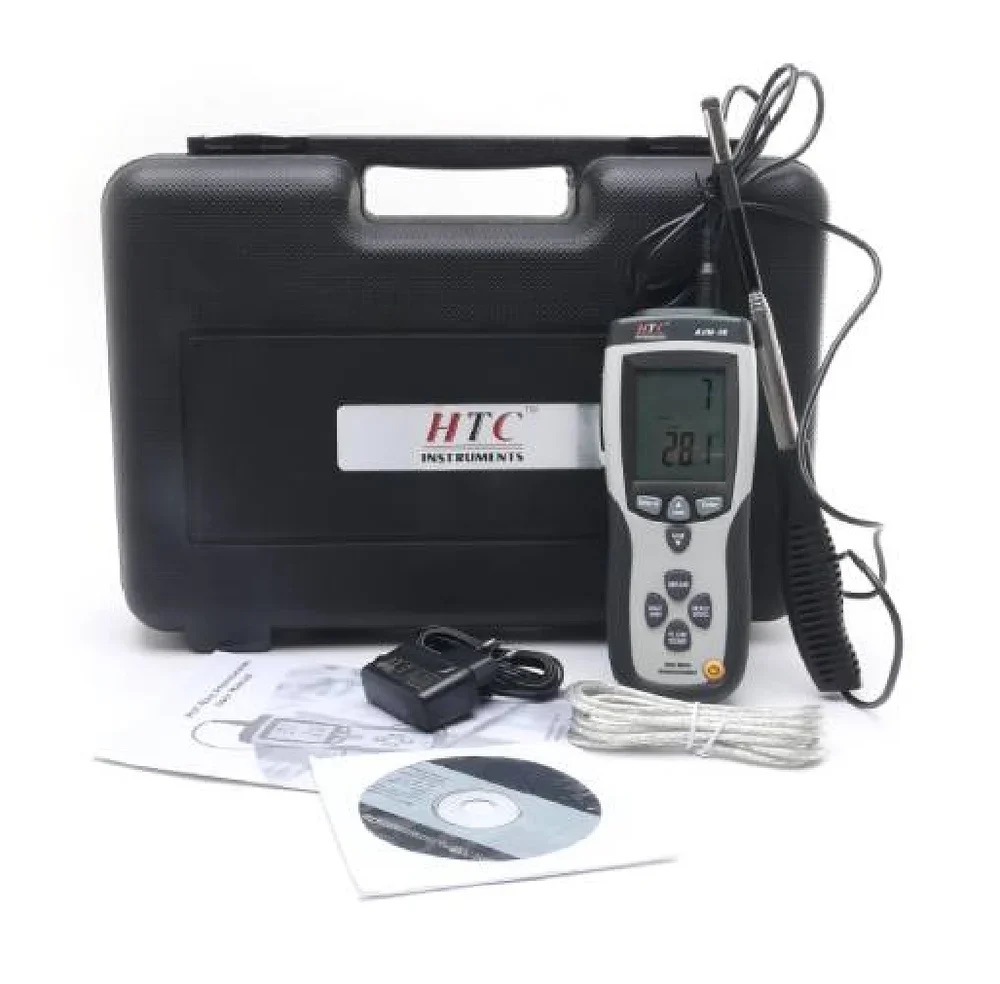

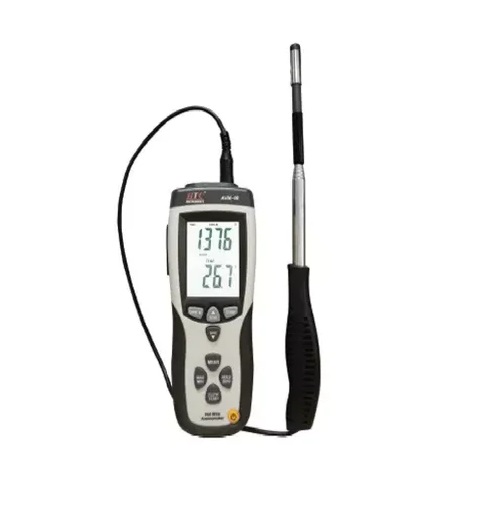

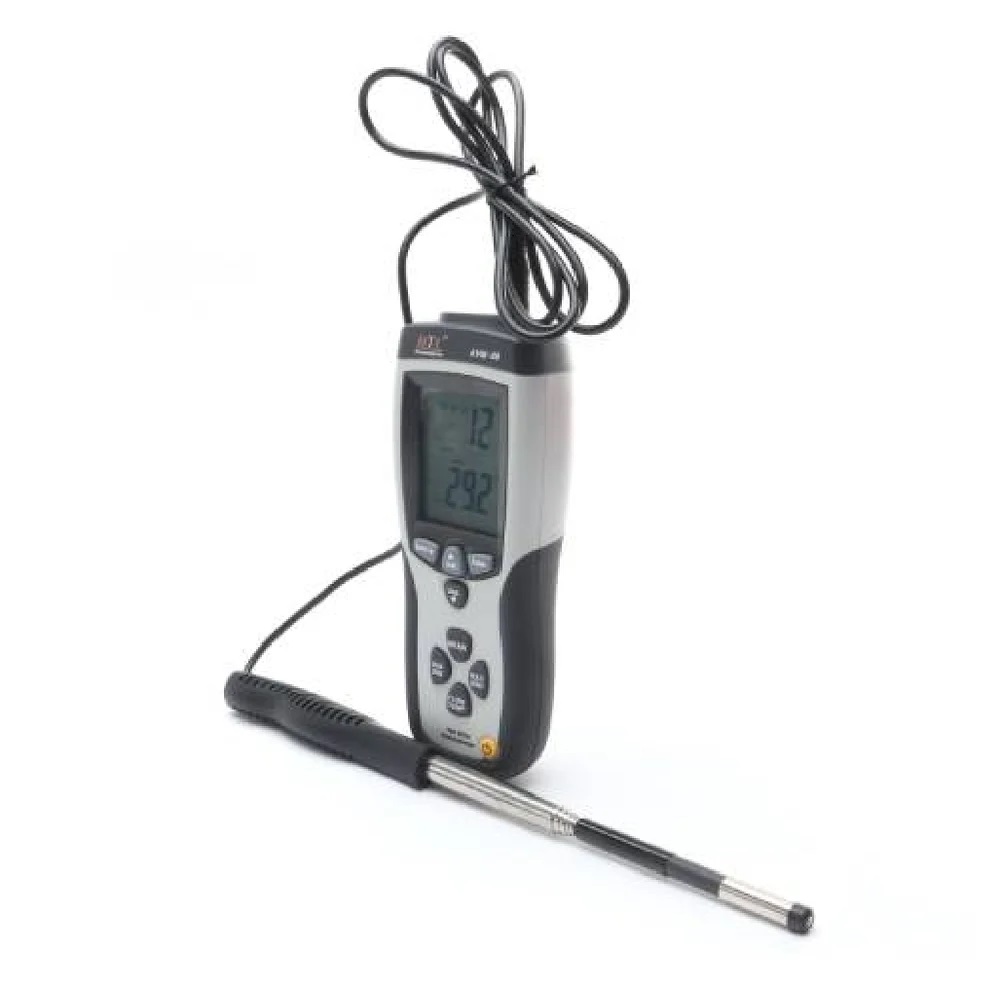

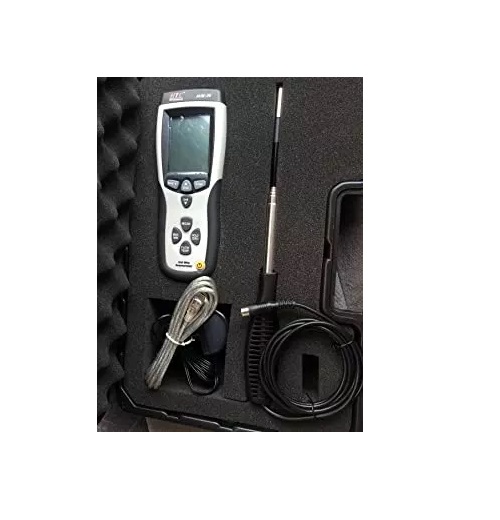

HTC Hot Wire Anemometer, AVM-08

Price 11400.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HTC Hot Wire Anemometer, AVM-08 Specification

Type
Hot Wire Anemometer

Theory
Air Velocity and Temperature Measurement (Thermal Anemometry)

Capacity
0.1~25.0 m/s (air velocity)

Exterior Material
ABS plastic housing

External Size
185 x 66 x 33 mm

Controller System
Microprocessor based circuitry

Humidity Range
0~80% RH (for display only)

Temperature Range
0~50C

Temperature Measurement
0~50C, Resolution 0.1C, Accuracy 0.8C

Display
Large LCD display

Max/Min/Avg Function
Yes

Weight
Approx. 300g (including battery and probe)

Accuracy (Velocity)
(5%+1d) of reading

Resolution (Velocity)
0.01 m/s

Storage Temperature
-10~60C

Sensor Type
High sensitivity hot wire sensor

Data Hold
Yes

Velocity Units
m/s, ft/min, km/h, knots, mph selectable

Operating Temperature
0~50C

Power Supply
9V battery

Sampling Time
Approx. 1 second

HTC Hot Wire Anemometer, AVM-08 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About HTC Hot Wire Anemometer, AVM-08

HTC AVM-08 Digital Hot Wire Anemometer is a precision instrument designed for accurate measurement of wind speed, airflow, and temperature. It features a telescopic probe for convenient reach, multi-unit wind speed measurement (m/s, km/h, ft/min, mph, knots), and maximum/minimum value recording.

The backlit LCD display ensures clear readings in all lighting conditions, and the data hold and auto power-off functions provide ease of use and energy efficiency.

Applications: HVAC systems, industrial airflow monitoring, environmental studies, weather observations, and outdoor measurements.

Features of HTC AVM-08 Digital Hot Wire Anemometer:

Measures wind speed, airflow, and temperature
Telescopic probe for extended reach
Multi-unit wind speed measurement (m/s, km/h, ft/min, mph, knots)
Max/Min value recording and data hold function
Backlit LCD display for easy reading
Auto power-off for energy saving
High-accuracy and portable for professional use

Versatile Measurement Capabilities

The AVM-08 allows for air velocity and temperature measurement with high accuracy and sensitivity. It offers selectable units for velocity and a broad measurement range (0.1-25.0 m/s), catering to diverse needs in industrial, lab, and environmental monitoring applications.

Advanced Features for Reliable Results

With features such as Data Hold, Max/Min/Avg functions, and an easy-to-read LCD display, users can efficiently track and analyze air flow and temperature variations. The sampling time of about one second ensures real-time data updates.

User-Friendly and Durable Design

Constructed from robust ABS plastic, the AVM-08 is lightweight and portable. Its microprocessor-based system ensures hassle-free operation, while its compact size allows for convenient transport and storage, ideal for on-site measurements.

FAQ's of HTC Hot Wire Anemometer, AVM-08:

Q: How do you operate the HTC Hot Wire Anemometer AVM-08?

A: To operate the AVM-08, simply power it on with a 9V battery, select your preferred air velocity unit, and place the probe in the airflow. The large LCD will display results in real time. Data Hold and Max/Min/Avg functions can be activated to analyze readings further.

Q: What types of environments can the HTC AVM-08 be used in?

A: This anemometer is suitable for use in environments with temperatures between 0C and 50C and humidity levels up to 80% RH (for the display). Common applications include HVAC inspection, laboratory experiments, environmental monitoring, and industrial settings.

Q: When should the data hold and Max/Min/Avg functions be used?

A: Data Hold is ideal when you need to freeze and record a specific reading for documentation, while Max/Min/Avg functions help monitor fluctuating conditions over a sampling period, ensuring detailed analysis of air and temperature changes.

Q: Where can I find suppliers and manufacturers of the HTC AVM-08 in India?

A: The HTC Hot Wire Anemometer AVM-08 is available through various scientific equipment suppliers, importers, and authorized distributors across India. You can contact HTC's official channels or leading industrial equipment retailers for purchase.

Q: What are the benefits of using a hot wire sensor for air velocity measurement?

A: A hot wire sensor provides high sensitivity and rapid response for air velocity measurement. This ensures accurate readings of even small fluctuations in airflow, making it especially useful for applications demanding precise control or analysis.

Q: What is the process for switching between different velocity measurement units?

A: The AVM-08 allows users to easily toggle between units such as m/s, ft/min, km/h, knots, and mph via its control panel, enabling versatile measurements based on your project requirements without needing conversion calculations.
