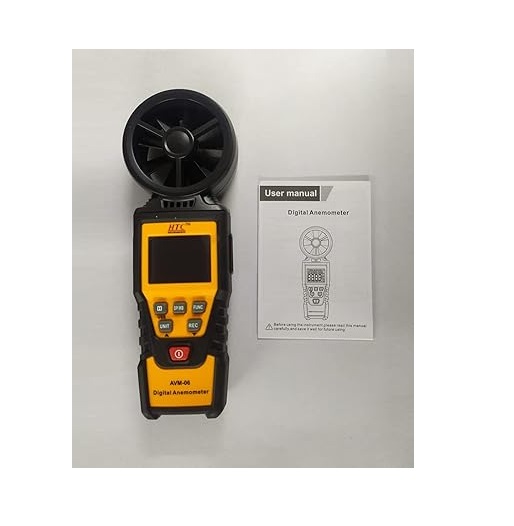

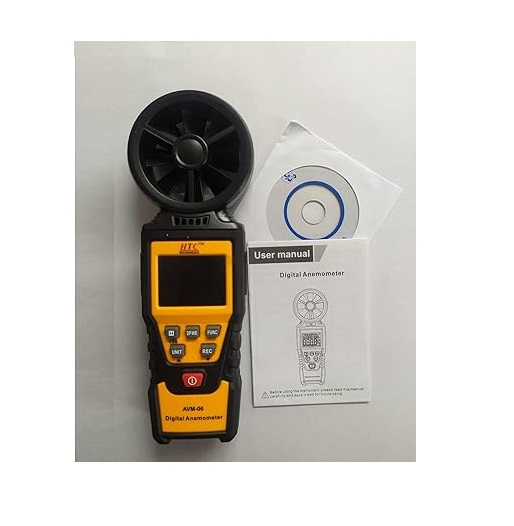

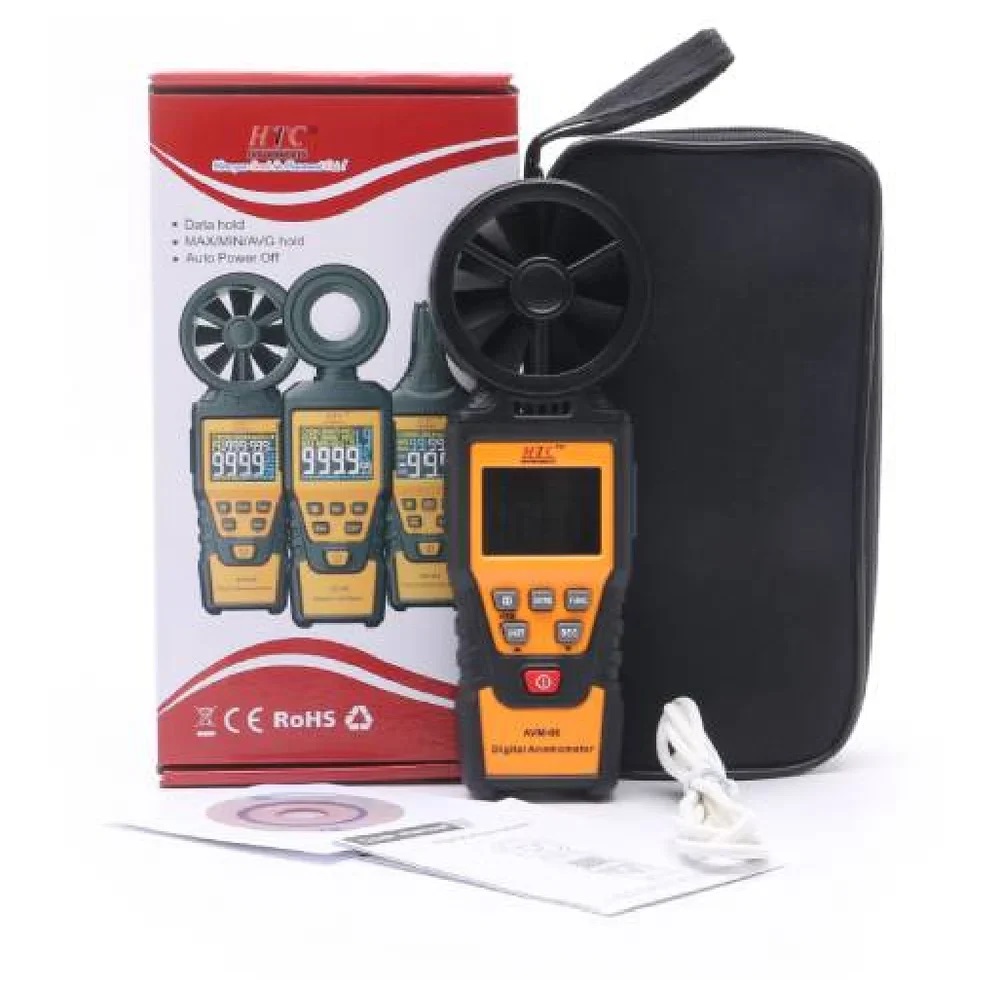

HTC Digital Anemometer, AVM-06

Name: HTC Digital Anemometer, AVM-06
Brand: True Sense Technologies
Price: 2946.0 INR
Availability: InStock

Price 2946.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HTC Digital Anemometer, AVM-06 Specification

Type
Digital Anemometer

Theory
Hot-wire anemometry / Air velocity measurement

Capacity
0.4 to 30.0 m/s

Exterior Material
ABS plastic

External Size
Main unit approx. 165 x 85 x 38 mm

Controller System
Microprocessor-based digital

Temperature Range
0C to 50C (operating)

Operating Humidity
< 80% RH

Resolution
0.1 m/s

Power Supply
1 x 9V battery

Display
Large LCD display with backlight

Max/Min/Avg Function
Yes

Auto Power Off
Yes (after 20 minutes of inactivity)

Measurement Units
m/s, km/h, ft/min, knots, mph (selectable)

Sensor Type
Vane sensor

Accuracy
2% + 0.1 m/s

Data Hold Function
Yes

HTC Digital Anemometer, AVM-06 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About HTC Digital Anemometer, AVM-06

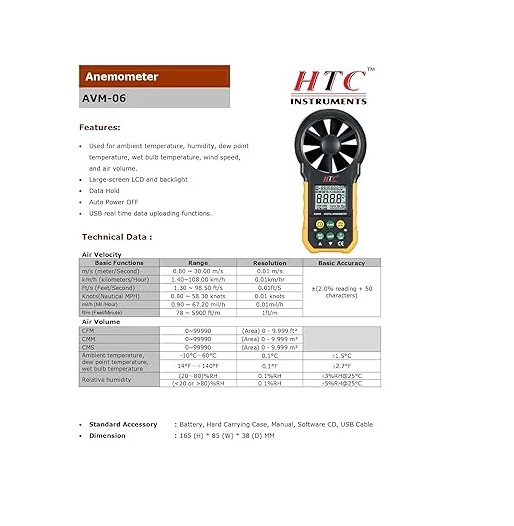

Features:

Used for ambient temperature, humidity, dew point temperature, wet bulb temperature, wind speed, and air volume.
Large-screen LCD and backlight
Data Hold
Auto Power Off (APO)
USB real time data uploading functions.

Versatile and Accurate Measurement

Engineered for both professional and field environments, the HTC AVM-06 Digital Anemometer provides reliable airspeed measurements in various units. Its microprocessor-based digital controller guarantees precise data, while the large backlit display ensures readings are easy to read even in low-light conditions. The device is adaptable to numerous industrial and environmental applications.

Advanced Features and User Convenience

This model includes data hold, max/min/avg functions, and auto power-off after 20 minutes, ensuring efficient energy use and convenient operation. The device is powered by a standard 9V battery and comes in a compact, lightweight build. Durable ABS plastic housing offers protection in routine fieldwork, and its broad operating range means adaptability to multiple environments.

FAQ's of HTC Digital Anemometer, AVM-06:

Q: How do I switch between the available measurement units on the HTC AVM-06 Digital Anemometer?

A: You can change the measurement units by using the unit selection button on the device. The AVM-06 supports m/s, km/h, ft/min, knots, and mph, allowing you to choose the unit best suited for your application.

Q: What is the process to record maximum, minimum, or average air velocity readings?

A: Simply activate the Max/Min/Avg function through the corresponding button. The anemometer will then track and display the highest, lowest, and average air velocity values throughout your measurement session.

Q: When does the auto power-off feature activate on this anemometer?

A: The HTC AVM-06 is equipped with an auto power-off function that activates after 20 minutes of inactivity to preserve battery life, so no manual shut-off is needed during pauses in measuring.

Q: Where can the HTC AVM-06 be typically used?

A: This digital anemometer is suitable for both indoor and outdoor applications such as HVAC testing, environmental monitoring, industrial ventilation assessment, and more, thanks to its wide operating temperature and humidity range.

Q: What benefits does the data hold function provide?

A: The data hold function enables you to pause and retain the current reading on the display, which is especially useful if you need time to note down values or require stable readings in dynamic airflow conditions.

Q: How do I power the device and when should I replace the battery?

A: The AVM-06 operates with a standard 9V battery. Replace the battery when the display dims or the low battery icon appears to ensure continuous and accurate operation.

Q: What type of sensor is used in this anemometer, and how does it benefit airflow measurement?

A: The device utilizes a vane sensor, which provides reliable and direct airflow detection. This ensures accurate, real-time measurement of airspeed in various ventilation and environmental monitoring scenarios.
