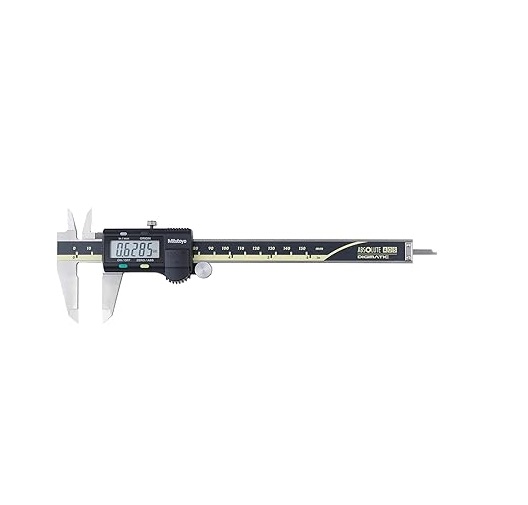

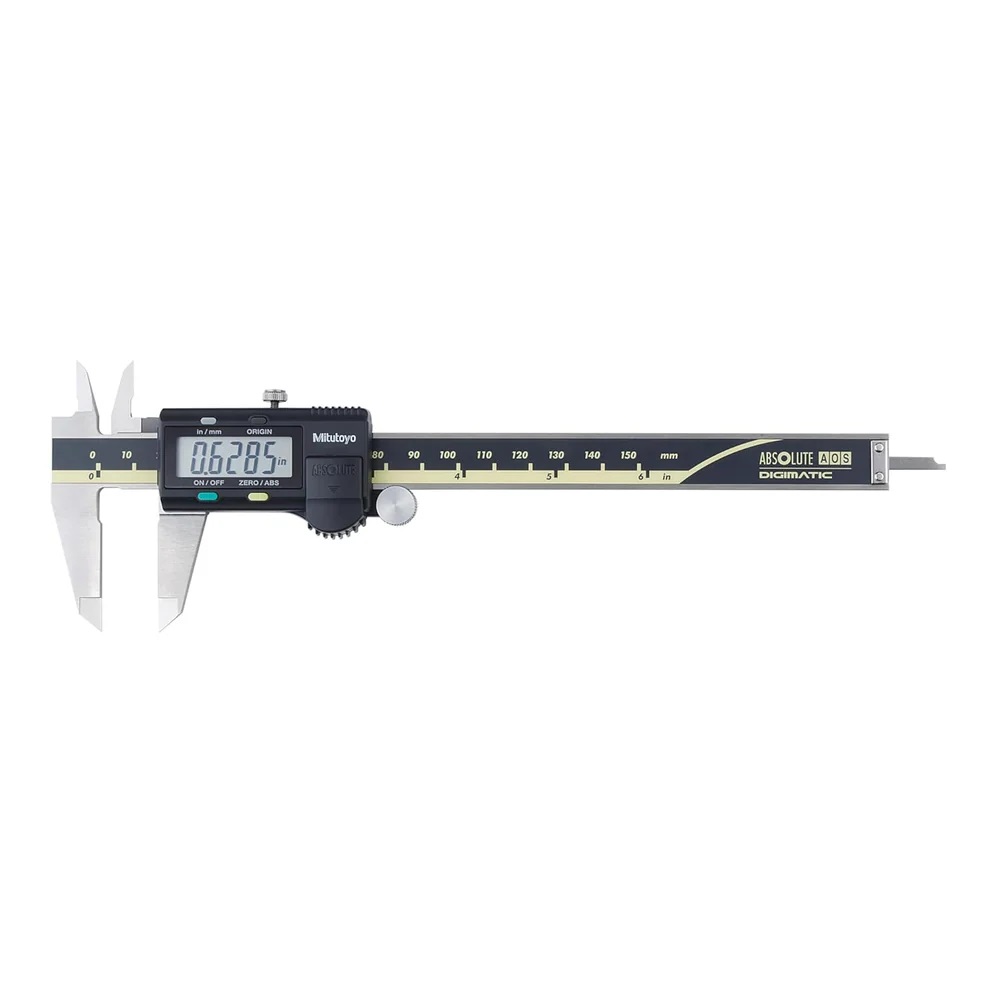

Mitutoyo 500-196-20 Digital Vernier Caliper 150mm / 6 inch Model, VC-09

Name: Mitutoyo 500-196-20 Digital Vernier Caliper 150mm / 6 inch Model, VC-09
Brand: True Sense Technologies
Price: 5900.0 INR
Availability: InStock

Price 5900.0 INR/ Set

Get a Price/Quote

MOQ : 1 Piece

Mitutoyo 500-196-20 Digital Vernier Caliper 150mm / 6 inch Model, VC-09 Specification

Sensor Type
ABSOLUTE electrostatic capacitance type linear encoder

Resolution
0.01 mm / 0.0005 in

Capacity
Standard capacity model

Diameter
Suitable for internal, external, step, and depth measurements

Temperature Range
5C to 40C (Operating)

Protection
IP67 Dust/Water Protection Not available (Standard model)

Equipment Type
Digital Vernier Caliper

Measurement Range
0-150mm / 0-6 inch

Application Media
Metal, Plastic, Engineering Components

Connectivity Type
No Data Output (Data Output model is optional)

Humidity %
80% RH Maximum (No condensation)

Material
Stainless Steel

Power Supply
SR44 (1pc), 938882

Power Consumption
Approx. 20,000 hours of use

Accuracy
0.02 mm

Display Type
LCD Digital

Range
0 - 150 mm / 0 - 6 inch

Zero/ABS Button
Yes

Weight
Approx. 168 g

Repeatability
0.01 mm

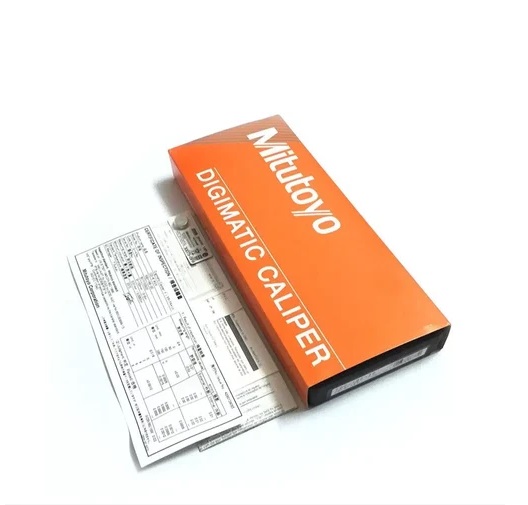

Included Accessories
Battery, Case, Instruction Manual

Type of Scale
ABSOLUTE System

Maximum Response Speed
Unlimited

Model Number
500-196-20, VC-09

Auto Power Off
Yes

Operating Language
English

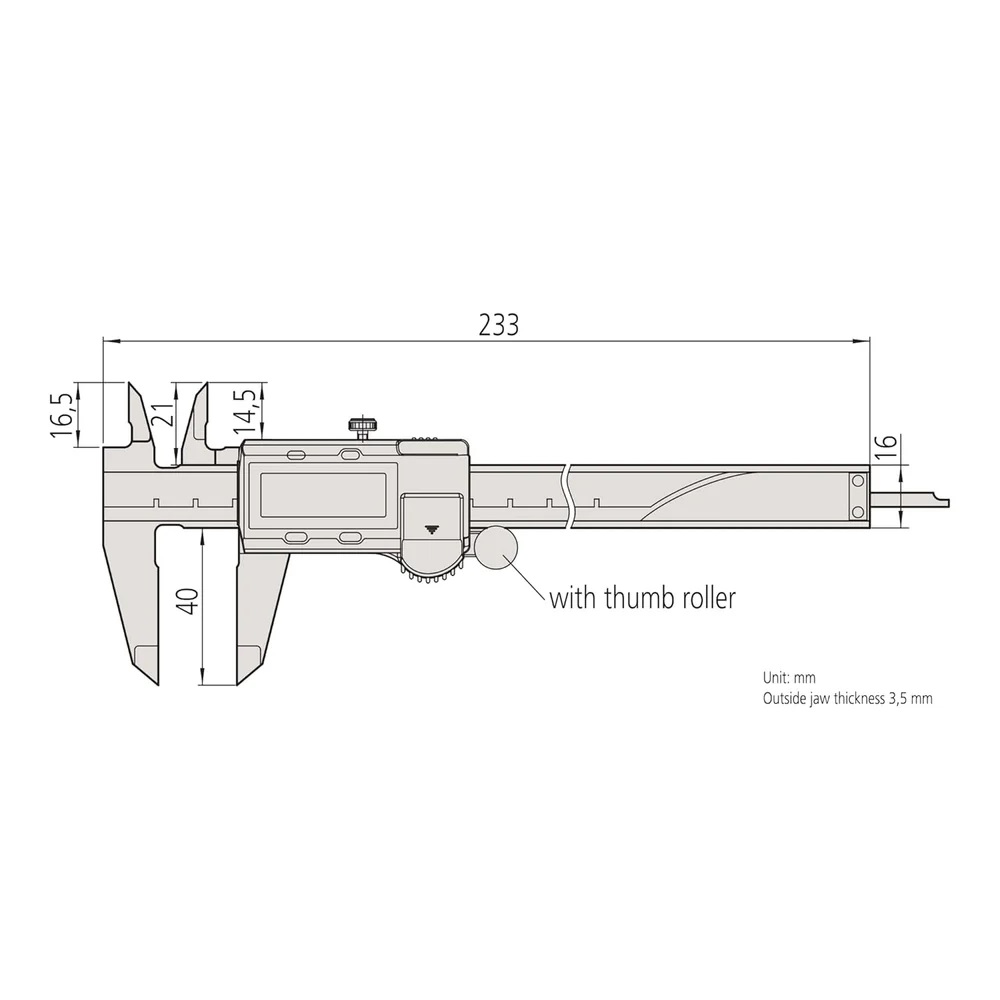

Jaw Length
40 mm

Display Digit Size
9 mm

Mitutoyo 500-196-20 Digital Vernier Caliper 150mm / 6 inch Model, VC-09 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About Mitutoyo 500-196-20 Digital Vernier Caliper 150mm / 6 inch Model, VC-09

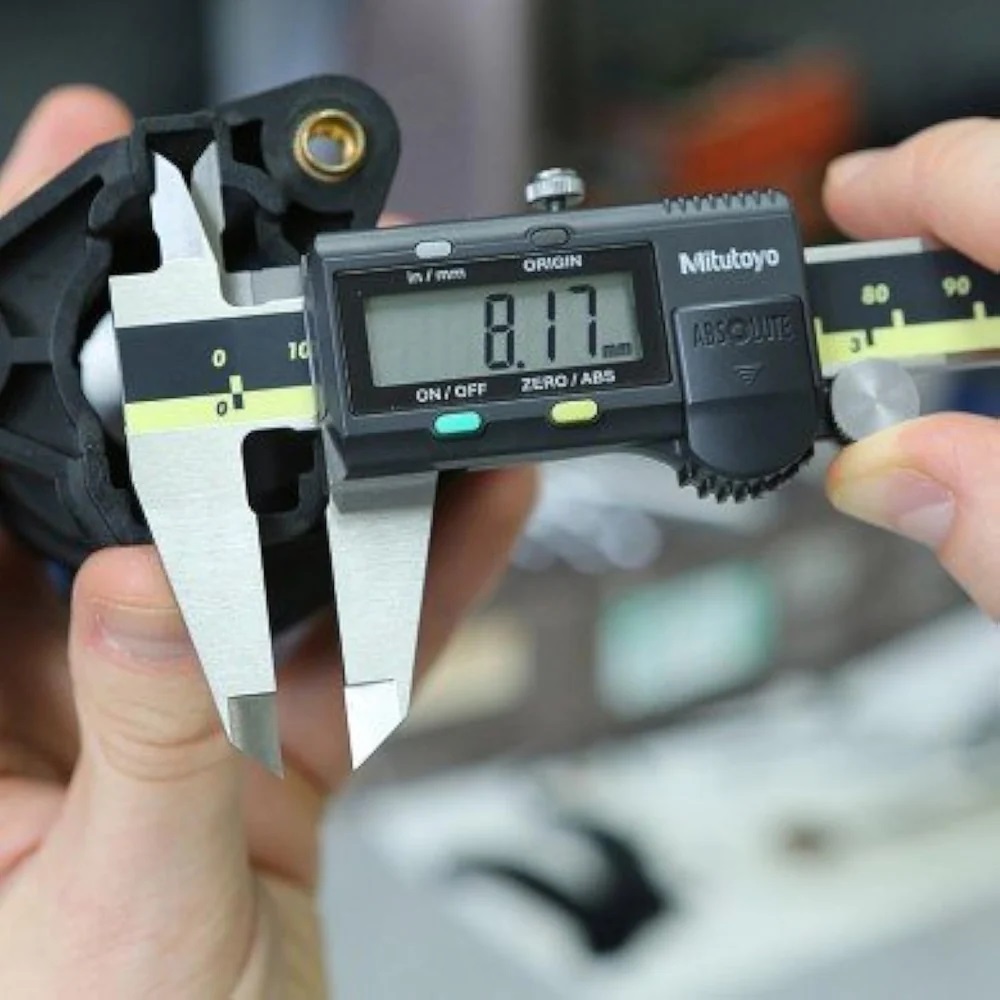

The mitutoyo absolute 500 series caliper is a digimatic digital caliper that is made of durable hardened stainless steel and uses mitutoyo's absolute linear encoder technology, which allows you to "set and forget" the origin and measure in awkward or difficult locations.

Features:

Four-way measurement capability for multiple applications: Outside diameter (od), inside diameter (id), depth, and step
Digital, single-value readout lcd display in metric units for readability
Position memory for retaining measurements
Function control buttons on the face, for ease of use: Origin, on/off, and zero/abs (absolute scale)

Precision Measurement with Confidence

The Mitutoyo 500-196-20 offers reliable accuracy of 0.02 mm and repeatability of 0.01 mm. Its ABSOLUTE System eliminates the need to reset the origin after power-off, ensuring consistent measurements every time. The 40 mm jaw length accommodates varied measuring tasks, making it a trusted tool in workshops and laboratories.

Ease of Use and Readability

With a clear 9 mm digit size LCD and intuitive controls like the zero/ABS button, this digital caliper simplifies calibration and measurements for professionals and beginners alike. The supplied SR44 battery provides up to 20,000 hours of operation, reducing downtime and maintenance.

Wide Application Range

This caliper is suitable for measuring internal, external, depth, and step dimensions in metal, plastic, and various engineering components. Its standard capacity model is ideal for general engineering, manufacturing, and quality inspection tasks, even in demanding shop floor environments.

FAQ's of Mitutoyo 500-196-20 Digital Vernier Caliper 150mm / 6 inch Model, VC-09:

Q: How does the Mitutoyo 500-196-20 Digital Caliper ensure measurement accuracy?

A: The caliper utilizes an ABSOLUTE electrostatic capacitance type linear encoder, delivering an accuracy of 0.02 mm and repeatability of 0.01 mm. This system maintains consistent origin points and reduces the risk of operator error.

Q: What types of measurements can I perform with this caliper?

A: You can use this caliper to perform internal, external, depth, and step measurements on metal, plastic, or engineering components, making it versatile for various industrial applications.

Q: When should I replace the SR44 battery in the Mitutoyo 500-196-20 caliper?

A: With typical use, the supplied SR44 battery offers approximately 20,000 hours of operation. Replace the battery if the LCD display dims or the caliper becomes unresponsive.

Q: Where can I use this caliper considering environmental limits?

A: The caliper operates reliably in temperatures from 5C to 40C and up to 80% relative humidity (non-condensing). However, it does not offer IP67 dust/water protection, so avoid environments with excessive moisture or dust exposure.

Q: How do I reset or calibrate the zero point on this digital caliper?

A: Simply press the zero/ABS button at the desired measurement point. The ABSOLUTE system ensures that once set, the origin remains consistent, even after turning the caliper off and on.

Q: What benefits does the standard model offer over the data output model?

A: The standard model focuses on reliable manual operation and extended battery life. While it lacks data output connectivity, it is cost-effective, straightforward to use, and includes all essential features for precise manual measurements.
