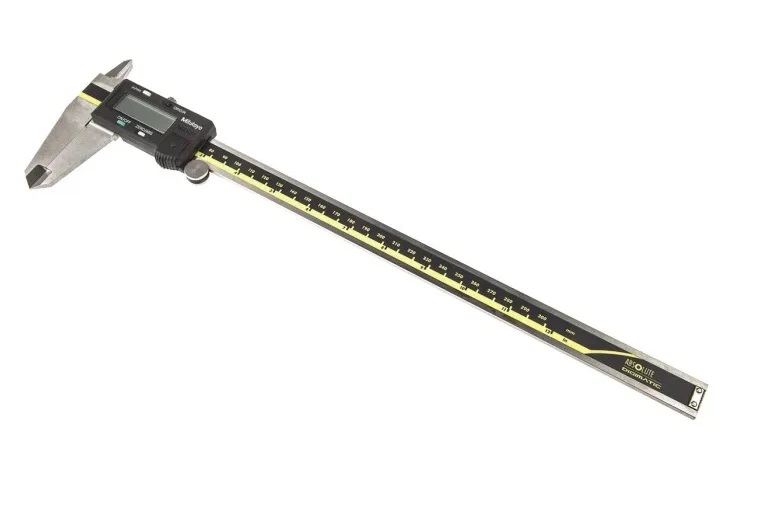

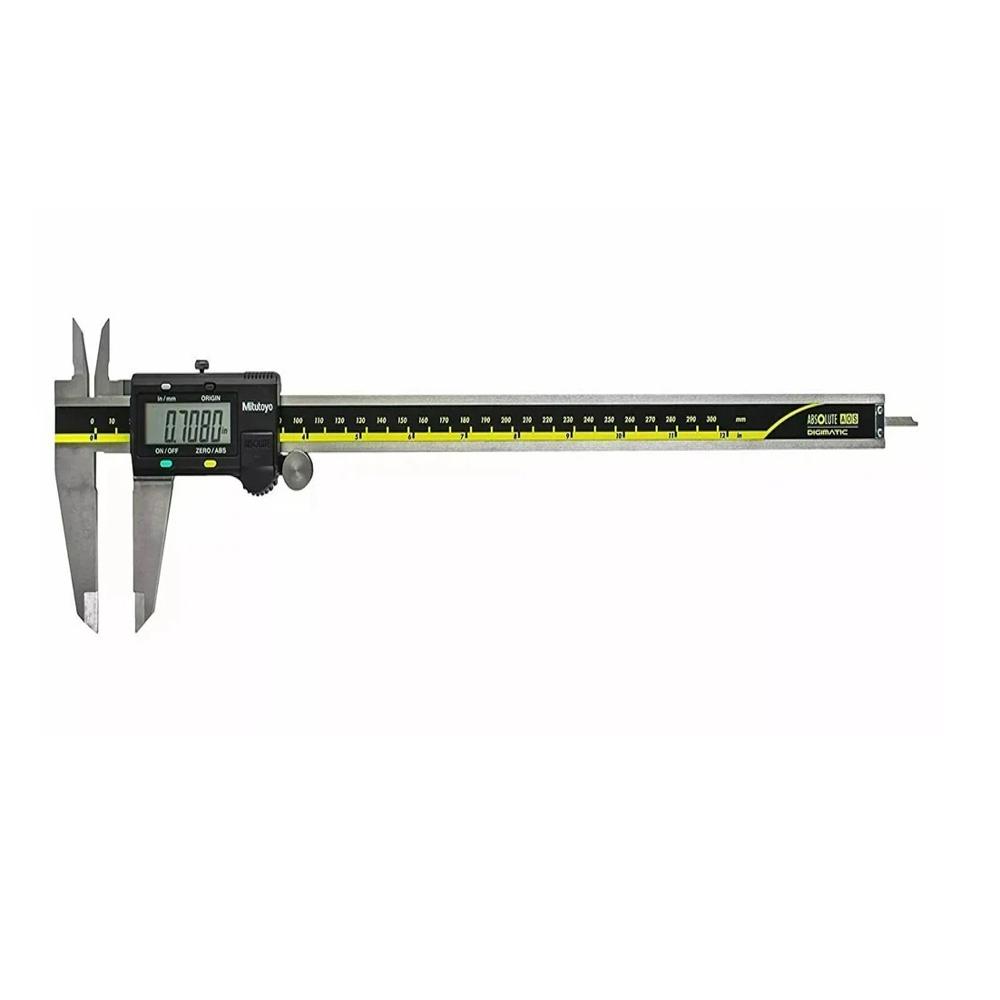

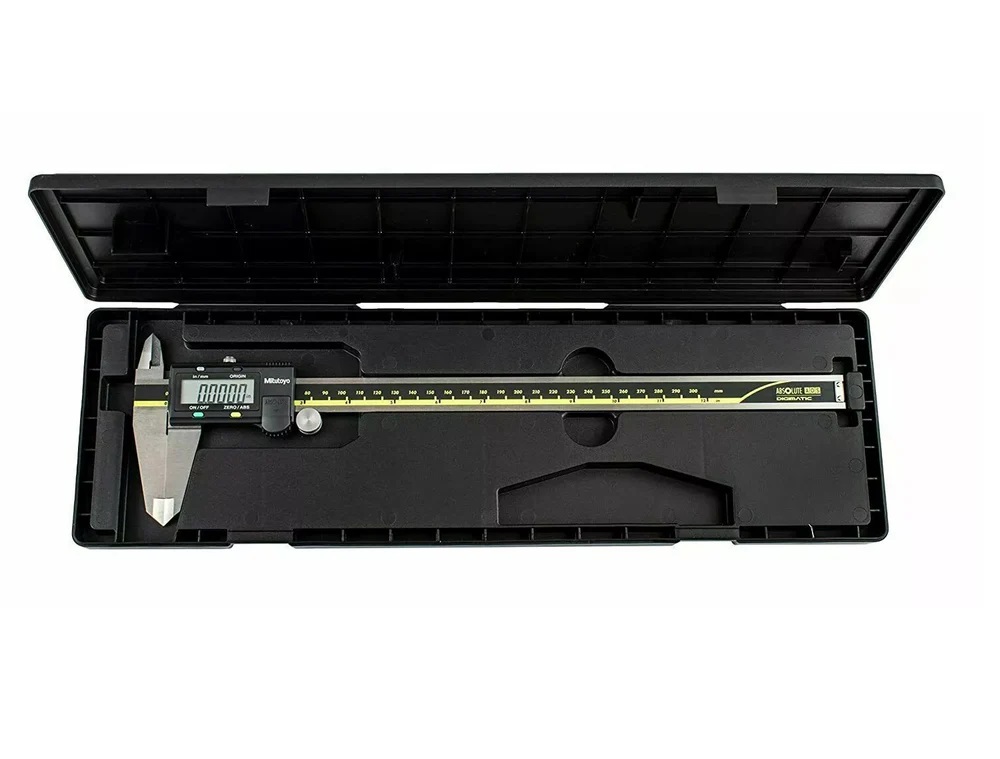

Mitutoyo Digital Vernier Caliper 500-193-20 12 Inch (0-300 mm), VC-11

Send Inquiry

Request To Call Back

Mitutoyo Digital Vernier Caliper 500-193-20 12 Inch (0-300 mm), VC-11

Name: Mitutoyo Digital Vernier Caliper 500-193-20 12 Inch (0-300 mm), VC-11
Brand: True Sense Technologies
Price: 14500.0 INR
Availability: InStock

Price 14500.0 INR/ Set

Get a Price/Quote

MOQ : 1 Piece

Mitutoyo Digital Vernier Caliper 500-193-20 12 Inch (0-300 mm), VC-11 Specification

Resolution
0.01 mm / 0.0005 inch

Measurement Range
0-300 mm / 0-12 inch

Connectivity Type
Optional SPC output

Sensor Type
Linear capacitive scale

Diameter
Inside/Outside measurement capability

Protection
IP67 dust/water protection

Humidity %
80% (non-condensing)

Application Media
Metal, Plastic, Engineering parts

Equipment Type
Digital Vernier Caliper

Temperature Range
5C to 40C (Operating)

Capacity
300 mm max opening

Material
Stainless Steel

Power Supply
SR44 (1 pc), 938882

Power Consumption
Approx. 3.5 years under normal use

Accuracy
0.03 mm

Display Type
LCD Digital Display

Range
0 - 300 mm (0 - 12 inch)

Zero Setting
Absolute/Incremental modes with ORIGIN button

Jaw Length
60 mm (approx.)

Battery Life
Approx. 3.5 years continuous use

Thumb Roller
Yes, for fine adjustment

Display Digits
Large, easy-to-read LCD

Series
VC-11

Data Output Option
Yes, with optional cable

Weight
350 g (approx.)

Model Number
500-193-20

Origin-set
Yes, with absolute encoder

Repeatability
0.01 mm

Mitutoyo Digital Vernier Caliper 500-193-20 12 Inch (0-300 mm), VC-11 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About Mitutoyo Digital Vernier Caliper 500-193-20 12 Inch (0-300 mm), VC-11

Mitutoyo 500-193-20 Digital Vernier Caliper offers extended measuring range with digital precision. Designed for industrial applications, it ensures accurate measurements of large components with ease.

Features:

Measuring range: 0300 mm (12 inch)
Large LCD display
Metric & imperial modes
Stainless steel construction
ABSOLUTE measurement system
Internal & external measurements
High accuracy
Professional-grade tool

High Accuracy and Precision

Featuring a resolution of 0.01 mm (0.0005 inch) and an accuracy of 0.03 mm, this digital caliper ensures reliable, repeatable measurements. The inclusion of an absolute encoder and ORIGIN button enables immediate and consistent zero-setting across multiple uses.

Ease of Use & Readability

The large, easy-to-read LCD display and the thumb roller for fine adjustment make measurement tasks straightforward and efficient. The caliper supports both inside and outside diameter measurements, as well as incremental and absolute readings, ensuring versatile application.

Built for Harsh Environments

With a rugged stainless steel body and IP67-rated protection, the caliper withstands dust, water, and challenging workshop or industrial conditions. Its long battery life (approx. 3.5 years) adds to the reliability during extended use.

FAQ's of Mitutoyo Digital Vernier Caliper 500-193-20 12 Inch (0-300 mm), VC-11:

Q: How do you set zero on the Mitutoyo Digital Vernier Caliper 500-193-20?

A: Zero can be set instantly using the ORIGIN button, letting you switch between absolute and incremental measurement modes as needed.

Q: What materials can be measured with this digital caliper?

A: This caliper is designed for use with metal, plastic, and various engineering parts, making it a versatile tool across different industries.

Q: When should the battery be replaced, and what type does it use?

A: The caliper operates on a single SR44 battery, which typically lasts for about 3.5 years with normal continuous use. Replace it when the display dims or does not function properly.

Q: Where can I transfer measurement data from the caliper?

A: Measurement data can be output to a computer or SPC system using the optional data output cable, enabling seamless digital documentation.

Q: What are the benefits of the IP67 rating for this caliper?

A: The IP67 dust and water protection ensures durability, minimizing the risk of damage in demanding environments and extending the tool's operational lifespan.
