Mitutoyo Digital Vernier Caliper 500-197 8 Inch (0-200 mm), VC-10

Price 7995.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Mitutoyo Digital Vernier Caliper 500-197 8 Inch (0-200 mm), VC-10 Specification

Application Media
Metal, plastics, general engineering use

Humidity %
Up to 80%, non-condensing (Operating)

Resolution
0.01 mm / 0.0005 inch

Measurement Range
0-200 mm / 0-8 inch

Equipment Type
Digital Vernier Caliper

Sensor Type
Electronic scale

Connectivity Type
None (No digital output)

Temperature Range
5C to 40C (Operating)

Capacity
Standard 8 inch / 200 mm

Diameter
Measures inside, outside, depth, and step

Protection
IP67 dust/water resistance

Material
Stainless Steel

Power Supply
SR44 (1 pc), 938882

Power Consumption
Approx. 3.5 years under normal use

Accuracy
0.02 mm

Display Type
Digital LCD Display

Range
0-200 mm / 0-8 inch

Included Accessories

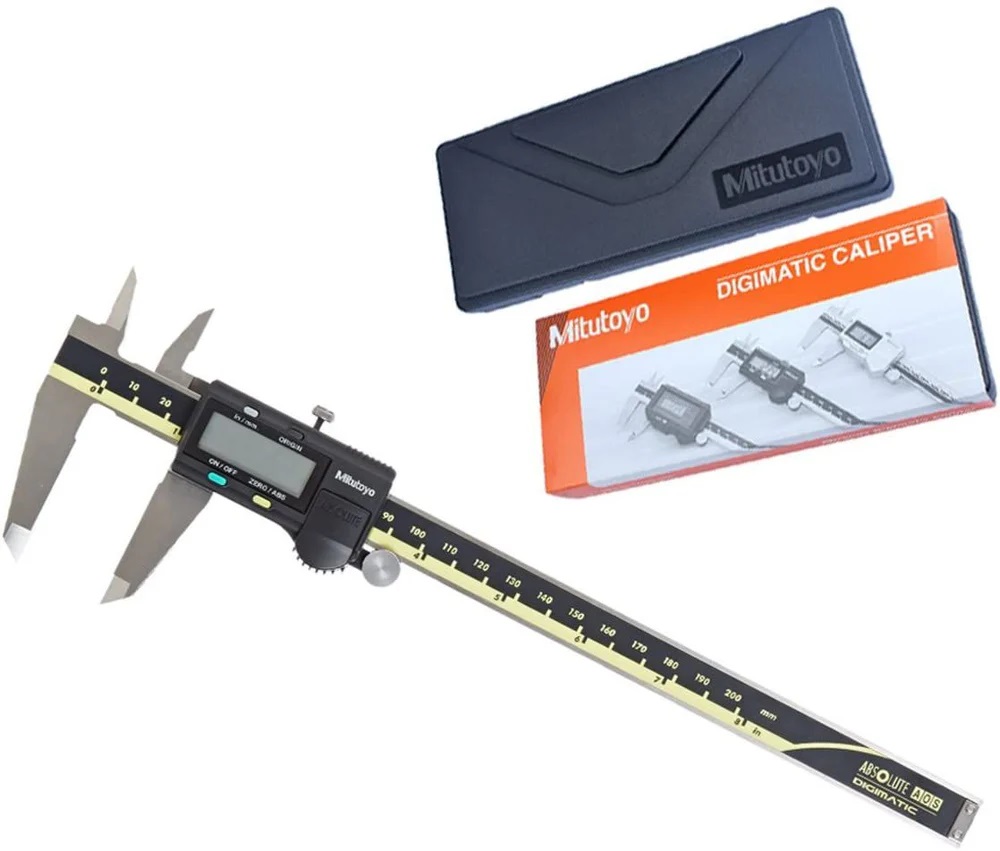

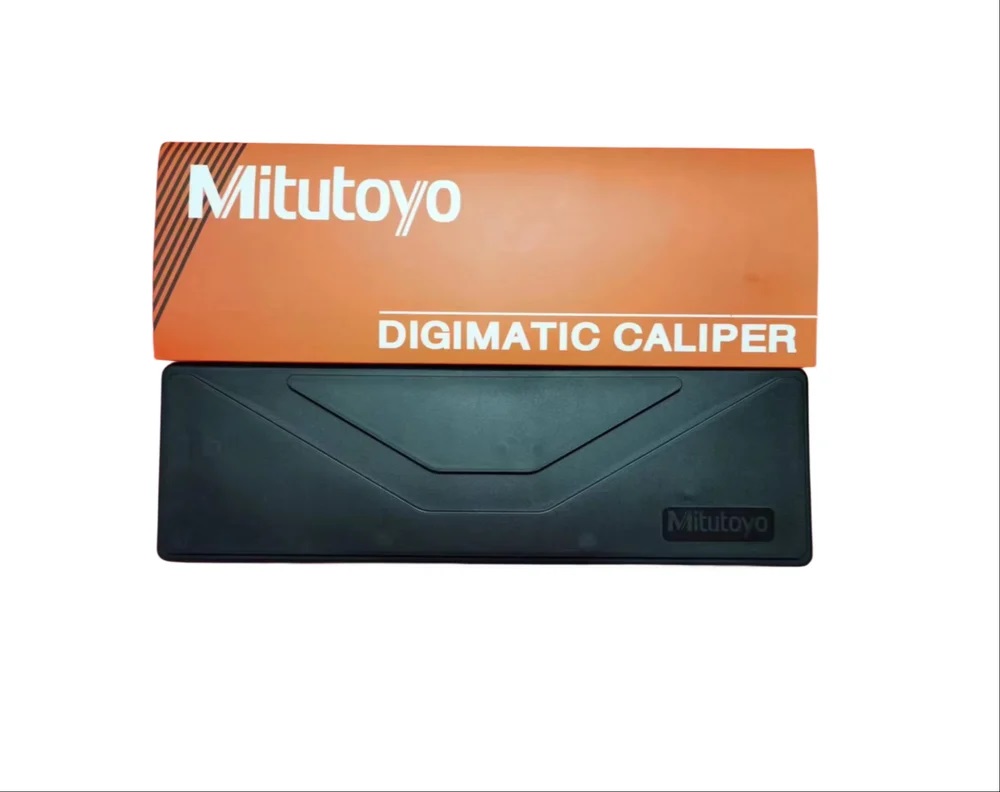

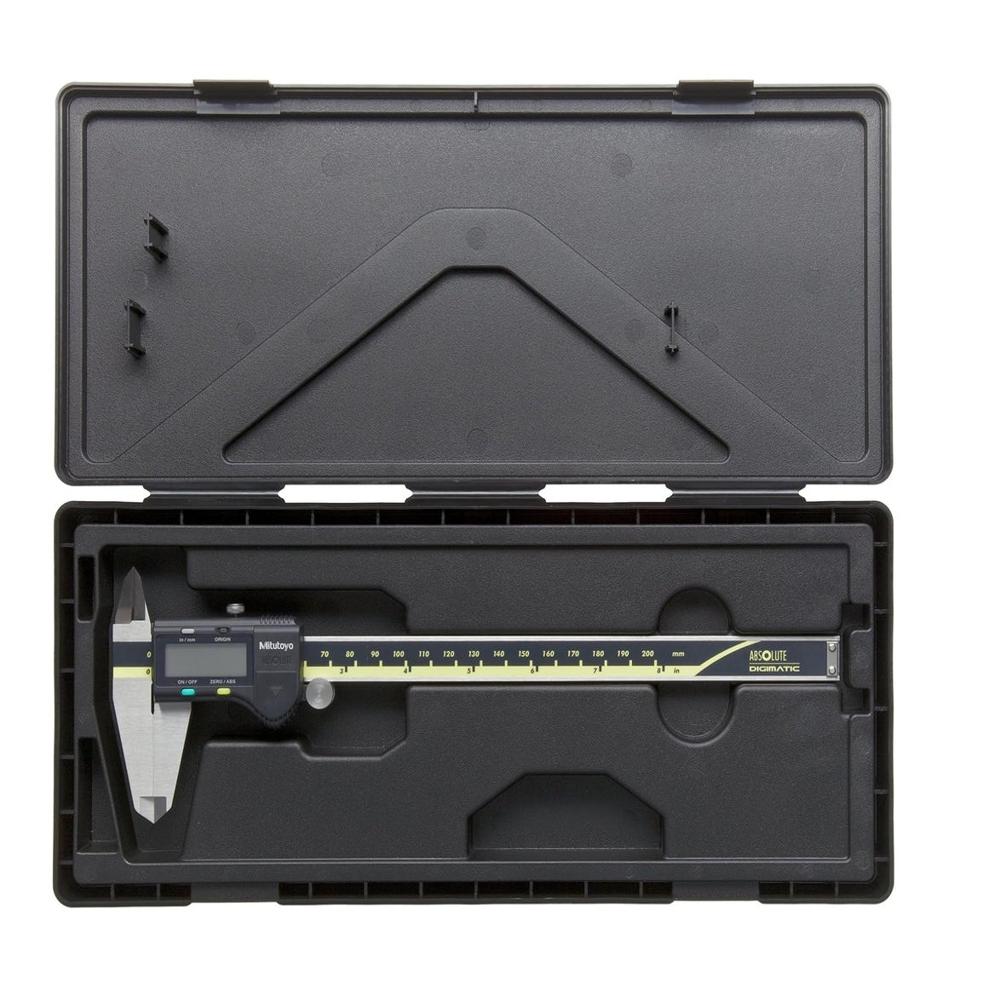

Plastic case, battery

Jaw Length
50 mm

Outside/Inside Measurement
Yes

Step Measurement
Yes

Finish
Satin chrome plating

Auto Power Off
Yes

Weight
Approx. 350 g

Repeatability
0.01 mm

Data Hold
Yes

Model Number
500-197, VC-10

Zero Setting
At any position

Depth Measurement
Yes

Mitutoyo Digital Vernier Caliper 500-197 8 Inch (0-200 mm), VC-10 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About Mitutoyo Digital Vernier Caliper 500-197 8 Inch (0-200 mm), VC-10

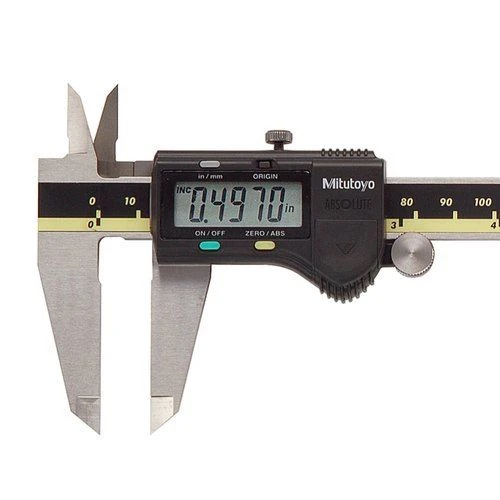

Digital readout lcd shows inch or metric units for versatility when measuring. Advanced onsite sensor (aos) electromagnetic inductive sensor for resistance to dirt, oil, and water. Measures inside, outside, depth, and step values for versatility. With thumb roller.

Four-way measurement capability for multiple applications: Outside diameter (od), inside diameter (id), depth, and step
Digital, single-value readout lcd display in metric units for readability
Position memory for retaining measurements
Function control buttons on the face, for ease of use: Origin, on/off, and zero/abs (absolute scale)

Advanced Measurement Technology

The Mitutoyo Digital Vernier Caliper utilizes an advanced electronic scale sensor, delivering repeatable measurements with a remarkable 0.01 mm precision. Its digital LCD ensures easy reading, and the instrument offers zero setting at any position for flexibility in various usage scenarios.

Durable and User-Friendly Design

Crafted from stainless steel and finished with satin chrome plating, this caliper resists corrosion and delivers longevity. The IP67 rating confirms resistance to dust and water, making it reliable for use in workshop or field environments. Its ergonomic layout supports comfortable, efficient operations.

Versatile Functionality for Diverse Applications

With the ability to measure inside, outside, depth, and step dimensions, this caliper adapts to a broad range of engineering and material tasks. The inclusion of a plastic case and long-lasting SR44 battery ensures readiness and portability for engineers, technicians, and industrial professionals.

FAQ's of Mitutoyo Digital Vernier Caliper 500-197 8 Inch (0-200 mm), VC-10:

Q: How can I use the Mitutoyo Digital Vernier Caliper 500-197 to measure different dimensions?

A: This caliper features jaws for measuring outside and inside dimensions, a depth rod for depth measurements, and a stepped edge for step measurements. Simply position the relevant section of the caliper according to the object and read the dimension on the digital LCD.

Q: What benefits does the IP67 protection rating provide for this caliper?

A: The IP67 rating means the caliper is highly resistant to dust and can withstand temporary immersion in water. This makes it suitable for environments where moisture or fine particles are present, safeguarding the digital components and ensuring reliable operation.

Q: When should I use the data hold function on this digital caliper?

A: The data hold functionality is ideal when you need to freeze a measurement for documentation or comparison without losing accuracy, especially in situations where you're unable to read the display immediately after measuring.

Q: Where is this digital vernier caliper best applied?

A: This caliper is ideally used in metalworking, plastics fabrication, and general engineering fields in industrial, laboratory, or workshop settings across India, thanks to its robust build and accurate performance.

Q: What process should I follow for zero setting at any position?

A: To zero the caliper at any position, close the jaws or place them at your chosen starting point, then press the zero button. This allows you to perform relative measurements from that position onward.

Q: How long does the battery last under normal usage conditions?

A: The supplied SR44 battery is designed to last approximately 3.5 years under standard operating conditions, supported by the caliper's auto power-off feature to conserve energy.
