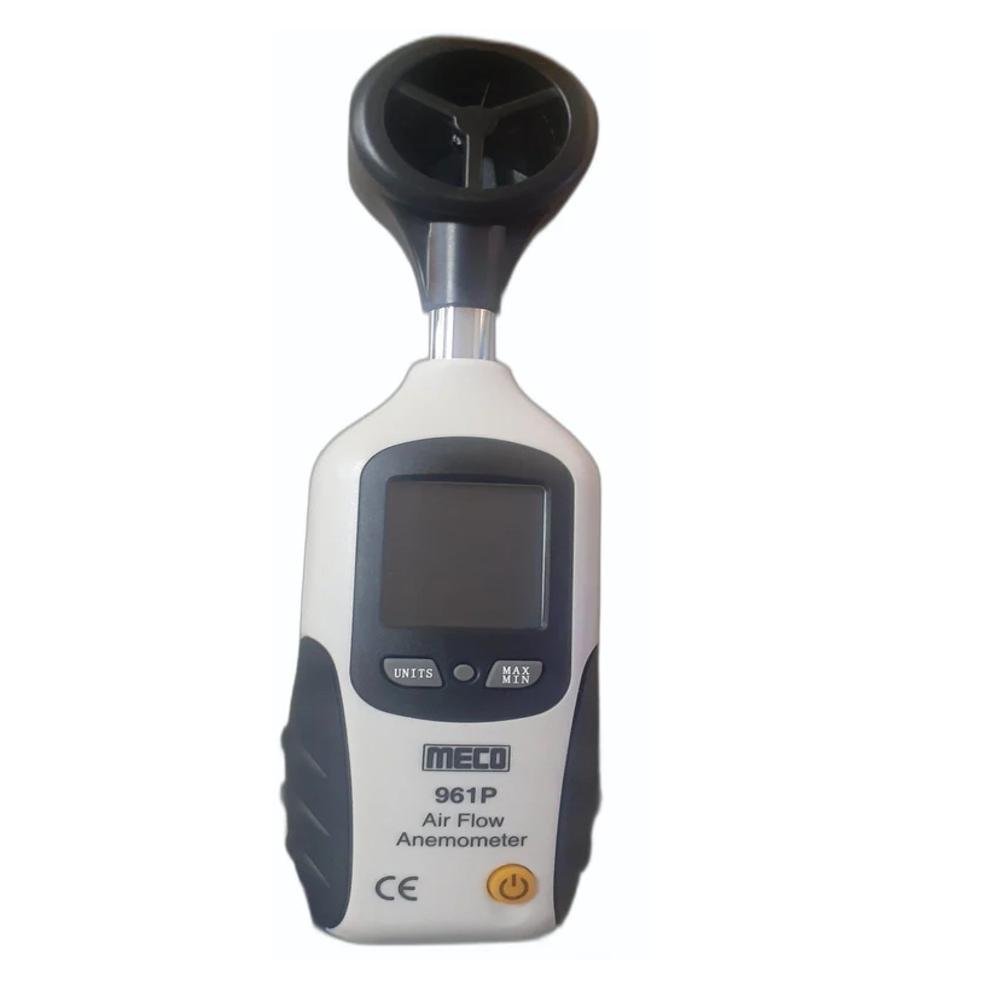

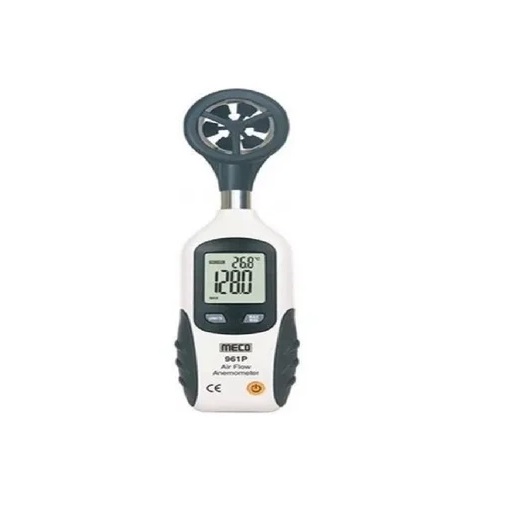

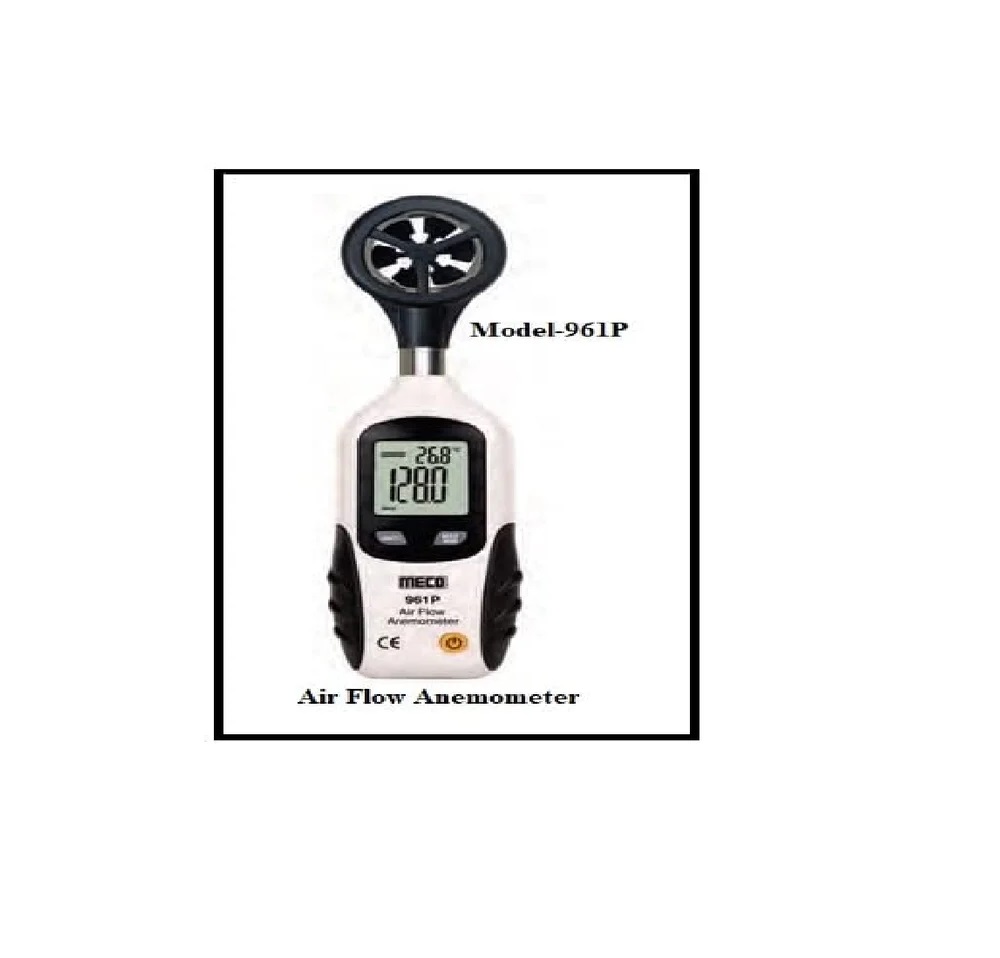

MECO Digital Anemometer, 961P

Name: MECO Digital Anemometer, 961P
Brand: True Sense Technologies
Price: 1715.0 INR
Availability: InStock

Price 1715.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MECO Digital Anemometer, 961P Specification

Type
Digital Anemometer

Theory
Hot-wire / Velocity measurement

Capacity
0.10 to 25.0 m/s (velocity)

Exterior Material
ABS Plastic housing

External Size
190 x 40 x 32 mm (L x W x H)

Controller System
Microprocessor based

Temperature Range
0C to 50C

Weight
Approx. 180 g (including battery)

Low Battery Indication
Available

Sampling Rate
Approx. 0.5 Seconds

Display
LCD display with backlight

Accuracy
(3% + 0.30 m/s)

Sensor Type
Thermal hot-wire & vane sensor

Functions
HOLD function, MAX/MIN/AVG, Auto Power Off

Power Supply
1 x 9V battery

Operating Temperature
0C to 50C

Resolution
0.01 m/s

Storage Temperature
-10C to 60C

Wind Speed Units
m/s, km/h, ft/min, knots, mph

MECO Digital Anemometer, 961P Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About MECO Digital Anemometer, 961P

Meco 961P High-Accuracy Digital Anemometer is a reliable handheld instrument for precise wind speed measurement. It features multi-unit readings (m/s, km/h, ft/min, mph, knots), maximum/minimum value recording, and a data hold function for accurate monitoring.

The large LCD display ensures easy readability, and the auto power-off feature along with battery-powered design makes it convenient for professional and field use.

Applications: HVAC systems, industrial airflow monitoring, environmental studies, weather observations, and outdoor measurements.

Features of Meco 961P Digital Anemometer:

High-accuracy wind speed measurement
Multi-unit display (m/s, km/h, ft/min, mph, knots)
Max/Min value recording and data hold function
Large LCD display for clear readings
Auto power-off for energy efficiency
Handheld, battery-powered, and portable for field use

Advanced Sensor System

Utilizing both thermal hot-wire and vane sensors, the MECO 961P delivers highly accurate wind speed data. The dual-sensor design broadens its application range and ensures precise measurements even at low airflow velocities, making it ideal for diverse professional environments.

User-Friendly Display and Controls

The LCD display with backlight provides clear visibility in any lighting condition. With easy-to-use buttons, holding, and reading maximum, minimum, and average values, this anemometer simplifies the recording and analysis process for users.

Designed for Durability and Portability

Constructed with an ABS plastic housing, the MECO 961P is robust, lightweight (approx. 180 g with battery), and compact. Its design allows for convenient handheld use and reliable performance across a wide range of environments.

FAQ's of MECO Digital Anemometer, 961P:

Q: How do I operate the MECO Digital Anemometer 961P?

A: Turn on the device using the power button. Select the desired wind speed unit, hold the anemometer in the airflow, and the LCD display will show real-time velocity. You can use the HOLD button to freeze readings or view MAX, MIN, and AVG values as required.

Q: What measurement units does the anemometer support?

A: The MECO 961P allows wind speed readings in multiple units: meters per second (m/s), kilometers per hour (km/h), feet per minute (ft/min), knots, and miles per hour (mph), giving flexibility to suit various application needs.

Q: When should I use the HOLD and MAX/MIN/AVG features?

A: The HOLD function is useful for recording a particular reading when continuous airflow fluctuations occur. The MAX/MIN/AVG features help monitor peak, lowest, and average velocities over your measurement period, essential for trend analysis or regulatory requirements.

Q: Where can this digital anemometer be used effectively?

A: The MECO 961P is ideal for indoor and outdoor environments, including HVAC system analysis, environmental monitoring, laboratories, and industrial sites within its operating temperature range of 0C to 50C.

Q: What is the process for changing the battery?

A: To replace the battery, open the battery compartment on the rear of the instrument, remove the old 9V battery, and insert a new one. The device indicates low battery to prompt timely replacement.

Q: What are the benefits of the thermal hot-wire sensor compared to traditional vane-only models?

A: Hot-wire sensors offer higher sensitivity, especially at low air velocities, allowing for more precise readings in low-flow conditions. This enhances the usability of the MECO 961P across a broader range of airflow measurements.
