Lutron FG-20kg Force Gauge, FG-20

Name: Lutron FG-20kg Force Gauge, FG-20
Brand: True Sense Technologies
Price: 15900.0 INR
Availability: InStock

Price 15900.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Lutron FG-20kg Force Gauge, FG-20 Specification

Product Type
Force Gauge

Material
ABS Plastic Housing

Working Voltage
DC 6V (UM3/AA 1.5V x 4 batteries)

Application
Measurement of push and pull force in research, laboratory, quality control, and production environments

Format
Handheld Digital Gauge

Accessories
Carrying case, tension and compression accessories, batteries, user manual

Size
227 x 83 x 39 mm (LxWxH)

Color
Gray / Black

Weight
485 g (including batteries)

Operating Temperature
0 to 50C

Peak Hold Function
Yes

Model
FG-20kg

Power Off
Auto/Manual power-off function

Operating Humidity
Below 80% RH

Resolution
0.01 kg / 0.05 N / 0.02 lb

Measuring Units
kg, lb, N (selectable)

Accuracy
(0.5% + 2 dgt)

Display
LCD, 4 digits, 12 mm high

Handle Material
Aluminum Alloy (on accessory)

Overload Protection
150% of full scale

Maximum Capacity
20 kgf / 196 Newton / 44 lbf

Data Output
RS232 interface

Lutron FG-20kg Force Gauge, FG-20 Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
2 Days

About Lutron FG-20kg Force Gauge, FG-20

Lutron A32 FG-20KG Digital Force Gauge is a high-precision instrument designed for accurate push and pull force measurement in industrial, laboratory, and quality testing environments. It supports multiple units and advanced functions for reliable force analysis.

Features:

High-precision push and pull force measurement
Multiple units: kg, lb, and Newton (N)
Peak hold function for maximum force capture
Adjustable response time for flexible testing
Overload protection for safe operation
Clear digital display for easy reading

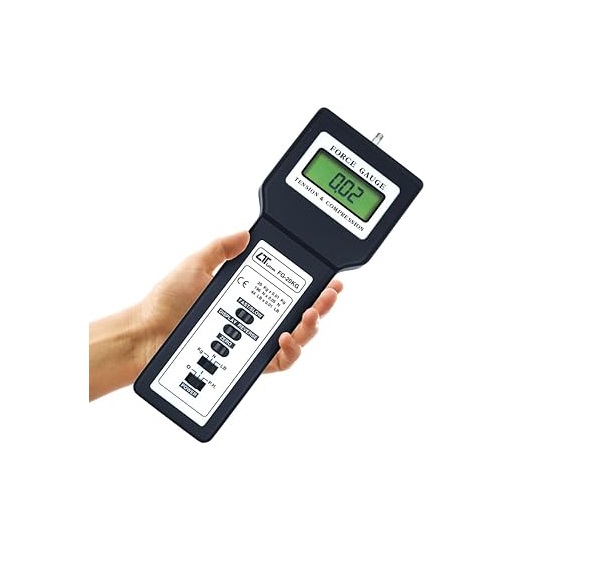

Compact and ergonomic handheld design
Stable and repeatable measurement results
Suitable for industrial and laboratory use
Durable construction for long-term reliability

Accurate and Reliable Force Measurement

The Lutron FG-20kg delivers precise measurements with a resolution of 0.01 kg, 0.05 N, or 0.02 lb. Thanks to its LCD display, users can easily read measurements in multiple units, enhancing usability across different industries. Its robust construction and overload protection up to 150% of full scale ensure long-term reliability in demanding settings.

Enhanced Usability and Accessories

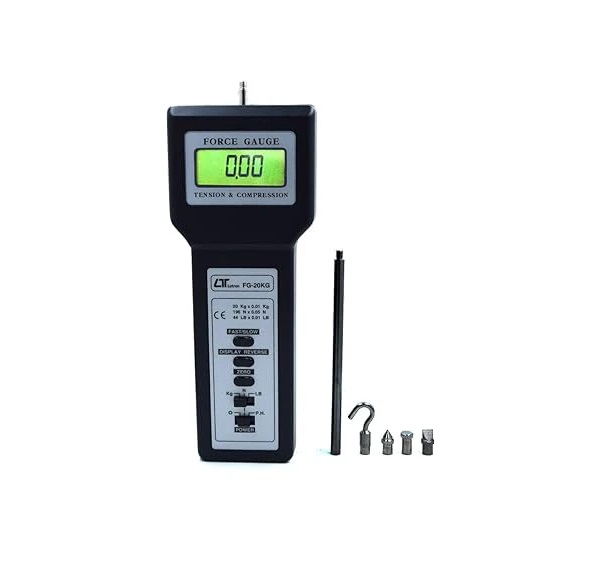

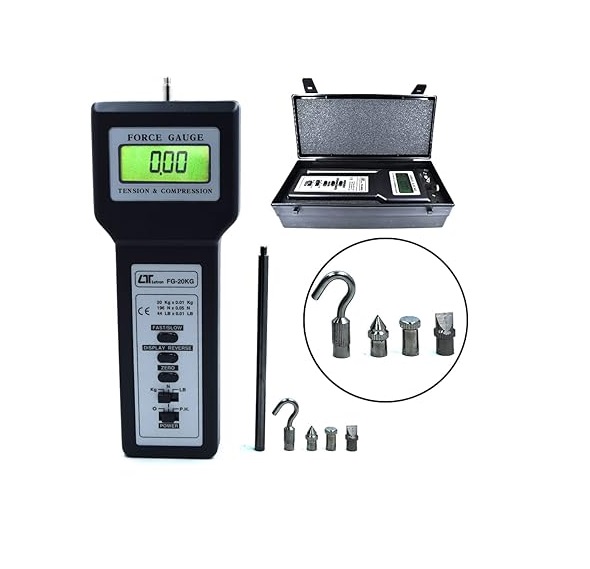

This force gauge includes essential accessories such as tension and compression attachments, a carrying case, batteries, and a user manual for convenient operation. The selectable units and peak hold function further streamline measurement processes, while the RS232 data output allows for efficient documentation and analysis.

FAQ's of Lutron FG-20kg Force Gauge, FG-20:

Q: How do I use the Lutron FG-20kg Force Gauge for measuring push and pull forces?

A: To measure force, attach the appropriate accessory (for tension or compression), power on the device, select the desired unit (kg, lb, or N), and apply force to the sensor. The LCD will display the measured value, and you can utilize the peak hold function to capture maximum values during testing.

Q: What environments are suitable for operating this force gauge?

A: The Lutron FG-20kg is ideal for use in research, laboratory, quality control, and production settings. It operates best within a temperature range of 0 to 50C and humidity below 80% RH. Its rugged design and carrying case make it suitable for both stationary and mobile applications.

Q: When should the peak hold function be used?

A: The peak hold function is particularly useful when you need to capture the maximum force experienced during a test. This is common in quality control scenarios, ensuring critical force specifications are met during product testing or assembly assessments.

Q: Where can I access the data output from the FG-20kg Force Gauge?

A: Measured data can be exported via the RS232 interface on the gauge. Connect the device to a computer or data acquisition system using the appropriate RS232 cable, then retrieve and document measurements for further analysis or record-keeping.

Q: What is the process for powering the force gauge, and how long do the batteries last?

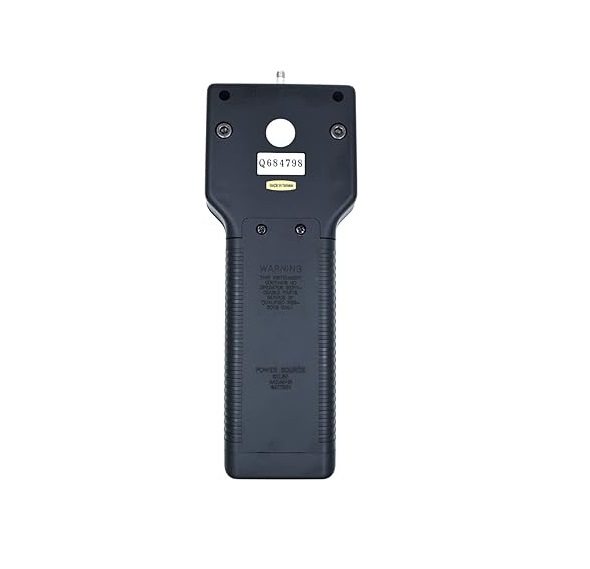

A: The device uses four AA (UM3/1.5V) batteries. Install fresh batteries as outlined in the user manual for optimal performance. The gauge features both auto and manual power-off functions to conserve battery life during periods of inactivity.

Q: What benefits does the aluminum alloy handle provide?

A: The included aluminum alloy handle enhances user comfort and improves grip stability during measurements, especially when applying significant force. This accessory is particularly beneficial for extended use and ensures more accurate and repeatable results.
