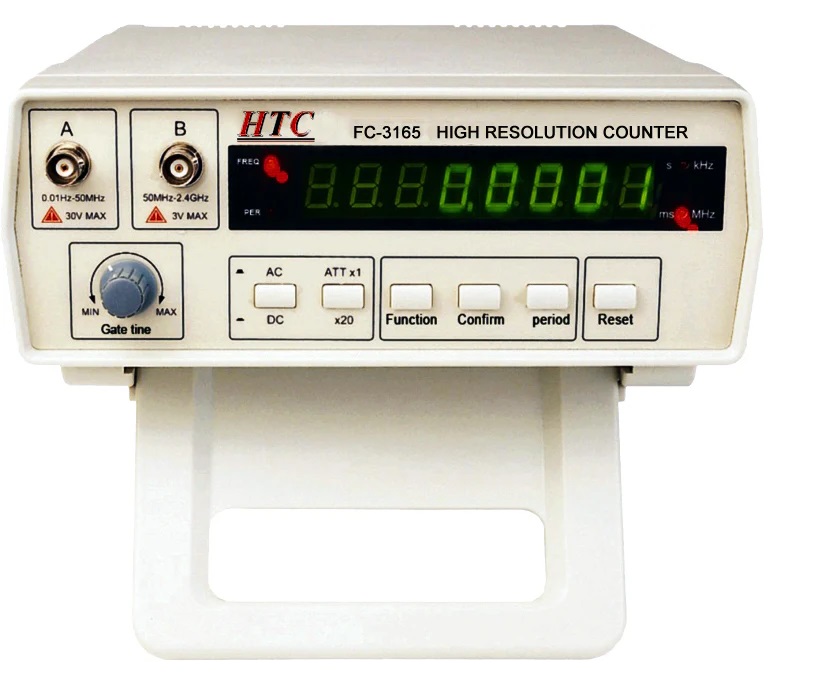

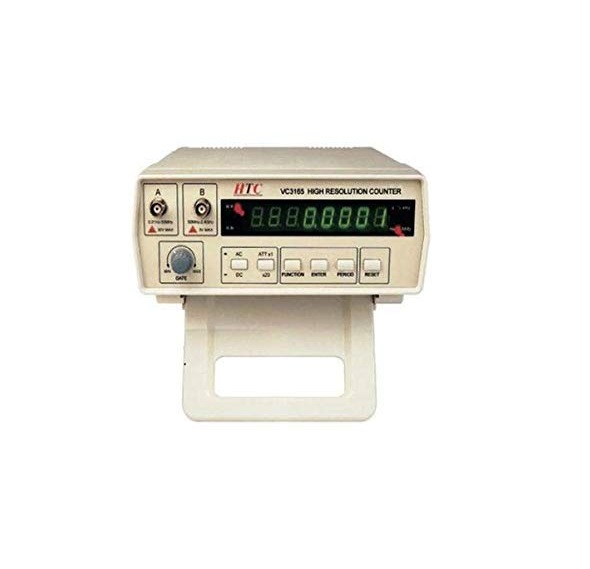

HTC Frequency Counter, VC-3165

Name: HTC Frequency Counter, VC-3165
Brand: True Sense Technologies
Price: 3902.0 INR
Availability: InStock

Price 3902.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

HTC Frequency Counter, VC-3165 Specification

Product Type
Frequency Counter

Material
ABS Plastic Body

Working Voltage
220V AC, 50Hz

Application
Frequency Measurement of Electronic Devices

Format
Bench Top

Accessories
Power Cord, User Manual

Size
270 x 215 x 95 mm

Color
White and Blue

Weight
Approx. 1.8 kg

Gate Time
Selectable 0.1s, 1s, 10s

Input Frequency Range
0.5 Hz to 100 MHz (Direct); up to 2.4 GHz with divided input

Sensitivity
<40 mV rms

Operating Temperature
0C to 40C

Display Type
6 Digit LED Display

Storage Temperature
-10C to 50C

Model
VC-3165

Power Consumption
<15 VA

Input Impedance
1 M / 30 pF

Input Connector
BNC

Time Base
High Stability Crystal Oscillator

HTC Frequency Counter, VC-3165 Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
2 Days

About HTC Frequency Counter, VC-3165

HTC VC-3165 Digital Frequency Counter is a high-precision electronic testing instrument designed for accurate frequency measurement across a wide range. It is suitable for laboratories, R&D, and professional electronic testing applications.

Features:

Dual channel input for flexible measurement
Wide frequency range from 0.01 Hz to 2.4 GHz
High-precision and stable performance
Adjustable gate time for accurate results
Large 8-digit LED display
Fast and reliable frequency counting
User-friendly control interface
Ideal for laboratory and electronic testing
Robust build for continuous operation
Designed for professional applications

Wide Measurement Range and Accuracy

The VC-3165 covers a broad input frequency range-0.5 Hz to 100 MHz directly, supporting measurements up to 2.4 GHz with divided input. Its high-stability crystal oscillator ensures that your readings remain reliable and precise, making it suitable for complex electrical and electronic device diagnostics.

User-Friendly Display and Controls

Equipped with a 6-digit clear LED display and selectable gate times (0.1s, 1s, 10s), the VC-3165 provides users flexibility in data acquisition. Simple controls allow easy configuration, while the display ensures that measurement values are easy to read, even in demanding environments.

Durability and Practical Design

Crafted from robust ABS plastic and compact in size, the VC-3165 is built for bench-top setups. The BNC connector allows seamless integration with various test setups. Its low power consumption and safe operating voltage guarantee compatibility in professional and industrial settings across India.

FAQ's of HTC Frequency Counter, VC-3165:

Q: How do I set up and use the HTC Frequency Counter VC-3165?

A: To set up the VC-3165, connect the device to a 220V AC, 50Hz power supply using the provided cord. Attach your signal source to the input BNC connector, select the desired gate time (0.1s, 1s, or 10s), and read the frequency value directly from the 6-digit LED display.

Q: What types of frequencies can the VC-3165 measure, and in which applications is it used?

A: The VC-3165 measures frequencies from 0.5 Hz to 100 MHz directly, and up to 2.4 GHz via divided input. It's primarily used for testing and measuring frequencies of electronic devices within laboratories, repair centers, and educational institutions.

Q: When should the divided input mode be used on the VC-3165?

A: Utilize the divided input mode when measuring frequencies exceeding 100 MHz, as this mode extends the effective frequency measurement up to 2.4 GHz, suitable for RF and high-frequency applications.

Q: Where is the VC-3165 best installed or utilized?

A: The VC-3165 is best situated on a sturdy lab or workbench, thanks to its bench-top format and compact design. Its robust ABS body withstands typical lab environments, while its operating temperature range of 0C to 40C makes it suitable for most laboratory and industrial settings in India.

Q: What is the process for calibrating or maintaining the VC-3165?

A: Routine cleaning of the device with a dry cloth and periodic signal verification using standard test sources help keep the VC-3165 accurate. Refer to the user manual for detailed calibration procedures and always disconnect from the mains supply before maintenance.

Q: How does the high stability crystal oscillator benefit frequency measurements?

A: The high stability crystal oscillator minimizes drift and error in frequency readings, ensuring that measurements are accurate and consistent over time, making it ideal for precision applications.
