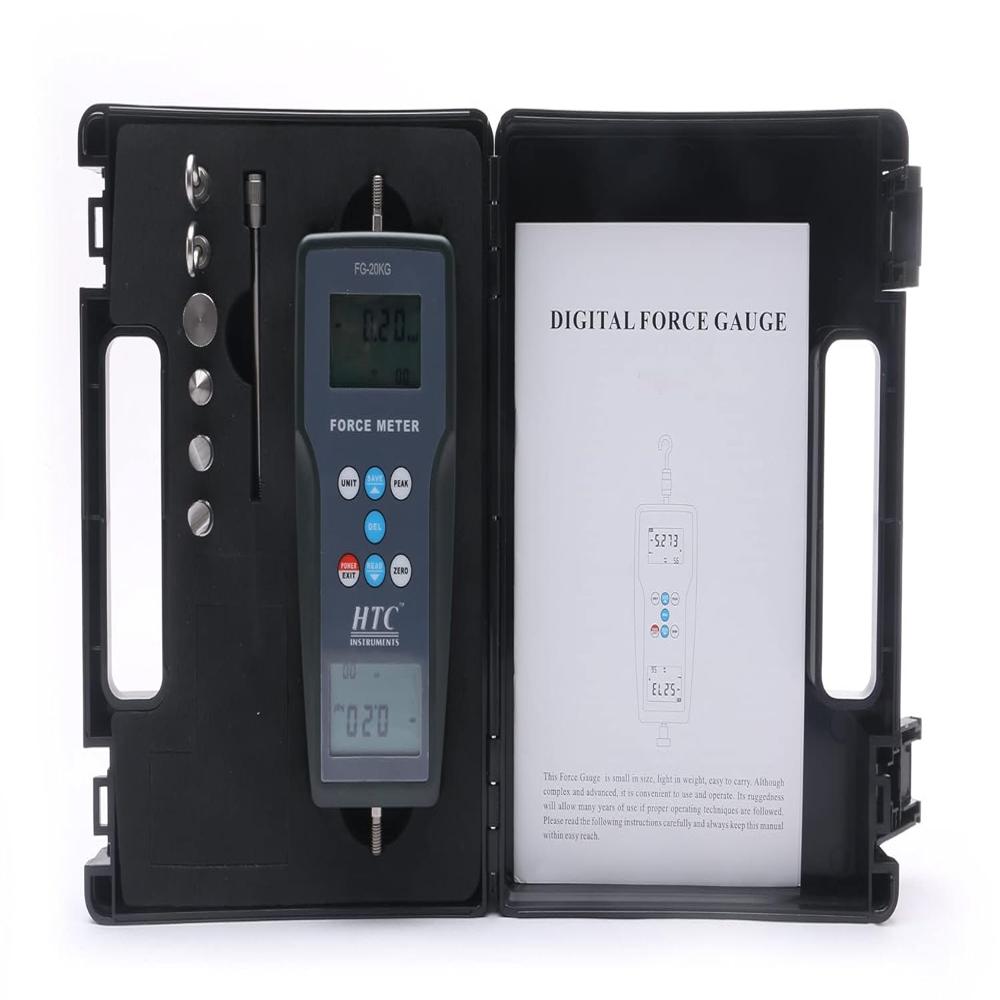

HTC 20kg Force Gauge, R2-FG-20KG

Name: HTC 20kg Force Gauge, R2-FG-20KG
Brand: True Sense Technologies
Price: 10300.0 INR
Availability: InStock

Price 10300.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

HTC 20kg Force Gauge, R2-FG-20KG Specification

Product Type
Digital Force Gauge

Material
ABS Plastic Body and Stainless Steel Attachments

Working Voltage
3 1.5V AA Batteries

Application
Tension and Compression Force Measurement

Format
Handheld Display

Accessories
Carrying Case, Measurement Attachments, User Manual

Size
Approx. 230 66 36 mm

Color
White

Weight
Approx. 650g (without accessories)

Units of Measurement
kg, g, N, lb

Auto Power Off
Yes

Accuracy
0.2% FS

Display
Large Backlit LCD

Storage Temperature
-10C ~ 60C (14F ~ 140F)

Peak Hold Function
Supported

Data Output
RS232 Interface

Operating Temperature
0C ~ 40C (32F ~ 104F)

Capacity
0~20kg (20,000g, 196N, 44lb)

Resolution
10g (0.01kg, 0.1N, 0.02lb)

Measurement Mode
Real-time and Peak Value

HTC 20kg Force Gauge, R2-FG-20KG Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
2 Days

About HTC 20kg Force Gauge, R2-FG-20KG

Feature:

Large LCD display with back light.
20 Kg, wide capacity, high resolution, high accuracy, Slow Approx. 0.6 second. high repeatability.
3 kind display unit : g, oz, Newton.
Tension & compression capability .
Full capacity zero (tare) control capability.
Fast/Slow response time push button.
Positive or reverse display direction select
Full line accessories ( adapters ) are included
Hand held & stand mounted gauges are available.
Low power consumption gives long battery life.
Build in low battery indicator
Microprocessor circuit & exclusive load cell transducer.
Over load protection.
RS-232 computer interface.
Built-in DC 9V power adapter input socket.
Professional test stand ( optional ).

Ultimate Precision & Versatile Measurement

With a measuring capacity of up to 20kg and an impressive 0.2% accuracy, the HTC R2-FG-20KG can handle demanding tension and compression force assessments. Its peak hold function and real-time modes allow users to capture transient and steady-state forces with ease, making it suitable for quality control, material testing, and assembly applications.

Intuitive Operation & User-Friendly Design

The force gauge features a large, backlit LCD for enhanced visibility in different environments, and supports multiple measurement units. Its ergonomic, handheld format and lightweight ABS construction ensure comfort during extended use. Easy-to-attach accessories and a convenient carrying case further simplify operation and transportation.

Reliable Data Handling & Power Efficiency

Equipped with an RS232 interface, the gauge enables efficient data transfer to computers or printers for further analysis or documentation. The auto power-off function maximizes battery life, and the device operates efficiently within standard laboratory and industrial temperature ranges.

FAQ's of HTC 20kg Force Gauge, R2-FG-20KG:

Q: How is the HTC 20kg Force Gauge utilized for force measurements?

A: The gauge can be employed by attaching the appropriate measurement accessory to the unit, then applying tension or compression force to the sample. Results are displayed in real time or peak hold mode, depending on your selection.

Q: What types of forces can this device measure?

A: This force gauge is designed to measure both tension and compression forces, making it versatile for a range of applications including quality control, production testing, and research.

Q: When should I use the peak hold function on the device?

A: The peak hold function should be used when you need to capture the maximum force applied to an object during a test. This is useful in material strength assessments or process validations.

Q: Where can I output the measured data from the gauge?

A: Measured data can be output via the built-in RS232 interface, which allows you to transfer results to a computer or printer for further analysis or record-keeping.

Q: What is the process for changing measurement units on the device?

A: To switch between kg, g, N, and lb, use the unit selection button on the device. The chosen unit will be clearly indicated on the large backlit LCD display.

Q: What are the key benefits of using this force gauge?

A: The HTC 20kg Force Gauge provides accurate, reliable, and versatile measurements with easy data export, ergonomic handling, and multiple useful features suited for industrial and laboratory environments.
