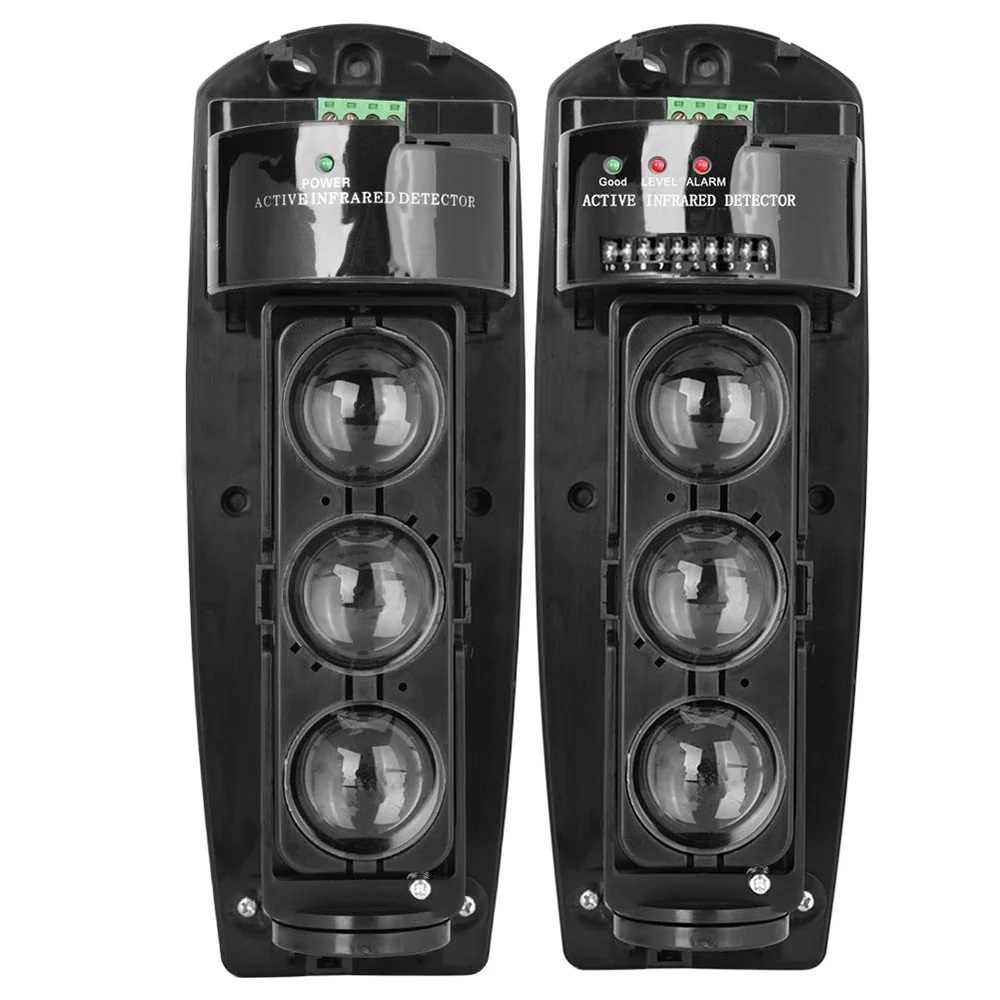

True Sense Triple Beam Sensor 200 Meters, ABE-200

Name: True Sense Triple Beam Sensor 200 Meters, ABE-200
Brand: True Sense Technologies
Price: 4500.0 INR
Availability: InStock

Price 4500.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

True Sense Triple Beam Sensor 200 Meters, ABE-200 Specification

Power Consumption
55 mA (Transmitter), 60 mA (Receiver)

Signal Type
Digital Alarm Signal

Sensitivity
Adjustable Sensitivity (Three Infrared Beams)

Wireless
No

Measurement Range
200 Meters (Outdoor)

IP Rating
IP55

Sensor Type
Infrared Triple Beam

Operating Temperature
-25C to +55C

Application
Industrial, Residential, Commercial Security Systems

Mounting Type
Surface/Wall Mount

Response Time
50 ms - 700 ms adjustable

Interface
Terminal Blocks

Features
Anti-frost, Anti-condensation, Adjustable Beam Interruption Time, Weatherproof

Cable Length
Not included (user-supplied)

Product Type
Triple Beam Sensor

Material
ABS Plastic Housing

Input
DC 12-24V

Output
Relay (NO/NC)

Function
Active Infrared Photoelectric Detection

Usage
Perimeter Security, Intrusion Detection, Outdoor Alarm Systems

Accuracy
High Precision with Triple Infrared Beam Alignment

Voltage
DC 12-24V

Weight
Approx. 1.2 kg (per set)

Installation Height
Recommended 0.7-1.2 m above ground

Beam Frequency
Selectable channels to prevent cross-talk

Response Modes
Selectable interruption period: 50, 100, 300, 700 ms

Alignment Aid
Optical alignment scope included

Tamper Protection
Yes (Tamper Switch included)

Detection Method
Synchronization of triple beams required for alarm

Relative Humidity
95% (non-condensing)

Alarm Output Capacity
AC/DC 30V 0.5A max

Dimensions
304 mm x 80 mm x 75 mm (LxWxH)

Lens Cover
UV-resistant, anti-condensation transparent cover

True Sense Triple Beam Sensor 200 Meters, ABE-200 Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About True Sense Triple Beam Sensor 200 Meters, ABE-200

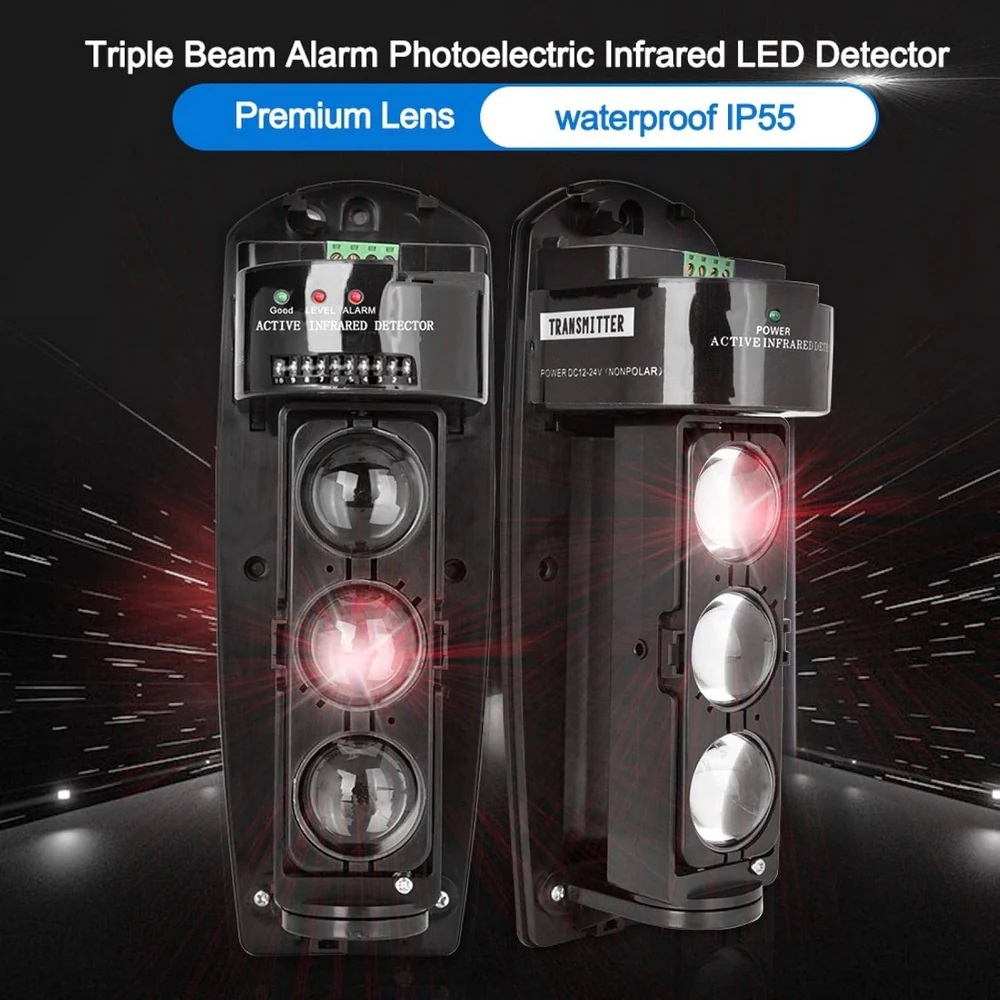

True Sense ABE-200 Triple Beam Photoelectric Sensor is an outdoor security device designed to protect perimeters with precision. Using three infrared beams, it detects intrusions and triggers an alarm, ensuring enhanced safety.

This weatherproof sensor is ideal for outdoor installations, providing reliable motion sensing for homes, commercial properties, and gated areas.

Applications: Perimeter security, outdoor motion detection, gated properties, parking lots, and industrial sites.

Features of ABE-200 Triple Beam Sensor:

Three infrared beams for accurate intrusion detection
Photoelectric sensor for reliable performance
Weatherproof design for outdoor use
Alarm activation for immediate alerts
Ideal for perimeter and property protection
Durable and maintenance-free operation

Triple Beam Synchronization for Superior Security

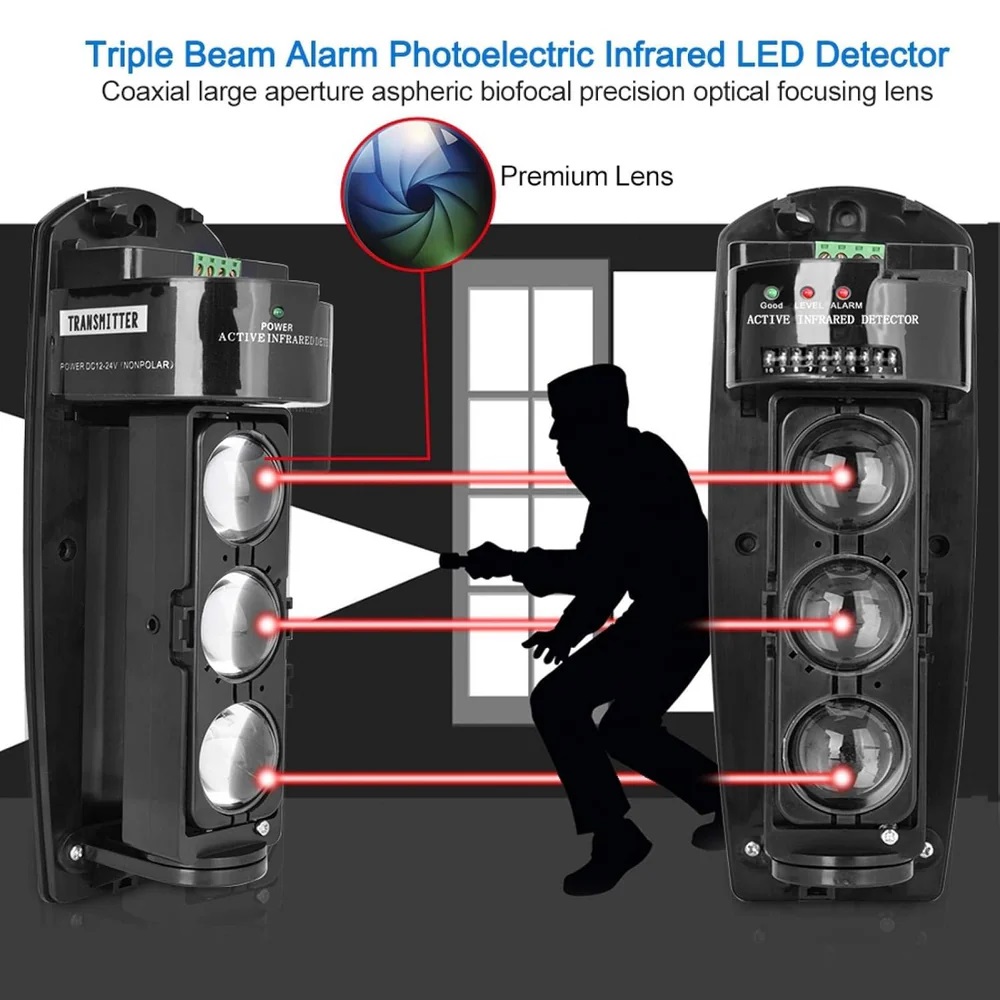

This sensor employs synchronized triple infrared beams, requiring all three to be interrupted before triggering an alarm. This method significantly reduces false alarms caused by birds, small animals, or debris, making it highly dependable for outdoor perimeter protection.

Installation Made Easy and Accurate

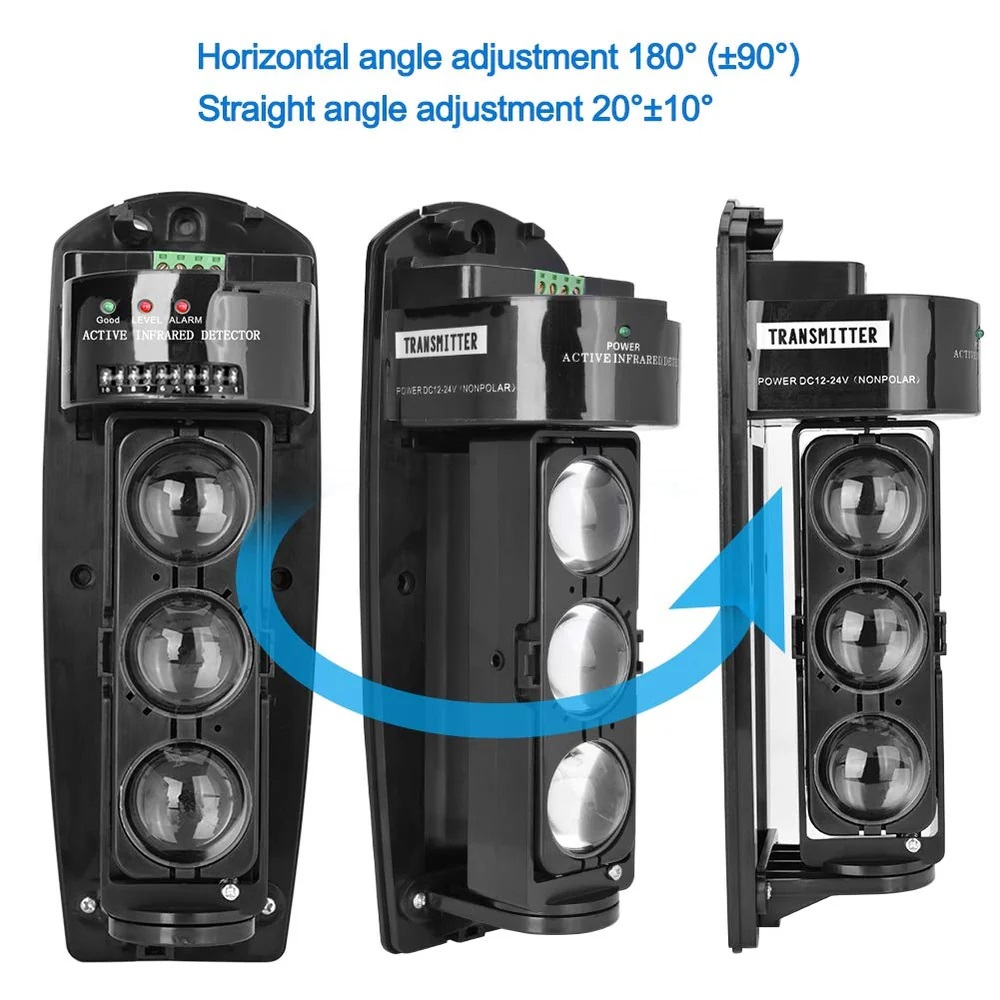

Equipped with an optical alignment scope and terminal block interface, the True Sense ABE-200 allows precise setup. Mounting at a recommended height of 0.7-1.2 meters above ground ensures optimal coverage, while selectable response times and sensitivity settings allow custom configurations for varied security needs.

Weatherproof, Durable, and Adaptable

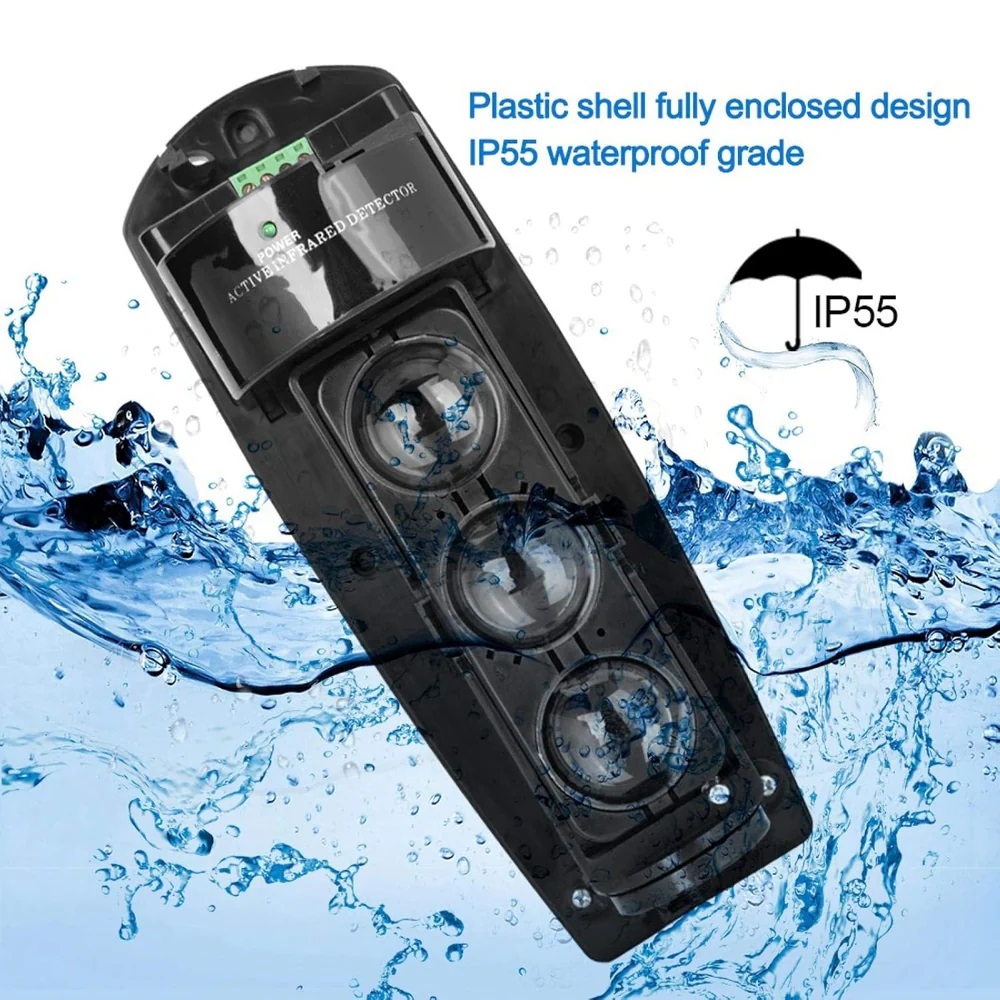

With an IP55-rated ABS plastic housing and UV-resistant, anti-condensation lens cover, this sensor withstands harsh weather conditions including humidity up to 95% (non-condensing). Its anti-frost design and wide operating temperature make it suitable for diverse Indian climates.

FAQ's of True Sense Triple Beam Sensor 200 Meters, ABE-200:

Q: How does the True Sense Triple Beam Sensor ABE-200 enhance perimeter security?

A: The ABE-200 requires all three synchronized infrared beams to be interrupted before triggering an alarm, reducing false alarms from minor obstructions and providing highly accurate intrusion detection for perimeter security.

Q: What installation process should be followed for optimal performance?

A: For best results, mount the sensor 0.7-1.2 meters above ground using the included optical alignment scope. This ensures the beams are properly aligned, and the sensor functions with high accuracy over distances up to 200 meters outdoors.

Q: Where is this sensor suitable for use?

A: Designed for industrial, commercial, and residential security systems, the ABE-200 is intended for outdoor perimeter protection. Its robust, weatherproof construction makes it ideal for applications in a wide range of environments across India.

Q: What features prevent accidental or environmental false alarms?

A: The synchronized triple beam detection, adjustable sensitivity, selectable beam frequency, and weatherproof, anti-frost design collectively help minimize false alarms caused by weather, swirling leaves, small animals, or condensation.

Q: When should the beam interruption period be adjusted, and how?

A: Adjust the beam interruption period (50, 100, 300, or 700 ms) based on the level of movement expected in the secured area. Shorter periods work for high-security zones, while longer periods help avoid false alarms in environments with occasional obstructions.

Q: What are the benefits of the selectable beam frequencies?

A: Selectable beam frequencies allow multiple sensors to operate in close proximity without interference or cross-talk, enhancing system reliability on large properties or multi-layered security installations.

Q: How does the sensor withstand challenging outdoor conditions?

A: The sensor's ABS plastic housing, UV-resistant lens cover, and IP55 weatherproof rating protect it from rain, dust, humidity up to 95%, and temperature swings from -25C to +55C, ensuring consistent, long-term outdoor performance.
