True Sense Infrared Light Beam Sensor AAA Battery Operated Wireless, AGO-70

Send Inquiry

Request To Call Back

True Sense Infrared Light Beam Sensor AAA Battery Operated Wireless, AGO-70

Name: True Sense Infrared Light Beam Sensor AAA Battery Operated Wireless, AGO-70
Brand: True Sense Technologies
Price: 800.0 INR
Availability: InStock

Price 800.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

True Sense Infrared Light Beam Sensor AAA Battery Operated Wireless, AGO-70 Specification

Cable Length
N/A (Wireless)

Measurement Range
Up to 8 meters

Signal Type
Digital

Mounting Type
Wall/Surface Mount

Power Consumption
Low (<0.1W)

Wireless
Yes

Application
Entry Gates, Doors, Perimeter Security

Interface
Wireless Transmission

Features
Easy Installation, Battery Operated, Tamper Resistant, LED Indicator

Response Time
<0.5 seconds

IP Rating
IP55

Sensor Type
Infrared (IR) Beam

Sensitivity
Adjustable

Operating Temperature
-10C to +55C

Product Type
Infrared Light Beam Sensor

Material
ABS Plastic Housing

Input
AAA Battery Operated

Output
Wireless Signal / Relay Output

Function
Object Detection via Infrared Beam

Usage
Security, Access Control, Automation

Accuracy
High

Voltage
3V (2 x AAA Batteries)

Weight
Approx. 90g (including batteries)

Detection Angle
Linear (Straight Beam)

Synchronization
Automatic via Wireless Protocol

Working Humidity
<95% RH (non-condensing)

Mounting Accessories
Screws and Brackets Included

Tamper Protection
Yes, Tamper Switch Built-in

Color
Black

Dimension
Approx. 126mm x 48mm x 32mm (each piece)

Beam Alignment
Manual Adjustment with LED Feedback

Battery Life
Up to 12 months under normal usage

Transmit Frequency
433MHz or 315MHz (as per model)

LED Indicator
Power/Beam Alignment Status

Detection Method
Active Infrared Cross Beam

Alarm Output
NO/NC Relay (optional receiver module required)

True Sense Infrared Light Beam Sensor AAA Battery Operated Wireless, AGO-70 Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About True Sense Infrared Light Beam Sensor AAA Battery Operated Wireless, AGO-70

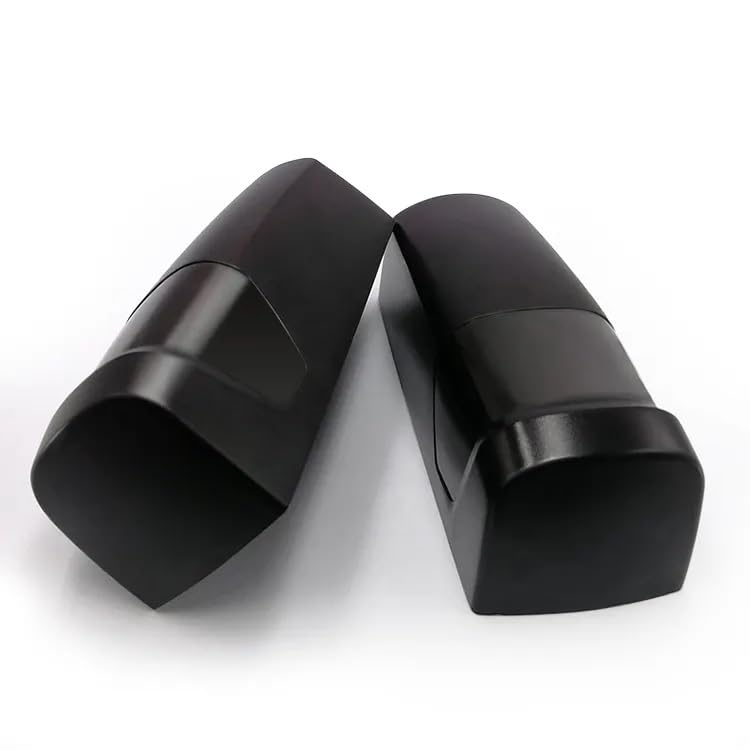

True Sense AGO-70 Infrared Light Beam Sensor is a wireless security sensor designed for reliable interruption detection. It uses infrared beam technology to detect movement or obstacles, making it ideal for safety and access control applications.

This battery-operated sensor runs on AAA batteries and offers a detection range of approximately 15 to under 20 meters. Its wireless design allows easy installation without complex wiring.

Applications: Garage doors, automatic gates, parking areas, access control systems, and security installations.

Features of AGO-70 Infrared Beam Sensor:

Infrared light beam technology for accurate detection
Wireless and battery-operated (AAA batteries)
Detection range of 15 m to under 20 m
Easy installation without wiring
Compact and portable design
Ideal for safety and security applications

WIRELESS & LONG-LASTING SECURITY

Powered by two AAA batteries, the AGO-70 infrared beam sensor lasts up to 12 months on standard usage, offering wireless flexibility and easy installation with included screws and brackets. Its ultra-low power consumption and lack of cables simplify placement for securing doors, gates, and building perimeters.

SIMPLE SETUP WITH LED ALIGNMENT

Manual beam alignment, assisted by a built-in LED indicator for both power and alignment status, streamlines the installation process. Synchronization between transmitter and receiver is automatic via wireless protocol, providing hassle-free pairing.

TAMPER RESISTANT AND DURABLE DESIGN

Featuring a built-in tamper switch and housed in an IP55-rated ABS plastic enclosure, the sensor is robust against weather and tampering attempts. The adjustable sensitivity and high accuracy ensure reliable operation in demanding conditions, both indoors and outdoors.

FAQ's of True Sense Infrared Light Beam Sensor AAA Battery Operated Wireless, AGO-70:

Q: How is the AGO-70 Infrared Beam Sensor installed and aligned?

A: The AGO-70 sensor comes with mounting screws and brackets for easy wall or surface installation. Beam alignment is performed manually and confirmed using the LED indicator, which provides real-time feedback to ensure optimal placement and detection accuracy.

Q: What applications is this sensor suitable for?

A: This sensor is ideal for entry gates, doors, and perimeter security. It is widely used in access control systems, automation setups, and as part of general security installations for both indoor and outdoor environments.

Q: When should the batteries be replaced in the AGO-70 sensor?

A: Under typical operating conditions, the batteries last up to 12 months. It's recommended to replace the two AAA batteries annually, or sooner if the LED indicator shows a low power status.

Q: Where can the AGO-70 be mounted and is it weather-resistant?

A: The sensor is designed for wall or surface mounting and can be installed both indoors and outdoors, thanks to its IP55 weather-resistant ABS enclosure which protects against dust and water spray.

Q: What is the process for wireless synchronization between units?

A: Wireless synchronization between the transmitter and receiver happens automatically using the integrated wireless protocol, minimizing manual setup and ensuring a stable connection between paired devices.

Q: What is the detection range and angle of the sensor?

A: The AGO-70 detects objects within a linear (straight) beam up to 8 meters away. Its adjustable sensitivity allows users to fine-tune the detection performance to specific site requirements.

Q: What are the main benefits of using the AGO-70 sensor in security systems?

A: Key benefits include wireless battery operation, high detection accuracy, easy installation, tamper protection, manual and visual alignment, adjustable sensitivity, and reliable performance in varied environmental conditions.
