True Sense Thermal Camera For Water Leaking Leakage Detector, HT-18
True Sense Thermal Camera For Water Leaking Leakage Detector, HT-18
True Sense Thermal Camera For Water Leaking Leakage Detector, HT-18
True Sense Thermal Camera For Water Leaking Leakage Detector, HT-18
True Sense Thermal Camera For Water Leaking Leakage Detector, HT-18
True Sense Thermal Camera For Water Leaking Leakage Detector, HT-18
True Sense Thermal Camera For Water Leaking Leakage Detector, HT-18
True Sense Thermal Camera For Water Leaking Leakage Detector, HT-18
True Sense Thermal Camera For Water Leaking Leakage Detector, HT-18
True Sense Thermal Camera For Water Leaking Leakage Detector, HT-18
True Sense Thermal Camera For Water Leaking Leakage Detector, HT-18
True Sense Thermal Camera For Water Leaking Leakage Detector, HT-18

True Sense Thermal Camera For Water Leaking Leakage Detector, HT-18

Price 46950.0 INR/ Piece

MOQ : 1 Piece

True Sense Thermal Camera For Water Leaking Leakage Detector, HT-18 Specification

  • Connectivity Type
  • USB Interface for Data Transfer
  • Camera Range
  • -20C to 300C (Measurement Temperature Range)
  • Camera Type
  • Thermal Imaging Camera
  • Sensor Type
  • Infrared Thermal Sensor
  • Camera Style
  • Handheld Portable
  • Technology
  • Infrared Thermography
  • Special Features
  • Thermal Imaging, Water Leakage Detection, Hot and Cold Spot Tracking, Real-Time Thermal Fusion, Ergonomic Grip, Image Storage
  • Application
  • Plumbing, Building Inspections, HVAC, Water Damage Detection, Electrical Fault Detection
  • Camera Size
  • Approx. 220 mm x 90 mm x 60 mm
  • Camera Pixels
  • 220 x 160 (Infrared Resolution)
  • Screen Resolution
  • 320 x 240 LCD Display
  • Image/Video Quality
  • Infrared Image Capture with Visual Camera Overlay, Picture-in-Picture Mode
  • Power Supply
  • Rechargeable Battery, USB Charging
  • Output Formats
  • JPG, BMP
  • File Compatibility
  • JPG Images, Standard Thermal Files
  • Operating Temperature
  • 0C to 45C
  • Color Palettes
  • Iron Red, Rainbow, White, Black, Cold Color
  • Thermal Sensitivity
  • 0.07C
  • Visual Camera
  • 640 x 480 Pixels
  • Battery Life
  • Up to 6 Hours Continuous Use
  • Image Storage
  • 8GB MicroSD Card (Internal Memory)
  • Emissivity
  • 0.1 to 0.99 (Adjustable)
  • Focus Mode
  • Fixed Focus
  • Field of View
  • 35 x 26
  • Weight
  • Approx. 320g


True Sense Thermal Camera For Water Leaking Leakage Detector, HT-18 Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Days


About True Sense Thermal Camera For Water Leaking Leakage Detector, HT-18

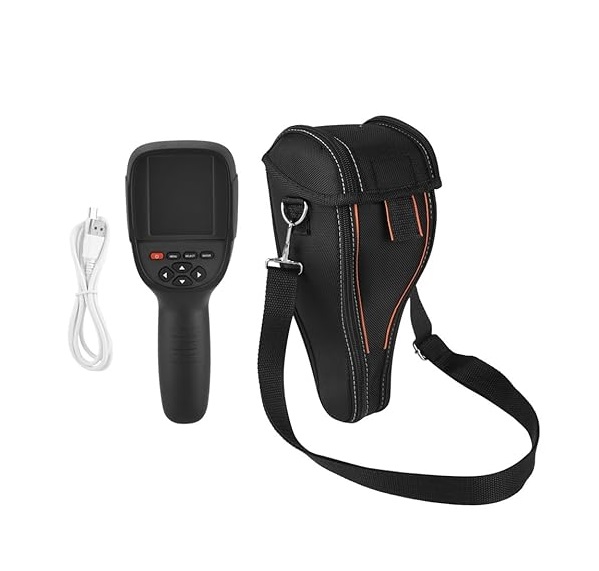

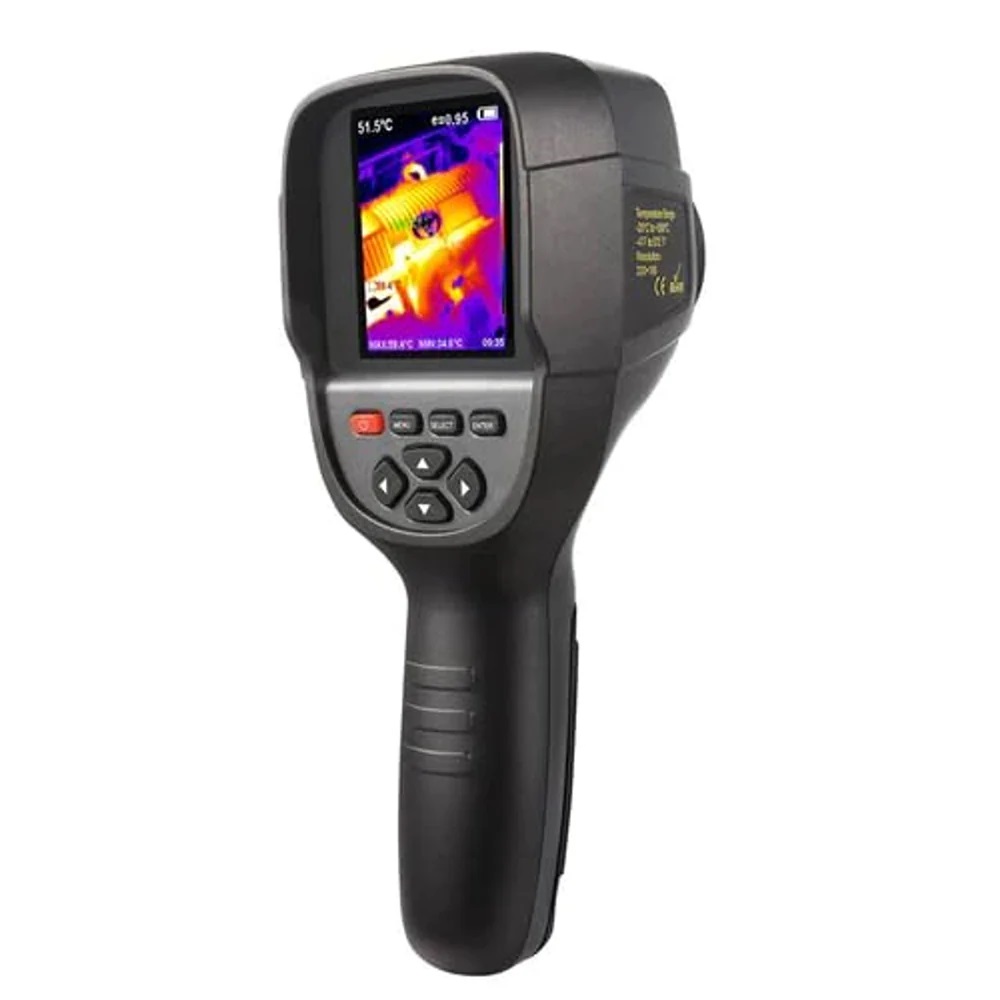

True Sense HT-18 Thermal Imaging Camera is a reliable handheld infrared imager offering 220160 IR resolution for accurate thermal diagnostics. Supplied with a soft carrying bag, it is ideal for professional inspection and maintenance tasks.


Features:

  • 220160 infrared resolution

  • Handheld thermal imaging design

  • Accurate temperature measurement

  • Clear thermal image display

  • Lightweight and portable

  • Includes soft carrying bag

  • Easy-to-use interface

  • Suitable for field inspections

  • Durable construction



Pinpoint Water Leaks with Infrared Precision

Detect elusive water leaks and insulation anomalies with the HT-18's advanced thermal sensitivity, capable of identifying temperature variances as small as 0.07C. This accuracy aids quick troubleshooting, reducing time and cost on repairs, while supporting clear documentation via integrated image storage.


Versatile Applications for Professionals

Designed for multiple industries, the True Sense Thermal Camera is invaluable for plumbing, HVAC, electrical work, and building inspections. Its robust operating range and adjustable emissivity allow accurate analysis of diverse materials, making it a reliable companion on any job site.


Efficient Data Capture and Analysis

Capture and review images in real time with true-picture overlays and multiple color palettes. Effortlessly transfer files to your computer through USB connectivity, supported by ample 8GB onboard storage and file compatibility with standard formats for streamlined workflow integration.

FAQ's of True Sense Thermal Camera For Water Leaking Leakage Detector, HT-18:


Q: How does the HT-18 thermal camera detect water leakage?

A: The HT-18 detects water leakage by visualizing temperature differences in building materials using infrared thermography. Areas with moisture often display distinctive thermal patterns, allowing users to pinpoint leaks without invasive inspection.

Q: What is the process for saving and transferring captured images?

A: Images are automatically stored on the HT-18's internal 8GB MicroSD card. Transfer is simple-connect the camera to your computer via USB and access JPG or BMP files directly for analysis or record-keeping.

Q: Where can this camera be used for optimal results?

A: The HT-18 performs best in applications like plumbing leak detection, building inspections, HVAC diagnostics, water damage assessment, and identifying electrical faults. Both indoor and outdoor usage are supported within a 0C to 45C operating range.

Q: When should I adjust the emissivity settings on the device?

A: Adjust the emissivity (ranging from 0.1 to 0.99) when measuring materials with different surface properties, such as shiny metals or painted surfaces, to ensure temperature readings are as accurate as possible.

Q: What are the benefits of using the HT-18 for inspections?

A: The main benefits include rapid, non-destructive fault identification, improved accuracy in detecting wet spots or leaks, and detailed file storage for documentation. These features boost efficiency and help reduce diagnostic errors.

Q: How long can I use the thermal camera on a single charge?

A: The HT-18 provides up to 6 hours of continuous operation on a fully charged battery, ensuring reliable performance throughout demanding inspection tasks.
