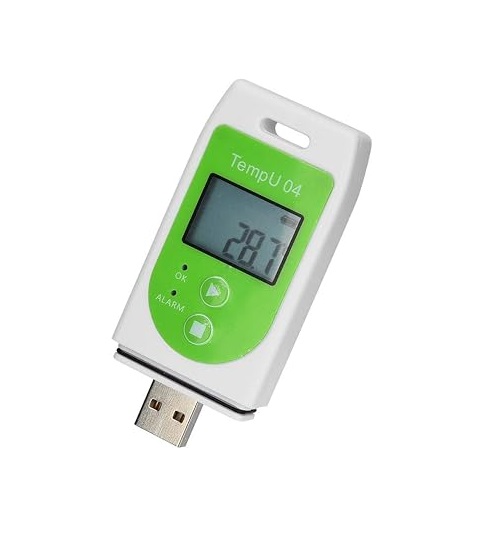

True Sense Temperature Data-Logger For Monitoring, Food Applications, Storage, Refrigerators, TempU04

Send Inquiry

Request To Call Back

True Sense Temperature Data-Logger For Monitoring, Food Applications, Storage, Refrigerators, TempU04

Price 2070.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

True Sense Temperature Data-Logger For Monitoring, Food Applications, Storage, Refrigerators, TempU04 Specification

Theory
Electronic Recording

Data Capacity
16000 Temperature Readings

Temperature Range
-30C to +70C

Alarm
Programmable High/Low Temperature Alarm

Power Supply
Battery Powered

Type
Temperature Data Logger

Display Type
LCD Display

Memory
16000 Data Points

Accuracy
0.5C (-20C~+40C), 1.0C (other range)

Size
86mm x 54mm x 6mm

Resolution
0.1C

Battery
3V Lithium Battery (CR2032)

Net Weight
30g

Standby Time
Up to 12 Months

Interface
USB 2.0

Measuring Range
-30C to +70C

Includes
Temperature Data Logger, Battery, USB Cable, User Manual

Recording Interval
10 seconds to 24 hours adjustable

Operating Environment
-30C to +70C, 0-100%RH

Reusability
Yes, Multiple Use

Start Mode
Manual/Automatic Press Button

Data Export Format
PDF/CSV

Ideal Applications
Food, Pharmaceutical, Storage, Transportation, Refrigerators, Cold Chain Logistics

Software Compatibility
Windows XP/7/8/10

Waterproof Level
IP67

True Sense Temperature Data-Logger For Monitoring, Food Applications, Storage, Refrigerators, TempU04 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About True Sense Temperature Data-Logger For Monitoring, Food Applications, Storage, Refrigerators, TempU04

True Sense TempU04 USB Temperature & Humidity Data Logger is a reliable and reusable device for monitoring temperature and humidity across various environments. It is ideal for food storage, refrigerators, and other controlled settings.

The TempU04 features a large recording capacity of 32,000 points and USB connectivity for easy data transfer and analysis.

Applications: Food storage, cold chain, laboratories, refrigerators, and other environments requiring accurate temperature and humidity monitoring.

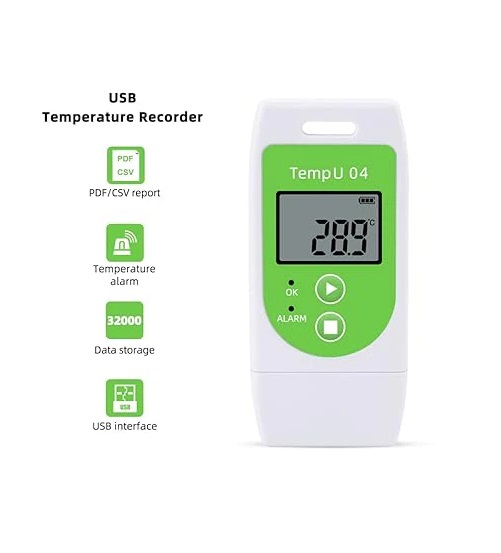

Features of TempU04 Data Logger:

Measures temperature and humidity accurately
USB connectivity for simple data transfer
Large recording capacity of 32,000 points
Reusable and multi-use design
Ideal for cold storage, food monitoring, and professional applications

Comprehensive Temperature Monitoring

True Sense TempU04 provides essential temperature tracking for diverse environments, ranging from food warehouses to pharmaceutical transport. Its wide operating range and high memory capacity make it ideal for storage and logistics where temperature integrity is critical for product safety and compliance.

User-Friendly Operation and Data Management

With both manual and automatic start options, this logger caters to various user preferences. Exporting data is straightforward through a USB interface, supporting PDF and CSV formats for easy record-keeping and analysis. The included LCD display ensures immediate, onsite access to data.

Durable and Reliable Design

Built with IP67-level waterproof protection, the TempU04 withstands harsh storage and transit conditions. Its standby time extends up to 12 months, ensuring long-term performance. With multiple-use capability and replaceable CR2032 battery, it proves both sustainable and cost-effective.

FAQ's of True Sense Temperature Data-Logger For Monitoring, Food Applications, Storage, Refrigerators, TempU04:

Q: How does the data logger record and store temperature data?

A: The True Sense Temperature Data-Logger captures temperature readings at intervals you set (from 10 seconds to 24 hours) and stores up to 16,000 data points internally, making it suitable for prolonged monitoring in food, pharmaceuticals, and logistics.

Q: What are the steps for exporting and analyzing collected data?

A: Simply connect the data logger to your Windows PC (XP/7/8/10) using the included USB cable. Data can be exported in PDF or CSV formats, making subsequent analysis or archiving straightforward and compatible with common applications.

Q: When should I use the manual versus the automatic start mode?

A: Use the manual start mode when you wish to begin logging on your command by pressing a button. The automatic mode allows the logger to start recording at a pre-set time-ideal for scheduled monitoring in transit or storage environments.

Q: Where can the TempU04 temperature logger be deployed effectively?

A: The device is designed for versatile use, including food manufacturing and storage facilities, pharmaceutical cold chains, transportation units, refrigerators, and storage rooms. Its IP67 waterproof rating allows placement even in damp or refrigerated conditions.

Q: What is the benefit of using an adjustable recording interval?

A: Adjustable intervals allow tailoring the data collection frequency to your monitoring needs. For rapidly changing conditions, use short intervals (10 seconds); for longer storage, extend intervals up to 24 hours to save memory and battery.

Q: How do I know if the temperature has gone outside set limits?

A: The data logger features a programmable high/low temperature alarm. If the temperature goes beyond the set thresholds, the device alerts you, helping ensure immediate corrective action.
