Elitech Temperature and Humidity Data Logger Recorder Humidity Sensor Probe Monitor, GSP-6

Send Inquiry

Request To Call Back

Elitech Temperature and Humidity Data Logger Recorder Humidity Sensor Probe Monitor, GSP-6

Name: Elitech Temperature and Humidity Data Logger Recorder Humidity Sensor Probe Monitor, GSP-6
Brand: True Sense Technologies
Price: 4100.0 INR
Availability: InStock

Price 4100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Elitech Temperature and Humidity Data Logger Recorder Humidity Sensor Probe Monitor, GSP-6 Specification

Alarm
Audible alarm for exceedance of predefined thresholds

Temperature Range
-30C to 70C

Data Capacity
16,000 recordings (total)

Power Supply
3.6V Lithium battery, USB for charging

Theory
Electronic Data Logging

Type
Temperature and Humidity Data Logger Recorder

Display Type
LCD

Memory
16,000 readings (8,000 temperature and 8,000 humidity)

Accuracy
Temperature: 0.5C; Humidity: 3% RH (at 20%~90% RH and 25C)

Size
118mm 37mm 23mm

Resolution
Temperature: 0.1C; Humidity: 0.1% RH

Battery
Internal rechargeable lithium battery, 3.6V

GPS
Not included

Net Weight
Approx. 80g

Standby Time
Up to 12 months

Interface
USB, LCD Display

Measuring Range
Temperature: -22F to 158F (-30C to 70C); Humidity: 10% RH to 99% RH

Includes
USB Cable, Data Logger, User Manual, Sensor Probe

Operating Voltage
3.6V DC

Recording Mode
Multi-start and stop, cyclic recording

Storage Temperature
-40C to 85C

Data Export
PDF, Excel formats via USB

Sensor Type
External probe for humidity and temperature

Working Environment
-30C to 70C, 0-100% RH (non-condensing)

Sampling Interval
10 seconds to 24 hours, programmable

Mounting
Wall mountable or portable use

Protection Level
IP65

Software Support
Compatible with Elitech data management software

Elitech Temperature and Humidity Data Logger Recorder Humidity Sensor Probe Monitor, GSP-6 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About Elitech Temperature and Humidity Data Logger Recorder Humidity Sensor Probe Monitor, GSP-6

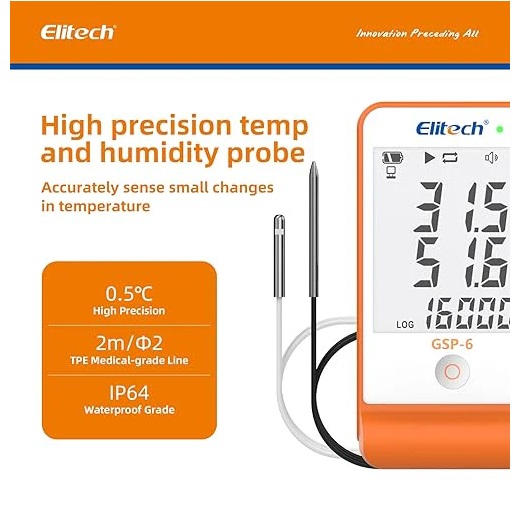

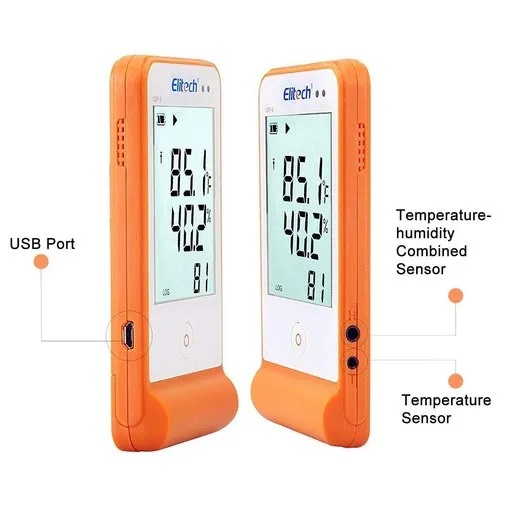

Elitech GSP-6 Temperature and Humidity Data Logger is a versatile, high-precision device designed for accurate monitoring of temperature and humidity. Equipped with detachable dual probes, it allows flexible placement and measurement in multiple environments.

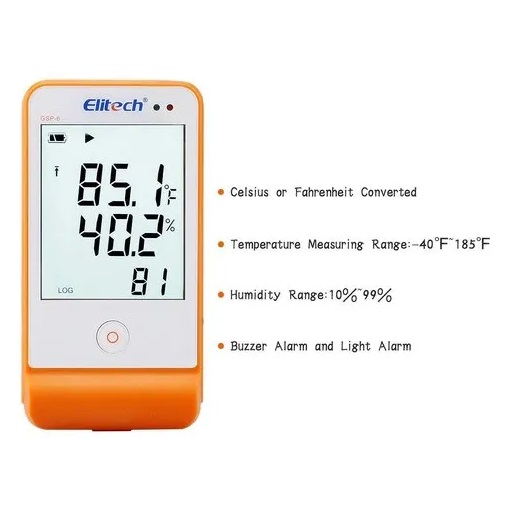

The GSP-6 features a large LCD display, audio alarm, and max/min value tracking for easy monitoring and alerts. Its wide temperature range (-40 to 158) and high accuracy (0.6) make it suitable for critical applications.

Applications: Laboratories, cold storage, transport, warehouses, and industrial environments where precise temperature and humidity tracking is required.

Features of Elitech GSP-6 Data Logger:

Dual detachable probes for versatile monitoring
High-precision measurement: 0.6 accuracy
Wide temperature range: -40 to 158
Large LCD display for easy reading
Audio alarm and max/min value tracking
Multi-use and suitable for various professional environments

Programmable Sampling Intervals

Choose from a broad sampling interval range-every 10 seconds to every 24 hours-allowing you to customize data recording based on your monitoring requirements. This feature offers the flexibility to adapt the logger usage for both rapid changes and long-term trends in temperature and humidity levels.

Reliable and Rugged Design

Equipped with an IP65 protection rating and a robust casing, the Elitech GSP-6 withstands tough environments, making it ideal for industrial applications, cold chains, and storage facilities. The external probe guarantees accurate measurements even in challenging conditions, supporting non-condensing humidity up to 100% RH.

Effortless Data Management

Download and analyze recorded data with ease. The logger is compatible with Elitech's management software, supporting reports in PDF and Excel formats via USB interface. Audible alarms alert users to threshold violations, while multi-start/stop and cyclic recording maximize data collection efficiency.

FAQ's of Elitech Temperature and Humidity Data Logger Recorder Humidity Sensor Probe Monitor, GSP-6:

Q: How does the Elitech GSP-6 data logger record temperature and humidity readings?

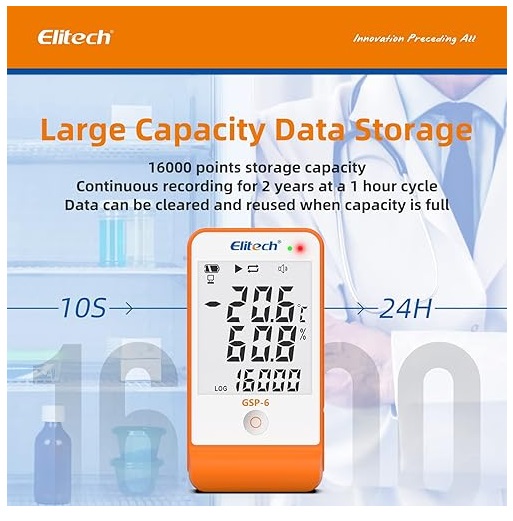

A: The Elitech GSP-6 employs an external probe to monitor temperature and humidity. It stores up to 8,000 temperature and 8,000 humidity readings in its memory, sampling data at programmable intervals from 10 seconds up to 24 hours.

Q: What are the main benefits of the logger's IP65 protection level?

A: The IP65-rated enclosure provides effective protection against dust and water jets, ensuring reliability in harsh environments, such as cold storage, pharmaceutical labs, and manufacturing sites.

Q: How is the data exported and managed?

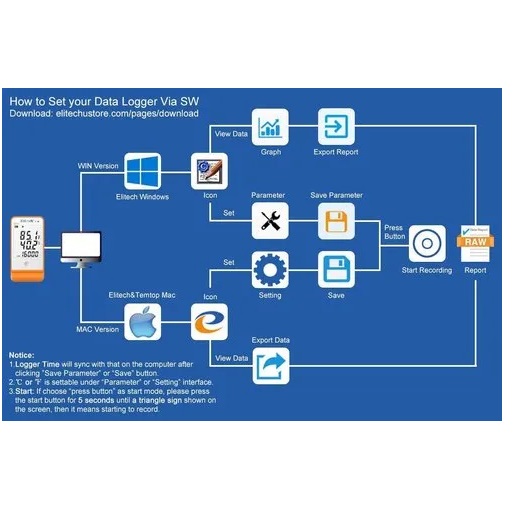

A: You can connect the logger to a computer via USB. Data is managed using Elitech's software and can be exported in PDF or Excel format for reporting, analysis, and compliance documentation.

Q: When should I use the multi-start/stop and cyclic recording features?

A: Multi-start/stop and cyclic recording are useful when monitoring occurs in separate sessions or continuously over extended periods. These functions allow you to adapt the logger operation to changing work schedules or specific monitoring campaigns.

Q: Where can the Elitech GSP-6 be installed or used?

A: The device can be wall-mounted for permanent installations, such as in warehouses, or used portably for on-the-go monitoring during transportation or fieldwork. Its robust design enables deployment in a variety of settings, from -30C to 70C.

Q: What is the process for setting up alarms for temperature or humidity deviations?

A: Alarms are configured via the included software. You can set specific thresholds, and the logger provides an audible alert if readings exceed the preset limits, enabling prompt corrective action.

Q: What is the typical battery life and how is the device powered?

A: The internal rechargeable lithium battery supplies up to 12 months of standby time. The device is recharged through a USB connection, ensuring prolonged, maintenance-free operation.
