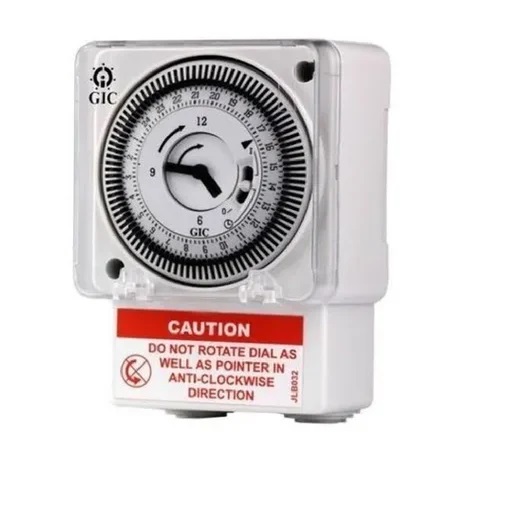

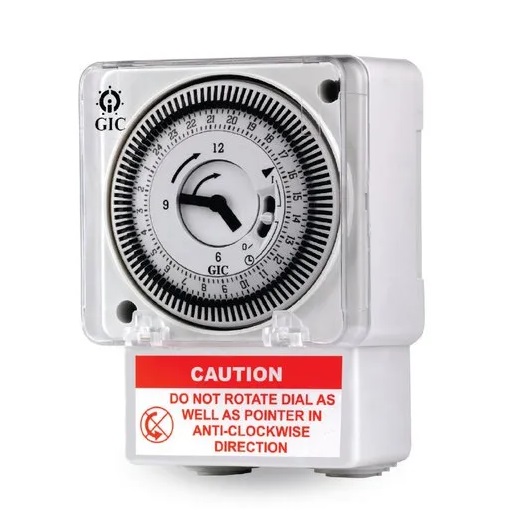

True Sense L&T GIC Timer Switch, J648B1

Name: True Sense L&T GIC Timer Switch, J648B1
Brand: True Sense Technologies
Price: 900.0 INR
Availability: InStock

Price 900.0 INR/ Piece

Get a Price/Quote

MOQ : 2 Pieces

True Sense L&T GIC Timer Switch, J648B1 Specification

Type
Analog Timer Switch

Material
Polycarbonate Body

Voltage
230V AC, 50/60Hz

Weight (kg)
0.18 kg

Dimension (L*W*H)
77mm x 63mm x 112mm

Color
White

Operating Temperature
-10C to +55C

Theory
Electromechanical Timer

Usage
Industrial Automation, Lighting Control, Motor Control

Min Setting Time
1 Minute

Design
Compact DIN Rail Mount

Display Type
Dial

Time Range
1 minute to 24 hours

IP Rating
IP20

Power Consumption
<2 VA

Mounting Type
DIN Rail Mount

Switch Rating
16A at 230V AC

Model Number
J648B1

Application
Control Panel, Street Lighting, HVAC, Automation Systems

Contact Type
SPDT (Single Pole Double Throw)

Frequency
50/60 Hz

True Sense L&T GIC Timer Switch, J648B1 Trade Information

Minimum Order Quantity
2 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About True Sense L&T GIC Timer Switch, J648B1

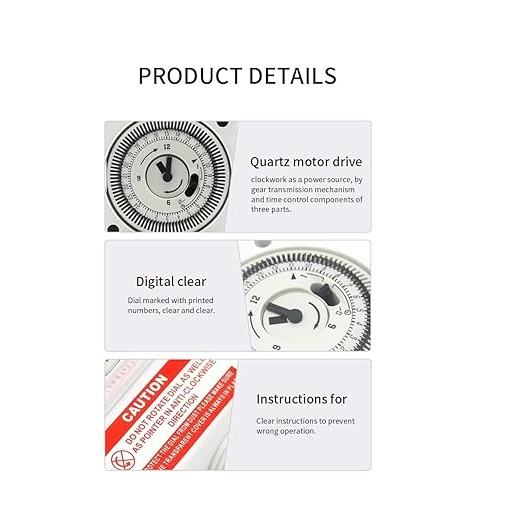

Product Description:

Modular construction

Inbuilt over-ride facility

High switching capacity

Tamper proof sealing

Analog & Digital version

Daily/Weekly Programming

Product Specification:

Model	J648B1 (Analog Version)
Supply Voltage	240 VAC
Frequency	50/60 Hz
Power Consumption (Max.)	2 VA
Accuracy	1.5 s/day at 20C
Switching contact	1 C/O contact - AgCdO
Contact Rating	Resistive	16A @ 250 VAC, 0.25A @ 220VDC
Inductive (cos = 0.6)	8A @ 250 VAC, 0.1A @ 220 VDC
Incandescent Lamp	1350 W
Shortest Switching Time	Daily	15 min
Weekly	2 h
Power reserve	150 hrs
Memory locations	N. A.
Storage Temperature	- 20C to + 55C
Manual Over-ride	Provided
Mounting	Flush, Base / DIN rail
Weight (unpacked)	185 g

Precision Timing for Industrial Applications

Optimize your automation, lighting, and motor control setups with the True Sense L&T GIC Timer Switch. The J648B1 model provides accurate timing from 1 minute up to 24 hours, enhancing efficiency and reliability in control panels and various industrial environments. Its compact DIN rail mount and sturdy polycarbonate body ensure long-lasting performance even in demanding conditions.

Simple Installation and Flexible Usage

Designed for hassle-free integration, the J648B1 timer easily mounts on DIN rails and fits seamlessly into existing panels. Its SPDT contact and 16A switching capacity make it ideal for controlling diverse loads in street lighting, HVAC, and industrial automation. The analog dial allows intuitive setting adjustments, keeping operation user-friendly.

FAQ's of True Sense L&T GIC Timer Switch, J648B1:

Q: How do I install the True Sense L&T GIC Timer Switch J648B1?

A: The timer switch is designed for DIN rail mounting. Simply attach it to the standard DIN rail in your control panel, connect the electrical wiring as per the provided circuit diagram, and set your required timing using the analog dial.

Q: What time ranges can I set with this timer switch?

A: The J648B1 model offers adjustable timing from 1 minute to 24 hours, allowing precise control tailored to your application's requirements.

Q: Where can the J648B1 timer switch be used?

A: It is suitable for a broad range of applications, including control panels, street lighting, HVAC systems, industrial automation, and motor control in both commercial and industrial settings.

Q: What are the benefits of using this timer switch in automation systems?

A: This timer switch automates switching tasks, enhances energy efficiency, and reduces manual intervention. With a robust 16A at 230V AC contact rating, it accommodates high-load applications reliably.

Q: When should the timer switch be set to minimum or maximum values?

A: Set the minimum (1 minute) for tasks requiring short intervals, such as brief motor operations. Use the maximum (24 hours) for extended cycles, like daily lighting schedules or long-duration process automation.

Q: What process should be followed to adjust the timer settings?

A: Use the analog dial display on the front panel to set your preferred time delay. Rotate the dial to align with the desired time value marked on the timer.

Q: What kind of protection does the J648B1 offer in terms of safety?

A: The device comes with an IP20 rating, providing basic protection against solid objects. However, it should be installed in a secure, dry enclosure to avoid exposure to dust and moisture.
