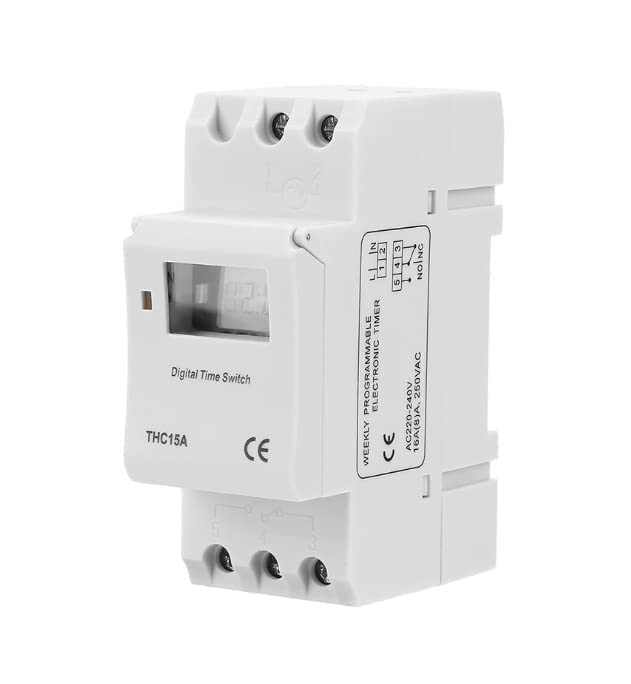

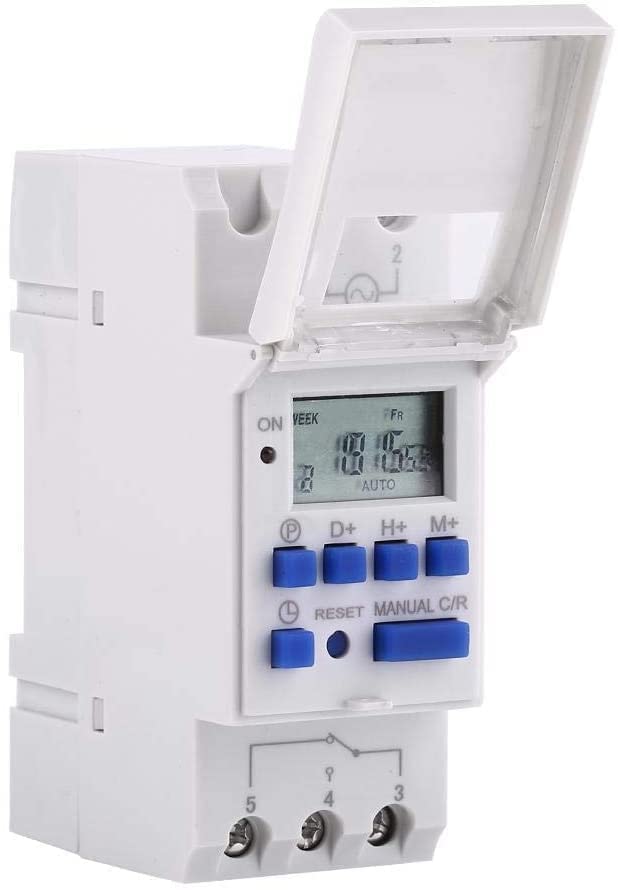

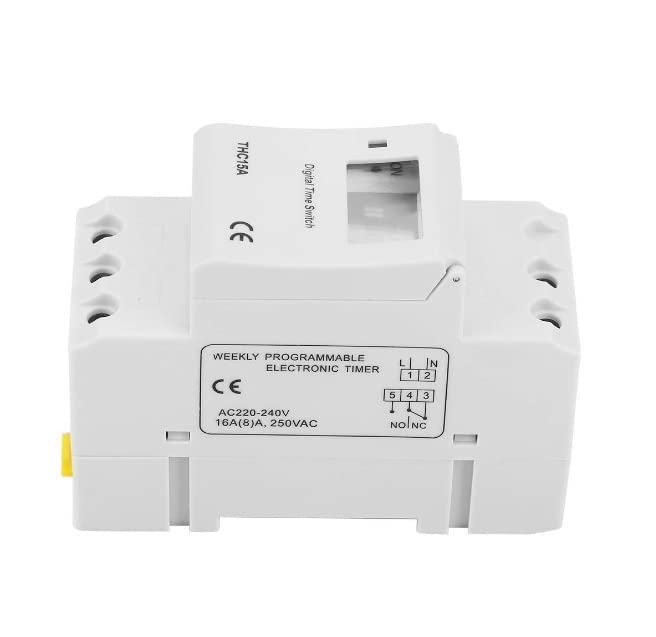

True Sense 16 Ampere Din Rail Digital Timer, Thc15a, TS-16

Name: True Sense 16 Ampere Din Rail Digital Timer, Thc15a, TS-16
Brand: True Sense Technologies
Price: 480.0 INR
Availability: InStock

Price 480.0 INR/ Piece

Get a Price/Quote

MOQ : 2 Pieces

True Sense 16 Ampere Din Rail Digital Timer, Thc15a, TS-16 Specification

Type
Digital Timer

Material
Flame Retardant Polycarbonate

Voltage
220-240V AC, 50/60Hz

Weight (kg)
0.18 kg

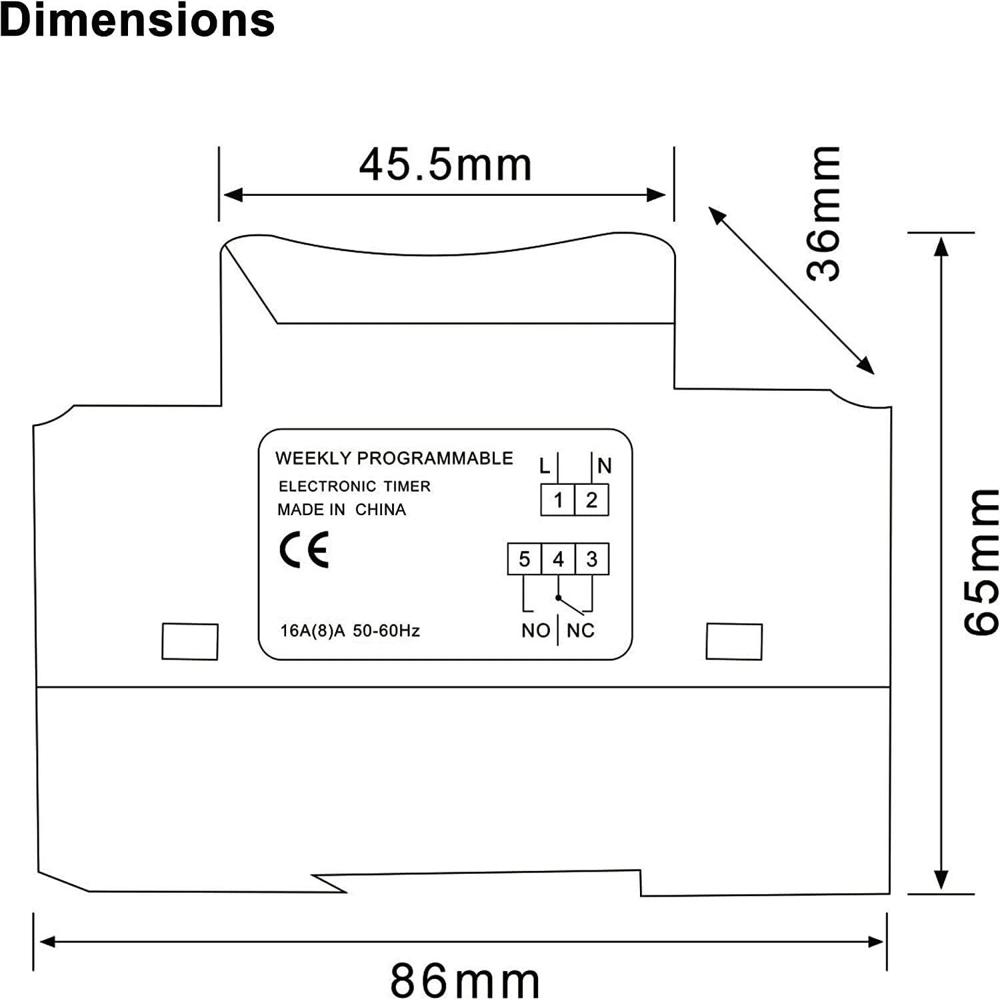

Dimension (L*W*H)
86 x 36 x 65 mm

Color
White

Operating Temperature
-10C to +50C

Theory
Digital

Usage
Timer Switch for Industrial and Home Automation

Min Setting Time
1 Minute

Design
Din Rail Mount

Number of Programs
16 ON/OFF Programs

Display Type
Large LCD Display

Relative Humidity
95% RH (Non-condensing)

Manual Override
Available

Contact Configuration
1 Changeover (SPDT)

Switching Accuracy
2 Seconds/Day

Memory Backup
Inbuilt Ni-MH Battery

Relay Output
Resistive Load

Power Consumption
2 VA

Day Setting
Individual Days or Groups

Model Number
THC15A / TS-16

Current Capacity
16 Ampere

Mounting Type
35 mm DIN Rail

True Sense 16 Ampere Din Rail Digital Timer, Thc15a, TS-16 Trade Information

Minimum Order Quantity
2 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About True Sense 16 Ampere Din Rail Digital Timer, Thc15a, TS-16

True Sense Digital LCD Programmable Timer Switch is designed for precise and automated control of electrical loads. Supporting weekly programming with up to 16 ON/OFF settings, it helps reduce energy consumption and improve operational efficiency. Its DIN rail mounting and clear LCD display make it ideal for industrial panels, lighting systems, and automation setups.

Features:

16A high-load capacity
Weekly programmable (7-day control)
Up to 16 ON/OFF settings
Clear digital LCD display
AC 220V operation
DIN rail mount design
Accurate time control
Energy-saving automation
Suitable for industrial & commercial use

Precise Timing and Versatility

Set up to 16 ON/OFF programs tailored to your schedule with switching accuracy of 2 seconds per day. The THC15A / TS-16 timer supports both daily and grouped scheduling, making it perfect for managing industrial machinery, lighting, and home automation systems efficiently.

Easy Installation and User-Friendly Operation

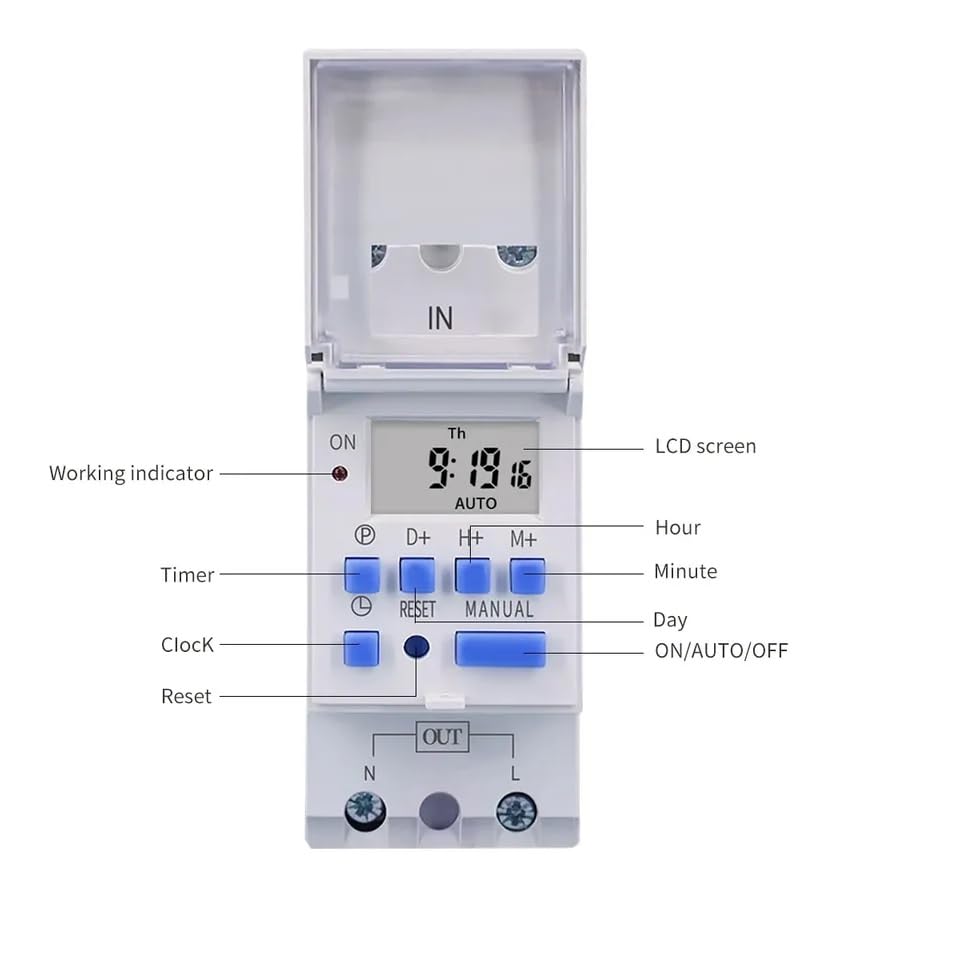

This digital timer is designed for straightforward DIN rail mounting (35 mm) and offers an intuitive large LCD display for easy programming. The manual override feature allows for immediate control without altering programmed settings, ensuring operational convenience.

Durable and Reliable Performance

Constructed from flame retardant polycarbonate, the timer is robust and built for varied environments, operating effectively in temperatures ranging from -10C to +50C. The inbuilt Ni-MH battery provides memory backup, maintaining your program settings even during power outages.

FAQ's of True Sense 16 Ampere Din Rail Digital Timer, Thc15a, TS-16:

Q: How do I program the True Sense 16 Ampere Din Rail Digital Timer for different days?

A: You can easily program the timer for individual days or groups by using the intuitive large LCD display. This feature allows you to set up to 16 ON/OFF programs customized for specific days, which is ideal for varied automation requirements.

Q: What is the benefit of the inbuilt Ni-MH battery memory backup?

A: The inbuilt Ni-MH battery ensures your programmed settings are preserved even during power outages. This guarantees uninterrupted operation and saves you time by preventing the need to reprogram after each electricity cut.

Q: Where can I use the THC15A / TS-16 digital timer?

A: This digital timer switch is suited for both industrial and home automation applications-such as controlling lighting, machinery, or heating systems-where precise switch timing is essential.

Q: What is the installation process for this timer switch?

A: The timer is designed for simple installation onto a standard 35 mm DIN rail. Just mount the device onto the rail, connect the wiring as per the included manual, and program your desired schedule using the LCD interface.

Q: How does the manual override work on this model?

A: The manual override feature lets you switch the connected device ON or OFF instantly without modifying the programmed schedule. This offers operational flexibility, especially when occasional manual control is required.

Q: What types of loads can the relay output handle?

A: The relay output is designed for resistive loads up to 16 Amperes, making it suitable for most industrial and home automation devices like lights, fans, and heaters.
