True Sense Digital Temperature Humidity Data Logger, TS-99

Price 2530.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

True Sense Digital Temperature Humidity Data Logger, TS-99 Specification

Temperature Range
-30C to 70C

Data Capacity
32,000 readings

Alarm
Audible and visual alarm for limits exceed

Theory
Measurement by digital sensor

Power Supply
3.6V Lithium battery

Type
Digital Temperature Humidity Data Logger

Display Type
LCD Display

Memory
32,000 readings (16,000 each for temperature and humidity)

Accuracy
0.5C (Temperature), 3% RH (Humidity)

Size
94mm x 48mm x 33mm

Resolution
0.1C (Temperature), 0.1% RH (Humidity)

Battery
3.6V Lithium battery (replaceable)

Net Weight
110g

Standby Time
Up to 1 year

Interface
USB

Measuring Range
Temperature: -30C to 70C, Humidity: 0% RH to 100% RH

Includes
User manual, USB cable, Lithium battery, Software CD

Protection Class
IP65 (splash-proof)

Data Output
PDF, Excel, and TXT formats

Humidity Range
0% to 100% RH

Sampling Interval
10 seconds to 24 hours (programmable)

Response Time
15 seconds (humidity), 10 seconds (temperature)

Sensor Type
Digital (integrated)

Operating Mode
Start/Stop via button or software

Indicator
LED status indicators

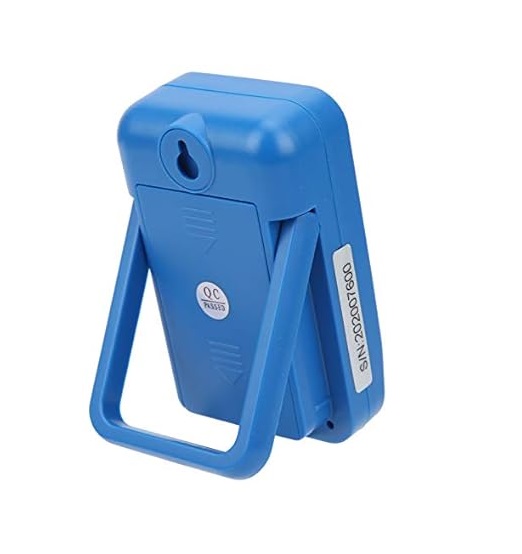

Mounting Options
Wall-mount and desktop use

Calibration
Factory calibrated, user recalibratable via software

Operating Environment
-30C to 70C; 95% RH

Data Retention
Data retained when battery is empty

Software Compatibility
Windows 7/8/10

True Sense Digital Temperature Humidity Data Logger, TS-99 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About True Sense Digital Temperature Humidity Data Logger, TS-99

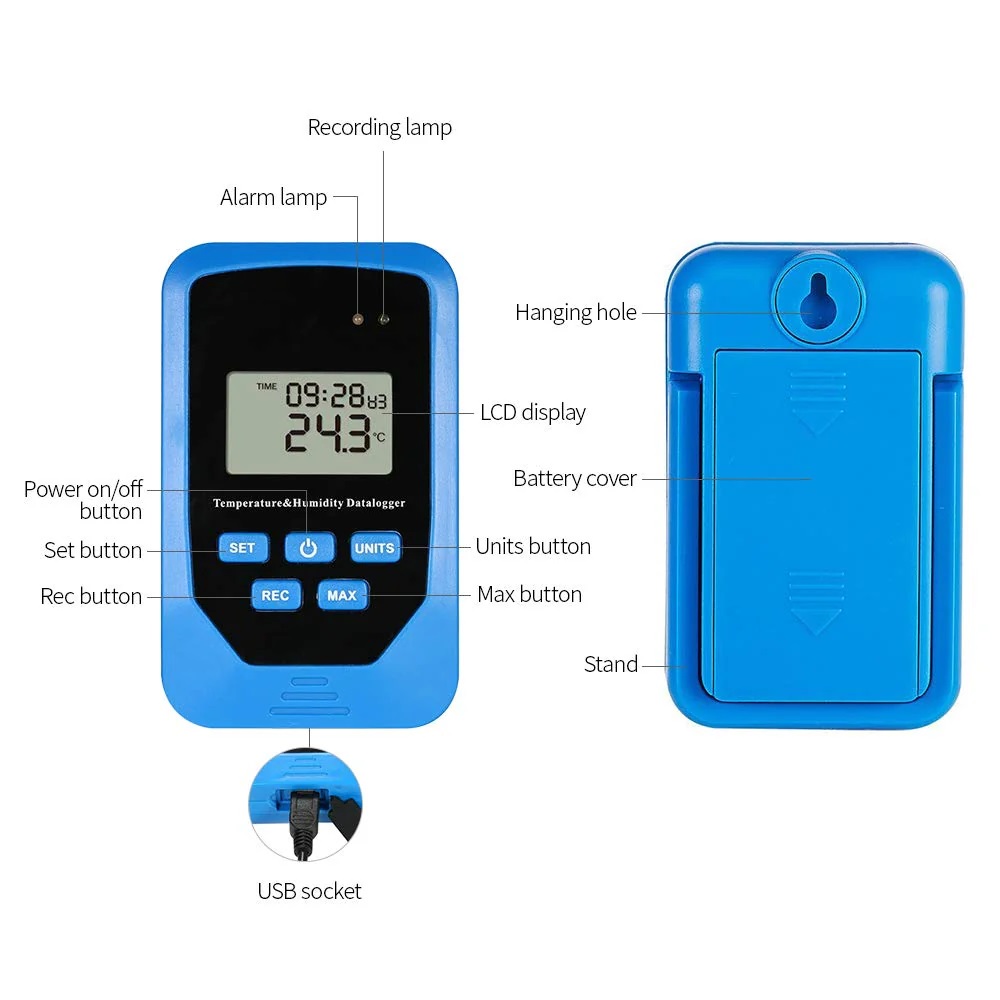

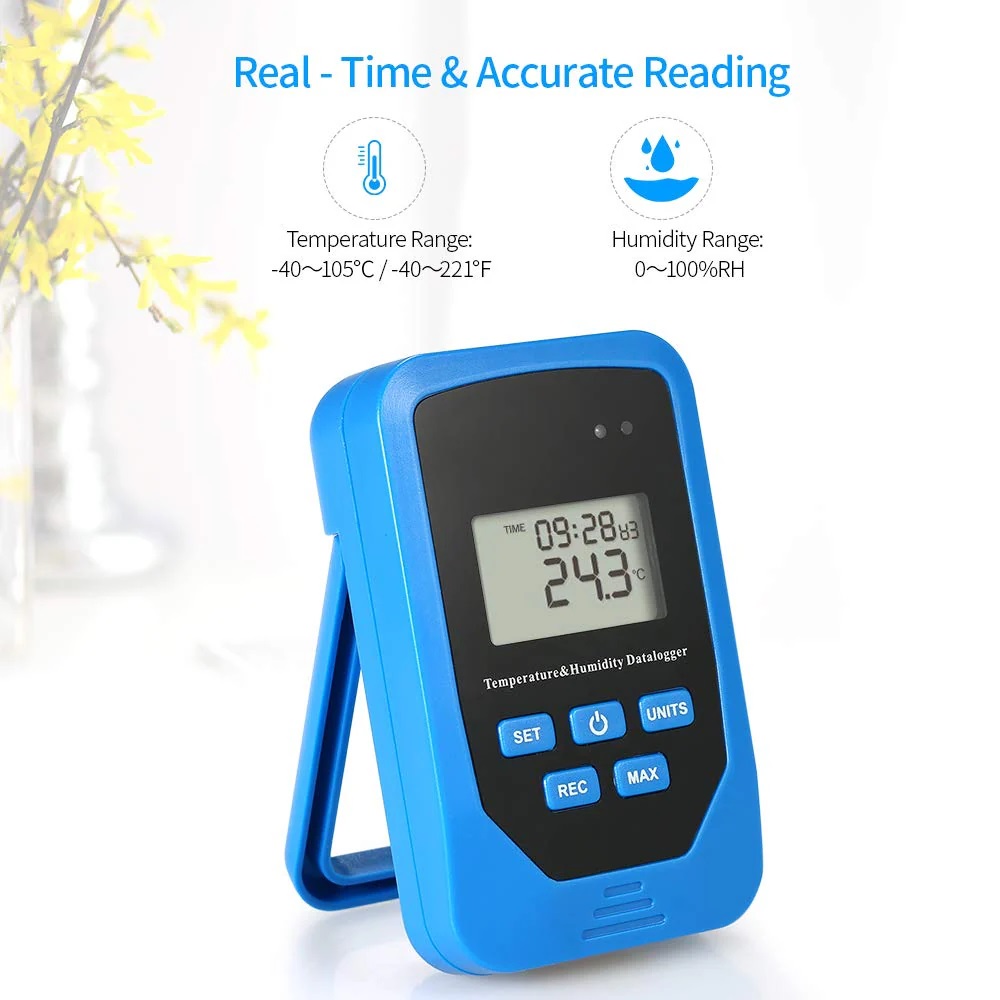

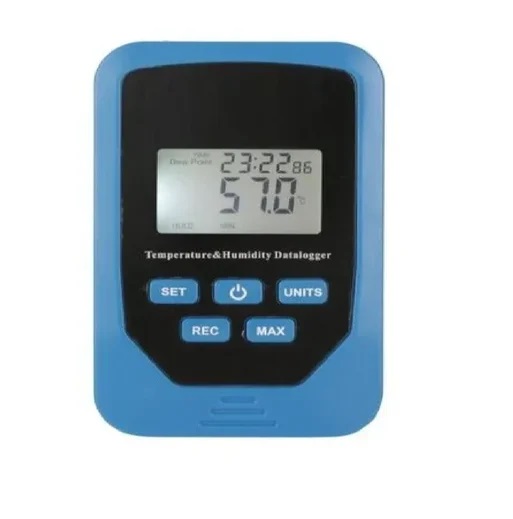

True Sense Mini USB Temperature & Humidity Data Logger TS-99 is a compact and high-capacity device for monitoring environmental conditions. It accurately measures temperature, humidity, heat index, and dew point.

With USB connectivity and a record capacity of up to 80,000 data points, the TS-99 makes it easy to track, store, and analyze environmental data.

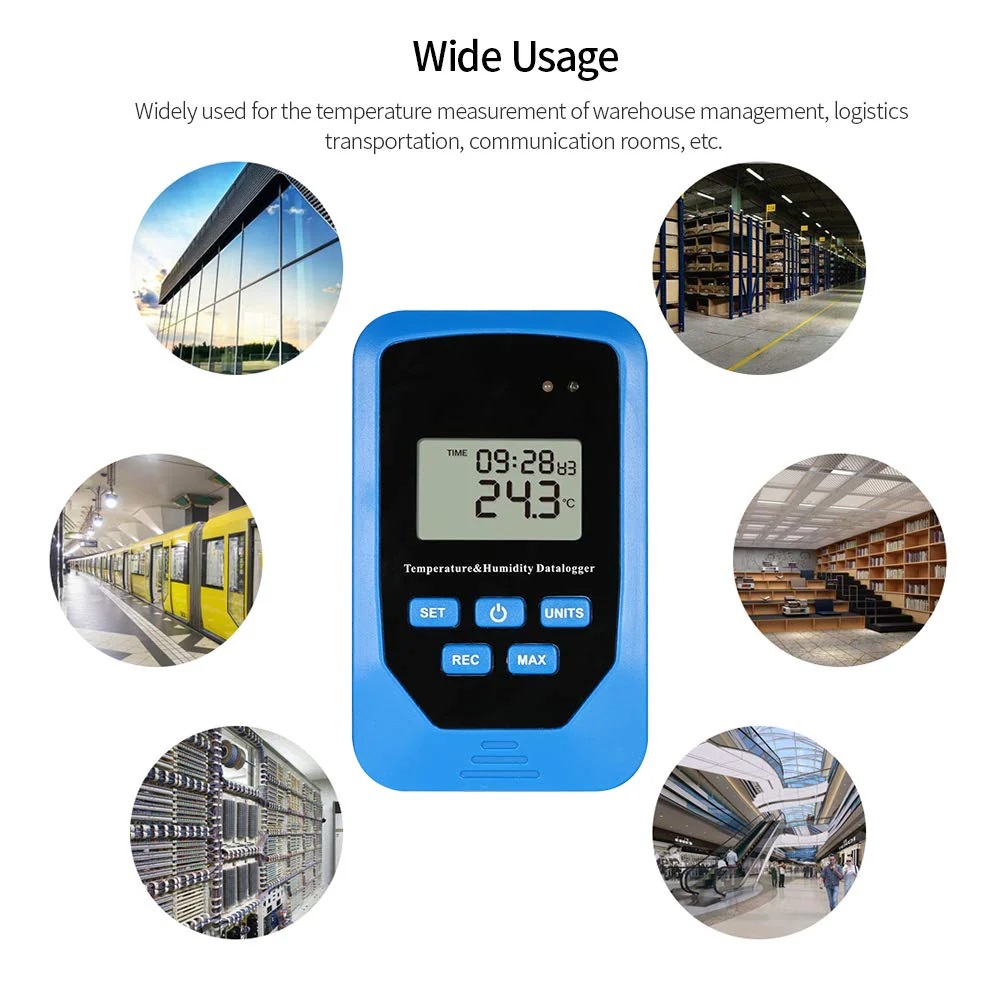

Applications: Cold chain, laboratories, food storage, medical facilities, offices, and other environments requiring precise temperature and humidity monitoring.

Features of TS-99 Data Logger:

Measures temperature, humidity, heat index, and dew point
USB connectivity for easy data transfer
Large storage capacity of 80,000 records
Compact and portable design
Suitable for professional and personal monitoring in various environments

Reliable and Versatile Environmental Tracking

The TS-99 data logger accurately records temperature and humidity in challenging environments, thanks to its digital integrated sensor and durable IP65 splash-proof casing. Its wide operating range, high measurement accuracy, and flexible sampling interval allow users to tailor data collection for various scenarios. Factory calibration ensures long-term precision, while user recalibration via the included software ensures adaptability over the logger's lifespan.

Comprehensive Data Management and Accessibility

With a generous memory holding up to 32,000 readings, the TS-99 secures your data, even during battery changes. Users can effortlessly export data in PDF, Excel, or TXT formats for convenient analysis. The device is compatible with multiple Windows operating systems, simplifying integration into existing workflows. LED status indicators and built-in audible and visual alarms provide real-time updates to prevent data loss or threshold breaches.

FAQ's of True Sense Digital Temperature Humidity Data Logger, TS-99:

Q: How do I start or stop data logging on the TS-99?

A: Data logging can be started or stopped on the True Sense TS-99 either by pressing the device's physical button or through the provided software installed on a compatible Windows computer. This ensures flexibility for both field and desktop operation.

Q: What file formats can I use to export data from the TS-99 logger?

A: The TS-99 digital logger allows you to export recorded data in PDF, Excel (XLS), and TXT formats. This makes it easy to share, archive, or process your measurements for various analytical or compliance needs.

Q: When should I recalibrate the TS-99 data logger, and how is it done?

A: The device comes factory calibrated for accuracy. However, recalibration is recommended periodically or if you notice deviations. User recalibration can easily be performed using the supplied software, ensuring ongoing measurement precision.

Q: Where can the TS-99 temperature-humidity logger be installed?

A: Thanks to its IP65-rated splash-proof enclosure and compact design, the TS-99 can be wall-mounted or placed on a desktop, accommodating diverse installation requirements in laboratories, storage facilities, or industrial environments.

Q: What benefits does the built-in alarm system provide?

A: The TS-99 features both audible and visual alarms that immediately notify you if pre-set temperature or humidity limits are exceeded, helping you to take prompt action and protect sensitive environments.

Q: How long does the logger operate, and what happens if the battery is depleted?

A: With a 3.6V lithium battery, the logger can remain on standby for up to one year. Importantly, all recorded data is retained even if the battery runs out, ensuring no data loss during battery replacement.
