True Sense Digital Air Humidity Controller, MH-13001

Send Inquiry

Request To Call Back

True Sense Digital Air Humidity Controller, MH-13001

Name: True Sense Digital Air Humidity Controller, MH-13001
Brand: True Sense Technologies
Price: 830.0 INR
Availability: InStock

Price 830.0 INR/ Piece

Get a Price/Quote

MOQ : 2 Pieces

True Sense Digital Air Humidity Controller, MH-13001 Specification

Accuracy
3% RH

Pressure
Atmospheric (for ambient air)

Connection
Screw terminals

Function
Automatic air humidity control (humidification or dehumidification)

Size
78 x 68 x 51 mm (approx.)

Humidity Range
1% RH - 99% RH

Model
MH-13001

Relay Contact Capacity
10A/220V AC

Control Mode
Humidification / Dehumidification selectable

Operating Temperature
0C to 60C

Sensor Type
External humidity sensor (cable type)

Set Value Memory
Yes (retains on power failure)

Mounting Type
Panel Mount

Output Type
Relay (normally open/normally closed)

Supply Voltage
220V AC, 50/60Hz

Power Consumption
<3W

Display Type
Digital LED

Case Material
Plastic

True Sense Digital Air Humidity Controller, MH-13001 Trade Information

Minimum Order Quantity
2 Pieces

Delivery Time
2 Days

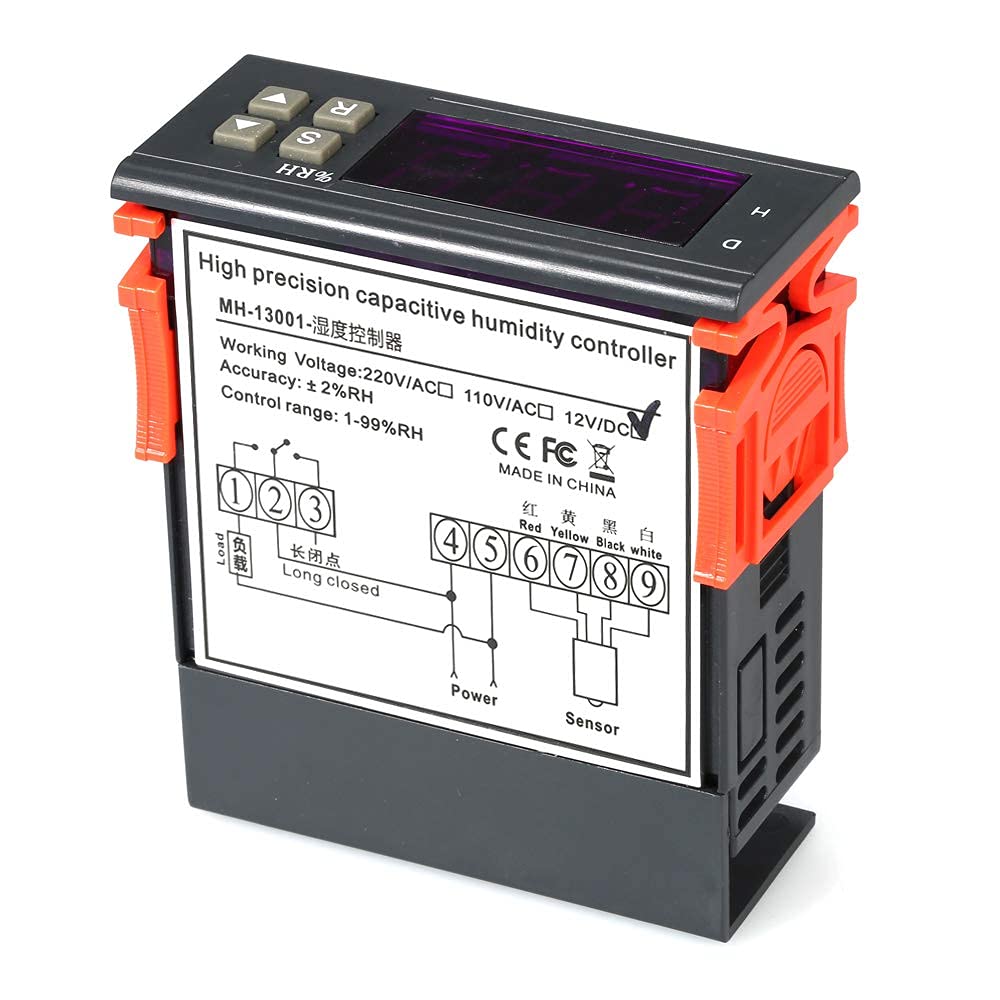

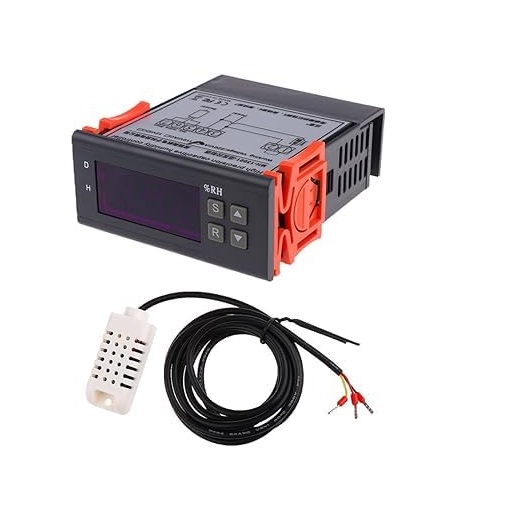

About True Sense Digital Air Humidity Controller, MH-13001

This digital humidity control controller is with wide humidity measuring range and controlling range, comes with a humidity controller sensor probe with cable. Hunidity sensor uses a high-precision capacitive faster chip which has the advantage of high accuracy to refect. Humidity measuring range is 1% 99% RH and control range is 1% RH. Humidification and dehumidification can be set through the menu, the parameters has been set the power outage permanent memory function.

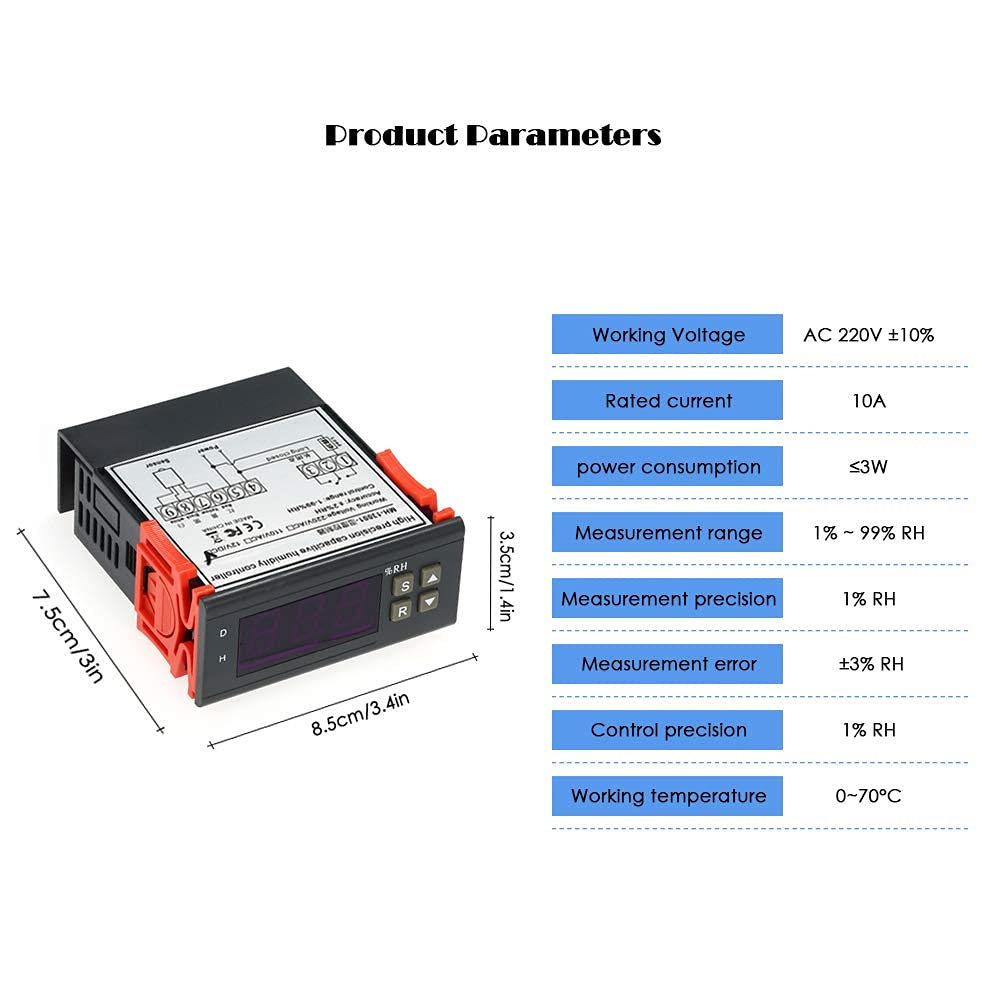

Specification:

Humidity Measuring Range: 1%RH 99% RH
Humidity Measuring Error: 3%RH
Control Range: 1%RH
Display precision: 1% RH
Humidity Type: Capacitive
Power Suppler: AC220V10%, 50/60Hz
Power consumption: 3W,
Output Load: AC 10A/220V
Working temperature: 0C - 80 C
Size(L x W x H): Approx. 85 x 75 x 35mm / 3.4 x 3 x 1.4 inch
Probe Size (L x W): Approx. 60 x 15mm / 2.4 X 0.59 inch
Cable Length: Approx. 146cm / 57.5 inch

Functions:

Function of humidification and dehumidification
Hysteresis function
Humidity correction
Delay protection
Function of Upper and Lower limit

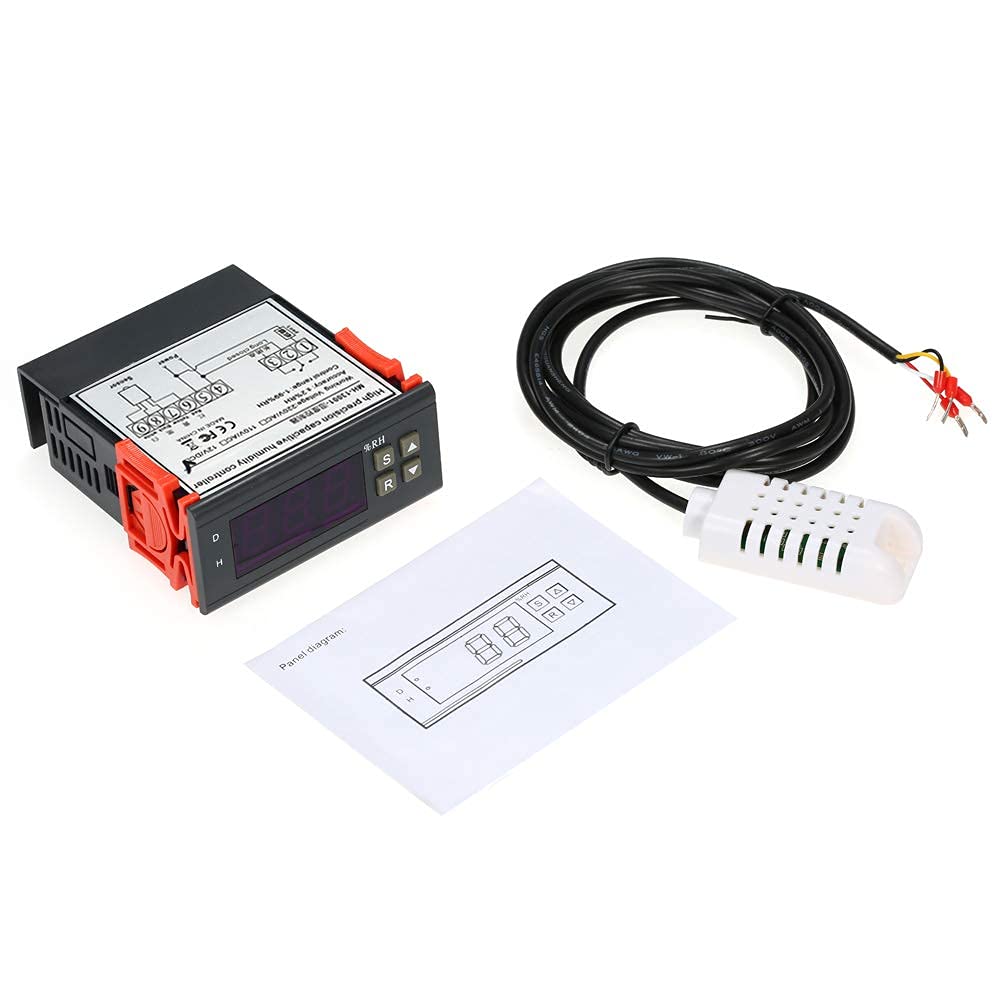

Package Includes:

1 x Humidity controller
1 x Humidity controller sensor probe with cable
1 x Operation manual

Accurate Digital Humidity Regulation

The MH-13001 controller empowers you to maintain optimal humidity effortlessly with a large, easy-to-read digital LED display. Its external cable-type sensor delivers responsive, precise measurements from 1% to 99% RH, making it suitable for diverse environments requiring consistent air quality.

User-Friendly Operation and Flexible Controls

With clearly marked screw terminals and simple panel mounting, this unit is easy to install and connect. The controller supports both humidification and dehumidification functions, allowing users to configure it as needed through the intuitive interface. Its memory function preserves your settings during power interruptions.

Reliable, Efficient Design for Continuous Use

Built to operate between 0C and 60C with minimal power consumption (<3W), the MH-13001's durable plastic housing ensures long-lasting performance. The device is ideal for atmospheric applications where maintaining ambient air quality is critical, backed by a strong relay capacity of 10A at 220V AC.

FAQ's of True Sense Digital Air Humidity Controller, MH-13001:

Q: How do I install the True Sense MH-13001 humidity controller?

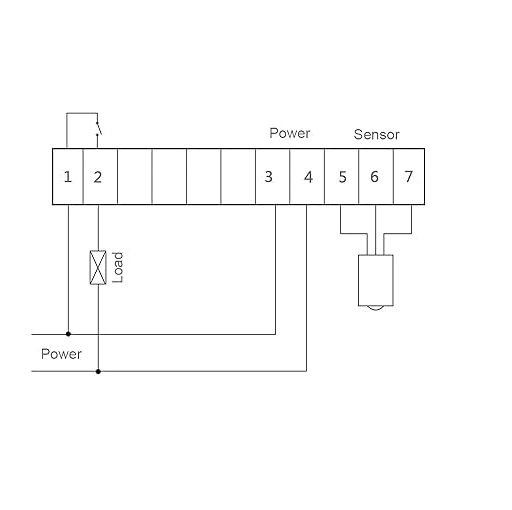

A: The MH-13001 is designed for easy panel mounting. Simply secure it in your desired location, connect the external humidity sensor, and wire the screw terminals according to your application's requirements using the supplied wiring diagram.

Q: What humidity range can this controller regulate?

A: This digital controller accurately manages humidity levels across a wide range of 1% RH to 99% RH, making it suitable for precise control in both humidification and dehumidification applications.

Q: Where can I use the MH-13001 humidity controller?

A: The controller is ideally suited for use in industrial, commercial, and residential spaces across India where ambient atmospheric humidity control is needed, such as greenhouses, server rooms, storage facilities, or laboratories.

Q: What happens if there is a power failure?

A: The device features a set value memory, ensuring it retains your humidity setpoints and settings even if a power interruption occurs, so operation resumes seamlessly once power is restored.

Q: How does the controller switch between humidification and dehumidification modes?

A: The MH-13001 allows you to select your desired control mode-either humidification or dehumidification-through its intuitive controls. This flexibility supports a broad range of applications and environmental needs.

Q: What benefits does using this digital humidity controller provide?

A: By maintaining stable air humidity, the controller helps protect sensitive equipment and materials, improve comfort, and support optimal conditions in various settings, while its digital design ensures reliable accuracy and easy monitoring.
