True Sense Temperature and Humidity Controller, XH-M452

Price 550.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

True Sense Temperature and Humidity Controller, XH-M452 Specification

Connection
3-pin terminal block (input/output), standard sensor connector

Accuracy
1C; 2% RH

Pressure
Atmospheric (Non-pressurized applications)

Function
Temperature and Humidity Controller

Size
60mm x 45mm x 31mm (L x W x H)

Display
Dual LED Display (Temperature and Humidity)

Alarm Function
High and Low Limit Alarm

Output Type
Relay Output (Max Load: 10A 250V AC or 10A 30V DC)

Weight
Approx. 85g

Setting Method
Push Button Configuration

Control Mode
Heating/Cooling and Humidification/Dehumidification

Input Voltage
DC 12V

Operating Humidity
5% RH to 80% RH (Non-condensing)

Humidity Control Range
00% RH to 100% RH

Material
ABS Plastic Enclosure

Applications
Incubators, Greenhouses, Warehouses, HVAC Systems, Agricultural Monitoring

Mounting Type
Panel Mount with Screw Holes

Power Consumption
Static: <3W

Temperature Control Range
-20C to 60C

Sensor Type
Digital probe (with 0.5m cable)

True Sense Temperature and Humidity Controller, XH-M452 Trade Information

Minimum Order Quantity
5 Pieces

Delivery Time
2 Days

About True Sense Temperature and Humidity Controller, XH-M452

Humidity Control

Set to start humidity: long-press the + key, start the humidity value flashing, set by + / key launch humidity value
Set stop humidity: long press to stop humidity value, set by + / key to stop the humidity value

Temperature Control

Setting the temperature +: Normal display mode, long-press the + key for 3 seconds, start temperature numerical flashing, press the + / key setting values, the wrong operation after 5 seconds, automatically return to detect temperature display
Setting the temperature :Normal display mode, long press button for 3 seconds, stop numerical flashing temperature, press the + / key set value
Restore the factory Settings: At the same time long press temperature, and humidity + key for 3 seconds, digital display, 888, 888
Setting the start temperature: Long press the + key, start the flashing temperature, set start temperature by + / key
Setting Stop temperature: long press button, stop flashing temperature, set stop temperature by + / key

Precise Environmental Control

The XH-M452 ensures a stable environment by accurately monitoring temperature and humidity, essential for sensitive applications such as agricultural monitoring and HVAC systems. Its high-precision digital sensor and real-time display offer dependable performance and instant feedback.

Easy Configuration and Mounting

Featuring a user-friendly push-button interface, this controller allows swift adjustment of settings. The panel mount design with screw holes ensures secure installation in equipment panels, making it versatile for various usage scenarios from greenhouses to warehouses.

Flexible Output and Alarm Functions

With a relay output supporting up to 10A load and user-configurable high/low alarm limits, the XH-M452 adapts effortlessly to heating, cooling, humidifying, and dehumidifying controls, safeguarding your environment from potentially damaging conditions.

FAQ's of True Sense Temperature and Humidity Controller, XH-M452:

Q: How do I set the temperature and humidity limits on the XH-M452 controller?

A: You can configure the temperature and humidity limits using the push-button interface located on the front panel. Simply follow the step-by-step instructions provided in the user manual to set your desired high and low threshold values for both parameters.

Q: What applications can benefit from using the True Sense Temperature and Humidity Controller?

A: The device is ideal for incubators, greenhouses, warehouses, HVAC systems, and agricultural monitoring. Its precise control capabilities make it valuable in any setting requiring stable and monitored temperature and humidity levels.

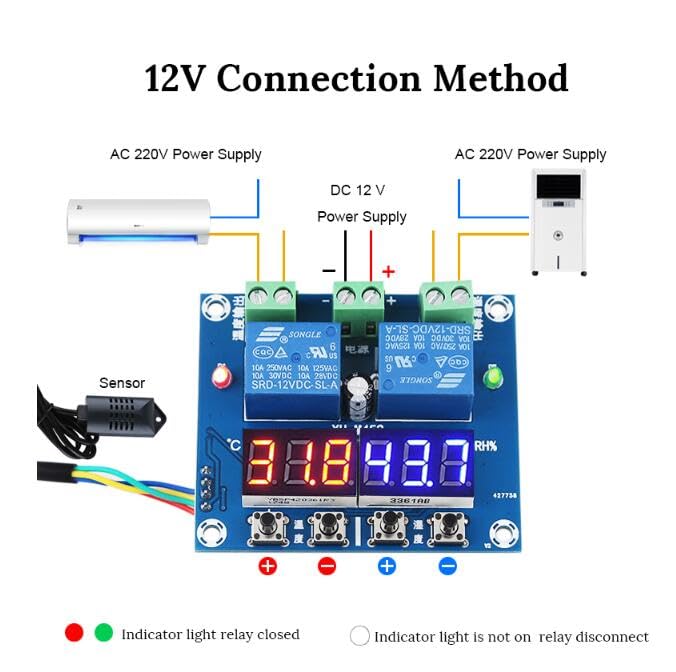

Q: What is the process for connecting the digital sensor and output devices?

A: Connect the included digital probe (with 0.5m cable) to the standard sensor connector, and link your heating, cooling, humidifying, or dehumidifying equipment to the 3-pin terminal block. The relay output supports devices up to 10A 250V AC or 10A 30V DC.

Q: Where should I install the XH-M452 controller for optimal operation?

A: For best results, mount the controller in a well-ventilated area within your panel using the screw holes provided. Avoid locations exposed to condensation or extreme pressure, as the device is designed for non-condensing, atmospheric environments.

Q: What benefits does the dual LED display offer?

A: The dual LED display allows for simultaneous real-time monitoring of both temperature and humidity, providing instant visual feedback and making it easy to monitor and maintain your desired environmental conditions.

Q: When should I use the alarm function of the XH-M452?

A: Use the alarm function to alert you whenever the temperature or humidity exceeds your pre-set high or low limits. This feature is especially useful for preventing damage in sensitive environments, such as during incubation or agricultural storage.

Q: What is the recommended power input and how much energy does it consume?

A: The controller operates on a DC 12V input and has a static power consumption of less than 3W, making it energy-efficient and suitable for continuous or long-term usage.
