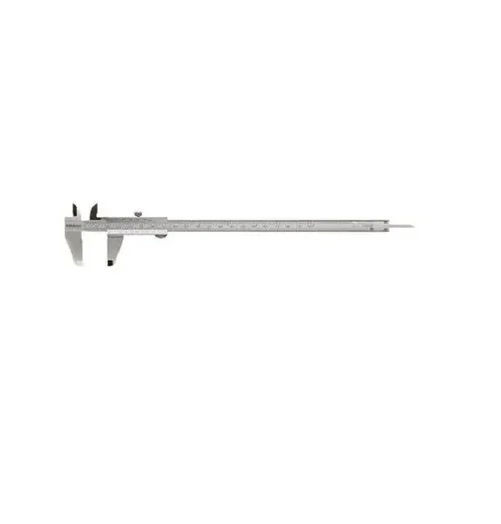

Mitutoyo Manual Vernier Caliper 530-118, 8 Inch (0-200 mm), VC-13

Name: Mitutoyo Manual Vernier Caliper 530-118, 8 Inch (0-200 mm), VC-13
Brand: True Sense Technologies
Price: 2400.0 INR
Availability: InStock

Price 2400.0 INR/ Set

Get a Price/Quote

MOQ : 1 Piece

Mitutoyo Manual Vernier Caliper 530-118, 8 Inch (0-200 mm), VC-13 Specification

Measurement Range
0-200 mm / 0-8 inch

Equipment Type
Vernier Caliper

Application Media
Solid Materials, Metals, General Engineering

Resolution
0.02 mm / 0.001 inch

Temperature Range
Standard room temperature use

Connectivity Type
None (Manual)

Protection
No IP rating specified

Material
Stainless Steel

Power Supply
Manual (No battery required)

Accuracy
0.05 mm

Display Type
Analog (Vernier Scale)

Range
0-200 mm

Lock Screw
Yes

Thumb Roller
Yes

Finish
Satin chrome

Upper Jaw for ID Measurement
Yes

Graduation
0.02 mm / 0.001 inch

Weight
Approx. 320 g

Type
Manual Vernier Caliper

Model Number
530-118, VC-13

Measuring Faces
Hardened, Precision ground

Jaw Length
50 mm

Mitutoyo Manual Vernier Caliper 530-118, 8 Inch (0-200 mm), VC-13 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About Mitutoyo Manual Vernier Caliper 530-118, 8 Inch (0-200 mm), VC-13

1.Hardened stainless steel construction with satin chrome finish, for protection of caliper.
2.Four-way measurement capability for outside dimension (od), inside dimension (id), depth, and step measurements.
3.Raised sliding surfaces to help prevent defacement and wear of scale graduations. 4.Modest, 14-degree face angle on vernier scale, to help improve visibility and reduce the possibility of parallax errors.
5.Meets federal accuracy specifications ggg-c-111b.

Feartures:

The small vernier face angle (14) provides easy reading.
Dual reading scales on vernier.
Clamping screw on slider.
Lock screw for holding thesliding jaw position.
Hardened stainless steel construction with easy-to-read, satin-chromed scales.

Applications :

Can measure OD (outside diameter), ID (inside diameter), depth, and steps.

High-Precision Measurement

Mitutoyo 530-118 Vernier Caliper offers exceptionally precise measuring capabilities with a graduation of 0.02 mm and an accuracy of 0.05 mm. Its analog vernier scale ensures consistent, repeatable readings for both internal and external measurements on solid materials and metals.

Durable and Ergonomic Design

Constructed from stainless steel with a satin chrome finish, the caliper is resistant to rust and wear. The 50 mm jaw length and integrated thumb roller provide smooth operation, while the lock screw ensures secure measurement retention.

Simple, Battery-Free Operation

As a manual instrument, this caliper requires no batteries or power supply. Its analog display makes it ideal for work environments where reliability and maintenance-free use are crucial, ensuring uninterrupted measurement whenever you need it.

FAQ's of Mitutoyo Manual Vernier Caliper 530-118, 8 Inch (0-200 mm), VC-13:

Q: How do I read measurements on the Mitutoyo 530-118 manual vernier caliper?

A: Align the zero of the vernier scale with the main scale. Read the main scale value just before the zero, then add the vernier scale value that perfectly aligns with a main scale marking. This gives the precise measurement in either millimeters or inches.

Q: What kinds of materials can I measure with this caliper?

A: The Mitutoyo 530-118 is suitable for measuring solid materials, particularly metals. Its precision-ground jaws enable accurate measurements in general engineering, fabrication, and quality control applications.

Q: Where should I use and store this caliper for optimal performance?

A: Use and store the caliper in environments with standard room temperature and dry conditions. Avoid exposure to moisture, as it does not have a specified IP protection rating, ensuring longevity and reliable function.

Q: What is the process for taking inside and outside measurements?

A: For outside measurements, use the lower jaws by positioning them around the object. For inside measurements, utilize the upper jaws by opening them within the feature to be measured. Always use the thumb roller for smooth movement and the lock screw to secure the reading.

Q: What are the benefits of the thumb roller and lock screw on this caliper?

A: The thumb roller allows for effortless, precise movement of the jaws, making fine adjustments simple. The lock screw secures the movable jaw in place, preventing displacement and ensuring accurate, consistent readings during measurement.

Q: When is it necessary to recalibrate the caliper?

A: Recalibration is recommended periodically or whenever you notice measurement deviations, after impact or rough handling, or prior to critical measurement tasks to maintain precision and accuracy.
