Mitutoyo 505-731 Dial Vernier Caliper 0-200mm, VC-18

Name: Mitutoyo 505-731 Dial Vernier Caliper 0-200mm, VC-18
Brand: True Sense Technologies
Price: 8050.0 INR
Availability: InStock

Price 8050.0 INR/ Set

Get a Price/Quote

MOQ : 1 Set

Mitutoyo 505-731 Dial Vernier Caliper 0-200mm, VC-18 Specification

Connectivity Type
None (no digital output)

Application Media
Metal, wood, plastic, general engineering measurements

Protection
N/A (No IP rating, store in dry environment)

Resolution
0.02 mm

Measurement Range
0-200 mm

Temperature Range
Recommended: 5C to 40C (41F to 104F)

Material
Stainless Steel

Power Supply
N/A (Mechanical, manual operation)

Power Consumption
N/A (No electrical consumption)

Accuracy
0.02 mm

Display Type
Dial (Analog)

Range
0-200 mm

Lock Screw
Yes (for sliding jaw)

Model
505-731 / VC-18

Graduation
Dial reading 0.02 mm

Measuring System
Metric

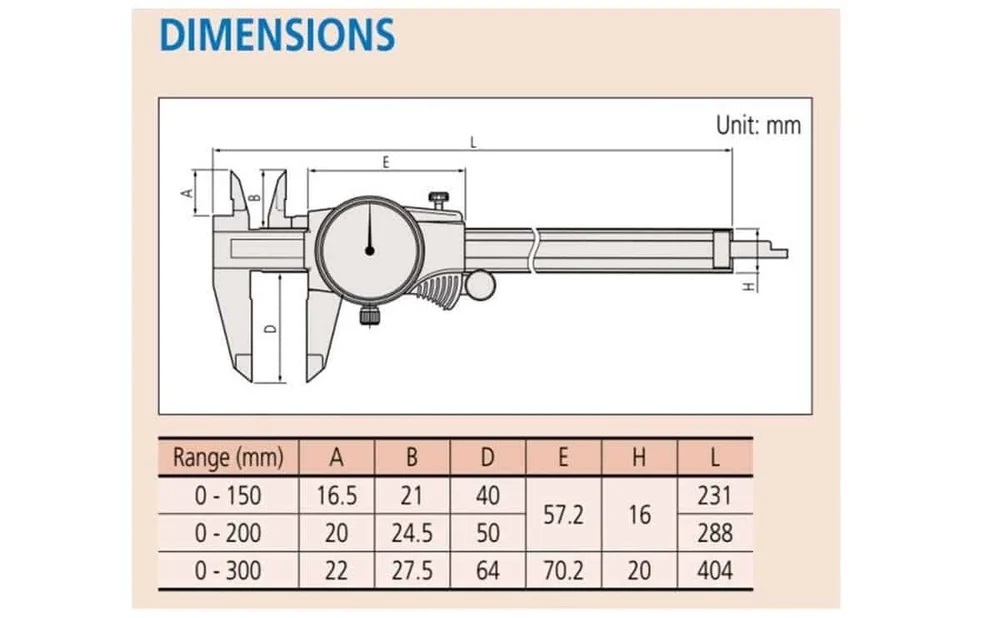

Jaw Length
50 mm (approx.)

Measuring Faces
Hardened, ground, and lapped

Equipment Type
Dial Vernier Caliper

Manufacturing Origin
Japan

Return Type
Thumb roller

Weight
Approx. 350 g

Dial Color
Yellow

Mitutoyo 505-731 Dial Vernier Caliper 0-200mm, VC-18 Trade Information

Minimum Order Quantity
1 Set

Supply Ability
100 Sets Per Month

Delivery Time
7 Days

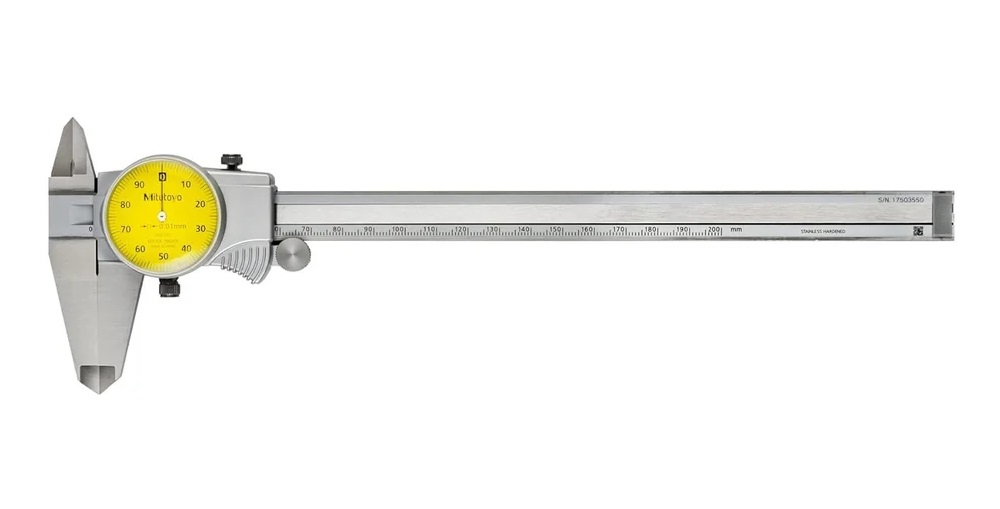

About Mitutoyo 505-731 Dial Vernier Caliper 0-200mm, VC-18

For Accurate Measurements:The Vernier caliper features a fine adjustment carriage to precisely control the movement of the Vernier scale for highly accurate four-way measurements.
Easy To Read: With a range of Vernier caliper is from 0-200 mm offers easier reading and helps to inhibit parallax error in the measurement.
Circular Dial: The dial caliper has a circular dial with a pointer on a toothed gear rack replacing the second vernier scale.
Lock Screws: Lock screw holds the dial measurement and sliding jaw position to obtain accurate measurement
High-Quality Material: This Dial Vernier caliper is made up of high quality stainless steel material with with satin chrome finish.
Widely Used: Calipers are commonly used in architecture, metalworking, mechanical engineering, and machining.

Exceptional Metric Accuracy and Durability

The Mitutoyo 505-731 Dial Vernier Caliper stands out for its meticulous 0.02 mm measurement resolution and robust stainless steel body. Built in Japan, it features hardened, lapped jaws that make it suitable for professional-grade applications, from general engineering to inspecting precision parts in metalworking, woodworking, or plastic fabrication.

User-Friendly Mechanical Design

This caliper operates mechanically without any need for batteries or external power, reducing ongoing costs and environmental impact. The smooth thumb roller and lock screw enable one-handed adjustments and consistent measurements, while the yellow analog dial ensures clarity during use. Its design is ideal for routine inspections and field use alike.

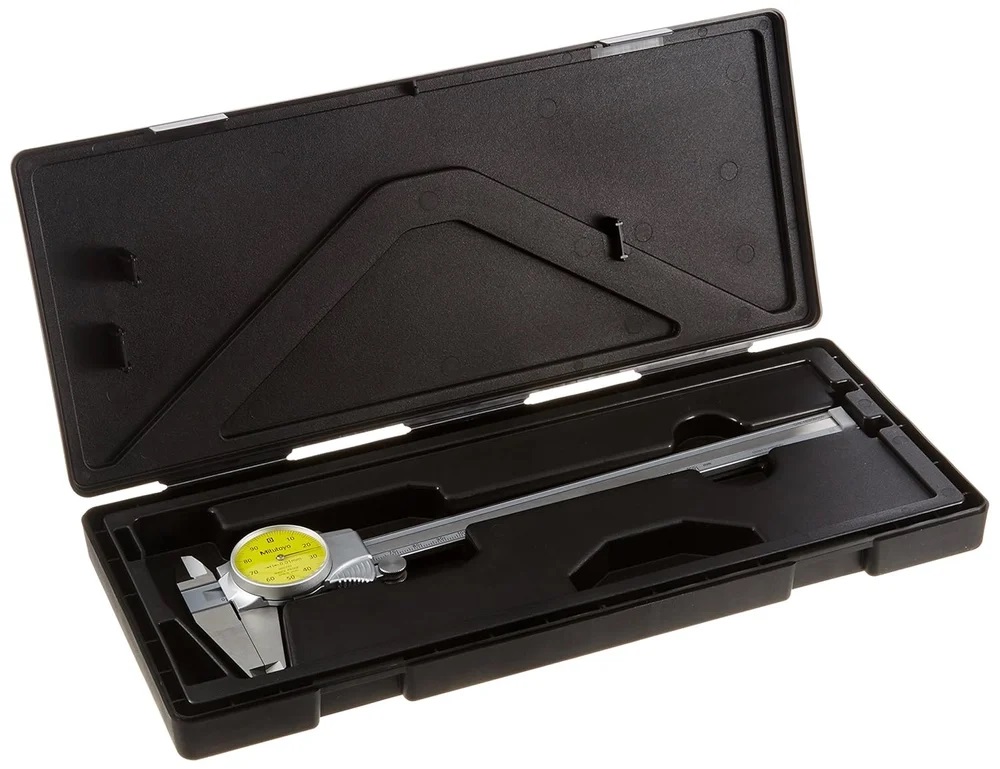

Comprehensive Package for Immediate Use

Packed with a durable plastic storage case, the 505-731 is easy to transport and protect when not in use. Its approximate 350 g weight and practical jaw length deliver both portability and capability for a range of part sizes. Suitable for both aspiring technicians and experienced professionals, this tool is optimized for Indian manufacturing and inspection environments.

FAQ's of Mitutoyo 505-731 Dial Vernier Caliper 0-200mm, VC-18:

Q: How do I use the Mitutoyo 505-731 Dial Vernier Caliper for precise measurements?

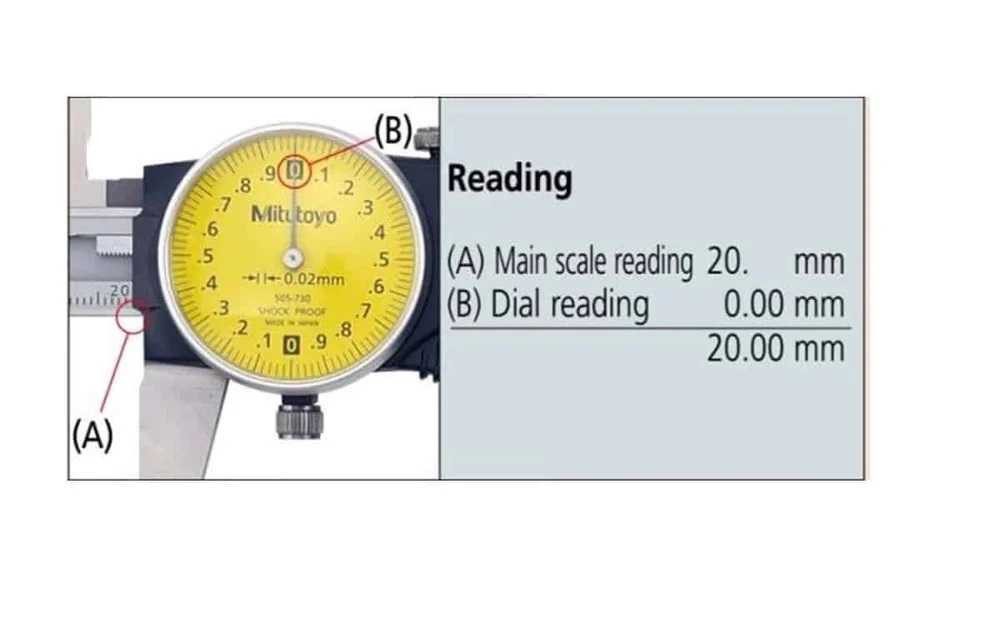

A: To use the caliper, gently open the jaws using the thumb roller, position the object between the jaws or against the depth rod, and close the jaws snugly. Read the measurement from the yellow dial (resolution 0.02 mm) and the main scale. The lock screw ensures the jaws stay in place for repeatability.

Q: What materials can I measure with this dial vernier caliper?

A: The Mitutoyo 505-731 is suitable for measuring metal, wood, and plastic. Its hardened and ground measuring faces guarantee accurate readings, regardless of material type, making it ideal for varied engineering and workshop applications.

Q: When is it recommended to calibrate or check this caliper's accuracy?

A: For optimal accuracy, you should check calibration periodically, especially before critical measurement tasks, after accidental drops, or if the caliper has been exposed to temperature changes outside the recommended 5C to 40C. Regular checks sustain the 0.02 mm accuracy.

Q: Where should I store the dial vernier caliper when not in use?

A: Store the caliper in the provided plastic storage case and keep it in a dry environment to prevent corrosion and protect its precision surfaces. Avoid damp or dusty locations, as the tool does not have an IP protection rating.

Q: What are the benefits of using a mechanical dial caliper over a digital one?

A: Mechanical dial calipers like the 505-731 require no batteries, are immune to electronic failure, and function reliably in a wide range of environments. Maintenance is straightforward, and users can depend on continuous operation with minimal resource requirements.

Q: Can this caliper be used for repetitive measurement processes?

A: Yes, the lock screw and smooth thumb roller facilitate consistent and repeatable measurements, making it effective for batch part inspection or quality control routines in manufacturing settings.

Q: Is the Mitutoyo 505-731 suitable for high-precision engineering applications?

A: Absolutely. With its 0.02 mm resolution and superior measuring face finish, this caliper is engineered for tasks that demand strict dimensional accuracy, supporting applications in automotive, aerospace, toolmaking, and more.
