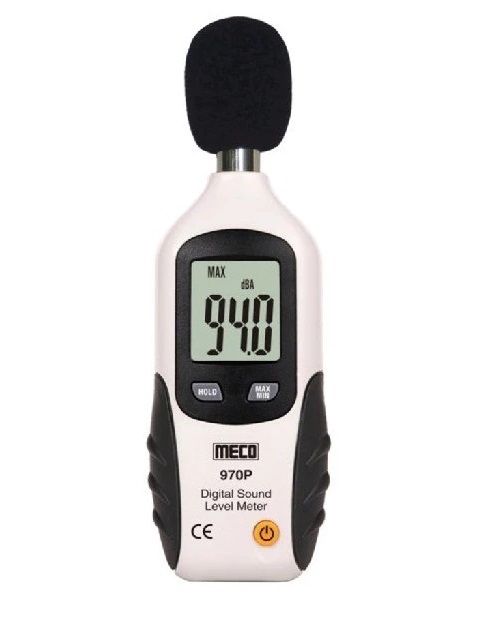

Meco Make Digital Sound Level Meter, 970P

Name: Meco Make Digital Sound Level Meter, 970P
Brand: True Sense Technologies
Price: 2050.0 INR
Availability: InStock

Price 2050.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Meco Make Digital Sound Level Meter, 970P Specification

Protection
ABS Plastic Housing

Measurement Range
30 dB to 130 dB

Application Media
Airborne Sound Measurement

Connectivity Type
No Direct Connectivity

Humidity %
10% to 80% RH (Non-Condensing)

Frequency
31.5 Hz - 8 kHz

Temperature Range
0C to 40C

Diameter
Microphone Diameter: 1/2 inch Electret Condenser

Capacity
Data Hold and Max Hold Functions

Sensor Type
Electret Condenser Microphone

Resolution
0.1 dB

Material
ABS Plastic

Power Supply
9V Battery

Power Consumption
30 mW

Accuracy
1.5 dB

Display Type
Digital LCD Display

Range
30 - 130 dB

Battery Life
Approx. 50 hours (alkaline battery)

Sampling Rate
2 times/second

Weight
Approx. 180 g (including battery)

Backlight
Yes

Standards Compliance
IEC 61672-1 Class 2

Equipment Type
Digital Sound Level Meter

Dimensions
210 x 55 x 32 mm

Microphone Type
1/2 inch Electric Condenser Microphone

Time Weighting
FAST/SLOW selectable

Over/Under Range Indication
Provided

Meco Make Digital Sound Level Meter, 970P Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About Meco Make Digital Sound Level Meter, 970P

Meco 970P Digital Sound Level Meter is a handheld device for industrial, environmental, occupational, and construction noise monitoring. Measures sound levels from 30130 dB with A and C weighting.

Features:

Measures 30130 dB sound levels
A & C frequency weighting
Fast and slow response modes
LCD display for clear readings
Data hold function
Auto power-off
Portable handheld design
Lightweight and durable
Accurate noise measurement
Suitable for multiple applications

High-Performance Sound Measurement

Measure sound accurately across a broad 30-130 dB range with the Meco 970P, designed to capture real-world noise in industrial, commercial, and environmental settings. A 1/2 inch electret condenser microphone ensures precise readings, while data hold and max hold functions aid in continuous monitoring.

User-Friendly Operation and Display

The Meco 970P boasts a clear digital LCD with backlight for visibility in low-light environments. FAST/SLOW time weighting modes accommodate different types of sound analysis, and intuitive controls make it easy to operate for users at any expertise level.

Robust Construction and Long Battery Life

Constructed with sturdy ABS plastic housing, this sound level meter endures rigorous use. The device operates on a single 9V battery, consuming minimal power for up to 50 hours of operation, making it reliable for extended measurements and fieldwork.

FAQ's of Meco Make Digital Sound Level Meter, 970P:

Q: How do I operate the Meco Make 970P Digital Sound Level Meter?

A: Simply switch on the meter, select the FAST or SLOW time weighting according to your measurement needs, and direct the microphone toward the sound source. The digital LCD will show real-time readings, and features like data hold help capture specific values.

Q: What benefits does the backlight feature offer?

A: The digital LCD backlight allows you to clearly read measurements even in dimly lit environments, ensuring accuracy and ease of use during nighttime or indoor assessments.

Q: When should I use the FAST versus SLOW time weighting options?

A: Use FAST weighting for measuring rapidly changing noise and SLOW weighting for averaging out fluctuating sound levels. This adjustment helps tailor the response to the specific sound environment being measured.

Q: Where can the Meco 970P be used?

A: This sound level meter is suitable for industrial plants, construction sites, environmental monitoring, noise ordinance enforcement, and other locations where airborne sound measurement is essential.

Q: What is the process for maintaining accuracy in measurements?

A: Ensure the microphone is clean and unobstructed, use the data hold or max hold functions to lock crucial readings, and periodically calibrate according to IEC 61672-1 Class 2 standards to maintain its 1.5 dB accuracy.
