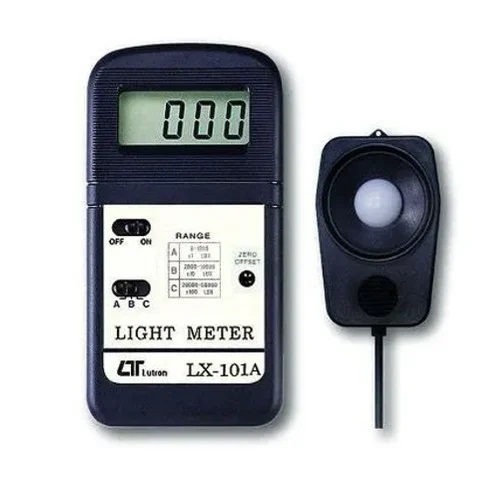

Lutron Lux Light Meter, LX-101A

Name: Lutron Lux Light Meter, LX-101A
Brand: True Sense Technologies
Price: 1800.0 INR
Availability: InStock

Price 1800.0 INR/ Set

Get a Price/Quote

MOQ : 1 Piece

Lutron Lux Light Meter, LX-101A Specification

Operating Voltage
9V (006P battery)

Mounting Type
Handheld

Temperature
Operating: 0C to 50C (32F to 122F)

Humidity
Less than 80% RH

Display Type
312 digit LCD

Response Time
Approx. 1 second

Resolution
0.1 Lux (min)

Application
Measurement of light in lux or foot candles for workplace, horticulture, industrial and laboratory environments

Features
Data Hold, Low battery indication, Compact and lightweight, Separate light sensor, Over-range indication

Equipment Type
Digital Lux Light Meter

Accuracy
5% rdg 10 digits (Calibrated for standard incandescent lamp 2856K)

Measuring Range
0 to 50,000 Lux / 0 to 5,000 Fc

Automation Grade
Manual

Power Supply
006P DC 9V Battery

Usage
Lux meter for light measurement

Machine Weight
Approximately 180 g (0.4 lbs) including battery

Control Mode
Manual

Dimensions
131 x 70 x 25 mm (meter)

Sensor Type
Silicon Photodiode with filter

Storage Temperature
-10C to 50C (14F to 122F)

Cable Length (Sensor)
About 150 cm

Battery Life
Approximately 200 hours

Sampling Rate
1.5 times/second

Over-range Indicator
LCD displays '1'

Standard Accessories
Instruction manual, Carrying case, 9V battery

Model Number
LX-101A

Lutron Lux Light Meter, LX-101A Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About Lutron Lux Light Meter, LX-101A

Features:

Sensor used the exclusive photo diode & multi-color correction filters, spectrum meet C. I. E. standard.
Built-in low battery indicator.
LSI-circuit use provides high reliability and durability.
Sensor COS correction factor meet standard.
Separate LIGHT SENSOR allows user take measurements of an optimum position.
LCD display provides low power consumption.
Compact, light-weight, and excellent operation.
Precise and easy readout, wide range.
LCD display can clearly read out even of high ambient light.

Precision and Versatility for Light Measurement

The LX-101A delivers accurate readings with a 5% accuracy rate, specifically calibrated for a standard incandescent lamp (2856K). Its broad measuring range and fine resolution (down to 0.1 Lux) make it ideal for diverse applications, offering flexibility in both professional and scientific settings.

User-Friendly Design and Portability

Weighing just 180 grams and measuring 131 x 70 x 25 mm, the LX-101A is lightweight and compact for comfortable handheld operation. The separate 150 cm cable-connected sensor adds convenience for reaching difficult or confined spaces, ensuring reliability whether you're measuring in greenhouses or industrial zones.

Long Battery Life and Reliable Operation

Powered by a standard 9V battery (included), this lux meter offers approximately 200 hours of continuous operation. Its low-battery indication ensures you're alerted before power runs out, while the robust build and protective case make it suitable for frequent field use in varying temperature and humidity conditions.

FAQ's of Lutron Lux Light Meter, LX-101A:

Q: How do I use the LX-101A Lux Light Meter for accurate light measurements?

A: To measure light with the LX-101A, place the separate light sensor in the desired location. Power on the meter using the manual control mode, and view the real-time lux or foot candle values on the LCD display. Use the data hold feature to capture and review a specific measurement.

Q: What types of environments is the LX-101A suitable for?

A: The LX-101A is designed for a range of environments, including workplaces, horticulture setups, industrial areas, and laboratory spaces. Its wide measuring range and durable, compact design make it ideal for various professional lighting assessments.

Q: When should I replace the battery in the LX-101A?

A: You should replace the 9V battery when the low-battery indication appears on the display or after approximately 200 hours of use to ensure consistent, reliable measurements.

Q: Where should the sensor be placed for best measurement results?

A: For accurate readings, position the separate silicon photodiode sensor directly at the location or surface where light levels need to be measured, ensuring it is not obstructed by any objects or shadows.

Q: What is the process for switching between lux and foot candle measurements?

A: To switch between lux and foot candle readings, refer to the instruction manual provided. The meter supports both units, and the procedure for toggling is clearly outlined for user convenience.

Q: What benefits does the LX-101A offer compared to other handheld light meters?

A: The LX-101A combines high accuracy, rapid response time, a robust measuring range, and ergonomic portability. Features like over-range indication, data hold, and a separate light sensor make it versatile for both field and laboratory work.
