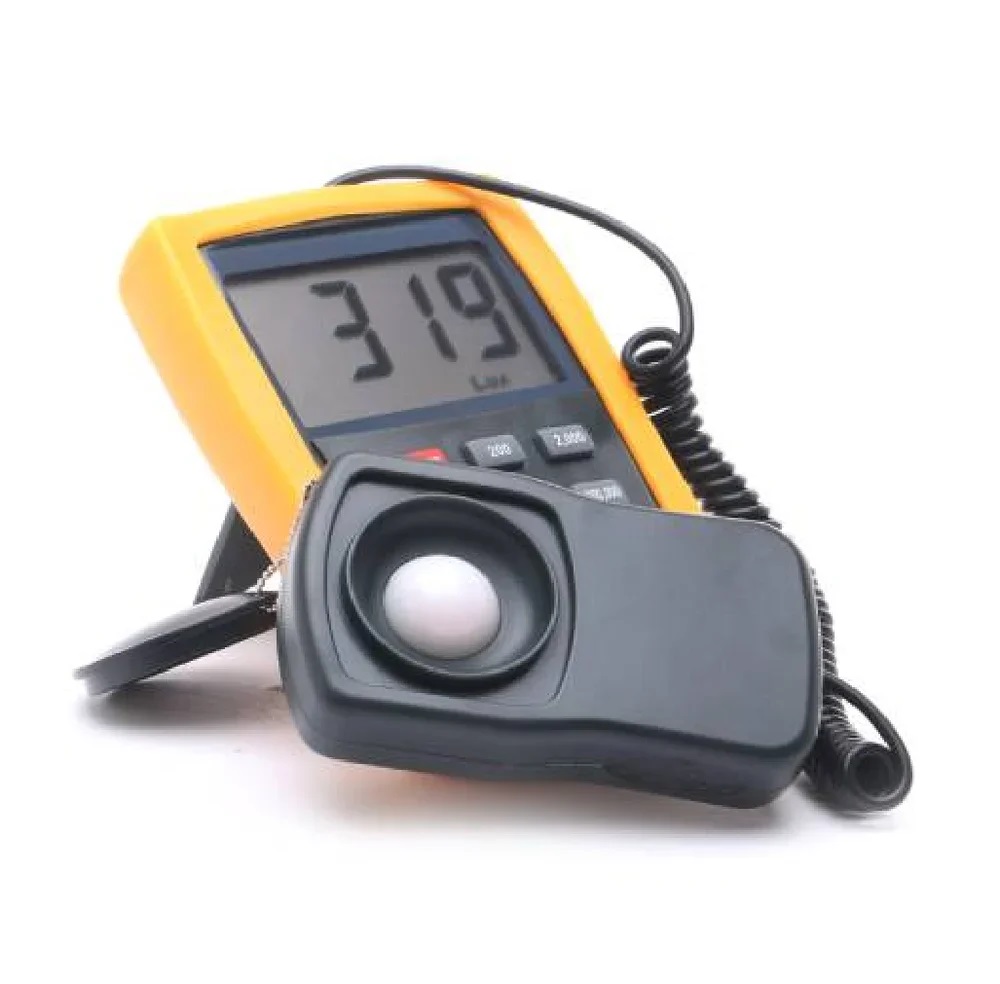

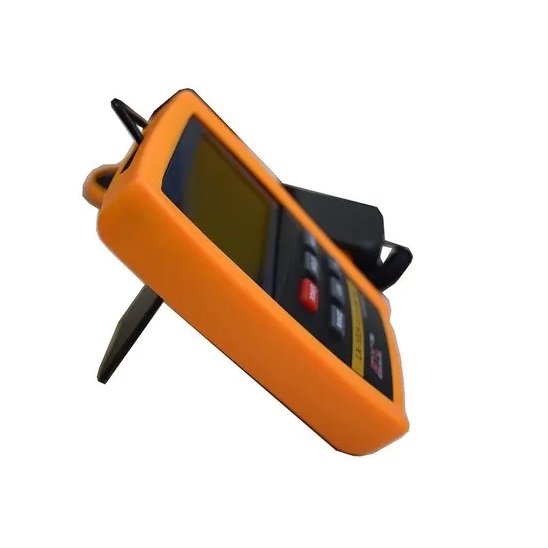

HTC Light Lux Meter, LX101A

Name: HTC Light Lux Meter, LX101A
Brand: True Sense Technologies
Price: 1340.0 INR
Availability: InStock

Price 1340.0 INR/ Set

Get a Price/Quote

MOQ : 2 Pieces

HTC Light Lux Meter, LX101A Specification

Operating Voltage
9V

Equipment Type
Digital Lux Meter

Mounting Type
Handheld

Humidity
0%~80% RH (No Condensation)

Response Time
Approx. 2 Seconds

Display Type
Digital LCD

Features
Auto Zero Adjustment, Data Hold Function, Low Battery Indication

Measuring Range
0~50,000 Lux

Application
Measuring light intensity in various environments

Test Range
0~50,000 Lux

Resolution
1 Lux

Temperature
0C ~ 40C (Operating)

Accuracy
5% 10d

Power Supply
9V Battery

Automation Grade
Manual

Usage
Light measurement

Machine Weight
Approx. 180 g (Including Battery)

Control Mode
Manual

Operating Temperature Range
0C to 40C

Sensor Type
Silicon Photodiode with Filter

Low Battery Indicator
Yes

Dimension
116 x 70 x 29 mm

Storage Humidity
0%~70% RH

Sampling Rate
2.5 times per second

Calibration
Factory Calibrated

Display Size
18 mm (0.7 inch)

Color
Black/Grey

Storage Temperature Range
-10C to 50C

Model Number
LX101A

HTC Light Lux Meter, LX101A Trade Information

Minimum Order Quantity
2 Pieces

Delivery Time
2 Days

About HTC Light Lux Meter, LX101A

A light meter or a flux meter is a device used to measure luminance flux per unit area. In other words, it is a device used to measure the amount of light prevailing in a specific area. Usually this is used as a measure of the intensity, as perceived by the human eye. Illuminance is a measure of how much luminous flux is spread over a given area or simply put, the amount of visible light present at a specific place. Previously analogue meters were used to measure amount of luminous flux. These meters used to work on the radiometric technology. One of the major disadvantage with these analogue meters was that the measurements were usually not accurate therefore the need of digital flux meters surface. HTC LX-101A is a premium range of digital lux meters. Equipped with latest technology, these meters are capable of picking even the slightest emission of light flux from any surface.

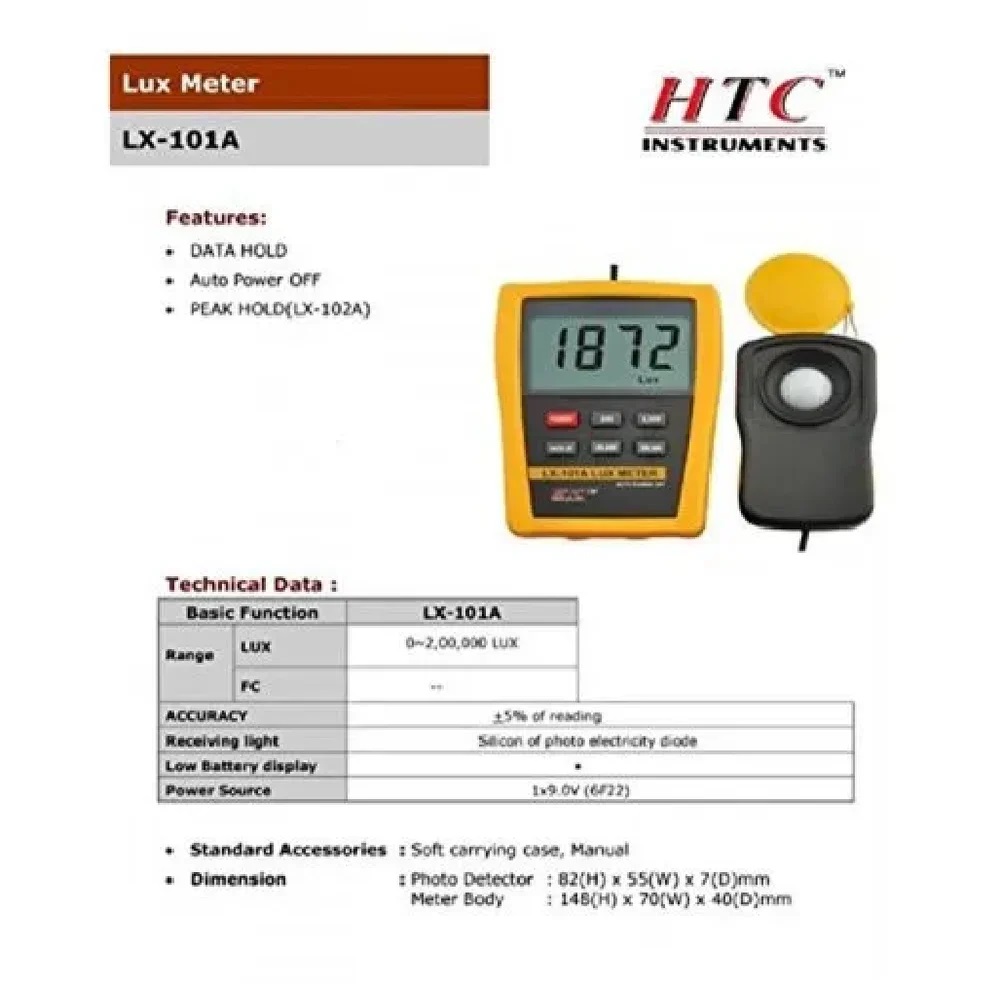

Feature:

Power Source: 1x9.0V (6F22).
Accuracy: +5 percent of reading.
Receiving Light: Silicon of photo electricity diode.
Standard Accessories: Soft carrying case, manual.
Dimension Photo Detector: 82 (H) x 55 (W) x 7 (D) millimeter; Meter Body: 148 (H) x 70 (W) x 40 (D) millimeter.

Highly Accurate Light Measurement

The LX101A utilizes a silicon photodiode sensor with a filter for precise light intensity evaluation. It offers a wide measurement range (0-50,000 Lux) with an accuracy of 5% 10d and a fast response time, making it suitable for diverse applications, including laboratories, workplaces, and photography studios.

User-Friendly Design and Operation

This model features an 18 mm digital LCD, manual operation, and a low battery indicator for hassle-free measurements. Its compact size (116 x 70 x 29 mm) and lightweight nature (approx. 180g) enhance portability. The device is factory calibrated, ensuring immediate and consistent use right out of the box.

FAQ's of HTC Light Lux Meter, LX101A:

Q: How do I operate the HTC Light Lux Meter LX101A?

A: To operate the LX101A, power on the device using the manual control, place the sensor in the desired area, and read the measured light intensity directly from the LCD display. The auto zero adjustment and data hold function assist in obtaining stable and accurate readings.

Q: What environments is the LX101A suitable for measuring light intensity?

A: The LX101A is engineered for versatility-use it in offices, workshops, laboratories, photography settings, or any environment where monitoring light levels between 0 and 50,000 Lux is necessary.

Q: When should I replace the LX101A battery?

A: A low battery indicator appears on the display when the device's 9V battery needs replacement, ensuring uninterrupted measurements.

Q: Where can I store the LX101A when not in use?

A: For optimal longevity, store the LX101A in a dry environment with temperatures between -10C and 50C, and humidity levels from 0% to 70% RH.

Q: What is the process for calibrating the LX101A?

A: The LX101A arrives factory calibrated. No additional calibration is required before it is used, ensuring accurate measurements out of the box.

Q: How does the LX101A benefit users in practical applications?

A: The LX101A provides quick, reliable, and accurate measurement of ambient light, making it invaluable for ensuring lighting compliance, improving productivity, or enhancing the quality of photographs and laboratory experiments.
