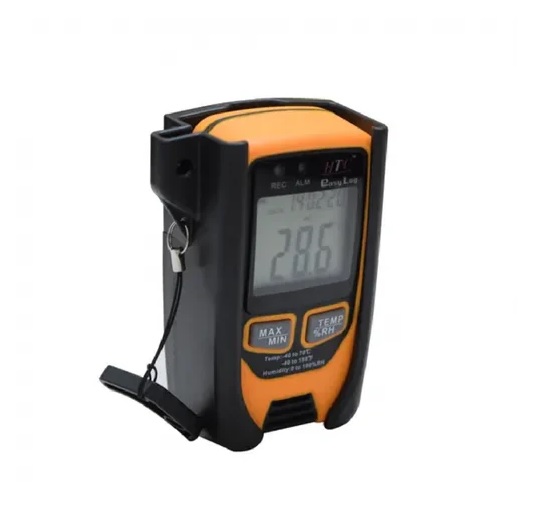

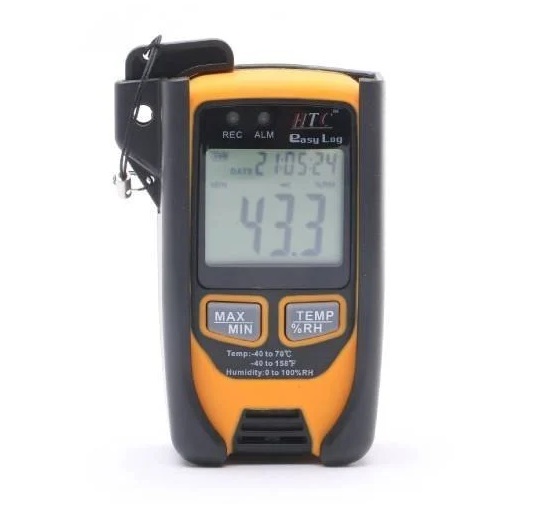

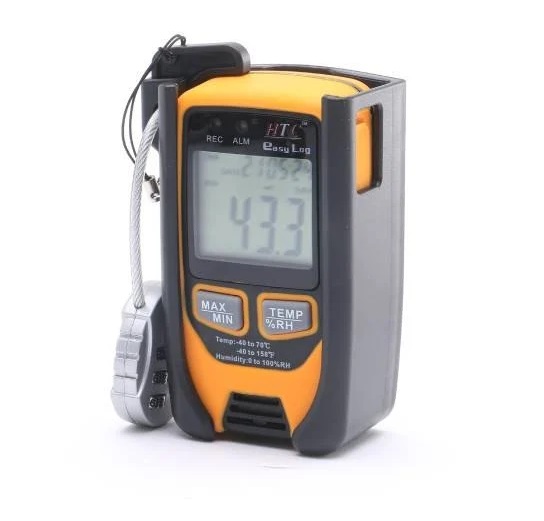

HTC L1 Easy Log Temperature and Humidity Data Logger, Easy Log

Send Inquiry

Request To Call Back

HTC L1 Easy Log Temperature and Humidity Data Logger, Easy Log

Name: HTC L1 Easy Log Temperature and Humidity Data Logger, Easy Log
Brand: True Sense Technologies
Price: 3604.0 INR
Availability: InStock

Price 3604.0 INR/ Piece

Get a Price/Quote

MOQ : 460 Pieces

HTC L1 Easy Log Temperature and Humidity Data Logger, Easy Log Specification

Data Capacity
32000 readings

Power Supply
Battery Powered

Temperature Range
-30C to 60C

Alarm
Programmable alarm thresholds

Theory
Data Log

Type
Temperature and Humidity Data Logger

Display Type
LED Indicator

Memory
32000 (16000 for each parameter)

Accuracy
Temperature: 0.5C, Humidity: 3%RH

Size
98 x 33 x 17 mm

Resolution
Temperature: 0.1C, Humidity: 0.1%RH

Battery
3.6V Lithium Battery

Net Weight
Approx. 20 g

Standby Time
Long standby (Approx. 1 year)

Interface
USB

Measuring Range
Temperature: -30C ~ +60C; Humidity: 0 ~ 100%RH

Includes
Battery, Mounting Accessories, Software CD

Start Mode
Immediate, Scheduled, or Button Activation

Compliance
CE Certified

Status Indication
LED Status Indicator

Operating Humidity
0~100% RH

Logging Frequency
Selectable from 10 seconds to 24 hours

Data Export
Compatible with Windows software, CSV export

Protection Grade
IP65 (Dustproof and Water Resistant)

Storage Condition
Temperature: -40C to 85C

Mounting Method
Wall Mountable

HTC L1 Easy Log Temperature and Humidity Data Logger, Easy Log Trade Information

Minimum Order Quantity
460 Pieces

Delivery Time
2 Days

About HTC L1 Easy Log Temperature and Humidity Data Logger, Easy Log

HTC Easy Log Temperature and Humidity Data Logger is a high-precision device designed for accurate monitoring of temperature and humidity. It features a wide measurement range and customizable sampling intervals for flexible data collection.

With large memory capacity and USB connectivity, it allows easy data transfer and automatic report generation. LED indicators and a replaceable battery make it reliable and user-friendly for continuous monitoring.

Applications: Laboratories, storage facilities, offices, greenhouses, industrial environments, and any setting requiring precise temperature and humidity tracking.

Features of HTC Easy Log Data Logger:

High-precision measurement of temperature and humidity
Wide measurement range and customizable sampling intervals
Large memory capacity for extended data logging
USB connectivity for easy data transfer and report generation
LED indicators and replaceable battery for reliable operation
Suitable for laboratories, storage, industrial, and environmental monitoring

Robust Environmental Monitoring

Engineered for accuracy and resilience, the HTC L1 Easy Log monitors a wide spectrum of temperature and humidity conditions, from -30C to 60C and 0-100% RH respectively. Its IP65 rating ensures operation in dusty or moist environments, making it suitable for warehouses, labs, and cold chain logistics. The long-standing battery life and wall-mounting capability provide convenience and flexibility for continuous, hassle-free monitoring.

Intuitive Setup and Flexible Logging

Select how data is recorded with three start modes: immediate, scheduled, or on-button activation-eliminating guesswork in deployment. The logging interval is adjustable, from rapid 10-second samples to 24-hour records, letting users tailor monitoring to their specific needs without complicated configuration. LED status indicators offer quick visual feedback regarding device operation and alarms.

Effortless Data Export and Analysis

The HTC L1 Easy Log offers seamless data retrieval via USB interface. Compatible Windows software enables straightforward downloading, analysis, and exporting of data in CSV format. With programmable alarm thresholds, users quickly detect deviations, ensuring prompt responses. The included software CD, mounting accessories, and battery simplify setup right out of the box.

FAQ's of HTC L1 Easy Log Temperature and Humidity Data Logger, Easy Log:

Q: How do I set up and install the HTC L1 Easy Log Temperature and Humidity Data Logger?

A: Install the device by mounting it on a wall using the provided accessories. Insert the supplied 3.6V lithium battery, configure settings and start mode using the included Windows-compatible software, then place it in the desired environment. The IP65-rated housing allows placement in both dusty and moist areas.

Q: What methods are available for starting a logging session on the HTC L1 Easy Log?

A: Logging can be initiated in three ways: immediately upon setup, at a user-scheduled time, or by pressing the activation button on the device. These options provide flexibility for various monitoring applications.

Q: When and how can I export the recorded temperature and humidity data?

A: You can export recorded data at any time by connecting the logger via USB to a Windows PC, using the included software. Data is easily saved in CSV format for further analysis or record-keeping.

Q: Where can I use the HTC L1 Easy Log Data Logger most effectively?

A: The device is ideal for industrial facilities, laboratories, warehouses, cold storage, and during product transport. Its robust IP65 protection makes it suitable for challenging environments requiring dust or water resistance.

Q: What benefits does the programmable alarm feature provide?

A: The programmable alarm allows you to set custom thresholds. If temperature or humidity exceeds these limits, the LED indicator will alert you, ensuring immediate response and protection of sensitive goods or environments.

Q: How long does the battery last, and is it replaceable?

A: The included 3.6V lithium battery offers an approximate one-year standby time, depending on logging frequency. The battery is user-replaceable, supporting uninterrupted long-term monitoring.
