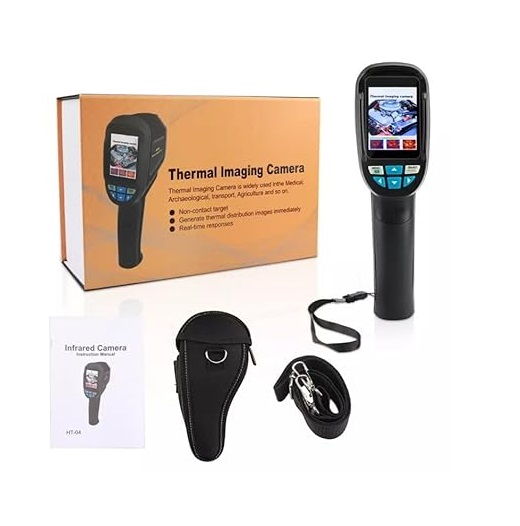

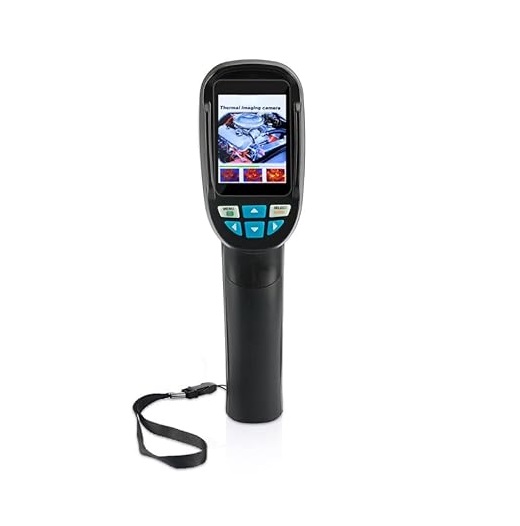

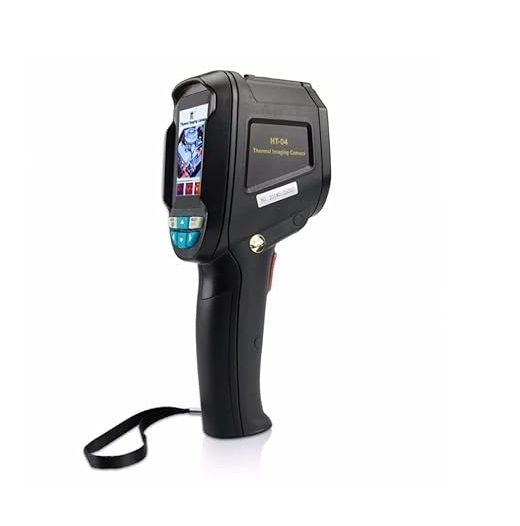

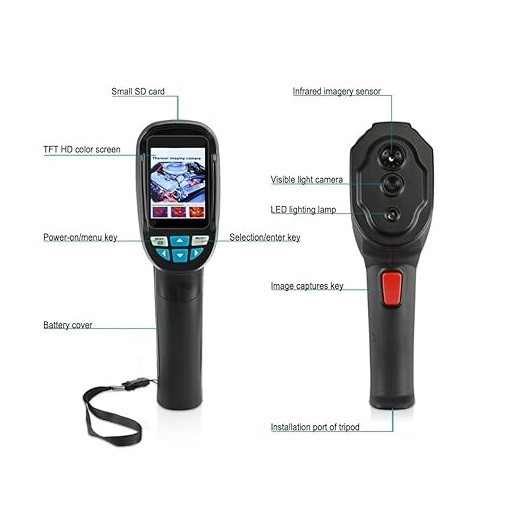

True Sense Thermal Imaging Camera, HT-04

Send Inquiry

Request To Call Back

True Sense Thermal Imaging Camera, HT-04

Price 37375.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

True Sense Thermal Imaging Camera, HT-04 Specification

Camera Range
Thermal detection range: -20C to 300C (-4F to 572F)

Connectivity Type
USB

Camera Type
Thermal Imaging Camera

Sensor Type
Thermal sensor (Uncooled focal plane array)

Camera Style
Handheld

Technology
Infrared thermal imaging

Special Features
Thermal and visible image overlay, Adjustable emissivity, High-resolution display, Image blending, Center spot temperature measurement, Hot/cold spot tracking

Application
Electrical inspection, HVAC maintenance, Building diagnostics, Automotive diagnostics, Industrial equipment monitoring

Camera Size
Standard handheld (Approx. 230 mm x 80 mm x 60 mm)

Camera Pixels
220 x 160 pixels (thermal sensor)

Screen Resolution
2.4 inch color display, 320 x 240 pixels

Image/Video Quality
Visible image: 640 x 480 pixels; Thermal image: 220 x 160 pixels

Power Supply
Rechargeable lithium-ion battery, 3.7V, 5000mAh

Output Formats
JPG

File Compatibility
JPG image format, supports image analysis software

Display Type
2.4 inch LCD

Emissivity Adjustable
0.1 to 1.0

Field of View
35 x 26

Battery Life
Approx. 6 hours continuous use

Weight
Approx. 389g

Data Transfer
Micro USB

Focus Mode
Fixed focus

Storage Temperature
-20C to 60C (-4F to 140F)

Operating Temperature
0C to 45C (32F to 113F)

Alarm Function
High/low temperature alarm

Visible Camera Resolution
640 x 480 pixels

Color Palette
6 color palettes selectable

Image Storage
Built-in memory, stores up to 500 images

True Sense Thermal Imaging Camera, HT-04 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About True Sense Thermal Imaging Camera, HT-04

True Sense HT-04 Thermal Imaging Camera is a rugged handheld infrared imager designed for demanding environments. Featuring 220160 resolution, IP54 protection, and drop resistance, it is ideal for industrial and field inspections.

Features:

220160 infrared resolution
High-sensitivity thermal sensor
IP54 water and dust resistance
2-meter drop durability
2.4-inch TFT color display
Accurate temperature imaging
Handheld rugged design
Suitable for industrial use
Reliable field performance

Enhanced Diagnostic Capabilities

The HT-04 thermal imaging camera empowers professionals with accurate and real-time thermal detection over a wide range of -20C to 300C. Its hot/cold spot tracking and temperature alarm functions simplify pinpointing problem areas, making diagnostics and maintenance more efficient and reliable across electrical, HVAC, and industrial applications.

User-Friendly Features

With a fixed focus mode and intuitive 2.4-inch color LCD, the True Sense HT-04 makes capturing and analyzing images straightforward. Its onboard memory stores up to 500 images and supports easy data transfer via micro USB, allowing for quick download and advanced analysis using compatible software.

Versatile and Durable Design

Designed for portability, the HT-04 weighs roughly 389g and features a robust build for fieldwork. Operating within 0C to 45C and storing safely at -20C to 60C, it's perfectly suited to a range of settings, from workshops to onsite inspections, letting users work confidently in diverse environments.

FAQ's of True Sense Thermal Imaging Camera, HT-04:

Q: How does the True Sense HT-04 thermal imaging camera assist with electrical or HVAC diagnostics?

A: The HT-04 detects temperature differences by creating blended thermal and visible images, making it easy to spot overheating components, insulation gaps, or air leaks in electrical and HVAC systems. Its high/low temperature alarm and hot/cold spot tracking ensure quick review and detection of anomalies.

Q: What is the battery life and how can I recharge the camera?

A: The camera offers approximately 6 hours of continuous use on a fully charged 3.7V, 5000mAh lithium-ion battery. You can recharge it using the included micro USB cable, allowing for quick and convenient power management during field operations.

Q: Where is the True Sense HT-04 most effectively used?

A: This camera excels in electrical inspections, HVAC and building diagnostics, automotive troubleshooting, and monitoring industrial equipment. Its broad detection range and rugged design make it suitable for both indoor and outdoor professional environments.

Q: How many images can the camera store and what formats are supported?

A: The HT-04's built-in memory can store up to 500 images in JPG format. These images can be transferred via micro USB and are compatible with image analysis software for further evaluation and reporting.

Q: What are the benefits of adjustable emissivity on the HT-04?

A: Adjustable emissivity (range: 0.1 to 1.0) allows users to obtain more accurate surface temperature readings across a variety of materials, ensuring reliable data whether inspecting metal, plastic, wood, or other surfaces.

Q: What is the process of transferring data from the camera to a computer?

A: Connect the HT-04 to a computer using the supplied micro USB cable. The images saved in JPG format can then be copied directly for analysis or reporting via compatible image software.

Q: When should the HT-04 be used for optimal results?

A: For best results, use the HT-04 within its operating temperature range of 0C to 45C and when the device's battery is fully charged. This ensures optimal camera performance and image accuracy during inspections.
