True Sense GM100 1.2-220mm Ultrasonic Thickness Gauge Steel Width Testing Monitor, GM-100

Name: True Sense GM100 1.2-220mm Ultrasonic Thickness Gauge Steel Width Testing Monitor, GM-100
Brand: True Sense Technologies
Price: 5000.0 INR
Availability: InStock

Price 5000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

True Sense GM100 1.2-220mm Ultrasonic Thickness Gauge Steel Width Testing Monitor, GM-100 Specification

Display
LCD with backlight

Frequency
5 MHz (standard probe)

Case
ABS Engineering Plastic

Measuring Range
1.2 mm to 220 mm (in steel)

Outer Size
150 mm x 74 mm x 32 mm (approx.)

Sensor Type
Ultrasonic

Material
Instrument body with ABS plastic housing, probe with stainless steel and cable

Grade
Industrial

Application

Accuracy
(1% H + 0.1) mm

Probe Type
Transducer (standard included: 5 MHz, optional available)

Data Hold Function
Available

Calibration
1-point calibration with reference sample

Resolution
0.1 mm

Operating Temperature
0C to 40C

Model Number
GM100 / GM-100

Sound Velocity Range
1000~9999 m/s

Net Weight
Approx 245g (including batteries)

Power Supply
2 x 1.5V AA batteries

Auto Power Off
Yes (automatic after several minutes of no operation)

Unit Selection
mm/inch selectable

Low Battery Indication
Yes

True Sense GM100 1.2-220mm Ultrasonic Thickness Gauge Steel Width Testing Monitor, GM-100 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About True Sense GM100 1.2-220mm Ultrasonic Thickness Gauge Steel Width Testing Monitor, GM-100

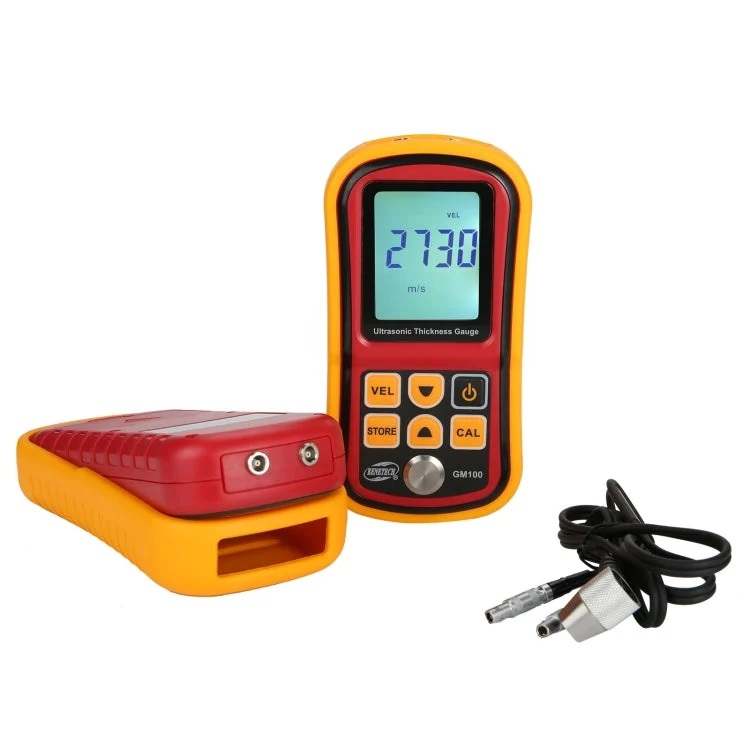

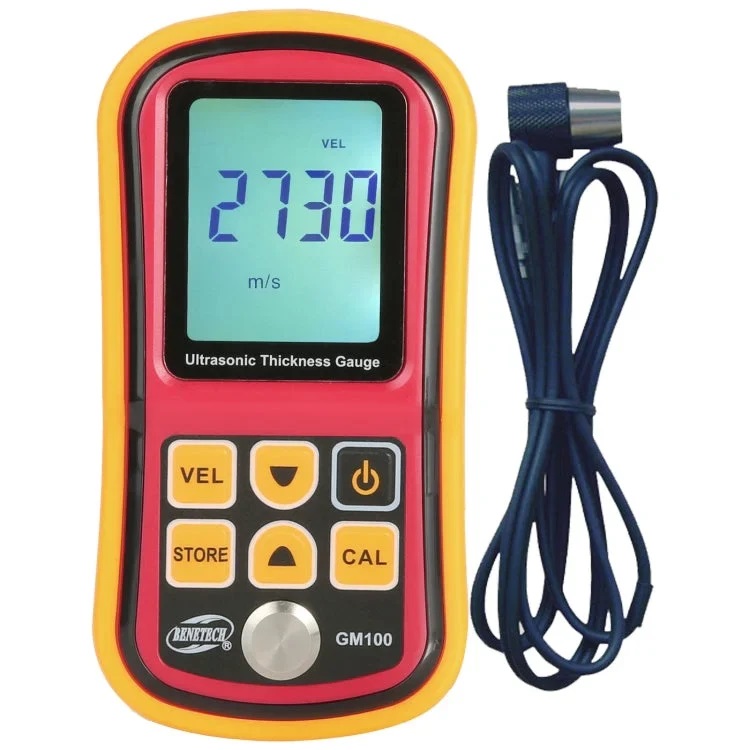

True Sense GM100 Ultrasonic Thickness Gauge provides high-precision thickness measurement for industrial inspection applications. Designed with a user-friendly LCD interface, it enables fast and reliable non-destructive testing of metals and solid components.

Features:

Ultrasonic non-destructive measurement
High precision performance
Wide measuring range
Clear LCD display
Fast and accurate readings
Portable and durable design
Easy calibration process
Suitable for industrial inspection
Reliable long-term operation

High Accuracy and Versatile Measurement Range

With a measurement range from 1.2 mm to 220 mm in steel and a fine 0.1 mm resolution, the True Sense GM100 is ideal for a wide set of thickness gauging applications. Its accuracy is guaranteed by a simple 1-point calibration, ensuring consistent and reliable readings across different environments and materials.

Effortless Operation and Portability

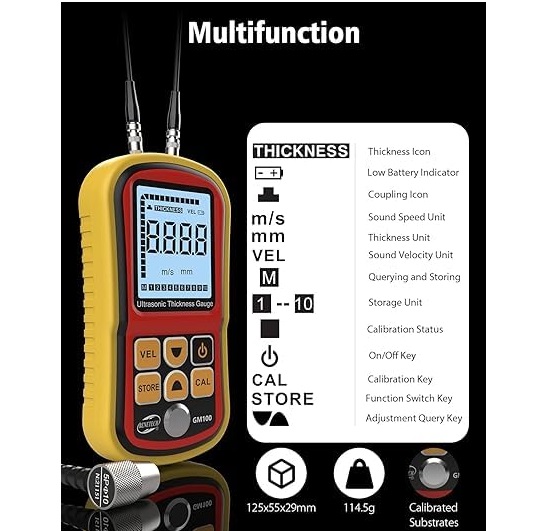

All key functions, such as data hold, auto power-off, and quick unit selection between mm and inch, make this gauge exceptionally user-friendly. The lightweight, compact ABS plastic body and battery operation allow for effortless on-site measurements and convenient transport, catering to industrial requirements in various locations.

Designed for Industrial Durability

Encased in ABS engineering plastic and equipped with a stainless steel probe, the GM100 is engineered to withstand demanding industrial environments. The device is tailored to provide reliable service in routine inspections or during construction, ensuring you always maintain structural integrity.

FAQ's of True Sense GM100 1.2-220mm Ultrasonic Thickness Gauge Steel Width Testing Monitor, GM-100:

Q: How does the True Sense GM100 Ultrasonic Thickness Gauge measure material thickness?

A: The GM100 uses ultrasonic pulse-echo technology. By emitting ultrasonic waves through its transducer probe, it measures the time taken for the sound to travel through the material and return. This allows for accurate, non-destructive thickness measurement of metals, glass, and other compatible materials.

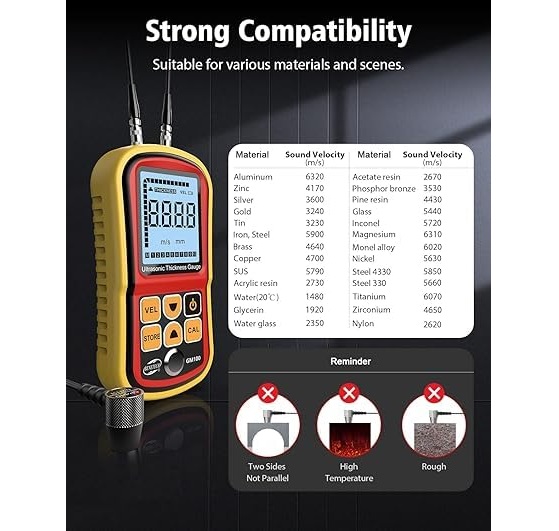

Q: What materials can be tested with the GM100 thickness gauge?

A: The gauge can measure the thickness of steel, aluminum, glass, and most other ultrasonic conductive materials. Its versatile design and adjustable sound velocity setting ensure compatibility with a wide variety of industrial materials.

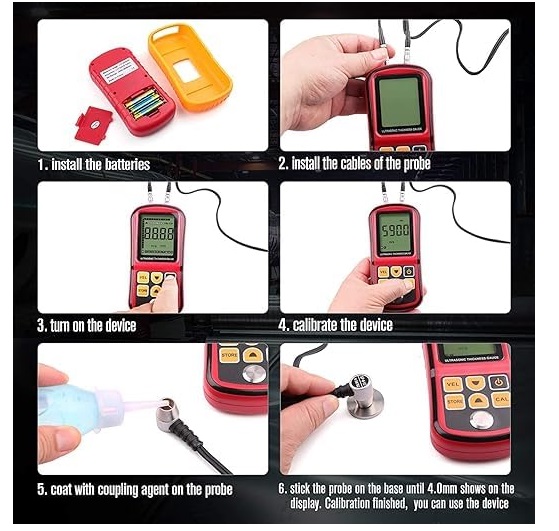

Q: When should I perform calibration and what is the process?

A: Calibration should be done before each use, especially when testing different materials. The GM100 supports simple 1-point calibration using a reference sample of known thickness. This quick process ensures ongoing measurement accuracy for your tasks.

Q: Where is the True Sense GM100 ideally used?

A: This gauge is suitable for use in factories, refineries, shipyards, laboratories, and construction sites across India. It's optimized for any environment that requires robust, reliable, and portable thickness measurement solutions.

Q: What are the benefits of the data hold and auto power-off features?

A: The data hold function allows you to lock and review the most recent measurement, making record-keeping and analysis easier. The automatic power-off feature conserves battery life by turning off the device when not in use, which is particularly beneficial during fieldwork.

Q: How do I know when the batteries need replacing?

A: The GM100 includes a low battery indication on the LCD display. When the battery level is low, an icon appears, prompting you to replace the two AA batteries to ensure uninterrupted operation.

Q: What makes the GM100 suitable for industrial environments?

A: The device's rugged ABS plastic housing, stainless steel probe, and compact build offer effective protection against harsh conditions. Its user-friendly interface and reliable accuracy meet the demands of ongoing industrial inspections and maintenance tasks.
