True Sense Fuel Cell Alcohol Tester AA2020 Formal And Screening Tester, AT-35

Send Inquiry

Request To Call Back

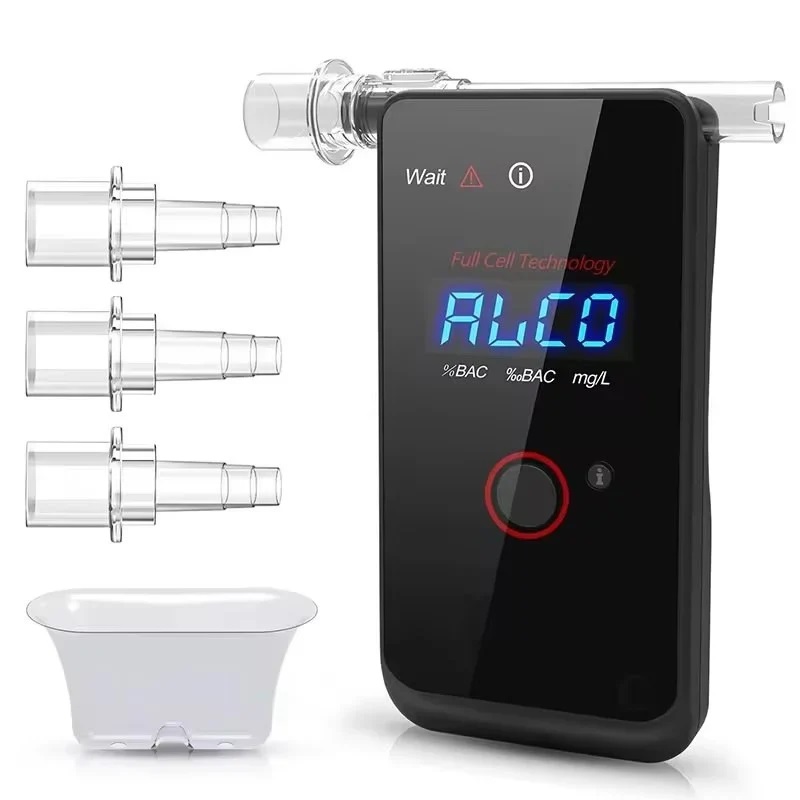

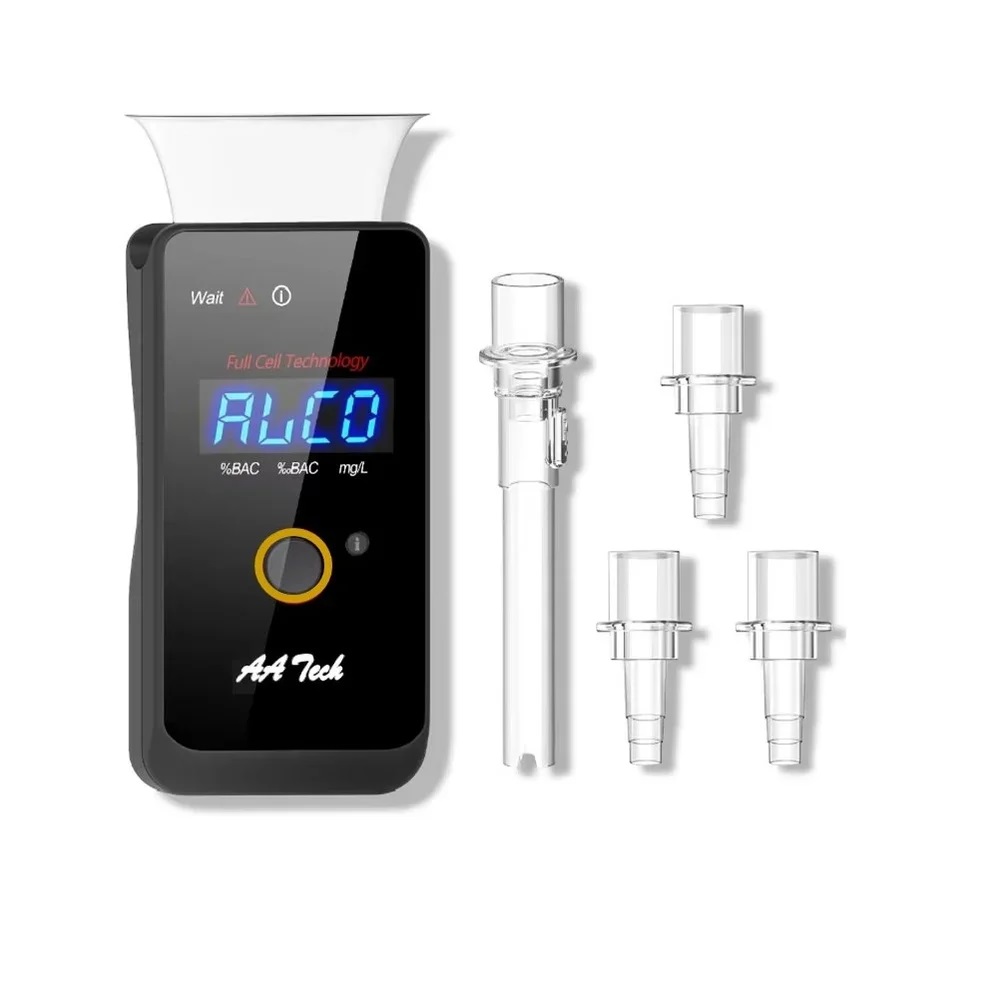

True Sense Fuel Cell Alcohol Tester AA2020 Formal And Screening Tester, AT-35

Name: True Sense Fuel Cell Alcohol Tester AA2020 Formal And Screening Tester, AT-35
Brand: True Sense Technologies
Price: 7500.0 INR
Availability: InStock

Get a Price/Quote

MOQ : 1 Piece

True Sense Fuel Cell Alcohol Tester AA2020 Formal And Screening Tester, AT-35 Specification

Gas Pressure
Atmospheric Pressure

Max Height
153 mm

Application
Personal, Law Enforcement, Workplace, and Medical Screening

Resolution
0.01% BAC/ 0.01mg/L

Display Type
2.2 inch TFT Color Display

Interface Type
USB Data Output

Features
Fuel Cell Sensor, Replaceable Mouthpiece, Data Storage, Alarm Function

Number of Specimens
Single person per test

Power Supply
2 x AA Alkaline Batteries

Temperature
Operating: 0C-45C

Humidity
95% RH, non-condensing

Response Time
<5 seconds

Test Range
0.00~5.00 BAC (or 0.00~0.50% BAC, or 0.00~2.50mg/L)

Measuring Range
0.00~5.00 BAC

Specimen Size
Breath Sample

Automation Grade
Semi-Automatic

Accuracy
0.005%BAC (at 0.05%BAC); 5% F.S.

Equipment Type
Fuel Cell Breath Alcohol Tester

Port Size
Standard Mouthpiece

Frequency
No Frequency (Not Applicable)

Operating Voltage
3V DC (2 x 1.5V AA)

Mounting Type
Portable Handheld

Usage
Breath Alcohol Testing

Capacity
Up to 100,000 test records

Machine Weight
235 g

Test Speed
3 seconds (initial display time)

Control Mode
Digital Microprocessor Control

Accessories Included
Mouthpiece, Carry Pouch, User Manual, Batteries

Instrument Color
Black/Blue

Sensor Type
Electrochemical Fuel Cell

Storage Temperature
-10C to 60C

Alarm
Visual and Audible

Dimensions
153 x 60 x 27 mm

Warm Up Time
<20 seconds

Memory
Up to 100,000 test results

Calibration Interval
6 to 12 months recommended

True Sense Fuel Cell Alcohol Tester AA2020 Formal And Screening Tester, AT-35 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About True Sense Fuel Cell Alcohol Tester AA2020 Formal And Screening Tester, AT-35

The Alcohol Tester AA2020 is a compact, portable breathalyzer designed for both personal and professional use to accurately measure blood alcohol concentration (BAC). This device uses advanced technology to provide reliable and quick BAC readings, making it ideal for personal safety checks, workplace alcohol screening, and law enforcement applications.

High-Precision Fuel Cell Sensor Technology

Harness the accuracy and reliability of an electrochemical fuel cell sensor for precise breath alcohol testing. This cutting-edge technology ensures minimal interference from other substances, making it ideal for diverse use cases ranging from law enforcement to workplace screenings.

Extensive Data Storage and Easy Retrieval

Capable of securely storing up to 100,000 test records, the AA2020 makes data management and review straightforward. The built-in USB data output feature provides seamless data transfer, supporting monitoring and compliance requirements for professional environments.

Rapid Testing and Immediate Results

Experience quick and efficient alcohol measurements with a warm-up time under 20 seconds and initial display of results in just 3 seconds. Its visual and audible alarms offer instant feedback, enhancing safety and decision-making in critical situations.

FAQ's of True Sense Fuel Cell Alcohol Tester AA2020 Formal And Screening Tester, AT-35:

Q: How does the True Sense Fuel Cell Alcohol Tester ensure accurate readings?

A: The device uses an electrochemical fuel cell sensor, which is highly selective to alcohol. This technology minimizes errors from other substances, providing reliable breath alcohol concentration measurements suitable for professional and personal screening.

Q: What is the recommended calibration interval for the AA2020 tester?

A: It is recommended to calibrate the tester every 6 to 12 months to maintain optimal accuracy. Regular calibration ensures consistent performance and compliance with operational standards.

Q: When and where can this alcohol tester be effectively used?

A: The tester is versatile and can be used in personal settings, workplaces, law enforcement scenarios, and medical screenings. Its portability and robust design allow it to operate in various environments with operating temperatures from 0C to 45C.

Q: What is the process for taking a breath sample with the tester?

A: Attach a clean, replaceable mouthpiece to the device, allow it to warm up (under 20 seconds), and have the subject exhale steadily into the mouthpiece. The digital microprocessor quickly analyzes the breath sample, displaying results within 3 seconds.

Q: What type of alarm features does the device provide during testing?

A: The tester includes both visual and audible alarms that activate when alcohol is detected above preset thresholds, ensuring immediate and clear notification of results for the user or administrator.

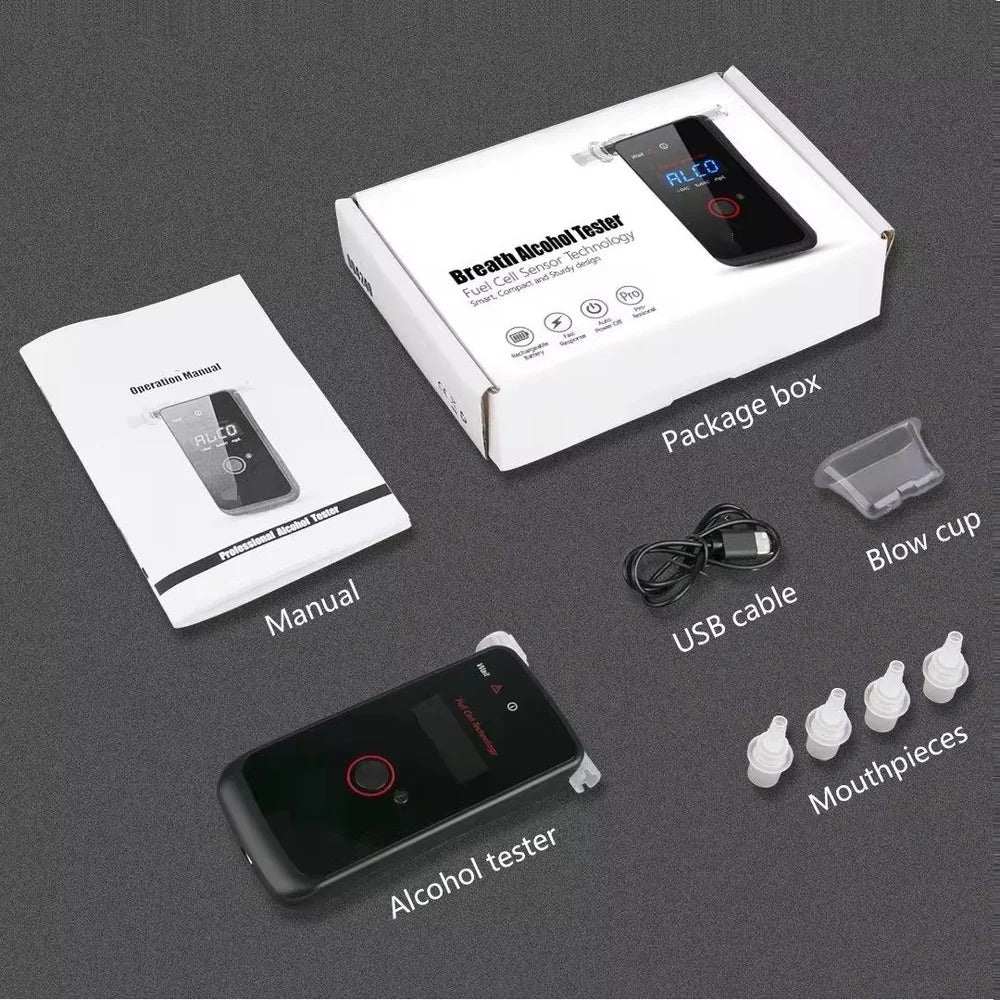

Q: What accessories are included with the AA2020 Alcohol Tester?

A: Each unit comes with replaceable mouthpieces, a carry pouch, a user manual, and AA alkaline batteries, providing everything required for immediate setup and repeated use.
