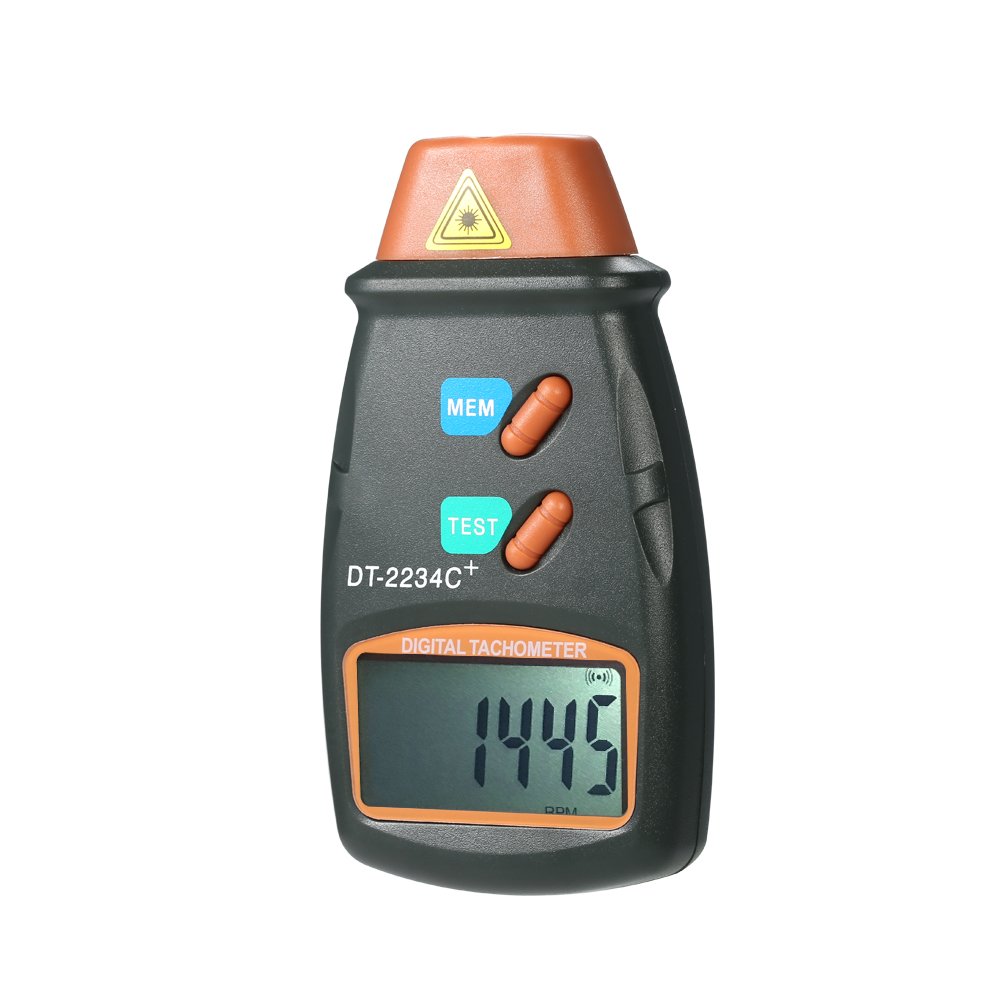

True Sense Digital LCD Laser Tachometer, DT2234C+

Name: True Sense Digital LCD Laser Tachometer, DT2234C+
Brand: True Sense Technologies
Price: 700.0 INR
Availability: InStock

Price 700.0 INR/ Piece

Get a Price/Quote

MOQ : 2 Pieces

True Sense Digital LCD Laser Tachometer, DT2234C+ Specification

Connectivity Type
Standalone, non-connected

Measurement Range
2.5-99,999 RPM

Diameter
Sensing distance: 50mm to 500mm

Sensor Type
Laser optical type

Humidity %
<80% RH

Resolution
0.1 RPM (2.5-999.9 RPM), 1 RPM (over 1000 RPM)

Temperature Range
0C to 50C

Application Media
Rotating equipment

Material
Plastic body

Power Supply
3 x 1.5V AA batteries

Power Consumption
Approx. 40 mA

Accuracy
0.05% + 1 digit

Display Type
Digital LCD

Range
2.5-99,999 RPM

Dimensions
Approx. 160 x 60 x 42 mm

Accessory

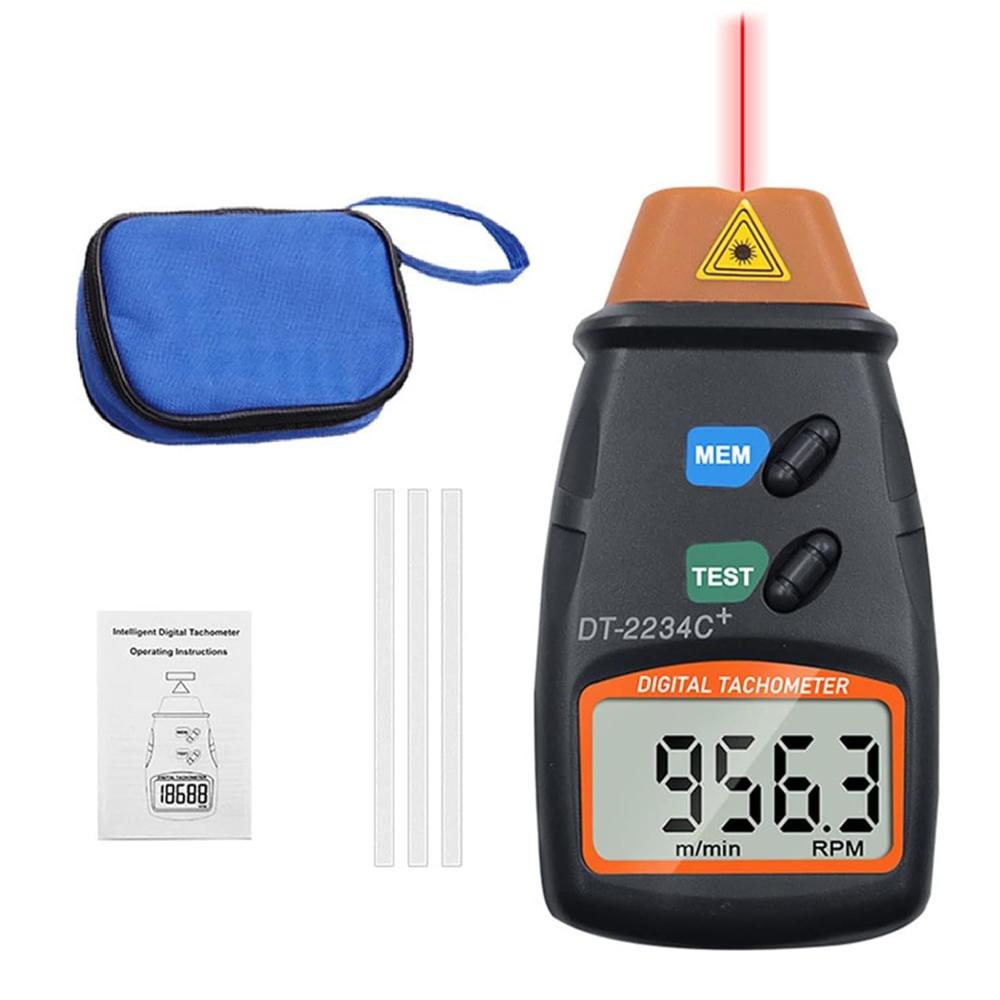

Reflective tape included

Weight
Approx. 250 g (including batteries)

Equipment Type
Digital Tachometer

Memory
Last value, max value, min value

Sampling Time
0.5 seconds (over 120 RPM)

Operating Principle
Non-contact, laser reflection method

Display Digits
5 digit LCD

Response Time
Instantaneous

True Sense Digital LCD Laser Tachometer, DT2234C+ Trade Information

Minimum Order Quantity
2 Pieces

Delivery Time
2 Days

About True Sense Digital LCD Laser Tachometer, DT2234C+

Feature:

Laser tachometer Non Contact Tachometer measures the moving distance of an object to be measured within a certain time interval by laser emission, and calculates the moving speed of the object. Suitable for speed measurement of tires, motors, motors, gears, fans, washing machines
Non-contact mode RPM meters avoid contact between the instrument and the workpiece, laser rpm meter solve the problem of measuring the test piece with less torque or is easily deformed. Measuring distance: 50-500mm / 2-20in (50-500mm)
Powerful performance Range from 2.5RPM to 99999 RPM, high resolution 0.1RPM or 1RPM, 0.8 second sampling time. The maximum and minimum values are automatically recorded. LCD backlights allow viewing of data even when there is insufficient light.

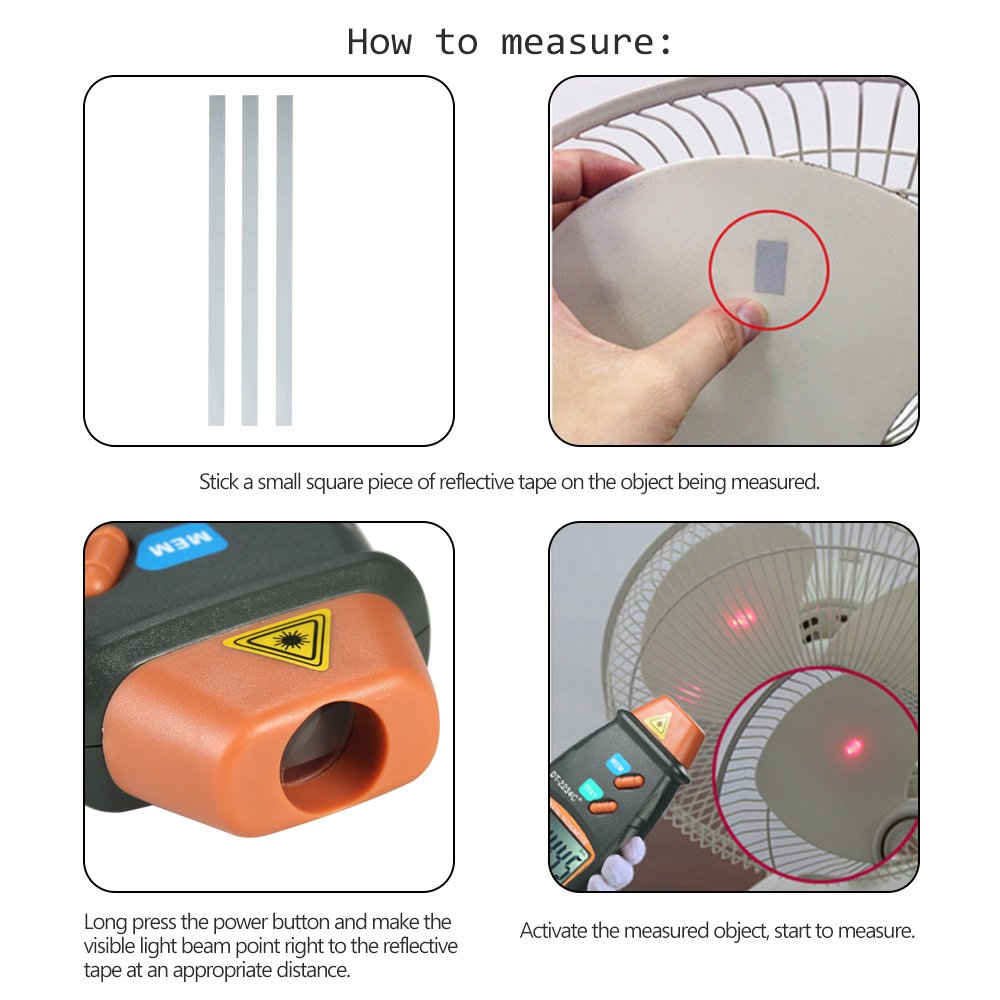

Easy to use Just stick the reflective sticker on the non contact rpm meter to be measured, and fix it after the laser is aligned with the reflective paper. Note: Reflective strips is required, 3 reflective strips is included in the package.If you have any questions, feel free to contact us and we are happy to give you support.
Widely applications The handheld tachometer is applicable for Laboratories, car repair workers, and machinery manufacturing entrepreneurs all like this laser tachometer. Because of the incorrect cutting length of a single or finished product, rework and waste can result in increased costs. Therefore, our laser tachometer is very practical and very popular.

High Precision, Non-Contact RPM Measurement

The True Sense DT2234C+ utilizes a laser optical sensor, enabling you to safely measure RPM without physical contact. With a sensing range from 50 mm to 500 mm, it's ideal for rotating machinery across multiple industries. Benefit from stable readings and a fast 0.5-second sampling rate, ensuring reliability in demanding environments.

Instant Display with Memory Functionality

Featuring a 5-digit LCD, the tachometer provides clear and immediate readouts of RPM. Advanced memory storage lets you recall the last measurement, as well as the minimum and maximum values recorded - a key feature for trend monitoring and quality control applications.

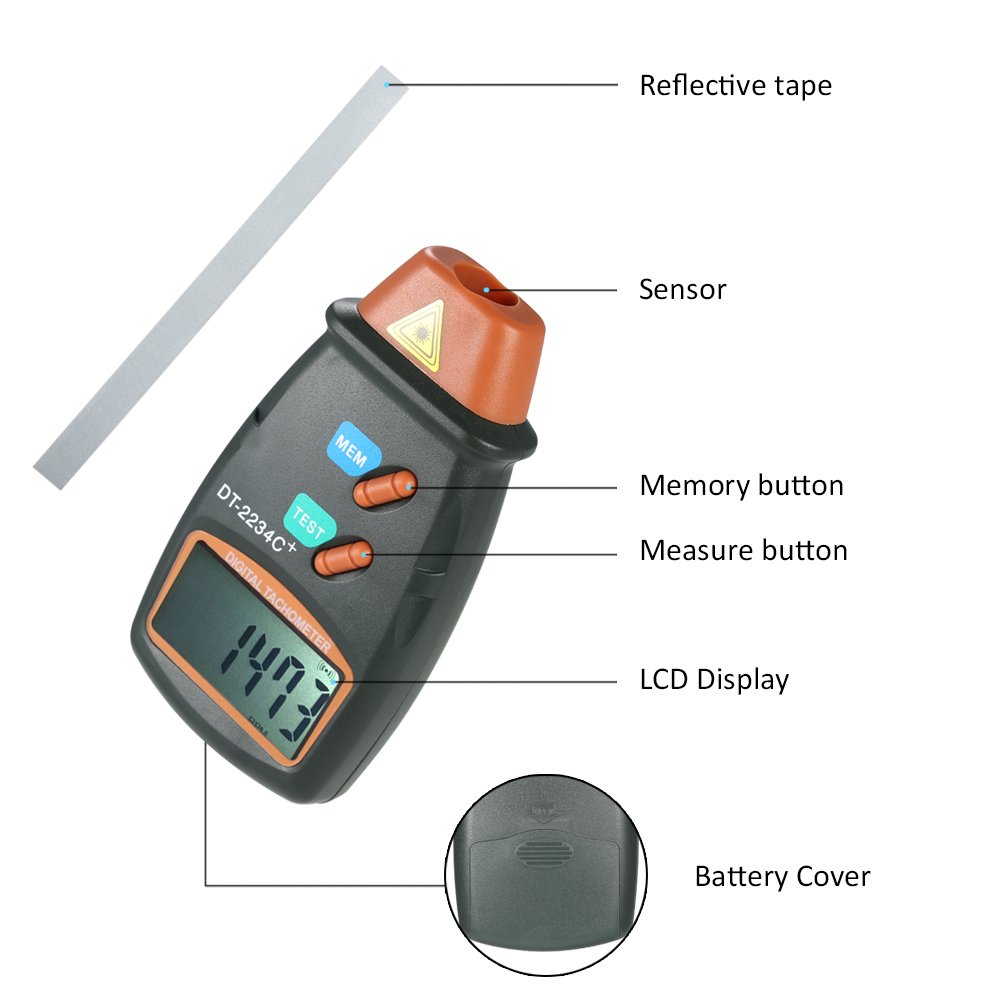

Robust Design and Simple Operation

Constructed from durable plastic and weighing only about 250 grams, this digital tachometer is portable and user-friendly. Its ergonomic design and included reflective tape make the measurement process straightforward. Simply apply the tape to a rotating object and aim the laser to obtain quick, accurate results.

FAQ's of True Sense Digital LCD Laser Tachometer, DT2234C+:

Q: How do I operate the True Sense Digital LCD Laser Tachometer, DT2234C+?

A: To operate the tachometer, apply a piece of the included reflective tape onto the rotating object. Hold the device at a sensing distance between 50 and 500 mm, point the laser at the tape, and press the measurement button. The RPM value will be displayed instantly on the LCD screen.

Q: What types of equipment can this tachometer measure?

A: The DT2234C+ is suitable for measuring the rotational speed of any equipment with accessible rotating parts, such as motors, fans, pulleys, and other industrial machinery. It operates effectively on most materials when the reflective tape is correctly applied.

Q: When should I use the memory functions and what do they store?

A: Use the memory function to recall the last value, as well as the maximum and minimum RPM recorded during your measurements. This is particularly beneficial for monitoring changes over time or ensuring that machines consistently operate within specified parameters.

Q: Where should the True Sense Tachometer be positioned during use?

A: For best results, position the tachometer so the laser beam is perpendicular to the reflective tape on the rotating part. Maintain a distance between 50 mm and 500 mm from the surface to ensure accurate readings.

Q: What is the process of measuring RPM non-contact with this tachometer?

A: The device emits a focused laser beam that reflects off the supplied tape on the rotating object. The sensor detects these reflections to calculate RPM, allowing measurement without physical contact for greater safety and convenience.

Q: How does using a laser tachometer benefit me compared to traditional contact-type tachometers?

A: Laser tachometers like the DT2234C+ enhance safety since they measure RPM without touching moving parts. This minimizes the risk of accidents and equipment damage, offers better access to confined spaces, and provides highly accurate, instantaneous readings.
