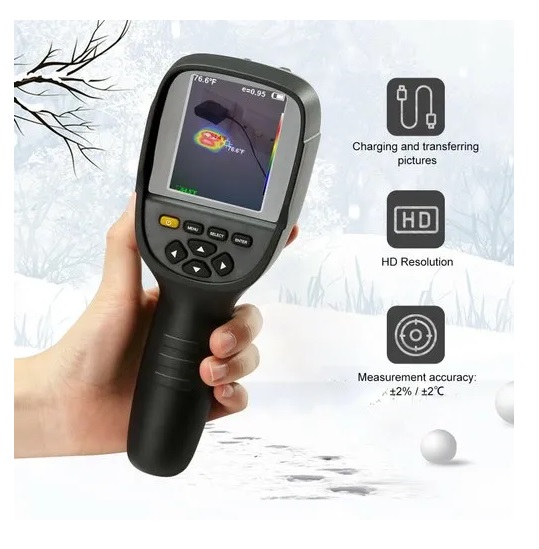

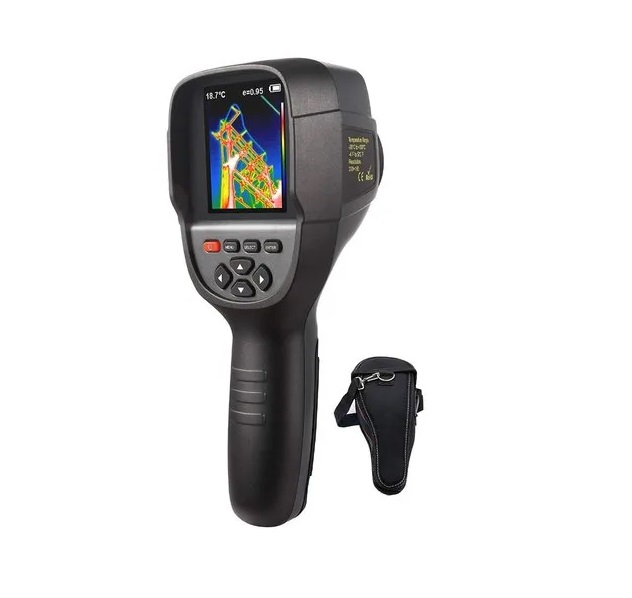

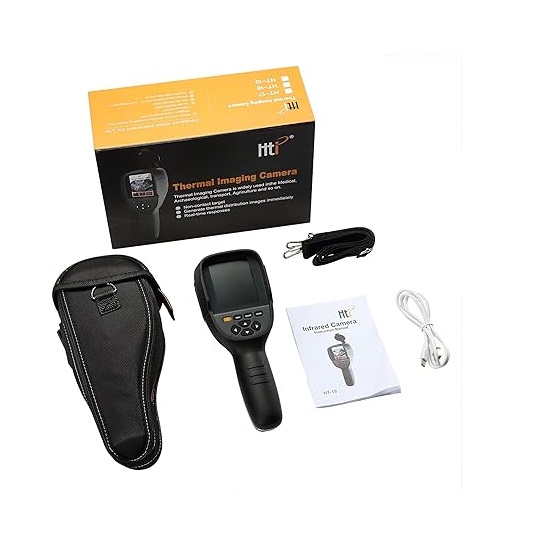

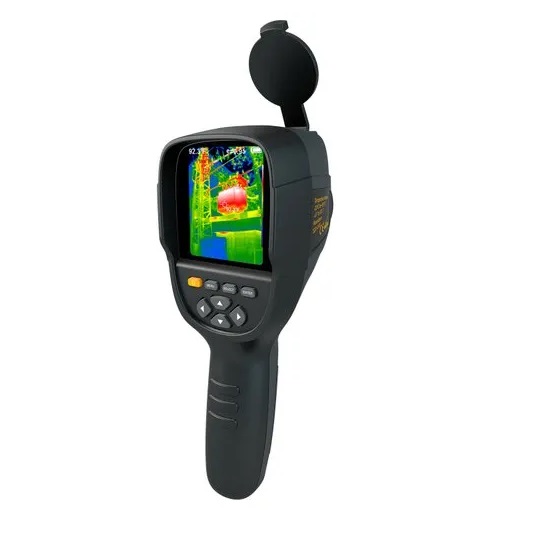

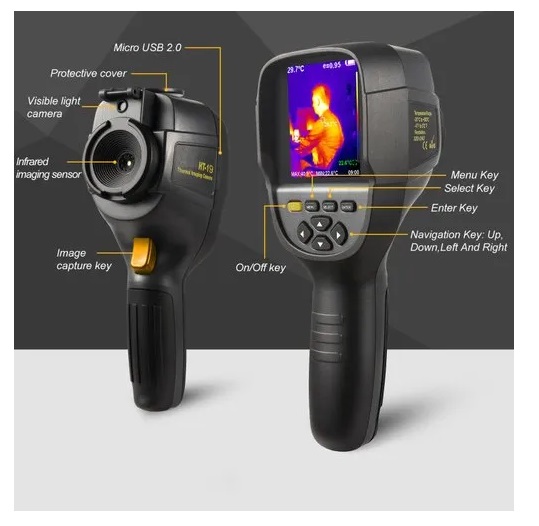

True Sense 320x240 Thermal Camera Infrared Imager, HT-19

Price 44045.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

True Sense 320x240 Thermal Camera Infrared Imager, HT-19 Specification

Connectivity Type
USB

Camera Range
Measurement Range: -20C to 300C (-4F to 572F)

Camera Type
Thermal Imager

Sensor Type
Infrared Thermal Sensor

Camera Style
Handheld

Technology
Uncooled Focal Plane Array (UFPA)

Special Features
High-resolution thermal imaging, Portable design, Real-time imaging, 5 color palettes selectable, Storage for image capture

Remote Control
No

Application
Electrical inspection, Mechanical equipment diagnosis, Building diagnostics, HVAC maintenance, Veterinary and Medical

Camera Size
Approx. 230mm 80mm 52mm

Camera Pixels
320 x 240 pixels (76,800 pixels)

Screen Resolution
3.2-inch TFT LCD, 320 x 240 pixels

Image/Video Quality
JPEG image storage, Real-time thermal image

Power Supply
Rechargeable lithium battery

Output Formats
JPEG, PC Analysis Software

File Compatibility
JPG

Accuracy
2C or 2% of reading

Field of View
56 42

Frame Rate
9 Hz

Emissivity
Adjustable 0.01 to 1.00

Temperature Sensitivity (NETD)
<0.07C at 30C

Charging Interface
Micro USB

Image Storage
Built-in 3GB SD card

Operating Temperature
0C to 45C

Focus Mode
Fixed Focus

Weight
Approx. 350g (including battery)

Battery Life
Up to 2-3 hours continuous use

True Sense 320x240 Thermal Camera Infrared Imager, HT-19 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About True Sense 320x240 Thermal Camera Infrared Imager, HT-19

True Sense HT-19 Thermal Imaging Camera offers improved 320240 infrared resolution with over 300,000 pixels for enhanced image clarity. The sharp 3.2-inch color display ensures accurate and reliable temperature diagnostics in professional environments.

Features:

320240 infrared resolution
Over 300,000 thermal pixels
Sharp 3.2-inch color display
High image clarity
Handheld professional design
Accurate temperature detection
Easy operational interface
Suitable for inspections
Durable construction

Advanced Thermal Imaging Clarity

Equipped with a 320x240 pixel uncooled focal plane array, the True Sense HT-19 delivers detailed thermal imagery for accurate diagnostics. The camera's adjustable emissivity and high NETD (<0.07C at 30C) ensure precise readings in varying conditions, enabling professionals to identify subtle temperature differences in electrical, mechanical, or structural applications.

Effortless Field Operation and Storage

Designed for portability, the HT-19 weighs just 350g and features a fixed-focus lens for straightforward operation. A built-in 3GB SD card allows users to store thousands of JPEG images, while real-time visual feedback is provided via the 3.2-inch LCD screen. The rechargeable battery supports extended field work lasting 2-3 hours without interruption.

Versatile Applications Across Industries

True Sense HT-19 supports diverse applications, such as electrical audits, mechanical diagnostics, HVAC checks, veterinary assessments, and building thermal inspections. Its wide measurement range (-20C to 300C), selectable color palettes, and accurate data recording make it an asset for maintenance teams and inspectors seeking efficient, non-invasive temperature analysis.

FAQ's of True Sense 320x240 Thermal Camera Infrared Imager, HT-19:

Q: How is the True Sense HT-19 thermal camera used for electrical and mechanical diagnostics?

A: The True Sense HT-19 enables users to identify overheating components, poor connections, or failing mechanical parts by displaying real-time temperature distributions. Simply scan equipment using the fixed focus lens and utilize adjustable emissivity settings for accurate surface analysis.

Q: What is the process for capturing and transferring images with this device?

A: Images are saved as JPEGs directly onto the built-in 3GB SD card during operation. To transfer images, connect the camera to a computer using the micro USB interface. The device also supports PC analysis software for further review and reporting.

Q: When should the emissivity setting be adjusted on the HT-19?

A: Adjust the emissivity when analyzing materials with different surface properties, such as metal, plastic, or painted surfaces. This adjustment improves measurement accuracy, matching the HT-19 to various building, mechanical, or electrical inspection tasks.

Q: Where can the HT-19 thermal camera be effectively deployed?

A: The HT-19 is suitable for use in industrial environments, construction sites, HVAC system inspections, veterinary clinics, and homes. Its wide measurement range and robust portability make it ideal for both field and on-site diagnostics.

Q: What benefits does the high-resolution sensor provide to users?

A: A 320x240 pixel array offers detailed imaging to detect small temperature variations and pinpoint faults effectively. This high resolution ensures greater diagnostic confidence and supports comprehensive documentation for maintenance or reporting purposes.

Q: How long can the camera be used on a full battery charge, and what charging method is used?

A: The built-in rechargeable lithium battery provides up to 2-3 hours of continuous use. Charging is accomplished via a standard micro USB interface, allowing convenient charging from portable power banks or wall adapters.
