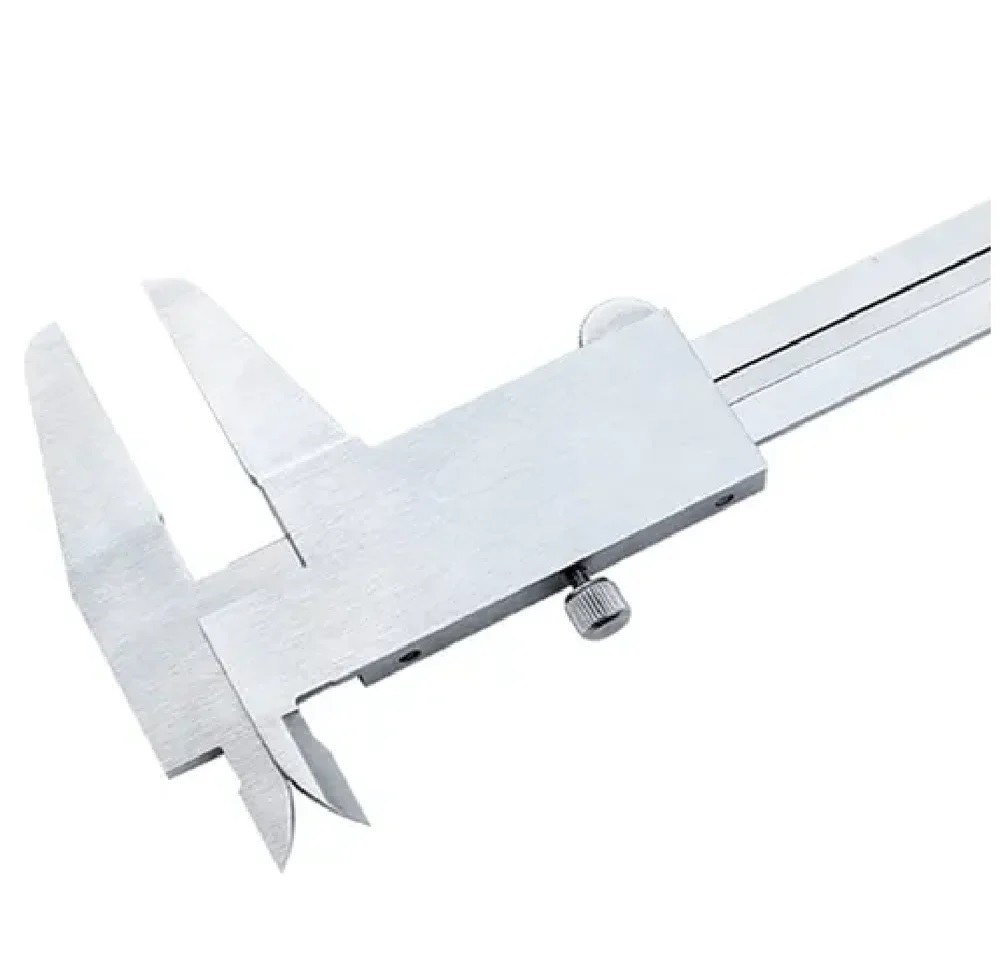

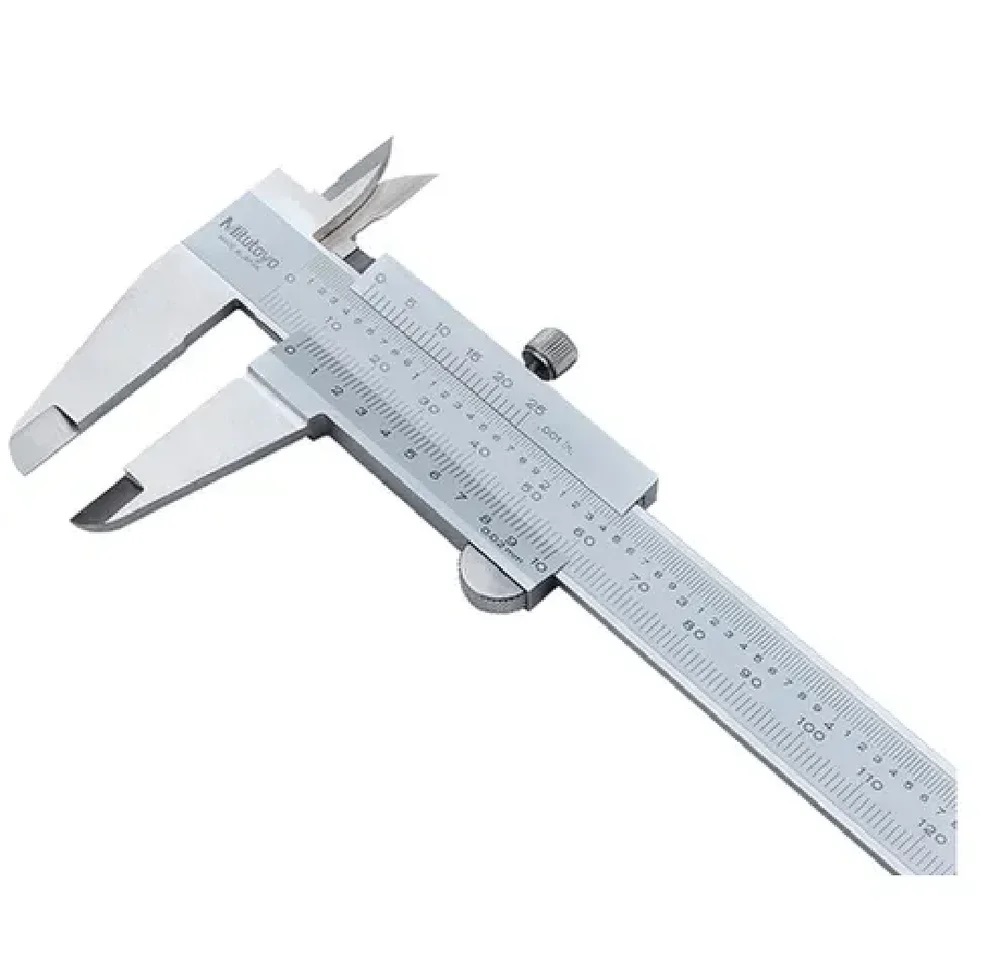

Mitutoyo Manual Vernier Caliper 530-119 12 Inch (0-300 mm) VC-14

Name: Mitutoyo Manual Vernier Caliper 530-119 12 Inch (0-300 mm) VC-14
Brand: True Sense Technologies
Price: 5400.0 INR
Availability: InStock

Price 5400.0 INR/ Set

Get a Price/Quote

MOQ : 1 Piece

Mitutoyo Manual Vernier Caliper 530-119 12 Inch (0-300 mm) VC-14 Specification

Connectivity Type
None; Manual instrument

Humidity %
35% - 75% RH (Recommended for storage/use)

Resolution
0.02 mm / 0.001 inch

Equipment Type
Vernier Caliper

Capacity
12 Inch (0-300 mm)

Application Media
Metal, Plastics, Engineering Components

Protection
Standard; No IP rating (Use in clean conditions recommended)

Temperature Range
5C - 40C (Operating Range)

Sensor Type
Mechanical Vernier Jaw

Measurement Range
0-300 mm / 0-12 inch

Diameter
N/A (caliper is for internal/external measurement)

Material
Stainless Steel

Power Supply
Manual (No external power required)

Accuracy
0.05 mm

Display Type
Analog (Vernier Scale)

Range
0-300 mm

Vernier Scale Graduation
0.02 mm / 0.001 inch

Model
530-119 (VC-14)

Type
Standard Type Vernier Caliper

Jaw Length
60 mm

Depth Bar
Included

Main Scale Graduation
1 mm / 0.05 inch

Measuring System
Metric/Inch dual scale

Finish
Satin Chrome

Mitutoyo Manual Vernier Caliper 530-119 12 Inch (0-300 mm) VC-14 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About Mitutoyo Manual Vernier Caliper 530-119 12 Inch (0-300 mm) VC-14

The 530 series from Mitutoyo are standard callipers for reliable measurements. These callipers are available in different measuring ranges.

Measures from 0mm to 300mm range.
Caliper and slide made of hardened corrosion free steel.
Main scale and slide is satin chrome finish, high reliability.
Raised sliding surfaces.
Meets DIN862 standards
Features upper locking screw.

Dual Scale Precision Measurement

This caliper supports both metric and inch systems, making it versatile for global engineering and fabrication tasks. Its 0.02 mm (0.001 inch) resolution lets users make exceptionally accurate measurements on metal, plastics, and various engineering components. The analog vernier scale is easy to read in a variety of working environments thanks to its satin chrome finish.

Rugged Build for Consistent Accuracy

Crafted from high-grade stainless steel, the 530-119 caliper withstands tough workshop conditions while maintaining calibration. Its durable mechanism and protected finish help minimize wear, while the 60 mm jaws and integrated depth bar broaden its measuring capacity for internal, external, and step dimensions.

FAQ's of Mitutoyo Manual Vernier Caliper 530-119 12 Inch (0-300 mm) VC-14:

Q: How do I use the Mitutoyo 530-119 Vernier Caliper for measurements?

A: To measure an object, open the jaws and place the item between them for external measurements or within them for internal measurements. Read the main and vernier scales for precise results, with accuracy up to 0.02 mm or 0.001 inch. The caliper also features a depth bar for height and depth readings.

Q: What types of materials can I measure with this caliper?

A: The Mitutoyo 530-119 Vernier Caliper is suitable for measuring metals, plastics, and a variety of engineering components. Its stainless steel construction is ideal for workshop and inspection use, provided it is operated in clean conditions to protect its precision mechanisms.

Q: Where can the Mitutoyo 530-119 caliper be used effectively?

A: This model is commonly used in machine shops, fabrication industries, engineering labs, and quality control departments in India and worldwide. For optimal accuracy, use the caliper in environments within the recommended temperature (5C-40C) and humidity (35%-75% RH) ranges.

Q: What benefits does the dual scale system offer?

A: The metric/inch dual scale enables users to swiftly measure and convert values between standard and metric units, accommodating international standards and diverse project requirements without the need for separate tools.

Q: Is any external power or connectivity required for this caliper?

A: No external power source is needed, as this is a fully manual, analog instrument. With no connectivity or battery requirements, it is reliable for extended use in almost any environment.

Q: What is the process for maintaining the caliper's accuracy?

A: Maintain accuracy by ensuring the caliper is kept clean, free from debris, and stored in a low-humidity, dust-free environment. Periodically check calibration with a standard gauge block and avoid exposing the instrument to harsh chemicals or moisture.
