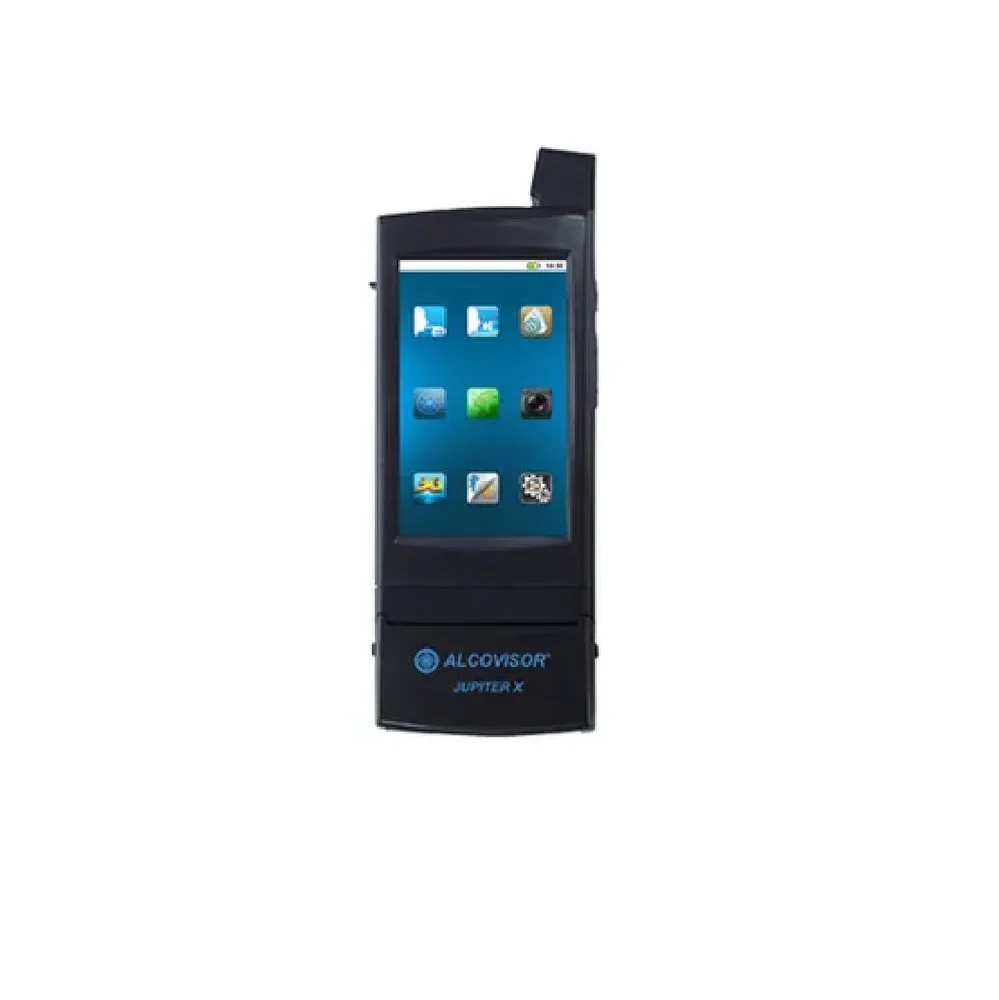

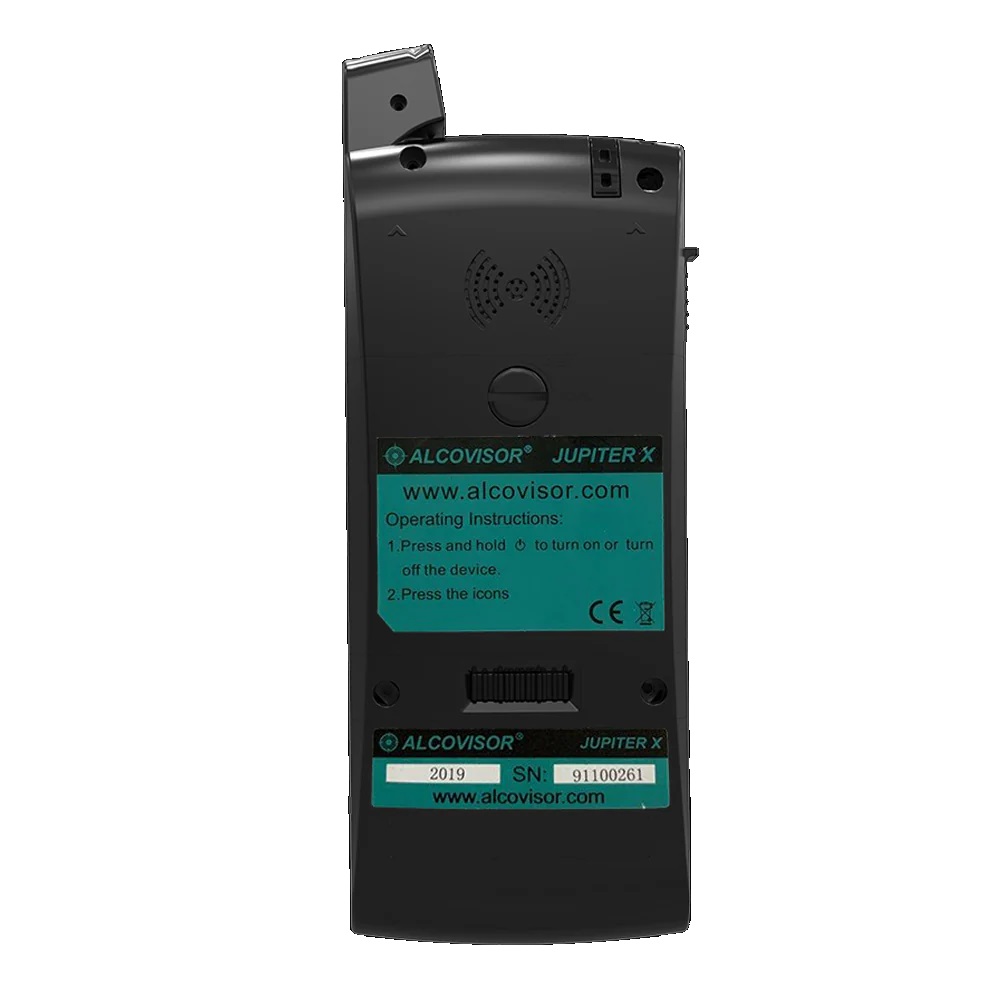

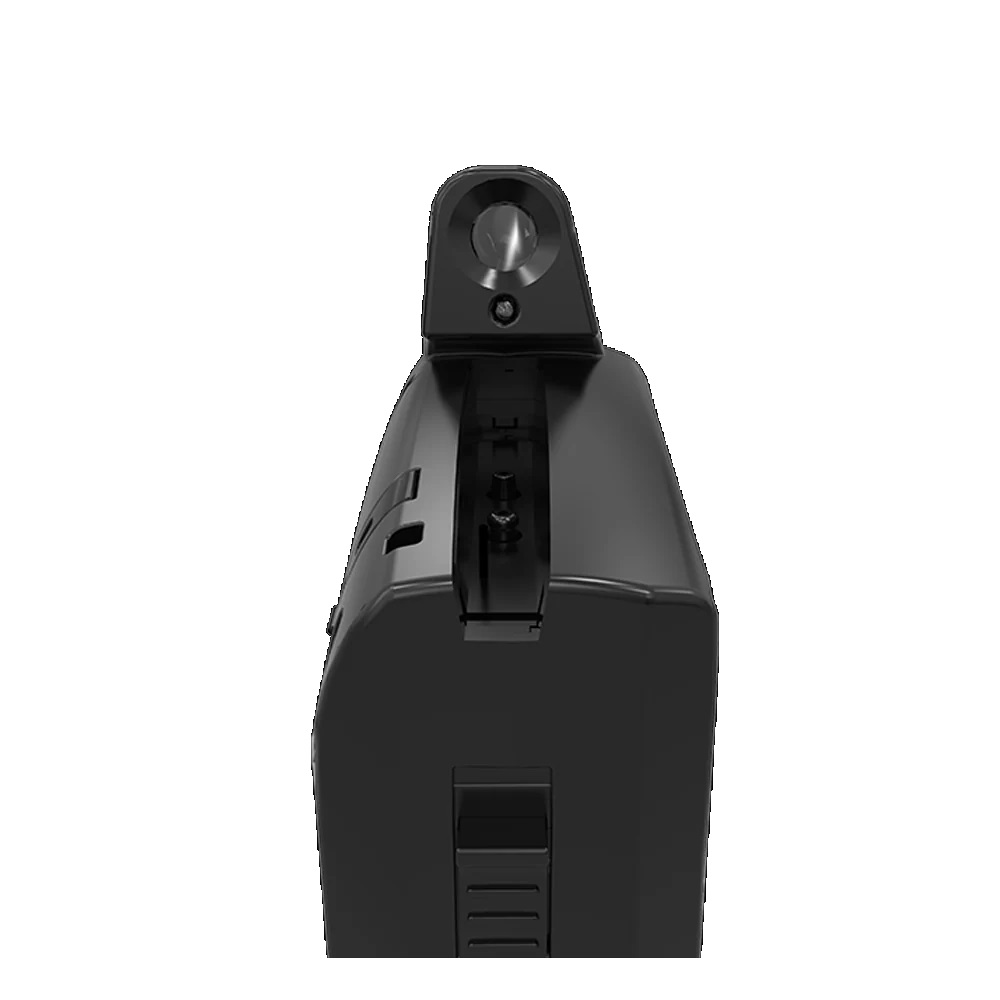

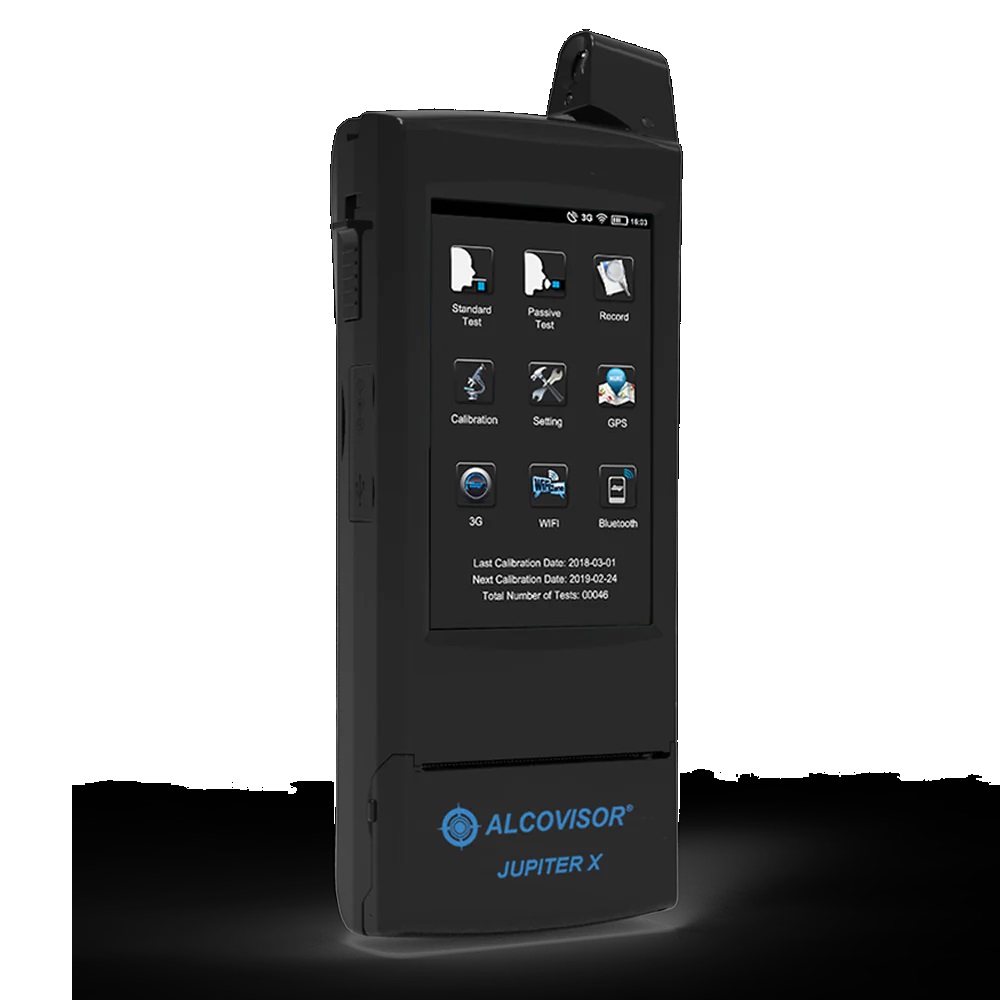

Jupiter X Inbuilt Printer Alcohol Breath Analyser, AT-09

Send Inquiry

Request To Call Back

Jupiter X Inbuilt Printer Alcohol Breath Analyser, AT-09

Name: Jupiter X Inbuilt Printer Alcohol Breath Analyser, AT-09
Brand: True Sense Technologies
Price: 42000.0 INR
Availability: InStock

Price 42000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Jupiter X Inbuilt Printer Alcohol Breath Analyser, AT-09 Specification

Display Type
2.8 inch LCD Display

Operating Voltage
DC 12V

Test Range
0.00-4.00 mg/L (BrAC)

Interface Type
USB, RS232, Bluetooth (Optional)

Resolution
0.01 mg/L

Measuring Range
0.00 - 4.00 mg/L (BrAC)

Response Time
3 seconds

Temperature
-10C to +50C

Mounting Type
Handheld

Humidity
95% RH

Power Supply
DC 12V, Rechargeable Battery

Application
Traffic Police, Industrial Use, Law Enforcement

Equipment Type
Portable Alcohol Detector with Printer

Features
Inbuilt Printer, Rechargeable Battery, User-Friendly Menu, Data Storage

Accuracy
0.05 mg/L

Automation Grade
Automatic

Gas Pressure
Atmospheric

Specimen Size
Sampled Breath

Port Size
Standard Sampling Port

Number of Specimens
Single

Frequency
50/60 Hz

Usage
Breath Alcohol Analysis

Capacity
10000 test records

Machine Weight
1.2 kg

Test Speed
<3 seconds

Control Mode
Automatic

Alarm Function
Audio and Visual Alert on Over Limit

Printer Type
Thermal Printer (inbuilt)

Calibration Interval
6 months (Recommended)

Power Adapter
100-240V AC, 50/60Hz

Print Speed
Approx. 2 seconds per print

Sample Collection Method
Mouthpiece

Operating Language
English (Multi-language Option)

Battery Backup
Up to 8 hours continuous testing

Memory Storage
Up to 10000 test results

Carrying Case
Provided

Dimensions
210 mm 78 mm 37 mm

Sensor Type
Fuel Cell Sensor

Battery Type
Rechargeable Lithium-ion battery

Data Output
Printable & USB exportable

Compliance
CE Certified

Jupiter X Inbuilt Printer Alcohol Breath Analyser, AT-09 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About Jupiter X Inbuilt Printer Alcohol Breath Analyser, AT-09

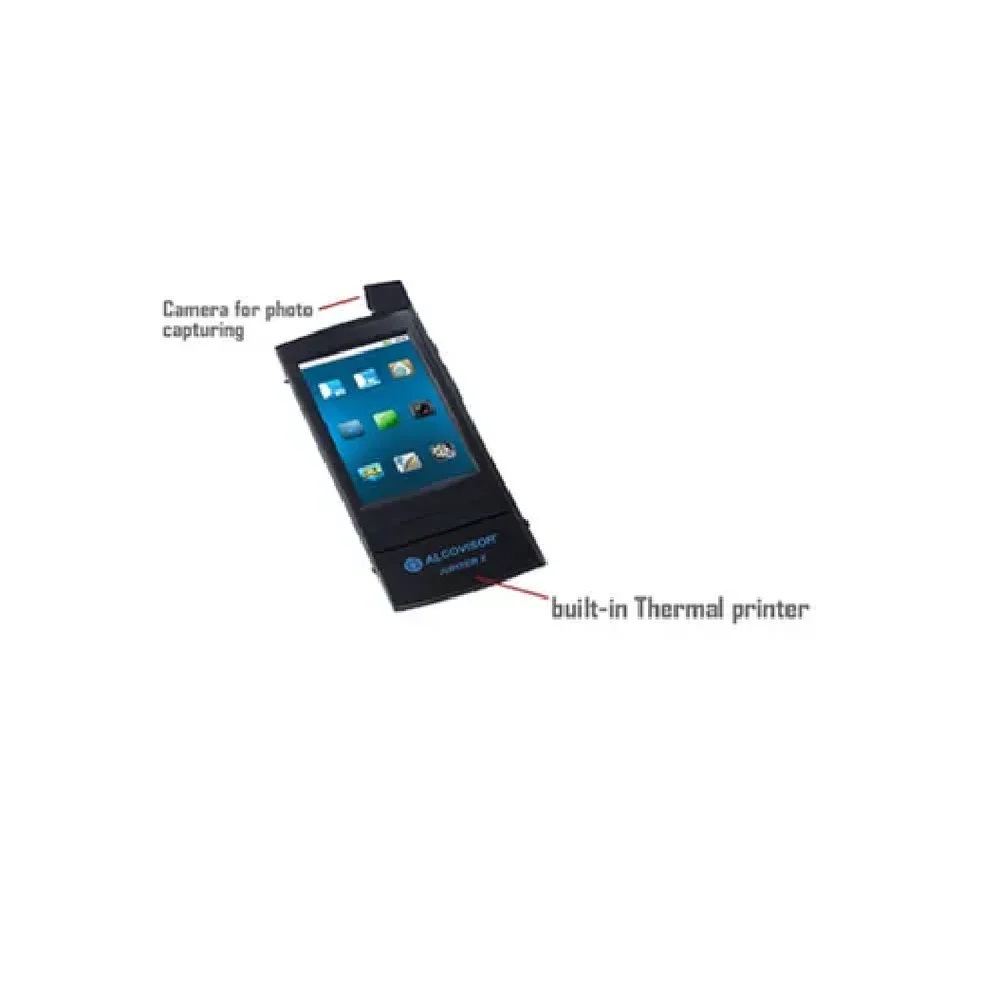

Jupiter X Alcohol Breath Analyser is the most advanced model with camera function. It has 4.3 Touch Screen, 50K Memories, Inbuilt Thermal Printer and GPSJupiter X Alcohol Breath Analyser is the most advanced model with camera function. It has 4.3 Touch Screen, 50K Memories, Inbuilt Thermal Printer and GPS.

Key Features

Built-in Printer, GPS
3G/WIFI
Photo Capture
Provide evidential records by auto capturing while subject blowing
50,000 tests records stored in memory
4.3 Colour Touch Screen
Mouthpiece can be automatically ejected
USB PC connection

Specification

Sensor	Fuel Cell
Wireless Communication	3G, WIFI
Working Temperature	-10 C to 50 C
Storage Temperature	-30 C to 70 C
Size	21.2cm x 8cm x 3.6cm
Weight	423g included battery
Battery	7.4V 1800mAh NI-MH rechargeable battery
Battery Life	700 tests (250 tests with printout)
Memory	50,000 tests records including all information
Display	4.3 TFT colour touch screen
Camera	3 Megapixel 120 wide angle lens
Response Time	5 seconds
Sampling System	Automatically or manually takes a lung sample
Optional Power	Supply 12 volt car adapter or AC 6 volt adapter
Units of Measure	BrAC: mg/L, or other units BAC: grm%, mg/mL, mg/100mL, or other units
Detection Range	0.00% BAC to 0.4% BAC
Accuracy	0 0.10% BrAC +/-5% 0.10 0.15% BrAC +/-8% >0.15 +/-10%
GPS	+/- 5M
Printer	Thermal Printer
Connection	USB

Fast, Accurate, and Effortless Testing

The AT-09 offers rapid breath analysis with under-three-second response time and high accuracy, making it an ideal tool for law enforcement, industrial safety, and on-the-go use. Its inbuilt thermal printer provides printed reports almost instantly, while the memory can store up to 10,000 test records for easy tracking and compliance. Whether you're testing at the roadside or onsite, its portable design and rechargeable battery make operations seamless and reliable.

Designed for Versatile Applications

Engineered for both traffic police and industrial sectors, this device functions flawlessly in diverse environments, thanks to its robust fuel cell sensor and CE certification. With English and multi-language options, clear LCD display, and simple user interface, it caters to operators of all skill levels. A supplied carrying case and included mouthpieces ensure sanitary and convenient sample collection wherever needed.

FAQ's of Jupiter X Inbuilt Printer Alcohol Breath Analyser, AT-09:

Q: How does the Jupiter X AT-09 collect and analyze breath samples?

A: This device uses a fuel cell sensor to analyze breath samples collected via a mouthpiece. Test subjects exhale into the mouthpiece, and the sensor measures the blood alcohol content (BrAC) to deliver a result within three seconds.

Q: What is the process for printing and exporting results?

A: Once the breath test is complete, the inbuilt thermal printer automatically prints results in about two seconds. For data management, stored records (up to 10,000) can be exported via USB, RS232, or optional Bluetooth interfaces.

Q: When should the device be calibrated?

A: For optimal accuracy, calibration is recommended every six months, or after significant operating periods if used intensively. Regular calibration helps maintain consistent and reliable measurement results.

Q: Where is this device commonly used?

A: The Jupiter X AT-09 is primarily utilized by traffic police for roadside checks, law enforcement for legal compliance, and industrial organizations to enforce workplace safety policies.

Q: What are the benefits of the inbuilt thermal printer in this analyser?

A: The integrated printer allows users to generate physical test records immediately, supporting accurate documentation for compliance, legal evidence, or recordkeeping needs. This eliminates additional steps and boosts efficiency on site.

Q: How long does the battery last, and what is the power setup?

A: Powered by a rechargeable lithium-ion battery, the AT-09 offers up to 8 hours of continuous testing. It charges via a 100-240V AC power adapter or runs on DC 12V supply for flexibility across various locations.

Q: Is it easy to transport and use in different environments?

A: Weighing just 1.2 kg and supplied with a carrying case, the AT-09 is both lightweight and portable. Its robust design, humidity and temperature tolerance, and multi-language menu make it easy to operate in diverse field conditions.
