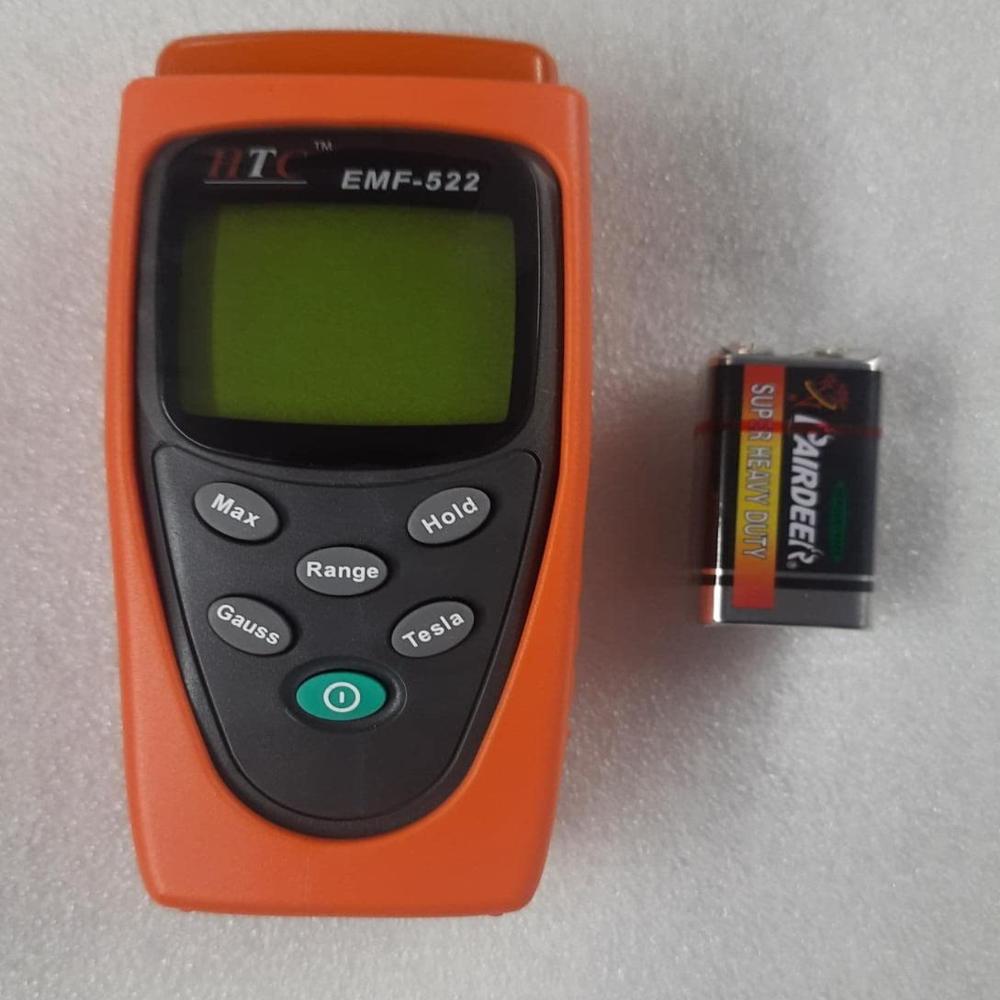

HTC Single Axis EMF Tester, EMF-522

Name: HTC Single Axis EMF Tester, EMF-522
Brand: True Sense Technologies
Price: 4629.0 INR
Availability: InStock

Price 4629.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HTC Single Axis EMF Tester, EMF-522 Specification

Application
Detecting electromagnetic field (EMF) radiation levels

Humidity
0-80% RH

Accuracy
(4% + 3 digits)

Operating Voltage
9V

Display Type
Digital LCD Display

Frequency
50Hz/60Hz

Mounting Type
Handheld

Response Time
1 second

Temperature
-10C to 50C

Number of Specimens
Single Axis Measurement

Measuring Range
0~199.9 mG / 0~19.99 T

Power Supply
9V Battery

Features
Data hold function, max value hold, low battery indicator, auto power off

Automation Grade
Manual

Test Range
0~199.9 mG / 0~19.99 T

Equipment Type
Single Axis EMF Tester

Resolution
0.1 mG / 0.01 T

Usage
Measuring electromagnetic fields

Machine Weight
About 170g (including battery)

Control Mode
Manual

Dimension
165mm 69mm 34mm

Standard Accessories
User Manual, Battery, Carrying Case

Low Battery Indication
Yes

Model Number
EMF-522

Sensor Type
Single Axis

Auto Power Off
Yes (after about 15 min without operation)

Operating Principle
Hall Effect Sensor

HTC Single Axis EMF Tester, EMF-522 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About HTC Single Axis EMF Tester, EMF-522

Model No: EMF-522

Display: 3 Digits

LCD Counts: 1999

Range: 200 - 200T

Resolution: 0.1 - 0.1T

Accuracy: (2.5%+6)

Frequency: 30Hz - 300Hz

Sample Rate: 2.5 times/SOperating

Temperature: 5 C - 40 COperating Humidity: below 80% RH

Storage Temperature: -10 C - 60 C

Starage Humidity: below 70% RH

Power: 9V Battery

Battery Life: 100 hours Standard

Accessories: Carrying case, Manual, 9V Battery

Dimensions: 130 x 56 x 38mm

Precise Single Axis Measurement

With its advanced Hall Effect sensor, the EMF-522 delivers reliable single axis measurements of electromagnetic fields. Its high accuracy (4% + 3 digits) and quick response time ensure trustworthy readings during inspections in homes, offices, and industrial sites.

User-Friendly Design

This EMF tester is designed with simplicity in mind. Its intuitive digital LCD display, manual control mode, automatic power-off feature, and lightweight construction make it easy to use and carry during routine EMF checks.

Comprehensive Accessories

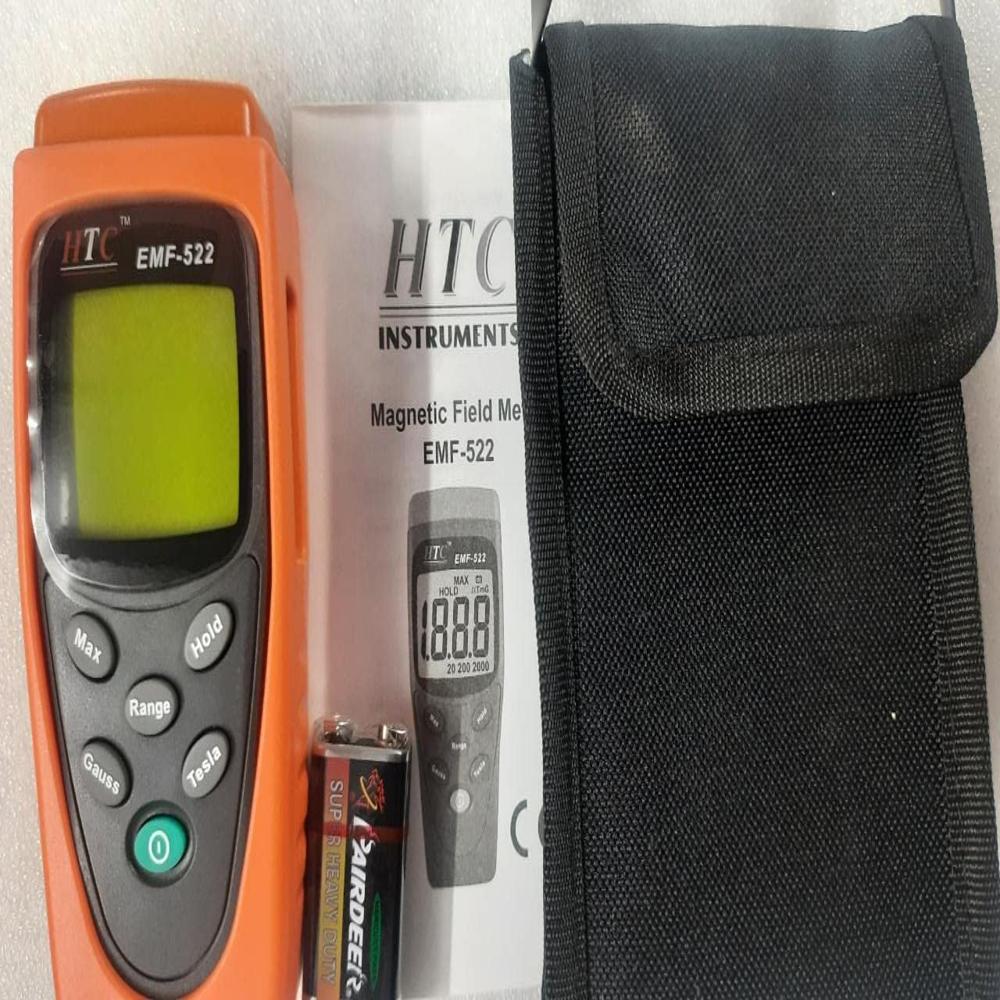

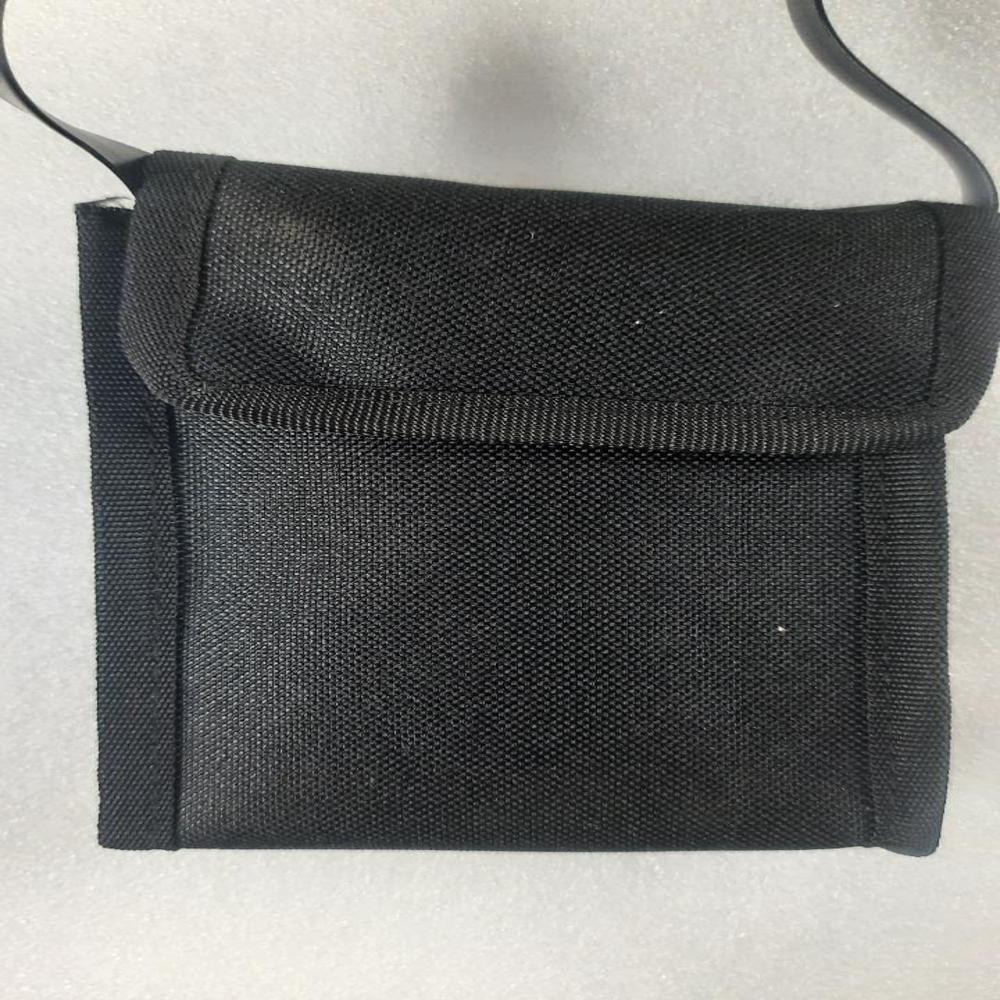

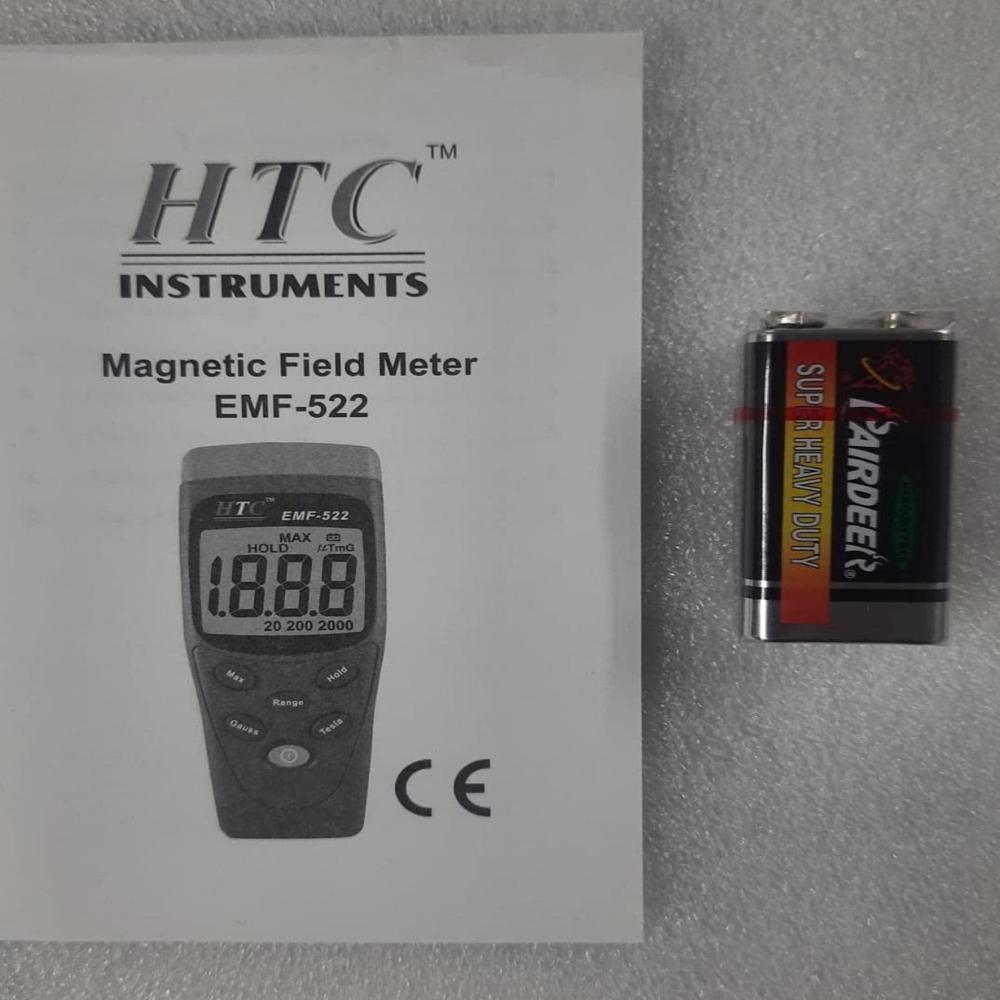

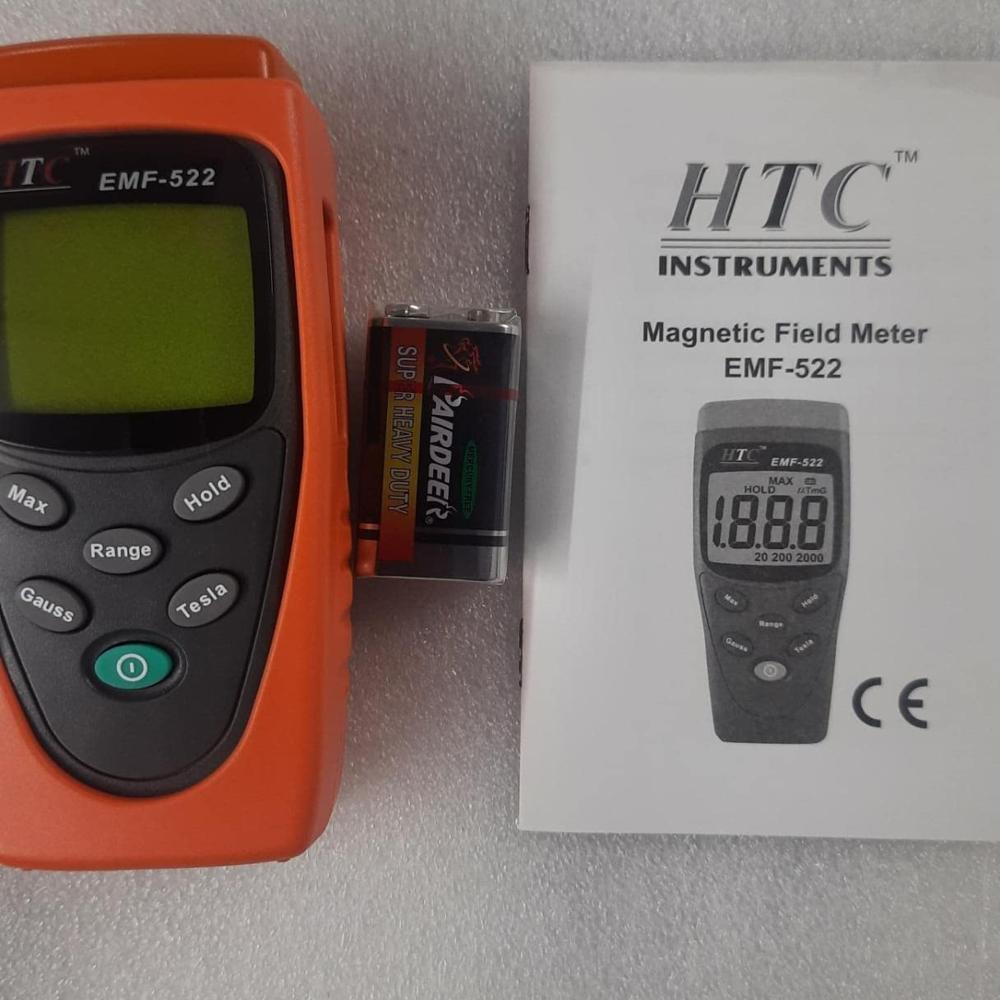

The EMF-522 comes packaged with a user manual, a 9V battery, and a convenient carrying case. These standard accessories ensure that users can begin testing right out of the box and safely transport the device wherever needed.

FAQ's of HTC Single Axis EMF Tester, EMF-522:

Q: How does the HTC EMF-522 detect and measure electromagnetic fields?

A: The HTC EMF-522 uses a Hall Effect sensor to detect and measure electromagnetic fields along a single axis. It provides digital readings that represent EMF radiation levels within the range of 0~199.9 mG or 0~19.99 T with high accuracy.

Q: What is the process for operating this EMF tester?

A: To operate the EMF-522, simply insert the included 9V battery, power on the device using manual controls, and hold the tester near the area to be measured. The digital LCD will display the EMF intensity, and you can use the data hold or max value hold functions as needed.

Q: Where can the HTC EMF-522 be effectively used?

A: This EMF tester is suited for use in households, offices, industrial zones, or any location where electromagnetic radiation monitoring is required. Its handheld, portable design enables easy movement between sites.

Q: When does the device automatically power off, and why is this feature important?

A: The EMF-522 will automatically power off after about 15 minutes of inactivity to conserve battery life. This feature helps ensure reliable performance and maximizes operational readiness.

Q: What are the main benefits of using the EMF-522?

A: Users benefit from real-time, accurate EMF readings, quick response time, and convenience thanks to its digital display, manual operation, low battery indication, and included accessories for immediate use.
