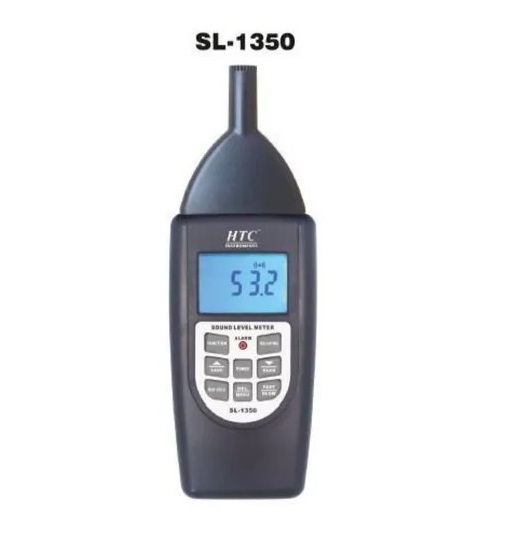

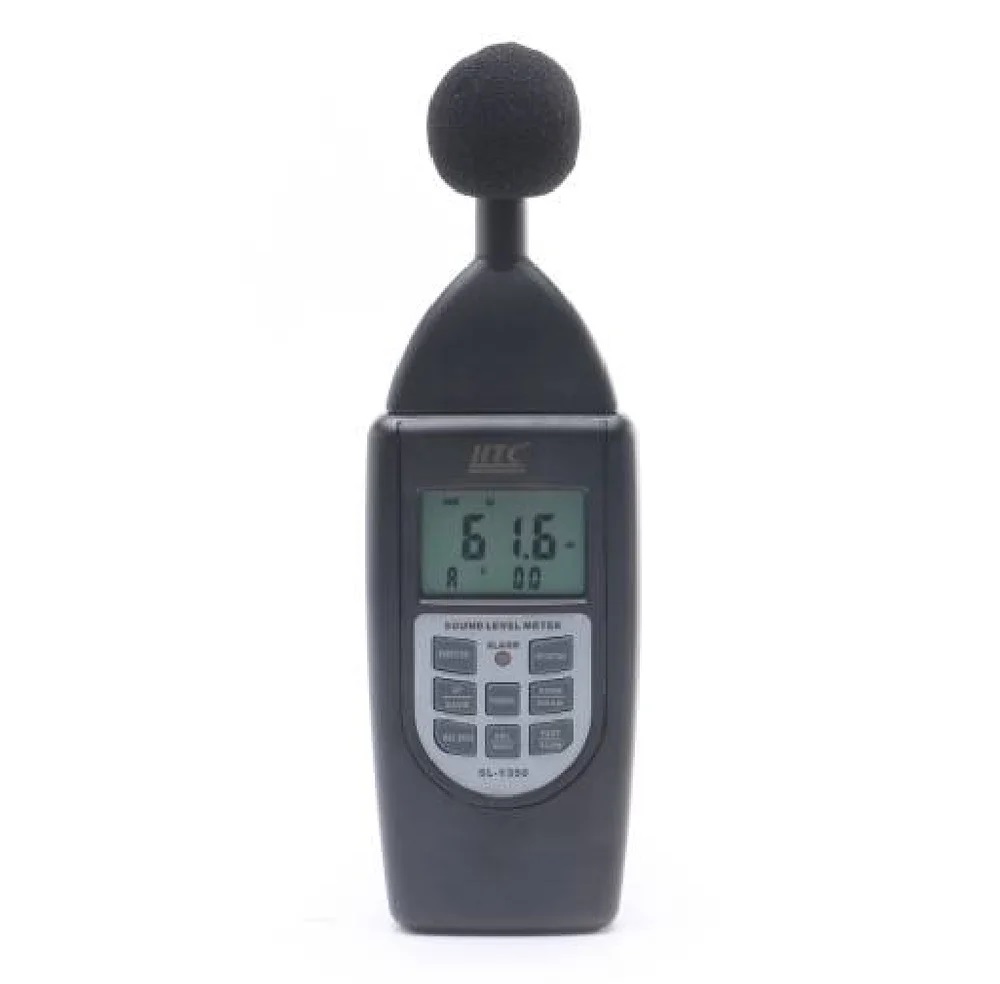

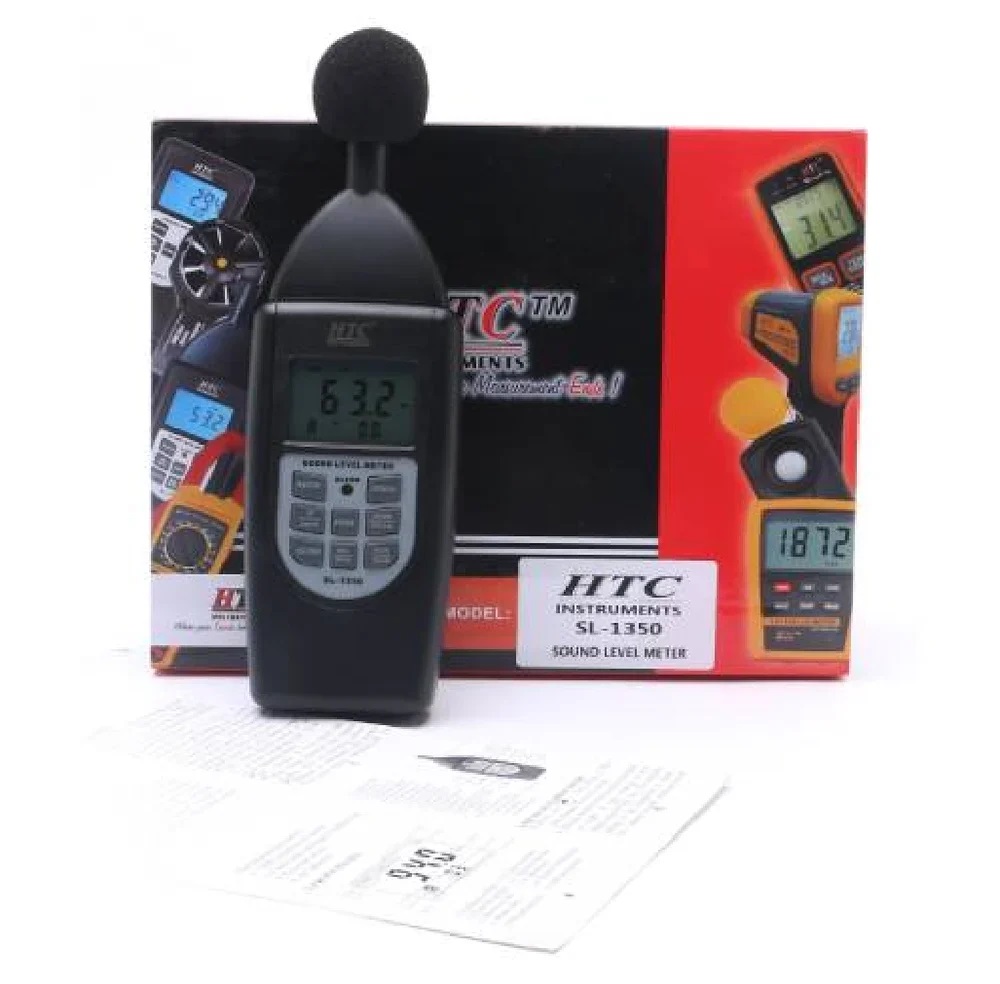

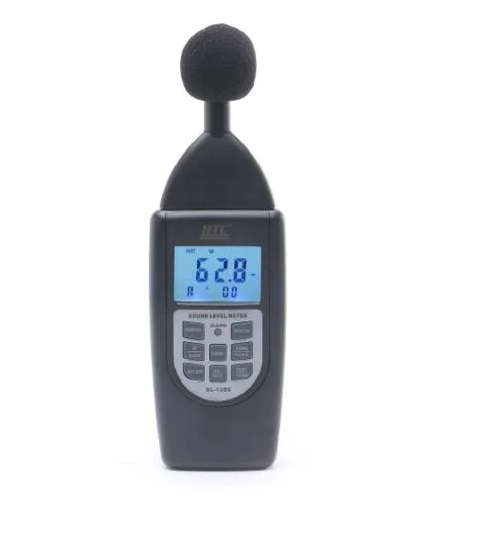

HTC Instruments Sound Level Meter, SL-1350

Name: HTC Instruments Sound Level Meter, SL-1350
Brand: True Sense Technologies
Price: 2665.0 INR
Availability: InStock

Price 2665.0 INR/ Set

Get a Price/Quote

MOQ : 1 Piece

HTC Instruments Sound Level Meter, SL-1350 Specification

Measurement Range
30 to 130 dB

Humidity %
10% to 80% RH

Sensor Type
Electret condenser microphone

Application Media
Sound Level Measurement

Frequency
31.5Hz ~ 8kHz

Protection
Over range indication

Temperature Range
0C to 40C

Diameter
Microphone diameter: 1/2 inch

Resolution
0.1 dB

Material
ABS plastic

Power Supply
9V battery (006P or equivalent)

Power Consumption
Approx. 30mA

Accuracy
1.5 dB

Display Type
LCD

Range
30 to 130 dB

Frequency Weighting
A & C Weighting

Equipment Type
Sound Level Meter

Dimensions
210 x 55 x 32 mm

Weight
Approx. 170g (including battery)

Response Time
Fast (125ms), Slow (1s)

Max Hold Function
Yes

Calibration
Manual calibration with 94dB source

HTC Instruments Sound Level Meter, SL-1350 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About HTC Instruments Sound Level Meter, SL-1350

HTC Digital Sound Level Meter SL-1350 is a high-accuracy sound pressure level meter suitable for industrial, environmental, and occupational applications. Adjustable response times ensure precise measurement in various conditions.

Features:

Measures sound levels accurately
A, C, and Flat frequency weighting
Adjustable fast/slow response
LCD display for clear readings
Portable handheld design
Lightweight and durable
Ideal for industrial and environmental monitoring
Data hold function
Easy operation
Reliable performance

Versatile Sound Level Measurement

The HTC SL-1350 offers A and C frequency weighting, making it suitable for a variety of noise monitoring requirements-from occupational safety to environmental sound checks. Its broad range (30 to 130 dB) and 0.1 dB resolution ensure highly precise readings no matter the setting.

User-Friendly and Durable Design

This sound level meter features an ergonomic ABS plastic build, a lightweight profile, and an intuitive LCD display for easy operation. The device's long battery life and simple manual calibration process make it convenient for frequent on-site use.

Reliable Accuracy and Performance

With a 1.5 dB accuracy, fast measurement response, and over-range indication, the SL-1350 is engineered for dependable performance. The included max hold function captures peak sound levels, ensuring critical values are never missed during measurements.

FAQ's of HTC Instruments Sound Level Meter, SL-1350:

Q: How do I calibrate the HTC SL-1350 Sound Level Meter?

A: Manual calibration is easily performed using a 94dB sound source. Place the calibrator over the 1/2-inch microphone and adjust according to the device's instructions until the reading matches the calibration value.

Q: What is the measurement range and accuracy of this sound level meter?

A: The SL-1350 can measure sound levels from 30 dB to 130 dB, with a high accuracy of 1.5 dB and a resolution of 0.1 dB, making it suitable for both low and high noise environments.

Q: When should I use the fast and slow response times?

A: Use the fast response time (125ms) for rapidly changing noise, such as impulsive sounds. The slow response (1s) is ideal for environments with steady, continuous noise to provide a more stable reading.

Q: Where can the SL-1350 be used effectively?

A: This meter can be effectively used in workplaces, construction sites, auditoriums, offices, and during environmental noise assessments, thanks to its wide dynamic range and selectable frequency weightings.

Q: What is the process for measuring sound with this device?

A: Switch on the device, select the appropriate response time and frequency weighting, and position the microphone towards the sound source. Read the measurement on the LCD display. Use the max hold function to capture peak sound levels if needed.

Q: What are the benefits of using the HTC SL-1350 for sound level measurement?

A: Its portability, robust design, reliable accuracy, and versatile application range make it ideal for professionals needing consistent and precise noise assessments across multiple environments.
